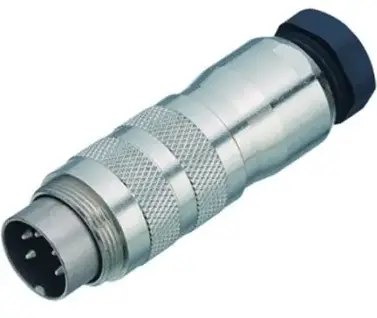

STAHL 169186 miniCLIX Plug Connector Plug

Installation Equipment

miniCLIX plug connector Plug

Multiple options for easy use, simple installation and maintenance
Safe and fast disconnection under load
4/ 4+1- pole, up to 10 A, high transfer rate (100 MBit/ s) ideal for fieldbus installations
Suitable for harsh industry environments, IP66/ IP68, for Zones 1, 2, 21 and 22

WebCode 8591A

R. STAHL Series 8591/ 1 and 8591/ 4 4- pole, explosion- protected miniCLIX plug connectors disconnect non- instrinsically safe circuits up to 250 V/ 10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel- plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.

Technical Data

Explosion Protection
Application range (zones)	1
	2
	21
	22
IECEx gas certificate	IECEx BKI 07.0001X
IECEx gas explosion protection	Ex db eb IIC T6 Gb
IECEx dust certificate	IECEx BKI 07.0001 X
IECEx dust explosion protection	Ex tb IIIC T60 °C Db
ATEX gas certificate	PTB 03 ATEX 1097 X
ATEX gas explosion protection	E II 2 G Ex db eb IIC T6 Gb
ATEX dust certificate	PTB 03 ATEX 1097 X
ATEX dust explosion protection	E II 2 D Ex tb IIIC T60 °C Db
Certificates	ATEX (PTB), IECEx (BKI)
Electrical Data
Rated operational voltage DC	24 V
Switching capacity	IEC/EN 60947-4
	AC-3: 250 V / 1 A
	DC-3: 60 V / 0.5 A
	IEC/EN 61984
	AC: 250 V / 10 A
	DC: 60 V / 2.5 A
Ambient Conditions
Ambient temperature	-55 °C … +40 °C

Note	-25 … +40 °C plastic version -55 … +40 °C plastic version, impact-protected, Ith max. 10 A -55 … +40 °C metal version, Ith max. 10 A -55 … +75 °C metal version, Ith max. 2 A -55 … +75 °C metal version, impact-protected, Ith max. 2 A
With limited rated current	Ta [°C]
	80
	75
	70
	65
	60
	55
	50
	45
	40
	35
	0 1	2	3	4	5	6	7	8	9	10	I [A]

Degree of protection (IP)	IP66
Degree of protection note	IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents)
Enclosure material	Plastic
Clamping range	4….. 7.5 mm
Recommended colour ring coding	Grey
Coding (clock hour position)	8
Detailed number of poles	4 P
Weight	0.083 kg
Weight	0.18 lb

Connection type

1.5 mm² crimp

Connection type

1.5 mm² crimp

Technical Drawings – Subject to Alterations

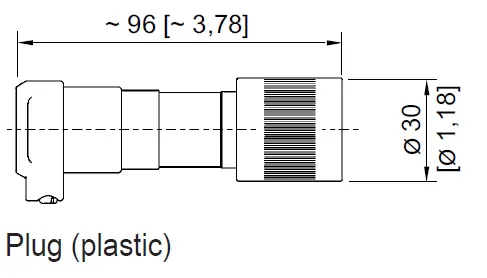

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Accessories

Angled adaptor		Art. No.
	plastic (polyamide)	154472
	brass, nickel-plated	154476

Anti- twist protection

for flange socket, device plug

154570

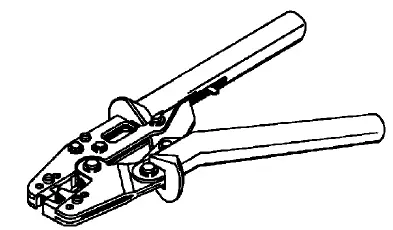

Crimping tool

for all crimp connection versions up to 4 mm²

109116

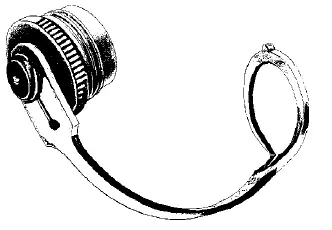

Protective cap Art. No.for

for plug, device plug: plastic (polyamide)

109349

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
