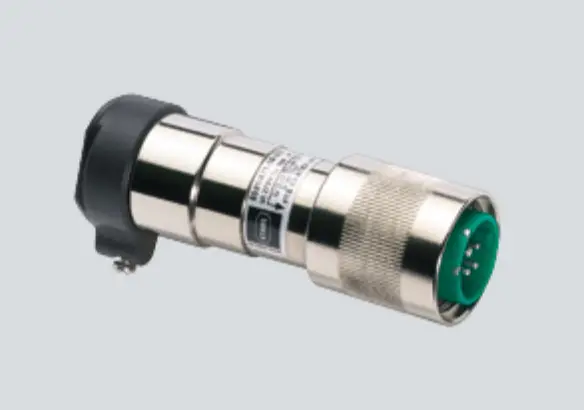

STAHL 169188 miniCLIX Plug Connector Plug
- Multiple options for easy use, simple installation and mainte-nance
- Safe and fast disconnection under load
- 4/ 4+1- pole, up to 10 A, high transfer rate (100 MBit/ s) ideal for fieldbus installations
- Suitable for harsh industry environments, IP66/ IP68, for Zones 1, 2, 21 and 22
R. STAHL Series 8591/ 1 and 8591/ 4 4- pole, explosion- protected miniCLIX plug connectors discon-nect non- instrinsically safe circuits up to 250 V/ 10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel- plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.
Technical Data
| Explosion Protection | |
| Application range (zones) | 1 2 21 22 |
| IECEx gas certificate | IECEx BKI 07.0001X |
| IECEx gas explosion protection | Ex db eb IIC T6 Gb |
| IECEx dust certificate | IECEx BKI 07.0001 X |
| IECEx dust explosion protection | Ex tb IIIC T60 °C Db |
| ATEX gas certificate | PTB 03 ATEX 1097 X |
| ATEX gas explosion protection | E II 2 G Ex db eb IIC T6 Gb |
| ATEX dust certificate | PTB 03 ATEX 1097 X |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC T60 °C Db |
| Certificates | ATEX (PTB), IECEx (BKI) |
| Electrical Data | |
| Rated operational voltage DC | 24 V |
| Switching capacity | IEC/EN 60947-4 AC-3: 250 V / 1 A DC-3: 60 V / 0.5 A
IEC/EN 61984 AC: 250 V / 10 A DC: 60 V / 2.5 A |

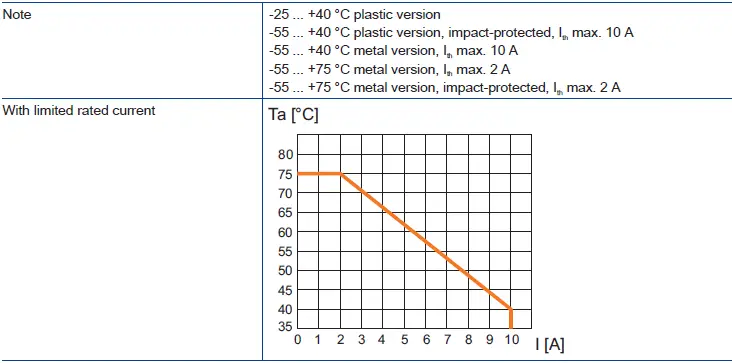

| Ambient Conditions | |
| Ambient temperature | -55 °C … +40 °C |
Ambient Conditions
Mechanical Data
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents) |
| Enclosure material | Nickel-plated brass |
| Clamping range | 4…. 7.5 mm |
| Recommended colour ring coding | Grey |
| Coding (clock hour position) | 8 |
| Detailed number of poles | 4 P |
| Weight | 0.168 kg |
| Weight | 0.37 lb |
Mounting / Installation
| Connection type | 1.5 mm² crimp |
COMPONENTS
| Locking device present | No |
| Protective cap available | No |
Technical Drawings
Dimensional Drawings
(All Dimensions in mm [inches]) – Subject to Alterations
Accessories
Angled adaptor
 | plastic (polyamide) | 154472 |
 | brass, nickel-plated | 154476 |
Anti- twist protection
 | for flange socket, device plug | 154570 |
Crimping tool
 | for all crimp connection versions up to 4 mm² | 109116 |
Protective cap
 | for plug, device plug: brass, nickel-plated | 109347 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding
