STAHL 8573D Plug 16 A Extra Low Voltage
8573/12-210 Art. No. 243203
- Wide temperature range for use
- High mechanical impact and shock resistance
- Perfect protection against the ingress of liquids and dust
- 3D data available to download from the website
WebCode 8573D
- The new R. STAHL Series 8573/ 12 plugs are designed for 2- or 3- pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases.
- The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion- free contact pins made from high- quality materials ensure optimum electrical contact.
- The new Series 8573/ 12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
Technical Data
| Explosion Protection | |
| Scope of validity | European Union (ATEX) IECEx China (CQST) |
| Application range (zones) | 1 2 21 22 |
| IECEx gas certificate | IECEx PTB 16.0029 |
| IECEx gas explosion protection | Ex eb IIC T6 Gb |
| IECEx dust certificate | IECEx PTB 16.0029 |
| IECEx dust explosion protection | Ex tb IIIC T70 °C Db |
| ATEX gas certificate | PTB 16 ATEX 1017 |
| ATEX gas explosion protection | E II 2 G Ex eb IIC T6 Gb |
| ATEX dust certificate | PTB 16 ATEX 1017 |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC T70 °C Db |
| Certificates | ATEX (PTB), China (CQST), EAC (CCVE), IECEx (PTB) |
| Explosion protection note | Product label may vary. Series devices have certification according to ATEX and IECEx. |
| Electrical Data | |
| Rated operational voltage | 20 to 25 V DC |
| Rated operational current | min. 16 A / max. 3 A |
| Mechanical service life | > 5×103 mating cycles |
| Type of voltage | Extra-low voltage |
| Ambient Conditions | |
| Ambient temperature | -50 °C … +40 °C (3 A) -50 °C … +60 °C (16 A) |
8573/12-210 Art. No. 243203
| Ambient Conditions | |
| Ambient temperature | -58 °F … +104 °F (3 A) -58 °F … +140 °F (16 A) |
| Mechanical Data | |
| IP degree of protection (IEC 60529) | IP66 |
| IP degree of protection (IEC 60079) | IP64 |
| Enclosure material | Polyamide, Glass fibre reinforced |
| Silicone-free | No |
| Silicone-free note | Optional: Silicone-free variant available on request (ambient temperature -40 °C to +60 ° C) |
| Finely stranded connection cross-section | 1 x 0.75 mm² … 1 x 10 mm² |
| Connection cross-section AWG finely stranded | 1 x AWG 18 … 1 x AWG 8 |
| Width | 78 mm |
| Width in inches | 3.07 in |
| Height | 78 mm |
| Height, inches | 3.07 in |
| Length | 166 mm |
| Length, inches | 6.54 in |
| Impact strength (IEC 60079) | 7 J |
| Impact strength (IEC 62262) | IK10 |
| Colour code | Violet |

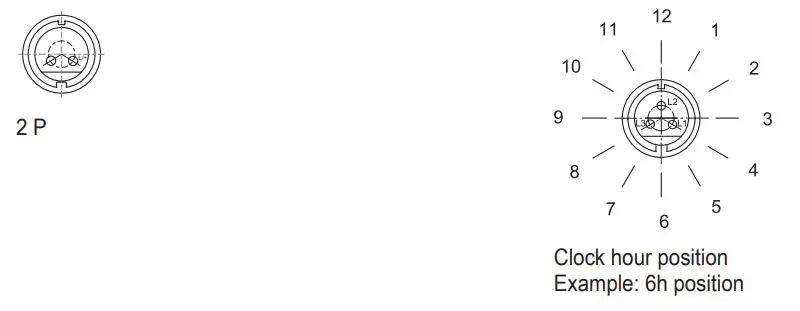

| Coding (clock hour position) | 10 |
| Series | SolConeX |
| Detailed number of poles | 2 P |
| Weight | 0.3 kg |
| Weight | 0.66 lb |
| Mounting / Installation | |
| Connection | Screw terminal |
| Components | |
| Cable diameter | 8 – 15 mm |
| Cable diameter inch | 0.31 – 0.59 in |
Technical Drawings – Subject to Alterations
Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

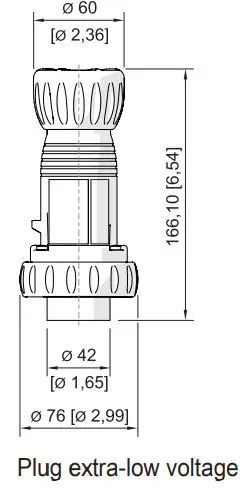

Plug extra-low voltage
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
