STAHL 243172 Wall Socket 16 A Compact Extra-Low Voltage
Installation Equipment

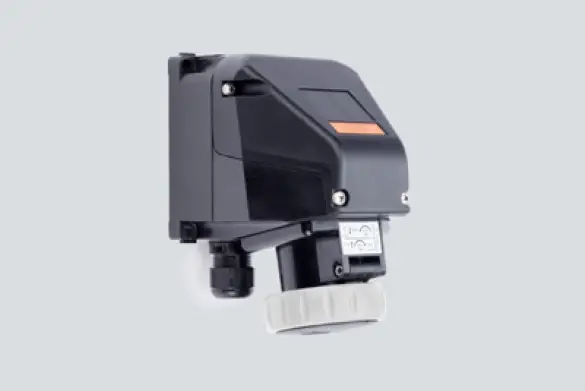

Wall socket 16 A compact extra-low voltage 8573/13-212 Art. No. 243172
- Compact dimensions
- Wide temperature range for use
- High mechanical impact and shock resistance
- Perfect protection against the ingress of liquids and dust
- 3D data available to download from the website
WebCode 8573B
The sockets of the new R. STAHL Series 8573/ 13 are for 2- or 3- pole applications up to 16 A. The compact sockets for extra-low voltage up to 50 V are made from robust and chemical-resistant plastics. Self-cleaning lamellar contacts provide optimum contact. The integrated rotary switch mechanism and integrated locking device reliably prevent disconnection under loads. The new compact socket from Series 8573/ 13 replaces Series 8575 sockets, is 100% compatible with this series, and can be used with Series 8575 plugs.
Technical Data
| Explosion Protection | |
| Scope of validity | European Union (ATEX) IECEx China (CQST) |
| Application range (zones) | 1 2 21 22 |
| IECEX gas certificate | IECEx PTB 16.0029 |
| IECEx gas explosion protection | Ex db eb IIC T6 Gb |
| IECEX dust certificate | IECEx PTB 16.0029 |
| IECEx dust explosion protection | Ex tb IIIC T70 °C Db |
| ATEX gas certificate | PTB 16 ATEX 1017 |
| ATEX gas explosion protection | E II 2 G Ex db eb IIC T6 Gb |
| ATEX dust certificate | PTB 16 ATEX 1017 |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC T70 °C Db |
| Certificates | ATEX (PTB), China (CQST), EAC (CCVE), IECEx (PTB) |
| Explosion protection note | Product label may vary. Series devices have certification according to ATEX and IECEx. |
| Electrical Data | |
| Rated operational voltage AC | 40 to 50 V AC |
| Rated operational current | max. 16 A |
| Electrical service life | > 5×103 switching cycles |
| Mechanical service life | > 5×103 switching cycles |
| Type of voltage | Extra-low voltage |
| Frequency range | 50 / 60 Hz |
| Device Specific Data | |
| Back-up fuse with thermal protection | 35 A gG |
| Device Specific Data | |
| Back-up fuse without thermal protection | 16 A gG |
| Ambient Conditions | |
| Ambient temperature | -50 °C … +40 °C -50 °C … +60 °C ( ) |
| Ambient temperature | -58 °F -58 °F … +140 °F |
| Mechanical Data | |
| Degree of protection note | according to IEC/EN 60529 |
| IP degree of protection (IEC 60529) | IP66 |
| IP degree of protection (IEC 60079) | IP64 |
| Enclosure material | Polyamide, Glass fibre reinforced |
| Silicone-free | No |
| Silicone-free note | Optional: Silicone-free variant available on request (ambient temperature -40 °C to +60 ° C) |
| Solid connection cross-section | 1 x 0.75 mm² … 2 x 4 mm² |
| Connection cross-section AWG single stranded | 1 x AWG 18 … 2 x AWG 12 |
| Finely stranded connection cross-section | 1 x 0.75 mm² … 2 x 4 mm² |
| Connection cross-section AWG finely stranded | 1 x AWG 18 … 2 x AWG 12 |
| Width | 106 mm |
| Width in inches | 4.17 in |
| Height | 138 mm |
| Height, inches | 5.43 in |
| Length | 180 mm |
| Length, inches | 7.08 in |
| Impact strength (IEC 60079) | 7 J |
| Colour code | Light grey |
| Coding (clock hour position) | 12 |
| Series | SolConeX |
| Detailed number of poles | 2 P |
| Weight | 0.3 kg |
| Weight | 0.66 lb |
| Mounting / Installation | |
| Connection | Screw terminal |
| Components | |
| Cable entry note | Entry 1: Lower left Entry 2: Lower right |
| Sopping plug note | when used in an application range of < -40 °C, the seal is only intended for a one-time installation replace the seal before mounting it again |
| Entry 1 model | 8161/7-M25-1707-LT |
| Entry 1 type | Polyamide cable gland |
| Entry 1 | M25 x 1.5 |
| Entry 1 terminal area | 7 – 17 mm |
| Entry 1 clamping range, inch | 0.28 – 0.67 in |
| Components | |
| Metal entry possible 1 | No |
| Entry 2 model | 8290/3-M25 |
| Entry 2 type | Polyamide stopping plug |
| Entry 2 | M25 x 1.5 |
| Metal entry possible 2 | No |
Technical Drawings – Subject to Alterations

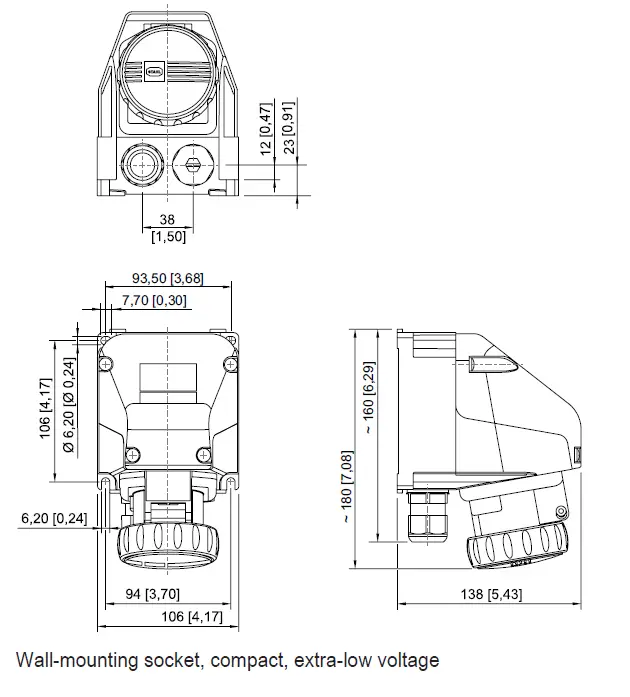

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Wall-mounting socket, compact, extra-low voltage
Accessories
| Dust cover for wall | mounting sockets, compact, extra low voltage Series 8573/13 | Art. No. |
 | retrofittable dust protection for 2-/3-pole sockets | 257439 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
- 2022-09-15 R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG
- V 0.103 EN
- Tel. +49 7942 943 1700
- +49 7942 943 1777
- Email: [email protected]
- r-stahl.com
