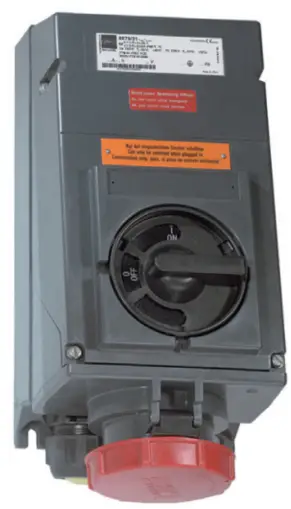

STAHL 8579A Wall Mount Socket

Installation Equipment

Wall-mounting socket 63 A
8579/31-407 Art. No. 270906

Reliable load disconnect switch with easily visible, lockable handle and switching position display
An integrated auxiliary contact for control and signalling purposes, can optionally be enhanced with pluggable, easily retrofittable Ex e or Ex i auxiliary contacts
Wide temperature range for use
High mechanical impact and shock resistance
Perfect protection against the ingress of liquids and dust
3D data available to download from the website

WebCode 8579A

R. STAHL Series 8579/ 31 sockets for Zone 1/ 21 in a 4- and 5- pole version have full AC- 3 switching capacity up to 63 A. The high degree of protection IP66 guarantees the highest level of protec-tion against the penetration of dust and water in any application position. Self- cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature.

Technical Data

Explosion Protection
Scope of validity	European Union (ATEX) IECEx China (CQST)
Application range (zones)	1 2 21 22
IECEX gas certificate	IECEx PTB 06.0020
IECEx gas explosion protection	Ex db eb IIC T6 … T5 Gb
IECEX dust certificate	IECEx PTB 06.0020
IECEx dust explosion protection	Ex tb IIIC T60 °C / T75 °C Db
ATEX gas certificate	PTB 01 ATEX 1150
ATEX gas explosion protection	E II 2 G Ex db eb IIC T6 … T5 Gb
ATEX dust certificate	PTB 01 ATEX 1150
ATEX dust explosion protection	E II 2 D Ex tb IIIC T60 °C / T75 °C Db
Certificates	ATEX (PTB), Brazil (ULB), China (CQST), EAC (ENDCE), IECEx (PTB), Korea (KGS), Taiwan (ITRI)
Explosion protection note	Product label may vary. Series devices have certification according to ATEX and IECEx.
Electrical Data
Rated operational voltage AC	480 to 500 V AC
Rated operational current	max. 63 A
Electrical service life	> 2×104 switching cycles
Mechanical service life	> 2×104 switching cycles
Type of voltage	Low voltage

Electrical Data
Switching capacity main contacts	AC-3 690 V, 63 A 18.5 kW: 220 / 230 / 240 V 30 kW: 380 / 400 / 415 V 37 kW: 500 V 55 kW: 690 V
Auxiliary contacts	2 (1 NO + 1 NC)
Frequency range	50 / 60 Hz
Device Specific Data
Back-up fuse with thermal protection	80 A gG
Back-up fuse without thermal protection	63 A gG
Ambient Conditions
Ambient temperature	-45 °C … +40 °C (T6) -45 °C … +55 °C (T5)
Ambient temperature	-49 °F … +104 °F (T60 °C) -49 °F … +131 °F (T75 °C)
Mechanical Data
IP degree of protection (IEC 60529)	IP66
IP degree of protection (IEC 60079)	IP66
Enclosure material	Polyester, Glass fibre reinforced
Silicone-free	No
Multiple conductor connection	2 x 16 mm²
Finely stranded connection cross-section	1 x 16 mm² … 1 x 50 mm²
Connection cross-section AWG finely stranded	1 x AWG 6 … 1 x AWG 1/0
Width	180 mm
Width in inches	7.09 in
Height	212 mm
Height, inches	8.36 in
Length	413 mm
Length, inches	16.27 in
Impact strength (IEC 60079)	7 J
Impact strength (IEC 62262)	IK10
Colour code	Black
Coding (clock hour position)	7
Lockable in	in 0- and I-position
Series	SolConeX
Detailed number of poles	3 P + PE
Weight	7.8 kg
Weight	17.2 lb
Mounting / Installation
Connection	Screw terminal
Components
Cable entry note	Entry 1: Lower left Entry 2: Lower right
Entry 1 model	8161/7-M50-3516-LT

Components
Entry 1 type	Polyamide cable gland
Entry 1	M50 x 1.5
Entry 1 terminal area	16 – 35 mm
Entry 1 clamping range, inch	0.63 – 1.38 in
Metal entry possible 1	No
Entry 2 model	8290/3-M25
Entry 2 type	Polyamide stopping plug
Entry 2	M25 x 1.5
Metal entry possible 2	No

Technical Drawings – Subject to Alterations

Position of clock hour position
Example: 6 h position

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Wall-mounting socket

Accessories


	2 NC contacts (8080/1-3)	168356
	250 V AC/DC
	max. 6 A
	1.5….. 2.5 mm² solid / finely stranded
	The switching function of the auxiliary contact depends on the installation slot used.
	Left and right: synchronising
	1 NC contact + 1 NO contact (8080/1-1)	168351
	250 V AC/DC
	max. 6 A
	1.5….. 2.5 mm² solid / finely stranded
	The switching function of the auxiliary contact depends on the installation slot used.
	Left: delayed (ON), leading (OFF)
	Right: synchronising
	2 NO contacts (8080/1-4)	168353
	250 V AC/DC
	max. 6 A
	1.5….. 2.5 mm² solid / finely stranded
	The switching function of the auxiliary contact depends on the installation slot used.
	Left and right: synchronising

Auxiliary contact key

for removing the mounted auxiliary contact

201909

Cable gland made of plastic

	8161/7-M25-1707, Ex e Plastic, M25 x 1.5, cable outer diameter 7 to 17 mm Lot size 50 pieces	239157
	8161/7-M50-3516, Ex e Plastic, M50 x 1.5, cable outer diameter 16 to 35 mm Batch size 4 pieces	239160

Ex i cover

Ex i cover for auxiliary contacts for use in Ex i circuits

168855

Stopping plug

8290/3-M25

Plastic, M25 x 1.5 Lot size 1 piece

143524

Switch insert

8544/1-31L

167239

Spare Parts

Repair kit for sockets	63 A Series 8579	Art. No.
	Repair kit 8579 hinged cover, black	275509

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
