STAHL Plug 32 A Wall-Mounting Sockets Installation Guide
- Degree of protection IP66, suitable for Zones 2 and 22 worldwide, extreme temperature range of –60 to +55 °C
- With AC-3 motor switching capacity according to IEC/EN 60947-3
- Full compatibility between SolConeX and CES devices
WebCode 7571C

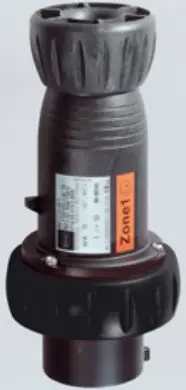

R. STAHL Series 7570/12 SolConeX plugs for Zone 2/22 are silicone-free 4- or 5-pole 32 A plugs.
The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion free plug pins made from high-quality materials ensure optimum electrical contact.
Technical Data
Explosion Protection
| Application range (zones) | 2 22 |
Electrical Data
| Rated operational voltage AC | 480 to 500 V AC |
| Rated operational current | max. 32 A |
| Mechanical service life | > 5×103 mating cycles |
| Type of voltage | Low voltage |
| Frequency range | 50 / 60 Hz |
Ambient Conditions
| Ambient temperature | -30 °C … +40 °C (T60 °C) -30 °C … +55 °C (T75 °C) |
| Ambient temperature | -30 °C … +40 °C (T6) -30 °C … +55 °C (T5) |
| Ambient temperature | -22 °F … +104 °F (T60 °C) -22 °F … +131 °F (T75 °C) |
Mechanical Data
| IP degree of protection (IEC 60529) | IP66 |
| IP degree of protection (IEC 60079) | IP66 |
| Enclosure material | Polyamide, Glass fibre reinforced |
| Silicone-free | Yes |
| Finely stranded connection cross-section | 1 x 2.5 mm² … 1 x 10 mm² |
| Connection cross-section AWG finely stranded | 1 x AWG 14 … 1 x AWG 8 |
| Width | 99 mm |
| Width in inches | 3.9 in |
| Height | 99 mm |
| Height, inches | 3.9 in |
| Length | 204 mm |
| Length, inches | 8.03 in |
| Impact strength (IEC 60079) | 7 J |
| Impact strength (IEC 62262) | IK10 |
| Colour code | Black |
| Coding (clock hour position) | 7 |
| Series | SolConeX |
| Detailed number of poles | 3 P + PE |
| Weight | 0.5 kg |
| Weight | 1.1 lb |
Mounting / Installation
| Connection | Screw terminal |
Components
| Cable diameter | 13 – 25 mm |
| Cable diameter inch | 0.51 – 0.98 in |
Technical Drawings – Subject to Alterations
Position of clock hour position
Example: 6 h position

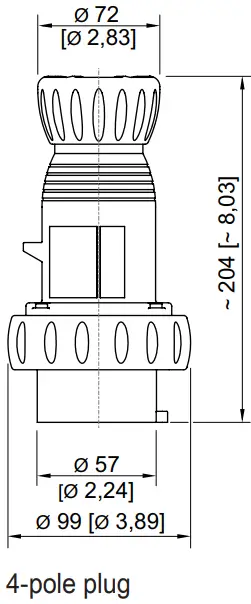

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Accessories
| Protective cap for 32 A plug | Art. No | |
 | 4-pole | 150856 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
2022-09-01
V 0.79 EN
R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG
Tel. +49 7942 943 1700 | +49 7942 943 1777 | Email: [email protected] | r-stahl.com
