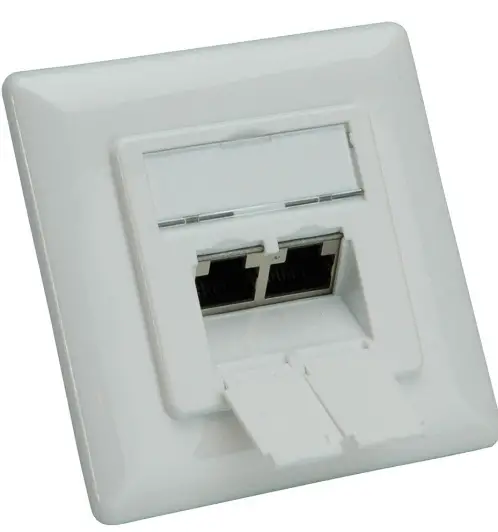

SECOMP 25168490 ROLINE Cat.6A (Class EA) socket, 2x STP, flush-mounted
Installation guide
WAIRING
CONNECTION
INSTALLATION INSTRUCTION
- Screw Size 1 oder
- Screw driver for slotted head screw 6×0.8

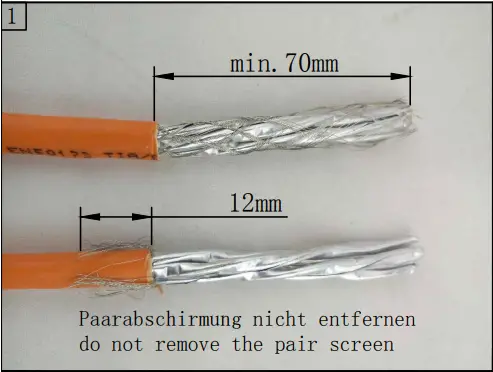

- Crossing of pairs as near as possible to the ground.

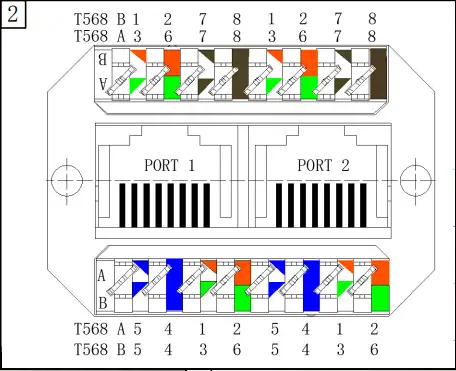

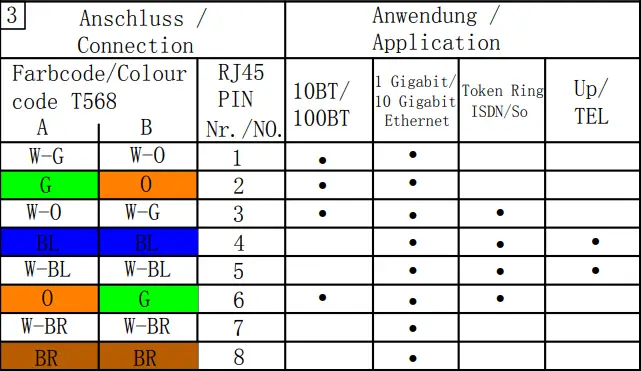

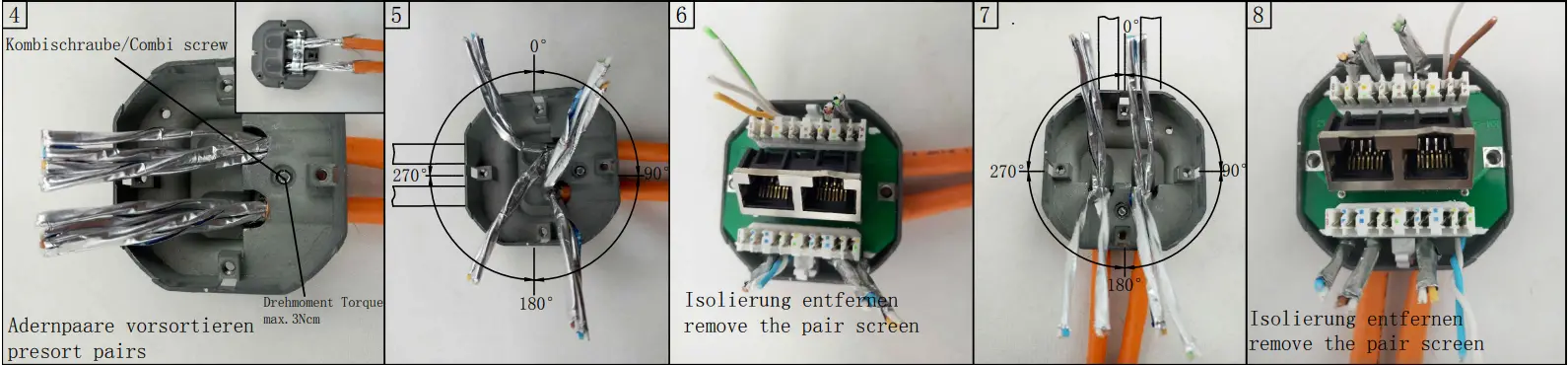

- presort pairs according to color code,see fig.3
- can be wired up in 4×90° steps (up and down, left and right).
- LSA+ tool
- Screw Size 1 oder
- Screw driver for slotted head screw 6×0.8

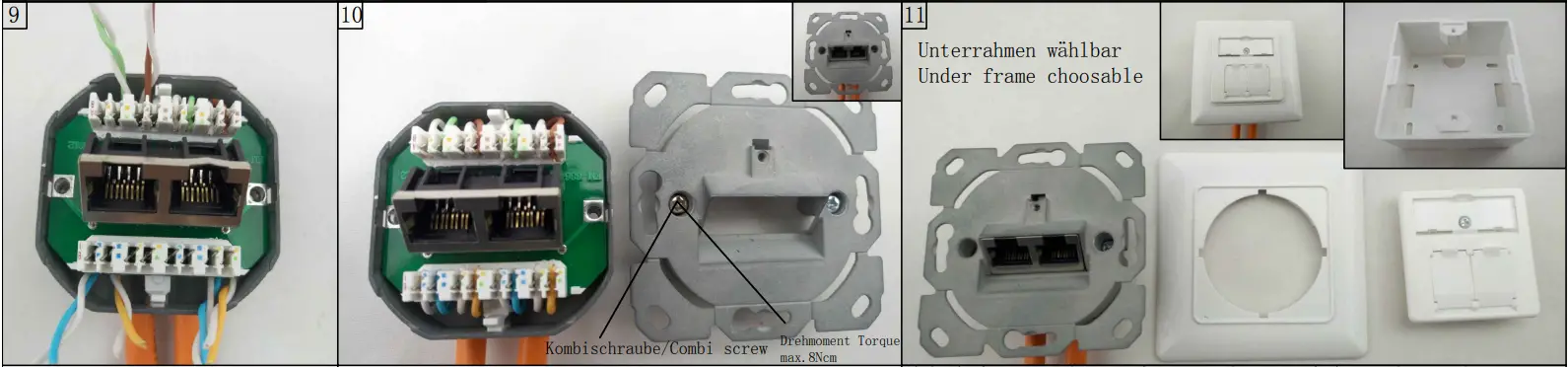

- Fasten cover plate, adapter plate and mounting plate.
