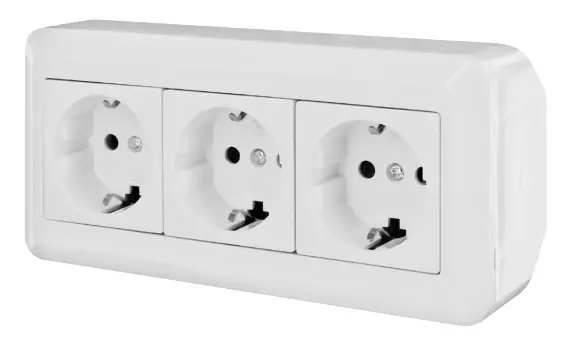

Anslut 006867 Wall Socket Instruction Manual

WALL SOCKET
Operating instructions
(Translation of the original instructions)
Important! Read the user instructions carefully before use. Save them for future reference.

SAFETY INSTRUCTIONS

• Do not connect power strips to each other.
• Do not cover the power strip.

ELECTRICAL SAFETY

New installations and extensions to existing systems should always be carried out by an authorized electrician. If you have the necessary experience and knowledge (otherwise contact an electrician), you can replace power switches and wall sockets,  fit plugs, extension cords and light sockets. Incorrect installation can result in fatal injury and the risk of fire.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded products as electrical waste.

TECHNICAL DATA

ASSEMBLY

INSTALLATION

1.  Disconnect the power supply by taking out the fuse and checking that the wires are without voltage.
2.  Strip about 11 mm off the ends of the wires.
3. Dismantle the product into three parts. Do not remove the screws in the middle during the installation.

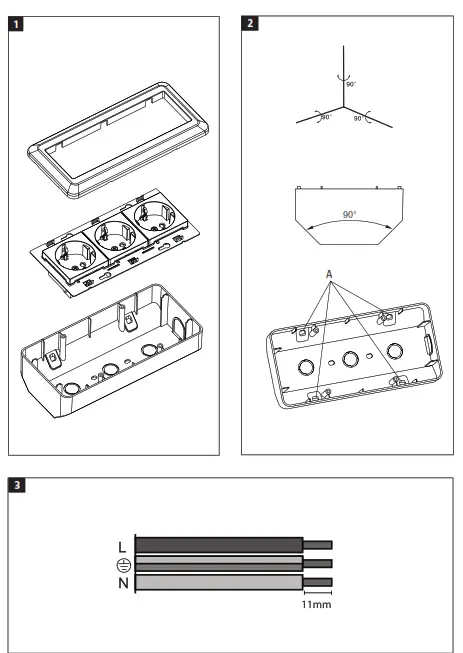

   FIG. 1
4. Open the grommets and push the cable into the box.
5. Press the box into the corner so that the sides rest against the walls and screw on with screws in the four screw holes (A).
   FIG. 2

6. Connect the wires to the power point and USB connection according to color and the markings N and L. The cross-sectional area of the wires is 2.5 mm².
   – L, brown (live)
   –, green and yellow (earth )
   – N, blue (neutral)
   FIG. 3
7. Check that all the connections are correct.
8. Screw the front onto the box. Make sure not to pinch the wires. Press the frame in place.

Jula reserves the right to make changes.
For latest version of operating instructions, see
www.jula.com
2021-11-25 © Jula AB
