Installation Equipment and Accessories
Stopping plugs Flush-mounted
CMP-747-DA-T6-4 Art. No. 253021
253021 Stopping Plugs Flush Mounted
- Ex d und Ex e metal stopping plugs
- Large selection of thread types and sizes
- Operating temperature range: -60 °C to +200 °C
- Worldwide certification, IECEx, ATEX, UL and cCSAus
WebCode 747DA

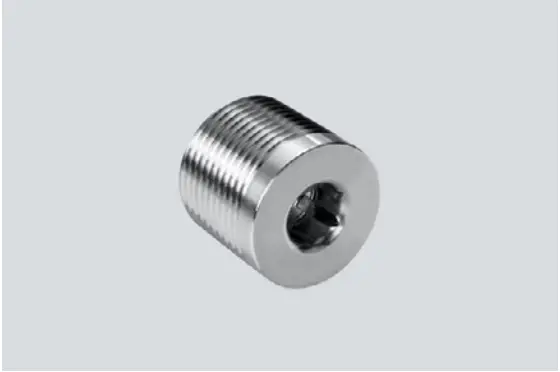

The metal Ex- d stopping plugs from the 747 series with a hexagon socket and without a projecting head enable temporary or long- term plugging of unused drilled holes. There is a wide selection of different thread sizes and types available. They have worldwide certification according to IECEx, ATEX, UL and cCSAus.
Technical Data
Explosion Protection
| Application range (zones) | 1 2 20 21 22 |
| IECEX gas certificate | IECEx CML 18.0177X |
| IECEx gas explosion protection | Ex db IIC Gb |
| IECEX firedamp certificate | IECEx CML 18.0177X |
| IECEx firedamp protection | Ex db I Mb |
| IECEx firedamp protection 2 | Ex eb I Mb |
| ATEX gas certificate | CML 18ATEX1320X |
| ATEX gas explosion protection | II 2 G Ex db IIC Gb |
| ATEX firedamp certificate | CML 18ATEX1320X |
| ATEX firedamp protection | I M2 Ex db I Mb |
| ATEX firedamp protection 2 | I M2 eb I Mb |
| EAC certificate | TS RU S-GB.AA87.B.00487 |
| EAC gas explosion protection | Ex Ex d e IIC Gb X |
| EAC dust explosion protection | Ex Ex to IIIC Da X |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +200 °C |
| Mechanical Data | |
| Degree of protection (IP) | IP66 |
| Material Silicone-free | Stainless steel Yes |
Installation Equipment and Accessories
Stopping plugs Flush-mounted
CMP-747-DA-T6-4 Art. No. 253021
Mechanical Data
| Drive | Hexagon socket |
| Dimension b | 16.7 mm |
| Dimension d | 49 mm |
| Outer diameter | 60.5 mm |
| Thread size | NPT2 |
| Thread length | 26.9 mm |
| Thread pitch | 22,087 |
| Impact strength (IEC 62262) | IK10 |
| Packaging unit | 1 |
| Weight | 0.29 kg |
| Weight | 0.64 lb |

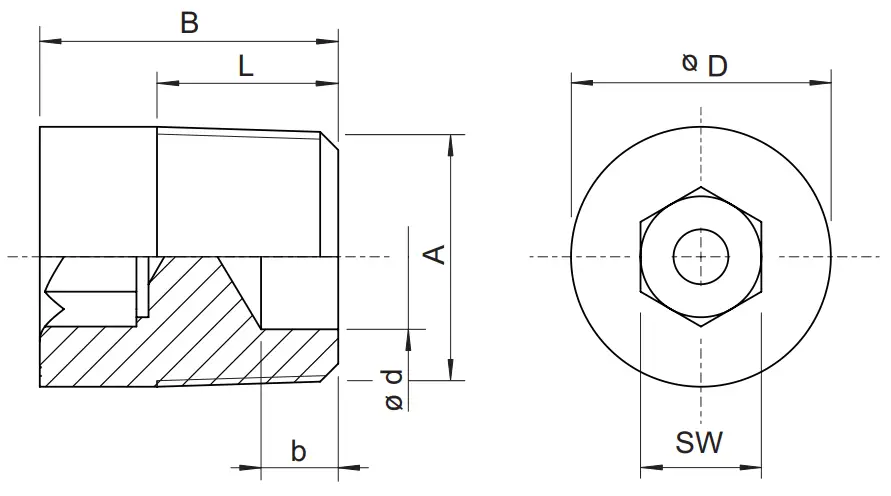

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
A = Thread size
B = Length
L = Thread length
d = Dimension d
b = Dimension b
D = Outer diameter
SW = Hexagon socket width across flats
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
