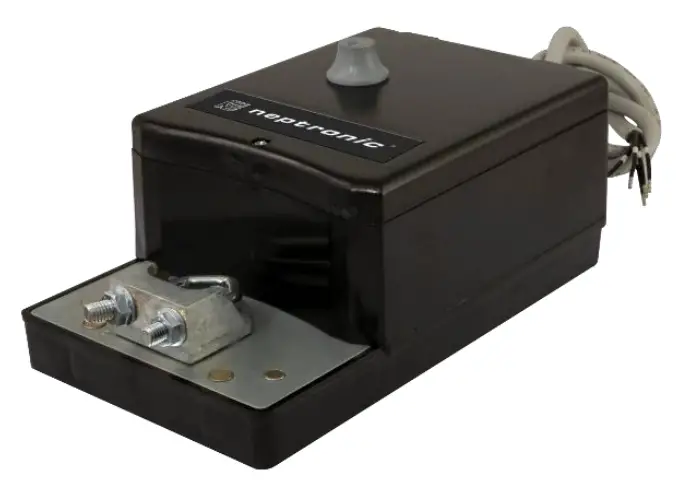

Actuators
Specification & Installation Instructions
Features:
➢ IP 65 equivalent to Nema Type 4 enclosure.
➢ Dust and water proof clutch for manual adjustments.
➢ Supplied with cable (pigtail).
➢ Control signal 2-10Vdc.
➢ Fail safe by Enerdrive System1.
➢ Maintenance free.
| LM000W LM020W LM060W LM080W | LM100W LM160W LM200W LM260W |
TechnicalData
| Technical Data | LM000W | LMO2OW | LMO6OW | LMO6OW | LM100W | LM160W | LM200W | LM260W | |
| Auxiliary switches | No | Yes (2) non adjustable | No | Yes (2)non ac unable | No | No | No | No | |
| Fall safe – Enerdrlve | No | Yes | No | Yes | No | Yes | |||
| Power consumption | 8VA | 30VA peak, 8VA | 10VA | 30VA peak, 10VA | 10VA | 30VA peak. 10VA | |||
| Power supply | 28 to 32 VDC or 22 to 26 VAC | 110 to 130 VAC 50/60Hz | 220 to 250 VAC 50/60Hz | ||||||
| Weight | 4.5 lbs. [2 kg] | 4.8 lbs. [2.2 kg] | |||||||
| Approvals |  |  | |||||||
| Torque | 140 in.lb. [16 Nm] at rated voltage | ||||||||
| Running time through 90° | 60 to 85 sec torque dependant | ||||||||
| Control signal | Analog (2-10 VDC) | ||||||||
| Feedback Signal | 4-20mA | ||||||||
| Angle of rotation | 0 to 93 degrees max., after power up automatically self adjustable to 5939 | ||||||||
| Electrical connection | 1 meter long 6 wires plenum cable, 18 AWG [0.8 mm2] | ||||||||
| Direction of rotation | Reversible, clockwise (CW) or counter clockwise (CCW) | ||||||||
| Ambient temperature | 0°F to +122°F [-18° C to +50° C] | ||||||||
| Storage temperature | -22°F to +122°F [-30° C to +50° C] | ||||||||
| Relative Humidity | 5 to 95 % non condensing. | ||||||||
| Ingress protection | IP65 equivalent to Nema type 4 with special protection against corrosive agents | ||||||||
| Warning: Do not press the clutch when actuator is powered | |||||||||

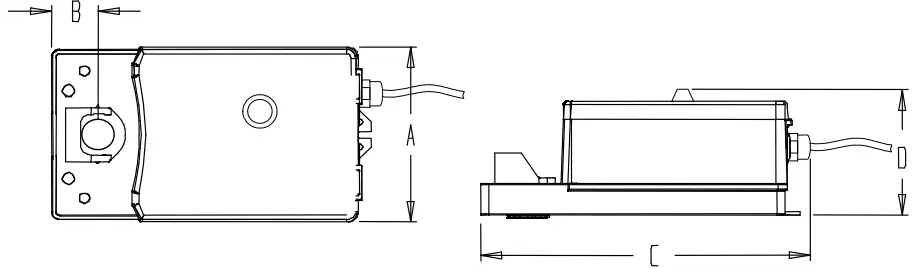

Dimensions
| Dimension | ||
| inch | mm | |
| A | 5.2 | 132.1 |
| B | 1.33 | 33.8 |
| C | 9.75 | 247.7 |
| D | 4 | 101.6 |
Caution
We strongly recommend that all Neptronic® products be wired to a separate transformer and that transformer shall service only Neptronic® products. This precaution will
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
1Enerdrive System U.S.A. Patent #5,278,454

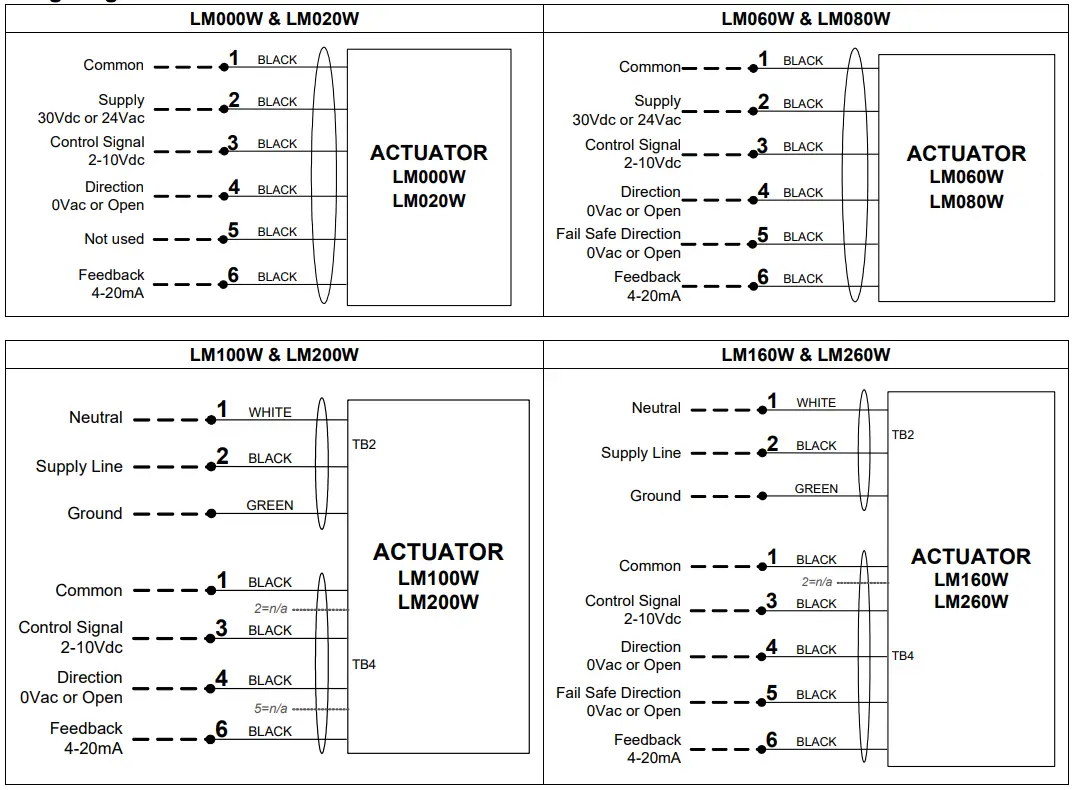

Wiring Diagrams
Direction Selection
| Rotation CW (0-90º) | Rotation CCW (90-0º) |
| Leave cable #4 (Direction selection) open | Connect cable #4 (Direction selection) to cable #1 (Common VAC) |
Fail Safe Direction Selection
Fail safe (Enerdrive) is available only with “x60” and “x80” models.
| Fail safe return to 0º | Fail safe return to 90º |
| Leave cable #5 (Direction selection) open | Connect cable #5 (Direction selection) to cable #1 (Common 0 VAC) |
Auxiliary Switches (models 020 and 080)
Auxiliary switches are available only with “020” and “080” models. Auxiliary switch rating: 5 Amp resistive, 250 Vac
Auto Stroke
The auto stroke (actuator automatically runs from 0 to end position) is activated every time the actuator is powered up.
1Enerdrive System U.S.A.
Patent #5,278,454
