ST100S ST105S ST120S ST160S ST165S ST180S ST200S ST205S ST220S ST260S ST265S ST280S

Features:

  • Mounts easy on round & square shaft (with option –8).
  • External clutch for manual adjustments.
  • Maintenance free.
  • Position indicator.
  • Fail safe by Enerdrive System1 (on model 60S, 65S & 80S).
  • Auxiliary switches (on model 20S & 80S).
  • Reliable control for air damper applications up to 17.5 ft 2[1.6 m2 ] (seal-less damper blades; air friction-dependent).
Technical DataST100SST105SST120SST200SST205SST220SST160SST165SST180SST260SST265SST280S
Auxiliary switchesNoNoYes (2)NoNoYes (2)NoNoYes (2)NoNoYes (2)
FeedbackNoYesNoNoYesNoNoYesNoNoYesNo
Power supply110 to 130 VAC 50/60Hz220 to 250 VAC 50/60Hz110 to 130 VAC 50/60Hz220 to 250 VAC 50/60Hz
Fall safe – EnerdrlveNoYes
Power consumption8 VA20VA Peak, 8VA
Control signal3 wire / 2 position, 4 wire / 3 point floating2 wire / 2 position, 4 wire / 3 point floating
ingress protectionIP22 equivalent to Nema type 2,
IP54 equivalent to Nema type 3R if water tight inlet
bushings (not supplied NEP617) are installed
IP22 equivalent to Nema type 2
Running time through 90°90 – 110 sec (Fail-safe 20-30 sec)
Torque70 in.lb. [8 Nm] at rated voltage
Electrical connection18 AWG [0.8 mm2] minimum
Inlet bushing2 inlet bushing of 13116 in [20.6 mm]
Angle of rotation0 to 90 degrees, mechanically adjustable (factory set with 90° stroke)
Direction of rotationReversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
Ambient temperature-22°F to 122°F [-30°C to 50°C]
Storage temperature-22°F to 122°F [-30°C to 50°C]
Relative Humidity5 to 95 % non condensing.
Weight3 lbs. [1.4 kg]
Warning: Do not press the clutch when actuator is powered

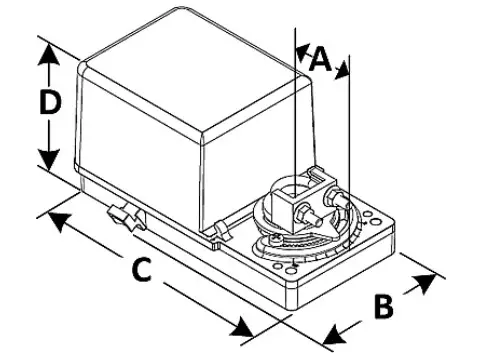

Dimensions

neptronic St265s S Series Line Voltage Actuators - Figure 1

DimensionInchesMetric (mm)
A1.5038.
B4.93.
C6.60168.
Dmodel 00S, 05S & 20S3.77.
model 60S, 65S & 80S4.97.

Caution
We strongly recommend that all Neptronic® products be wired to a separate transformer and that transformer shall service only Neptronic® products. This precaution will prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.

neptronic St265s S Series Line Voltage Actuators - ce

ST100S/105S/120S/160S/165S/180SST200S/205S/220S/260S/265S/280S

Mechanical Installation

neptronic St265s S Series Line Voltage Actuators - Figure 2

  1. Manually close the damper blades and positioned the actuator at 0º or 90º.
  2. Slide the actuator onto the shaft.
  3. Tighten the nuts on the “U” bolt to the shaft with a 8mm wrench to a torque of 60 in.lb. [6,7 Nm].
  4. Slide the mounting bracket under the actuator. Ensure free movement of the slot at the base of the actuator. The bracket pin must be placed in the mid distance of the slot.
  5. Fix the bracket to the ductwork with #8 self-tapping screws.

Wiring Diagrams

Caution: Risk of electric shock. Remove power prior to connect.

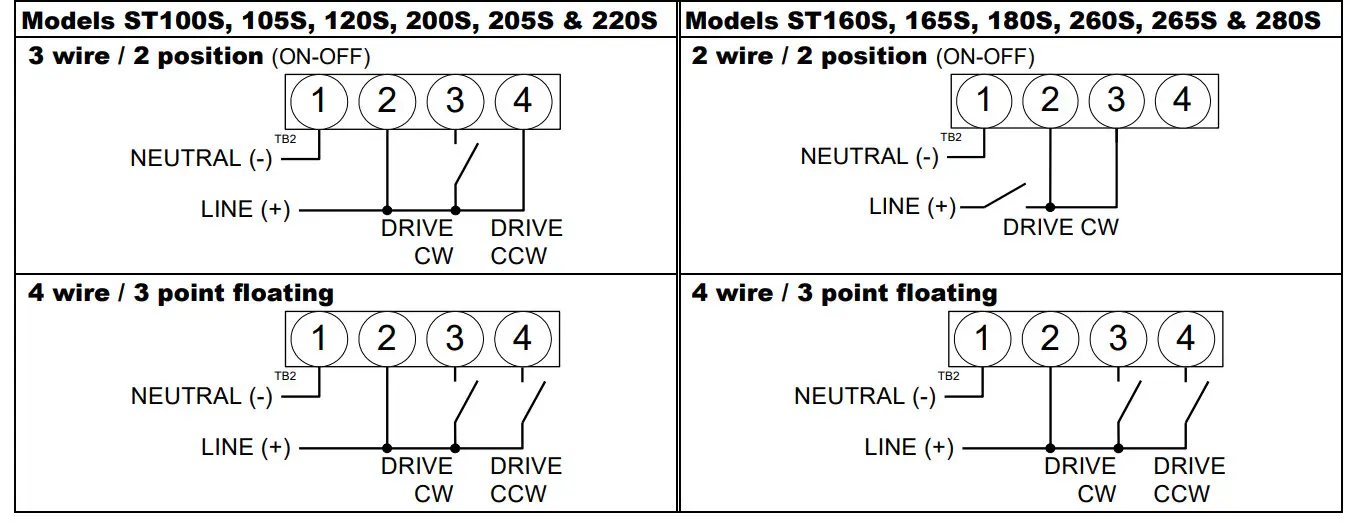

neptronic St265s S Series Line Voltage Actuators - Figure 3

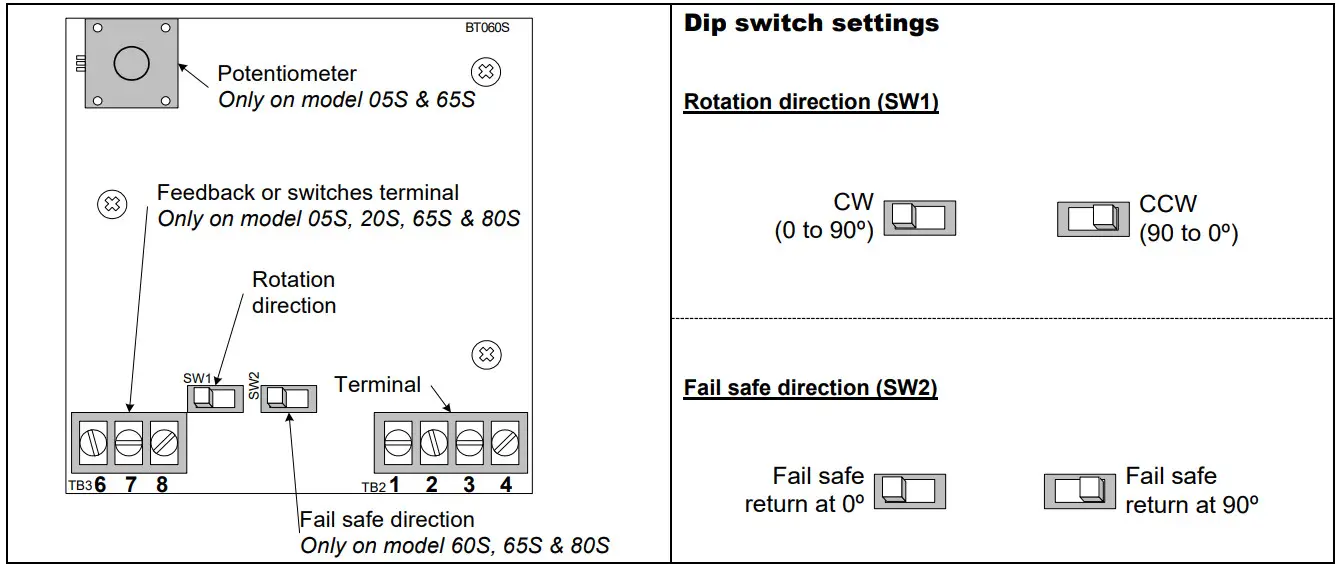

PC Board

neptronic St265s S Series Line Voltage Actuators - Figure 4

Stroke Adjustment
To adjust the stroke, move the adjustment screws at the desired position.
