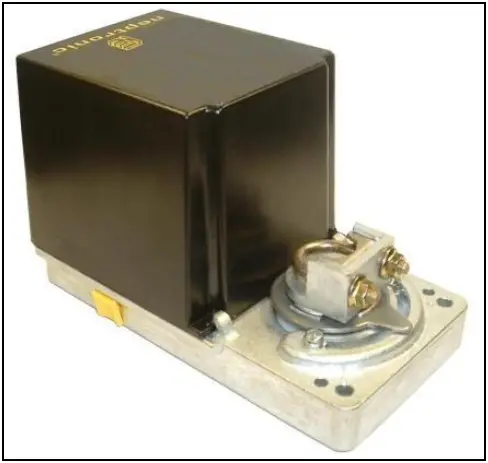

Actuator
Specification & Installation Instructions
Old Number
BBTHV1160A BT160
BBTHV1180A BT180
BBTHV1260A BT260
BBTHV1280A BT280
Feature:
- Mounts easy on round & square shaft (with option –8).
- Power supply high voltage 120 or 240 VAC.
- External clutch for manual adjustments.
- Maintenance free.
- Position indicator.
- Fail safe by Enerdrive System¹
- Auxiliary switches (on model 180 & 280).
Technical Data | BT160 | BT180 BBTHV1180A | BT260 BBTHV1260A | BT280 |
Auxiliary switches | No | Yes (2) | No | Yes (2) |
Power supply | 110 to 130 VAC 50/60Hz | 220 to 250 VAC 50/60Hz | ||
Fail safe – Enerdrive | Yes | |||
Power consumption | 8VA Peak, 5VA | |||
Control signal | 2 wire / 2 position | |||
Running time through 90º | 20 to 35 sec Torque dependant | |||
Torque | 50 in.lb. [5,6 Nm] at rated voltage | |||
Electrical connection | 18 AWG [0.8 mm2 ] minimum | |||
Inlet bushing | 2 inlet bushing of 13/16” [20.6mm] | |||
Angle of rotation | 0 to 90 degrees, mechanically adjustable (factory set with 90º stroke) | |||
Direction of rotation | Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction) | |||
Ambient temperature | -22ºF to +122ºF [-30ºC to +50ºC] | |||
Storage temperature | -22ºF to +122ºF [-30ºC to +50ºC] | |||
Relative Humidity | 5 to 95 % non condensing. | |||
Ingress protection | IP22 equivalent to Nema type 2 | |||
Weight | 3 lbs. [1.4 kg] | |||
Warning: Do not press the clutch when actuator is powered | ||||
Dimensions
Dimension | Inches | Metric (mm) |
| A | 1.50 | 38.1 |
B | 3.64 | 92.5 |
| C | 6.60 | 167.5 |
D | 3.81 | 96.8 |
Caution
We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
¹ Enerdrive System U.S.A. Patent #5,278,454
BT60-210803

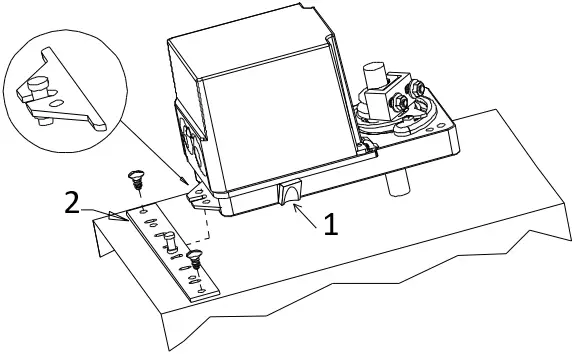

Mechanical installation
- CLUTCH
- MOUNTING BRACKET
1. Manually close the damper blades and positioned the actuator at 0º or 90º.
2. Slide the actuator onto the shaft.
3. Tighten the nuts on the “U” bolt to the shaft with a 8mm wrench to a torque of 60 in.lb. [6,7 Nm].
4. Slide the mounting bracket under the actuator. Ensure free movement of the slot at the base of the actuator. The bracket pin must be placed in the mid distance of the slot.
5. Fix the bracket to the ductwork with #8 self-tapping screws.
Wiring Diagrams
Caution: Risk of electric shock. Remove power prior to connect.
2 wire / 2 position (ON-OFF)
A DRIVE CW
B LINE
C NEUTRAL

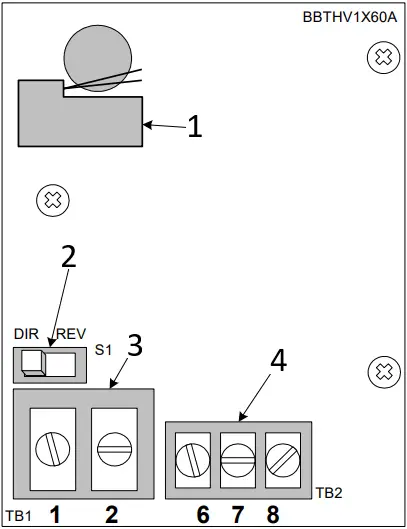

PC Board
- Switches Only on model 180 & 280
- Rotation & Fail Safe direction
- Terminal
- Switches terminal Only on model 180 & 280
Rotation direction
CW (0 to 90º)
Fail Safe (90 to 0º)
CCW (90 to 0º)
Fail Safe (0 to 90º)
Stroke adjustment
To adjust the stroke, move the adjustment screws at the desired position.
