Actuator
Specification & Installation Instructions

Feature:

• Mounts easy on round & square shaft (with option –8).
• External clutch for manual adjustments.
• Maintenance free.
• Position indicator.
• Fail safe by Enerdrive System 1 (on model 60S, 65S & 80S).
• Auxiliary switches (on model 20S & 80S).
• Reliable control for air damper applications up to 12.5 ft 2 [1.2 m 2 ] (seal-less  damper blades; air friction-dependent).
BT100S, BT105S
BT120S, BT160S
BT165S, BT180S
BT200S, BT205S
BT220S, BT260S
BT265S, BT280S
Technical DataBT100SBT105SBT120SBT200SBT205SBT220SBT160SBT165SBT180SBT260SBT265SBT280S
Auxiliary switchesNoNoYes (2)NoNoYes (2)NoNoYes (2)NoNoYes (2)
FeedbackNoYesNoNoYesNoNoYesNoNoYesNo
Power supply110 to 130 VAC 50/60Hz220 to 250 VAC 50/60Hz110 to 130 VAC 50/60Hz220 to 250 VAC 50/60Hz
Fail safe – EnerdriveNoYes
Power consumption6 VA20VA Peak, 6VA
Control signal3 wire / 2 position, 4 wire / 3 point floating2 wire / 2 position, 4 wire / 3 point floating
Ingress protectionIP22 equivalent to Nema type 2, IP54 equivalent to Nema type 3R if water tight inlet bushings (not supplied NEP617) are installedIP22 equivalent to Nema type 2
Running time through 90°90 – 110 sec, (Fail-safe 20-35 sec)
Torque50 in.lb. [5.6 Nm] at rated voltage
Electrical connection18 AWG [0.8 mm2] minimum
Inlet bushing2 inlet bushing of 13/16 in [20.6 mm]
Angle of rotation0 to 90 degrees, mechanically adjustable (factory set with 90° stroke)
Direction of rotationReversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
Ambient temperature-22°F to 122°F [-30°C to 50°C]
Storage temperature-22°F to 122°F [-30°C to 50°C]
Relative Humidity5 to 95 °A) non condensing.
Weight3 lbs. [1.4 kg]
Warning: Do not press the clutch when actuator is powered

Dimensions

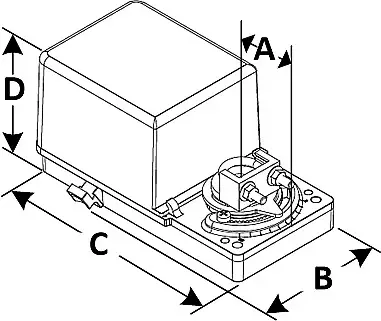

neptronic B Series BT100S Line Voltage Actuators - Dimensions

DimensionInchesMetric (mm)
A1.5038.1
B3.6492.5
C6.60167.5
Dmodel 00S, 05S & 20S3.0276.8
model 60S, 65S & 80S3.8196.8

Caution

We strongly recommend that all Neptronic® products be wired to a separate transformer and that transformer shall service only Neptronic® products. This precaution will prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.

1 Ener drive System U.S.A. Patent #5,278,454

BT100S/105S/120S/160S/165S/180S
BT200S/205S/220S/260S/265S/280S
Specification & Installation Instruction

Mechanical Installation

neptronic B Series BT100S Line Voltage Actuators - Mechanical Installation

  1. Manually close the damper blades and positioned the actuator at 0º or 90º.
  2. Slide the actuator onto the shaft.
  3. Tighten the nuts on the “U” bolt to the shaft with a 8mmwrench to a torque of 60 in.lb. [6,7 Nm].
  4. Slide the mounting bracket under the actuator. Ensure free movement of the slot at the base of the actuator. The bracket pin must be placed in the mid distance of the slot.
  5. Fix the bracket to the ductwork with #8 self-tapping screws.

Wiring Diagrams

Caution: Risk of electric shock. Remove power prior to connect.

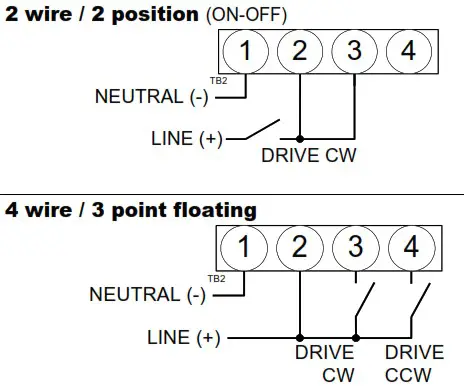

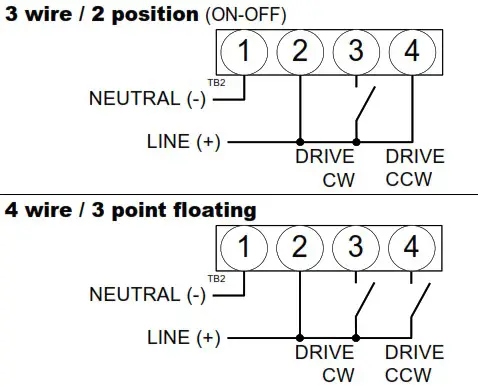

Models BT100S, 105S, 120S, 200S, 205S & 220SModels BT160S, 165S, 180S, 260S, 265S & 280S
neptronic B Series BT100S Line Voltage Actuators - Wiring Diagrams 1neptronic B Series BT100S Line Voltage Actuators - Wiring Diagrams 2

PC Board

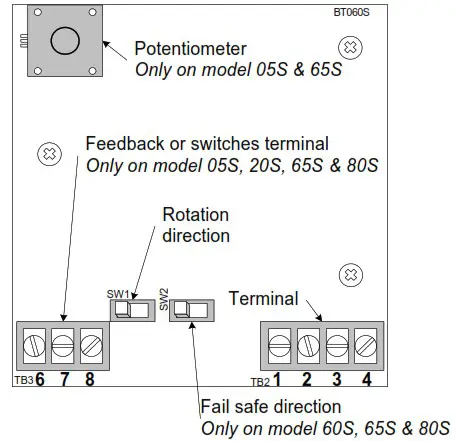

neptronic B Series BT100S Line Voltage Actuators - PC Board

Dip switch settings

Rotation direction (SW1)

Fail safe direction (SW2)

Stroke Adjustment

To adjust the stroke, move the adjustment screws at the desired position.
