assembly instructions

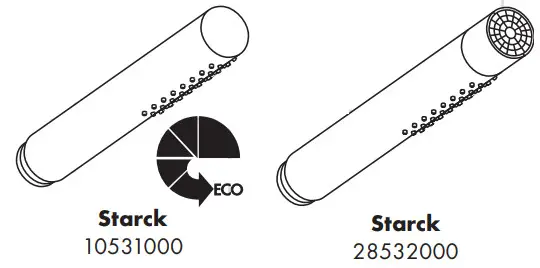

AXOR STARCK
Instruction Manual
AXOR STARCK
Safety Notes
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between theshower and you.
Assembly (see page 19)
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

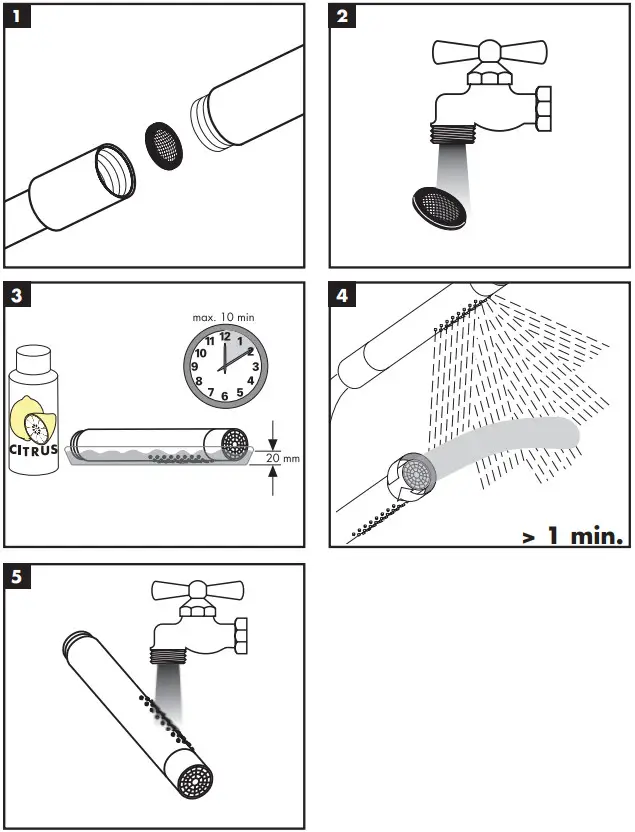

Cleaning (see page 20) and enclosed brochure

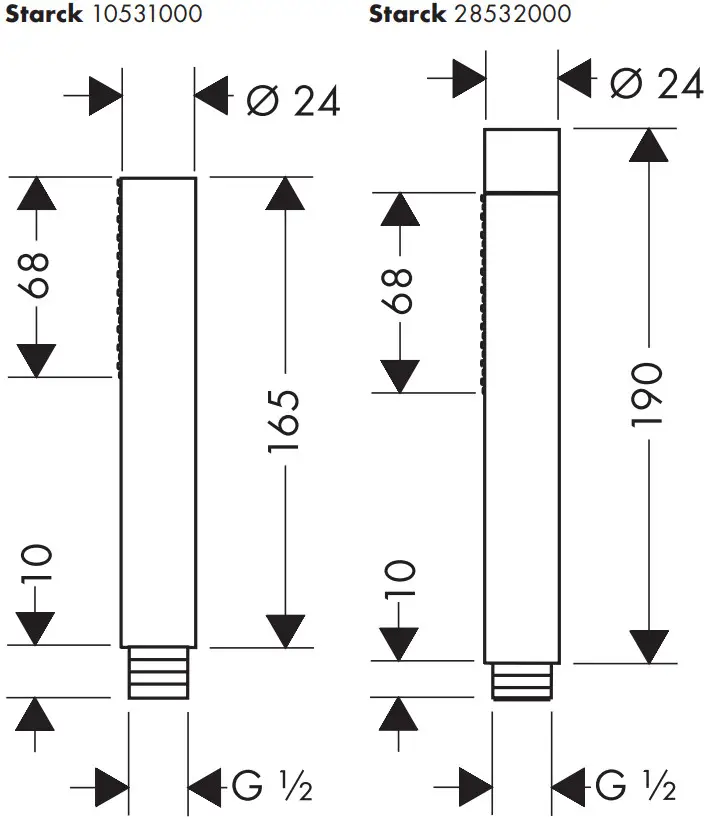

Technical Data
Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C

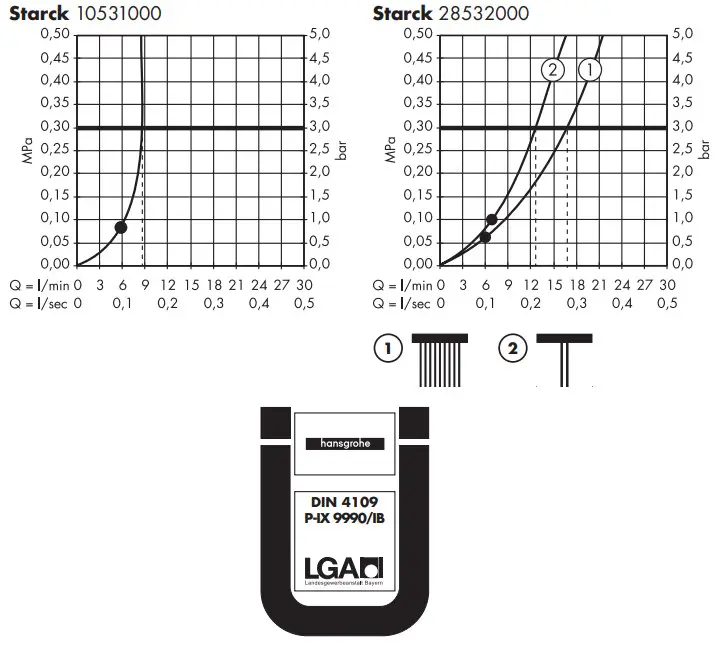

Test certificate (see page 17)

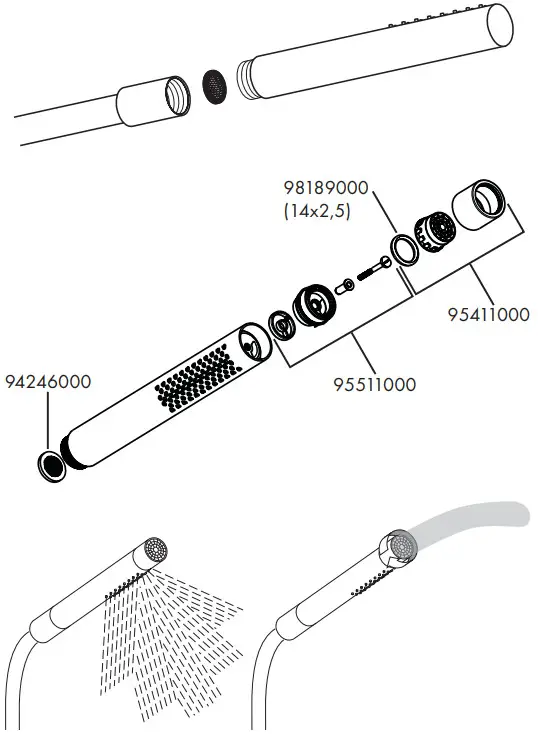

Spare parts (see page 19)
| P-IX | DVGW | SVGW | ACS | WRAS | NF | KIWA | |
| 10531000 | |||||||
| 28532000 | P-IX 9990/IB | x | x | x |
Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
3/2011
9.08378.04
