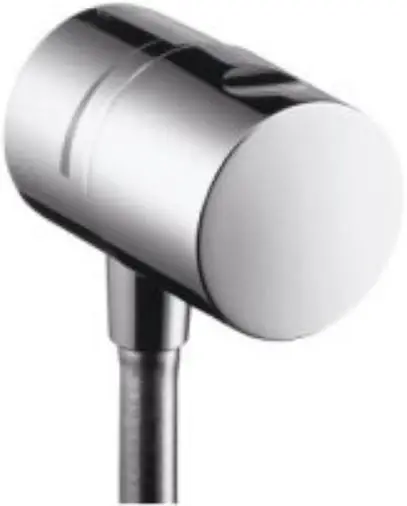

hansgrohe AXOR STARCK Fixfit Stop Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Symbol description
Do not use silicone containing acetic acid!

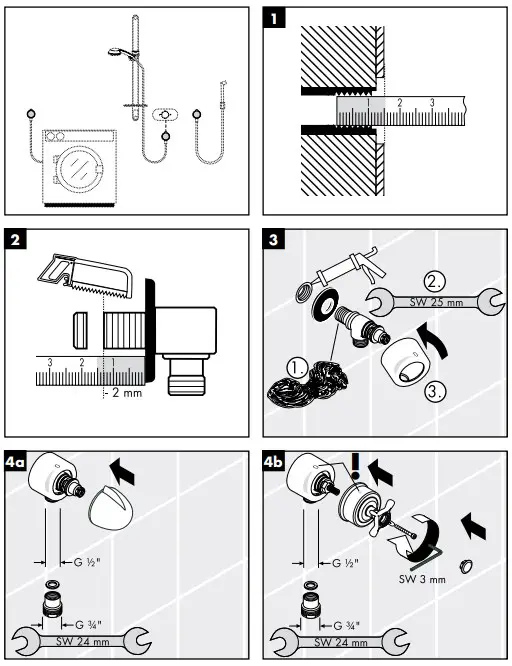

Assembly

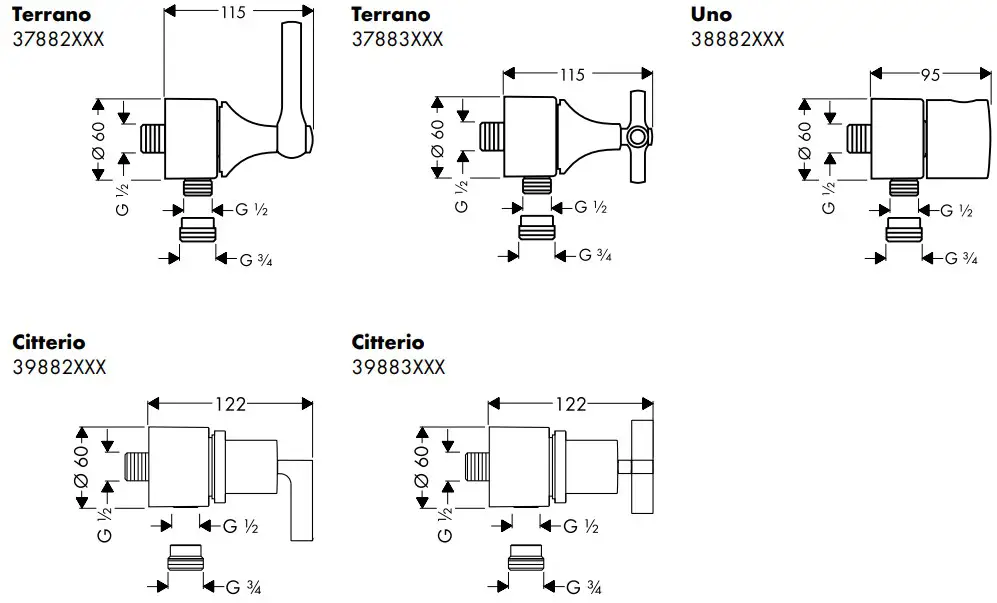

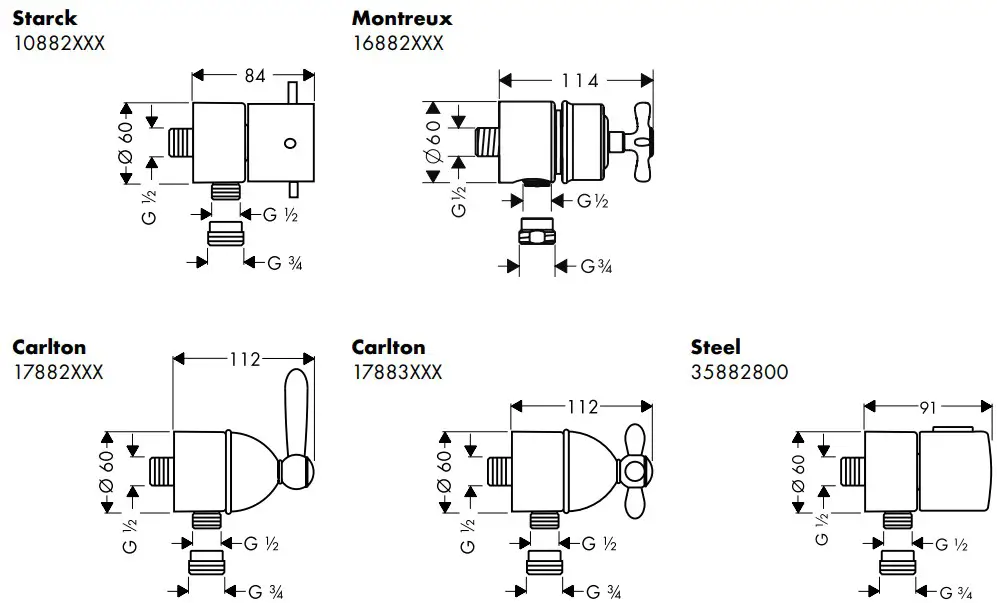

Dimensions

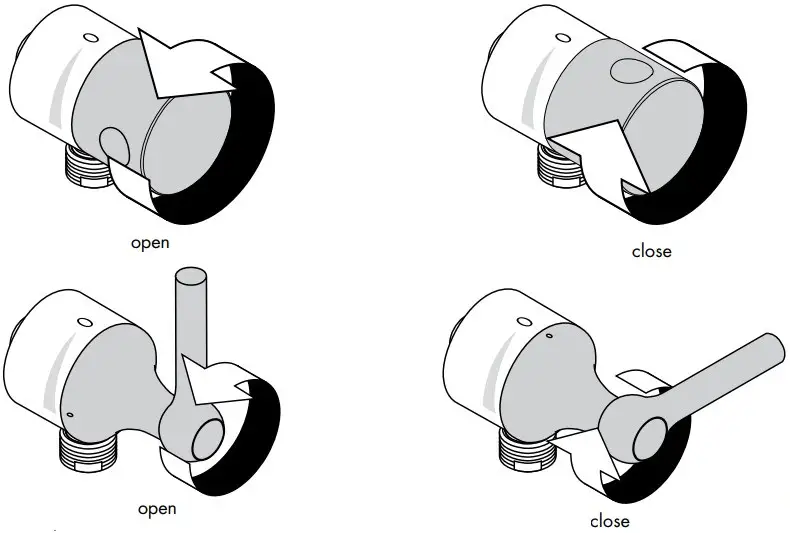

Operation

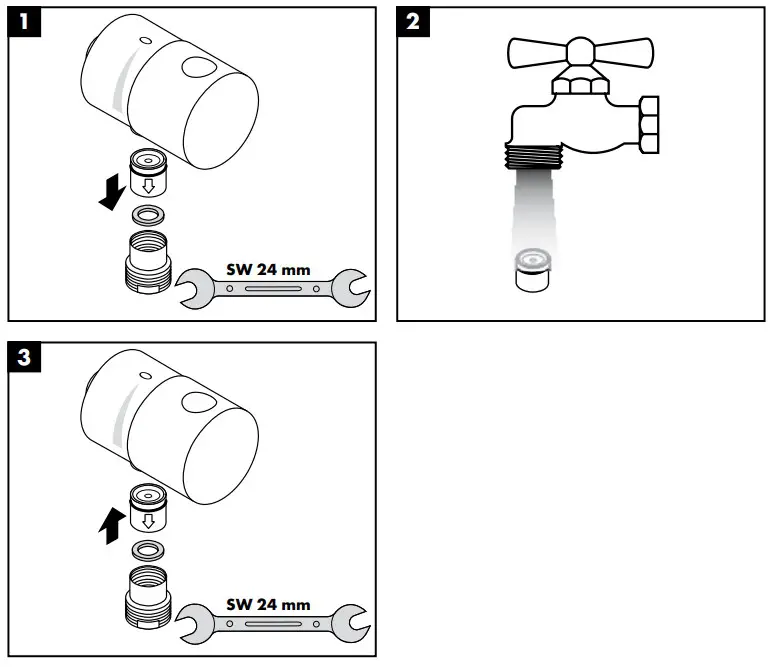

Maintenance
Cleaning
Cleaning recommendations, see enclosed brochure.

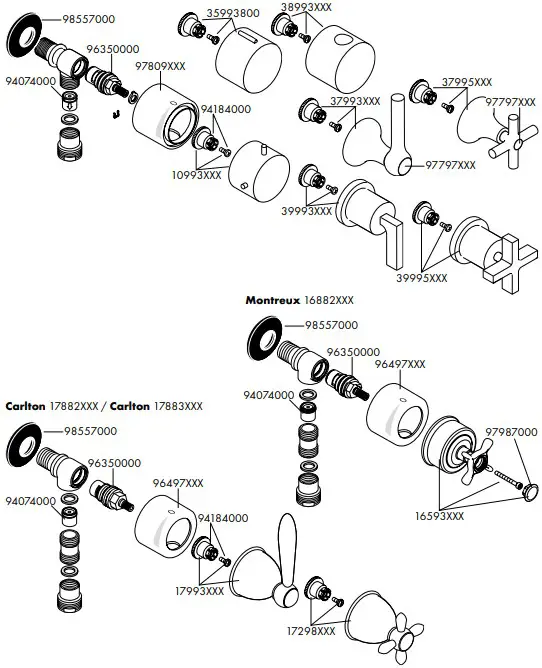

Spare parts
XXX = Colors
000 = chrome plated
090 = chrome plated/gold plated
120 = chrome plated/porcelain colour
820 = brushed nickel
830 = polished nickel
Test certificate
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 10882XXX | X | X | ||||||
| 16882XXX | X | |||||||
| 17882XXX | X | X | ||||||
| 17883XXX | X | X | ||||||
| 35882800 | X | X | ||||||
| 37882XXX | X | X | ||||||
| 37883XXX | X | X | ||||||
| 38882XXX | X | X | ||||||
| 39882XXX | X | X | ||||||
| 39883XXX | X | X |
