Instructions for use
assembly instructions
 |  |
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Symbol description
 | Do not use silicone containing acetic acid! |

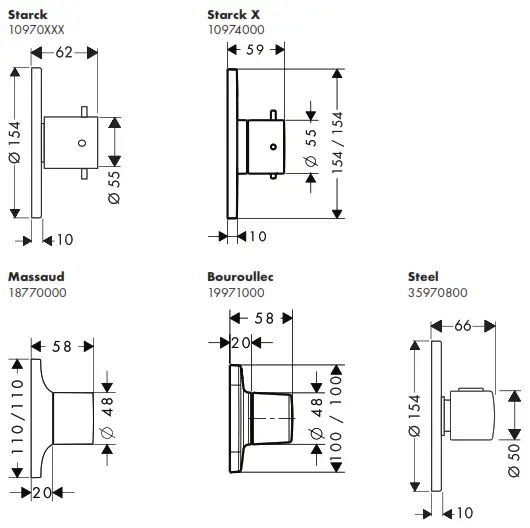

 | Dimensions (see page 12) |

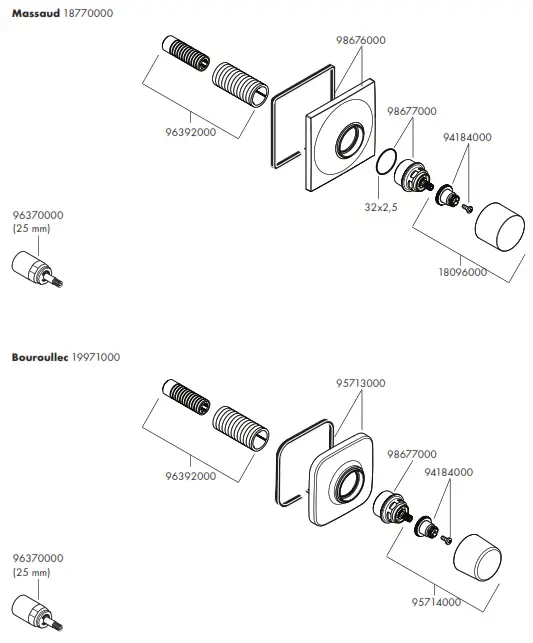

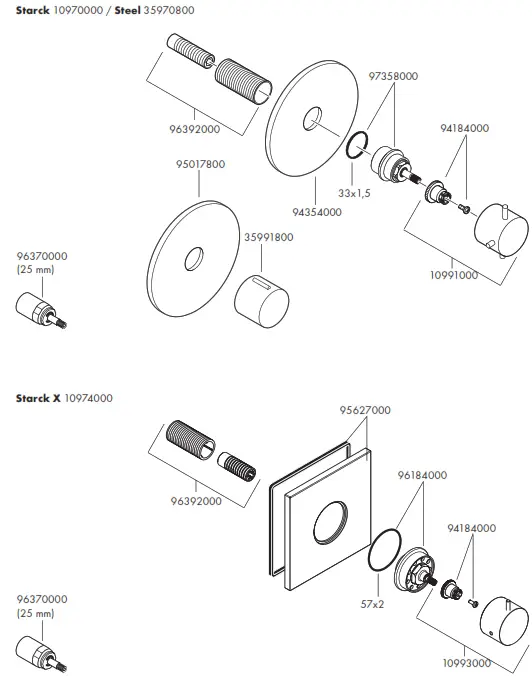

 | Spare parts (see page 13 + 14) |
 | Cleaning Cleaning recommendations, see enclosed brochure. Test certificate (see page 15) |

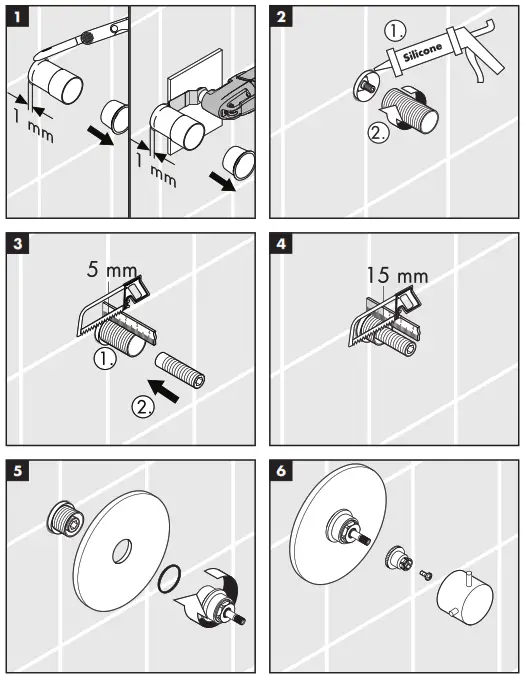

 | Assembly see page 10 |

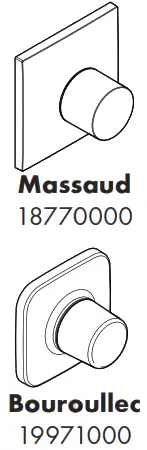

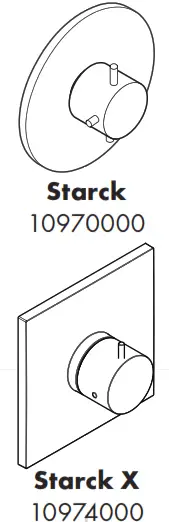

10970000/ 35970800
 |  |
 |  |
| PA-IX | DVGW | SVGW | ACS | WRAS | MCA | KIWA | NF | |
| 10970000 | X | X | ||||||
| 10974000 | ||||||||
| 18770000 | X | X | ||||||
| 19971000 | ||||||||
| 35970800 | X | X |
Hansgrohe · Postfach 1145 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
9/2010
9.09265.06
