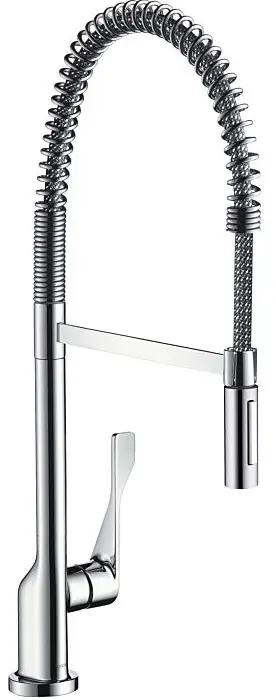

Hansgrohe AXOR 39840XXX CITTERIO Semi-Pro Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The hot and cold supplies must be of equal pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol description
Do not use silicone containing acetic acid!

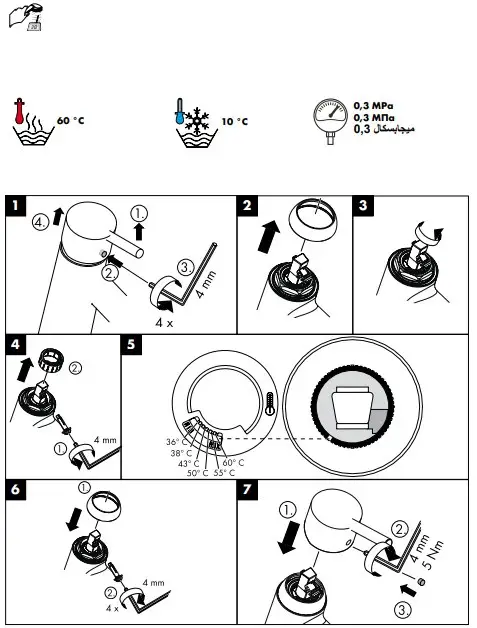

To adjust the hot water limiter on single lever mixers, please see page 32. No adjustment is necessary when using a continuous flow water heater.

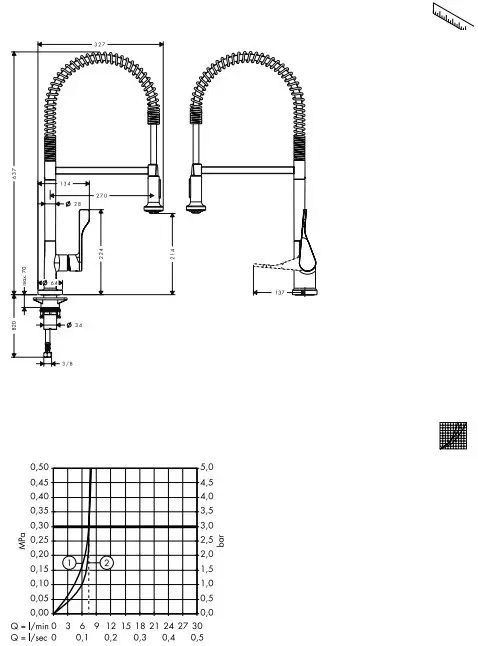

Dimensions
Flow diagram
- Aerator flow rate
- Handspray flow rate

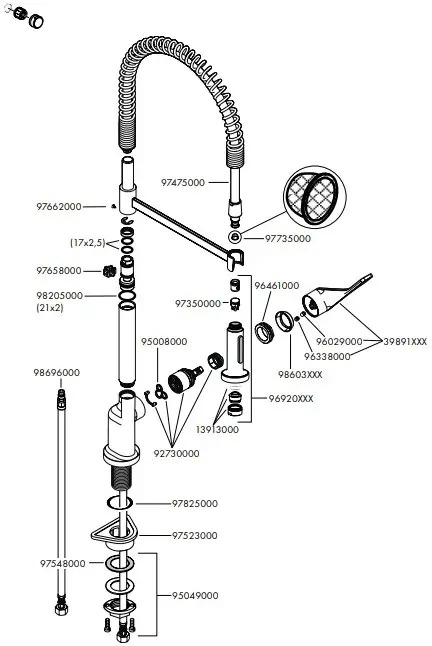

Spare parts
XXX = Colors
000 chrome plated
800 stainless steel optic

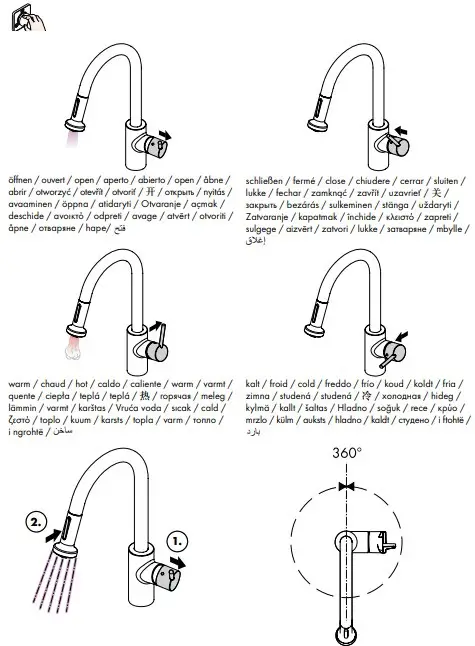

Operation
Important! Do not rotate the spout further than 360º or damage to the hose will result.

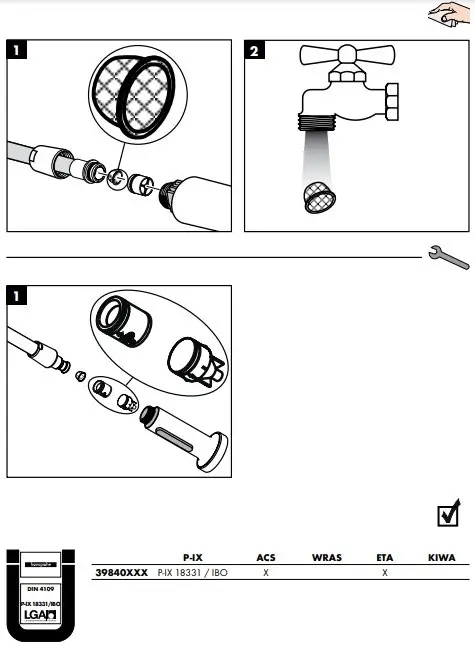

Cleaning and enclosed brochure.
Maintenance
The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).
Test certificate

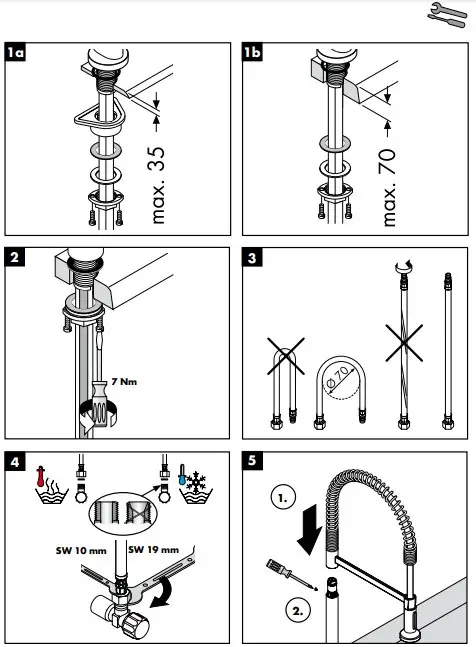

Assembly Instructions
