assembly instructions
AXOR MASSAUD
Instruction Manual

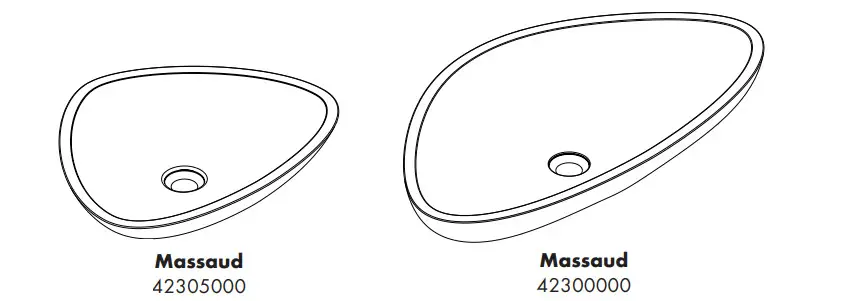

AXOR MASSAUD

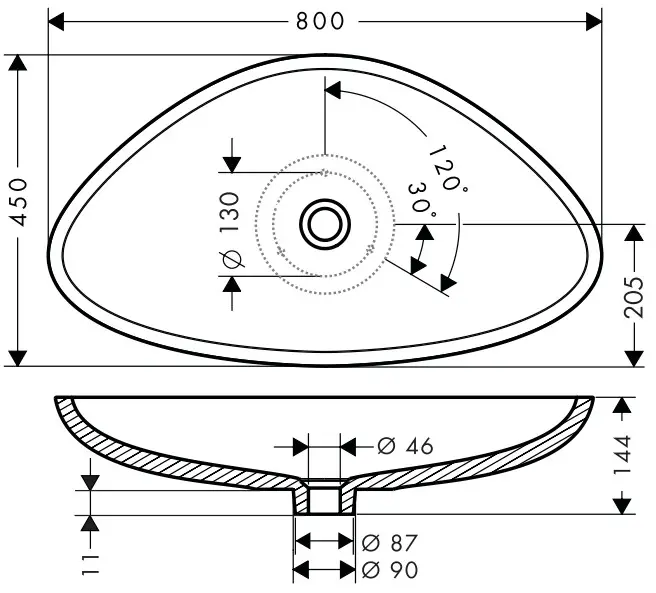

Massaud 42300000

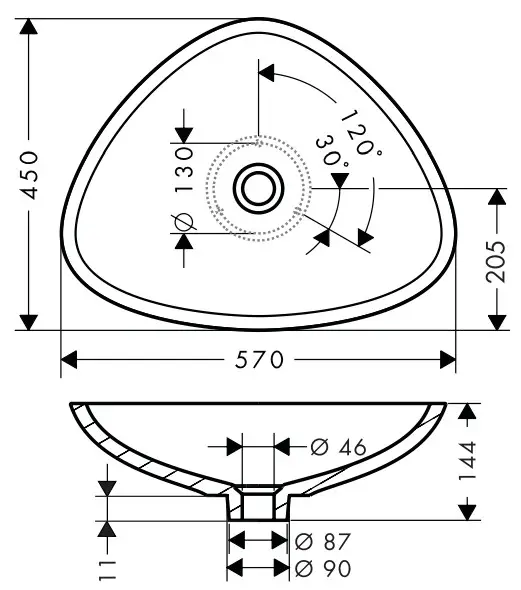

Massaud 42305000

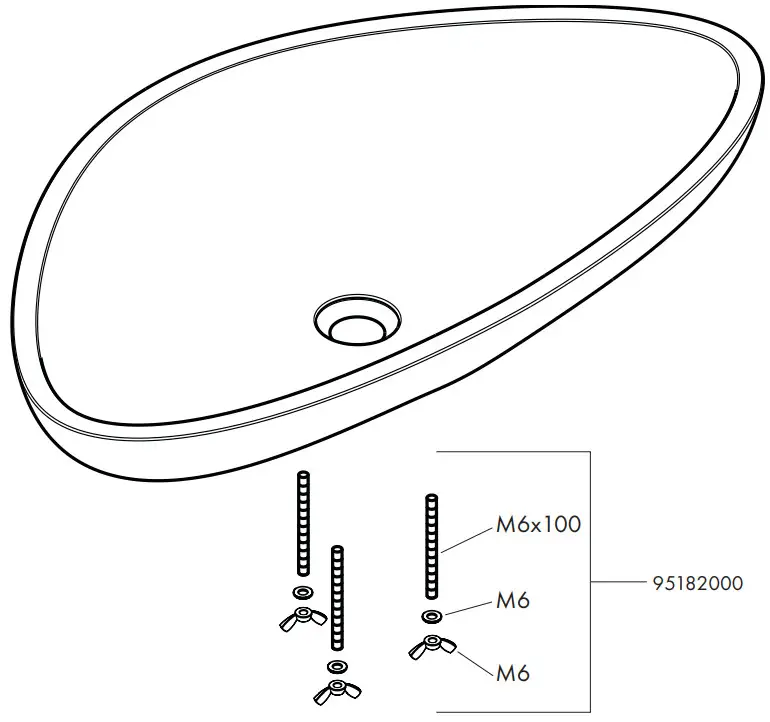

Spare parts
98682000
service set for basin
Only non-locking drain valves may be installed in the wash bowls, e.g. HansGrohe drain valve, par t no. 500001000.

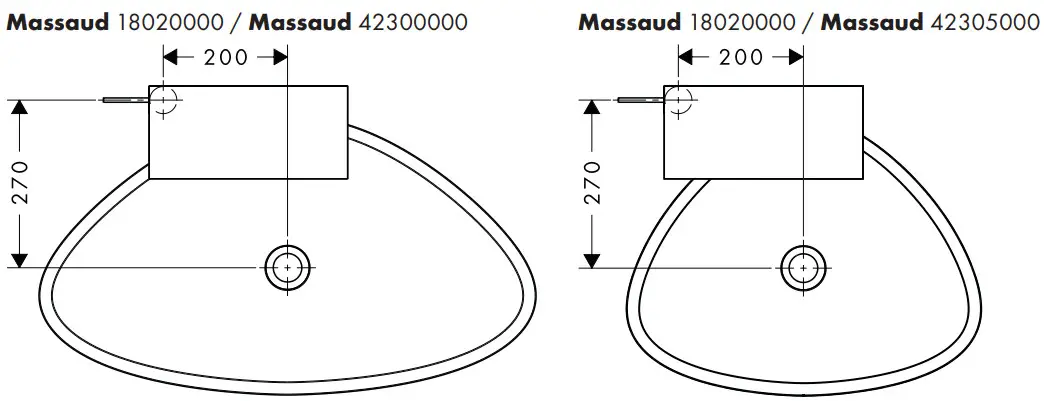

Installation example

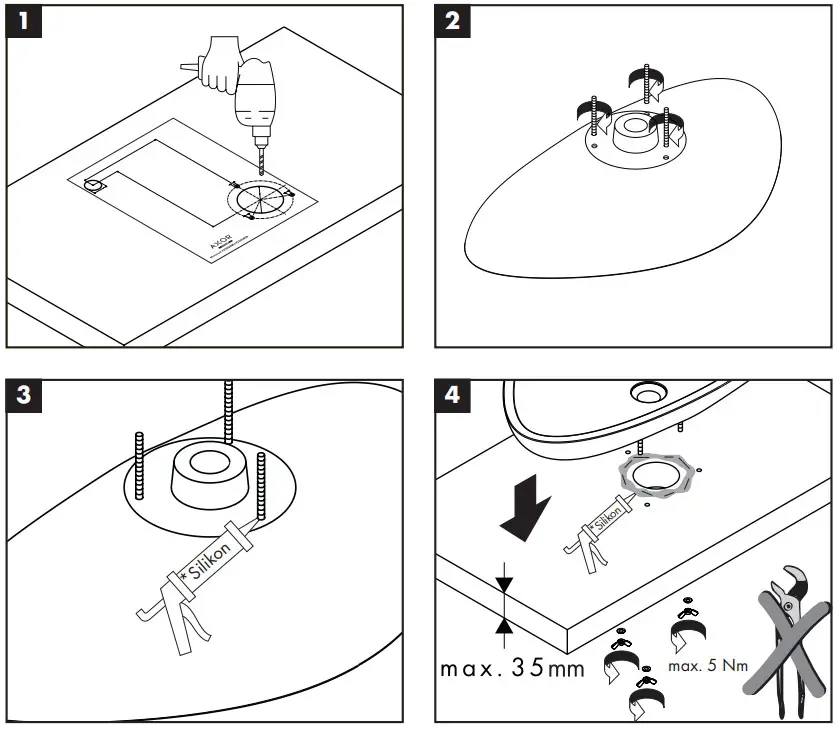

Assembly
*Silicone (free from acetic acid!)
Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
