Product Information
This user manual provides assembly instructions for various products from different designers. The following products are included:

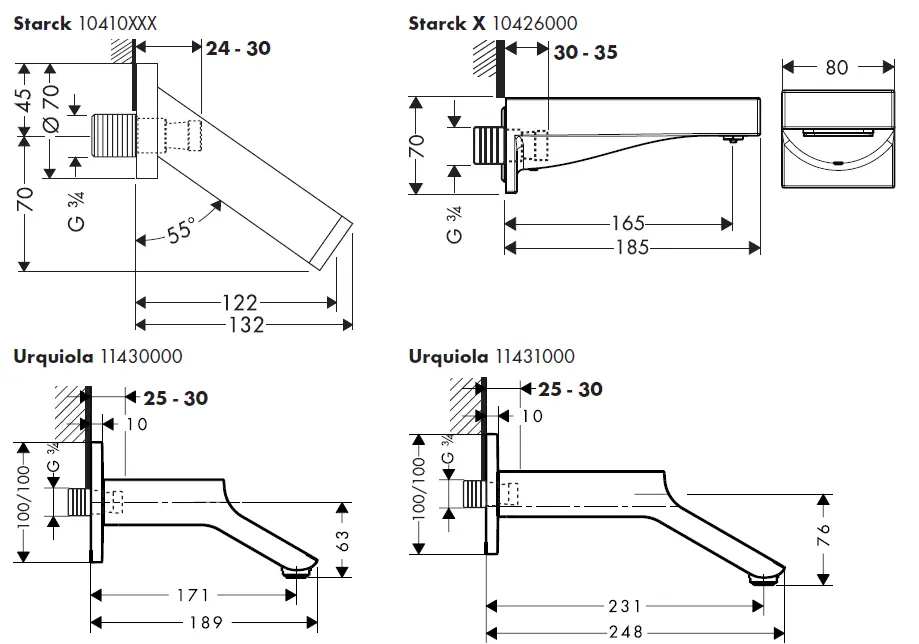

- Starck 10410XXX
- Urquiola 11430000 11431000
- Terrano 37410XXX
- Bouroullec 19415000 19416000
- Starck X 10426000

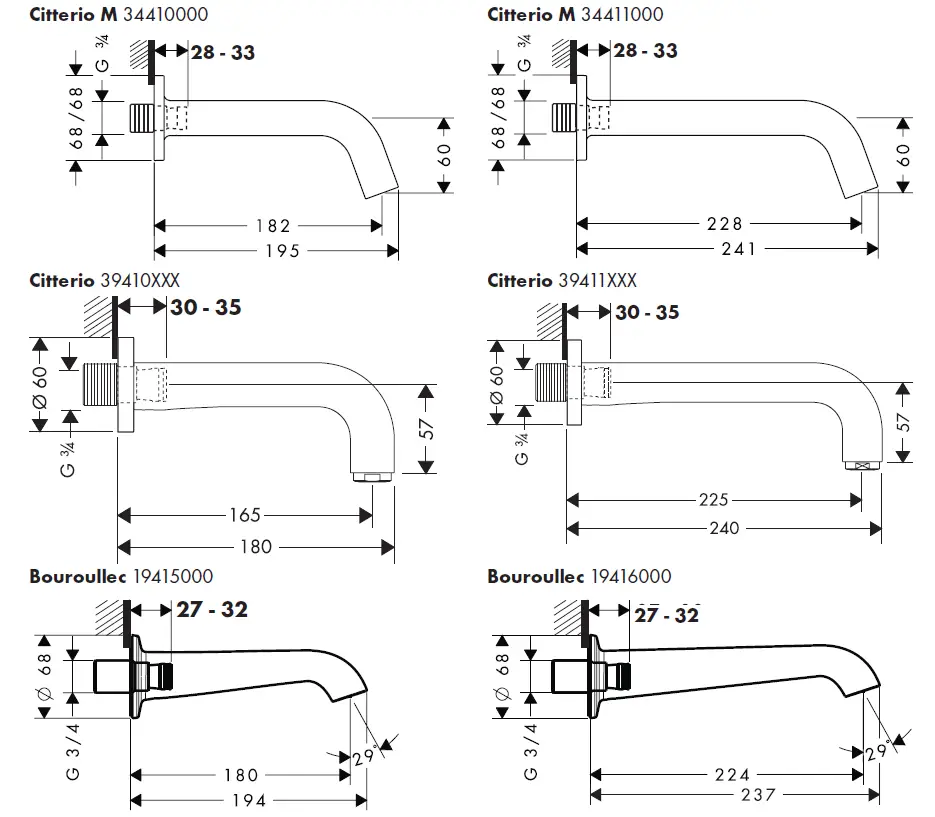

- Citterio M 34410000 34411000

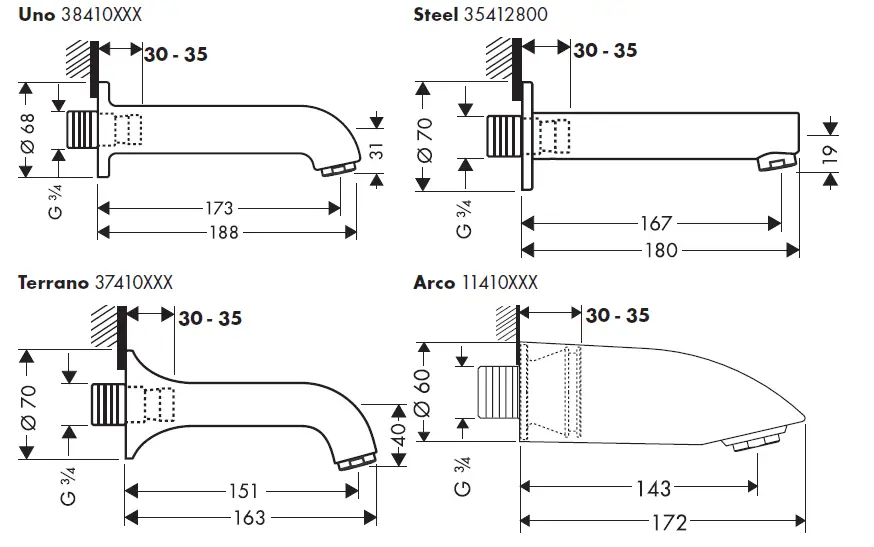

- Uno 38410XXX
- Arco 11410XXX
- Steel 35412800
- Citterio 39410XXX 39411XXX
Each product has a code and a range of values for assembly instructions. Some products have additional codes for certification, such as P-IX SVGW and WRAS. The manual also provides information on the type of silicone to use during assembly. The silicone must be free from acetic acid to avoid damage to the product.
Product Usage Instructions
- Identify the product code for your specific product.
- Refer to the range of values for assembly instructions for your product code
- Use silicone that is free from acetic acid to avoid damage to the product during assembly.
- Follow the assembly instructions carefully to ensure proper installation of the product.
- If your product has certification codes, make sure to comply with the relevant regulations during installation.
- For any questions or concerns about product usage, refer to this user manual or contact the manufacturer for assistance.
ASSEMBLY

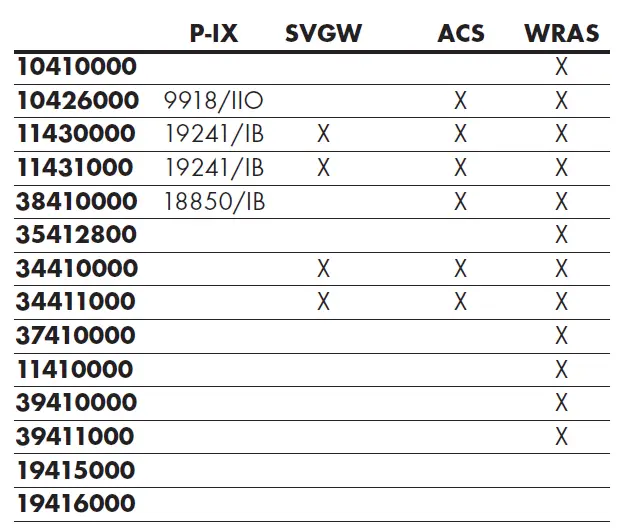

| P-IX | SVGW | ACS | WRAS | ||||
| 10410000 | X | ||||||
| 10426000 | 9918/IIO | X | X | DIN 4109 | DIN 4109 | DIN 4109 | |
| 11430000 | 19241/IB | X | X | X | P-IX 9918/IIO | P-IX 19241/IB | P-IX 18850/IB |
| 11431000 | 19241/IB | X | X | X | |||
| 38410000 | 18850/IB | X | X | ||||

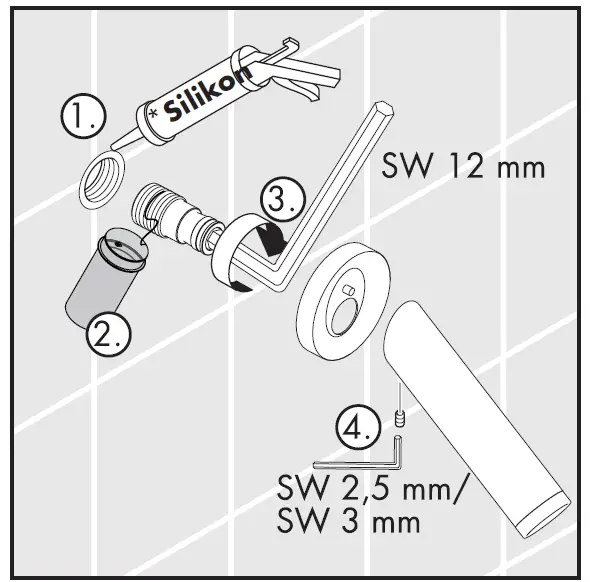

Silicone (free from acetic acid!)
Silicone (free from acetic acid!)
