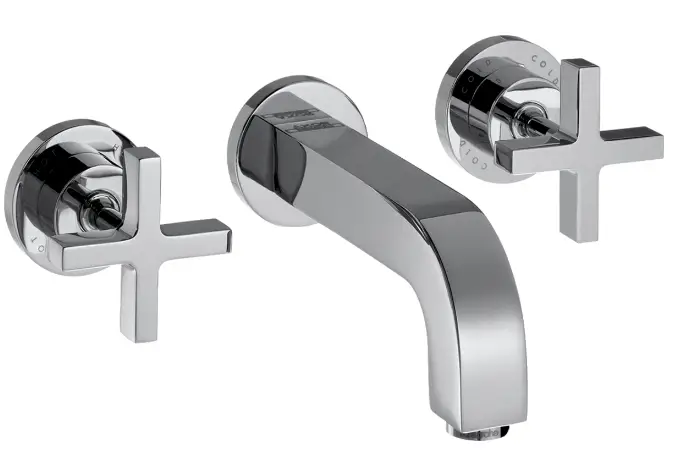

hansgrohe AXOR CITTERIO

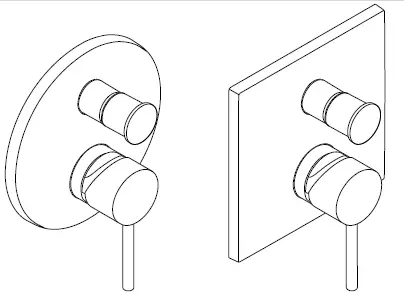

MODELS
Starck
- 10416000
- 10418000
Starck X
- 10445000
- 10447000
Citterio M
- 34425000
- 34425003
- 34427000
Uno²
- 38425000
- 38427000
Citterio
- 39455000
- 39455003
- 39457000
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic and body cleansing purposes.
- The hot and cold supplies must be of equal pressure.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- Hansgrohe mixers can be used together with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C anti-pollution function
Symbol Description
- Do not use silicone-containing acetic acid!

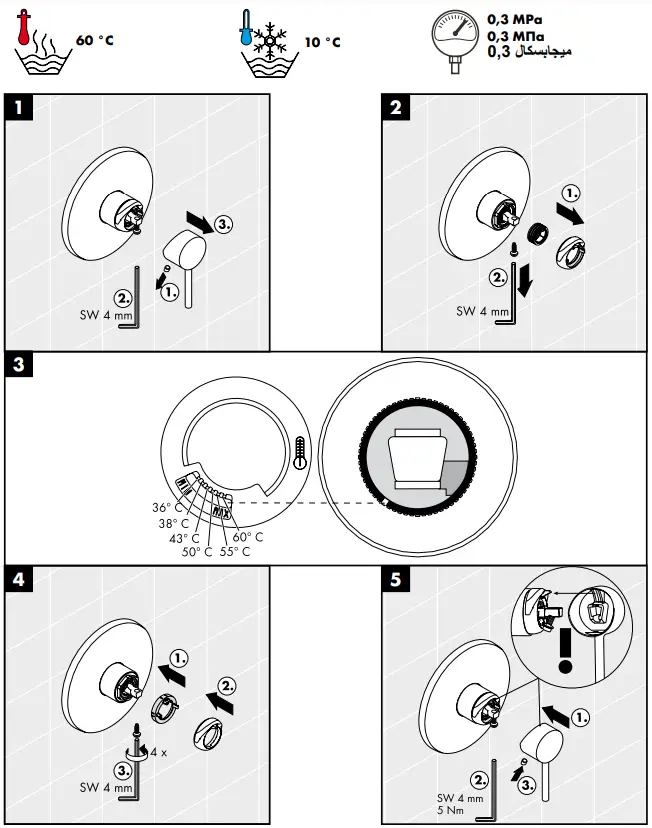

To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

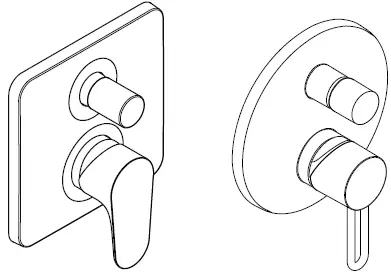

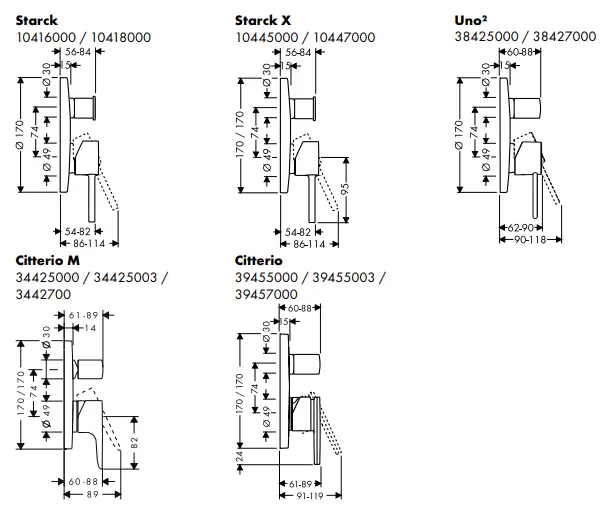

Dimensions
- Starck 10416000 / 10418000
- Starck X 10445000 / 10447000
- Uno² 38425000 / 38427000
- Citterio 39455000 / 39455003 / 39457000
- Citterio M 34425000 / 34425003 / 3442700

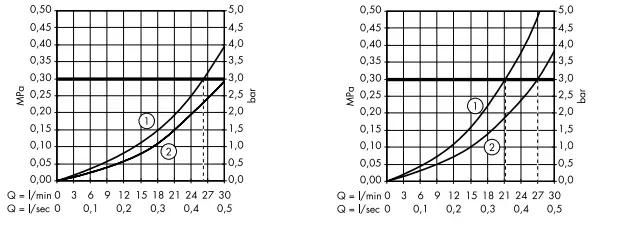

Flow diagram
- Shower outlet
- Tub outlet

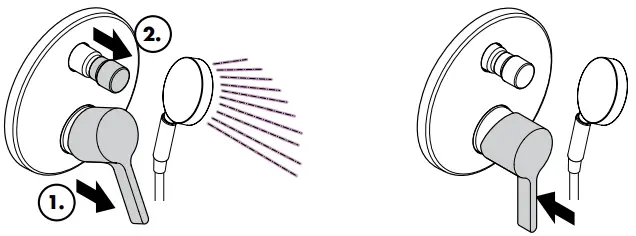

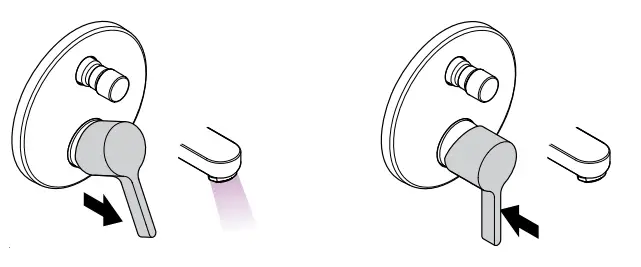

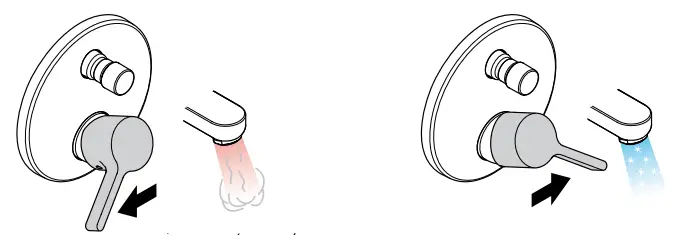

Operation
- open
- close
- hot
- cold
- open
- close
Maintenance
Cleaning
Cleaning recommendations, see enclosed brochure.

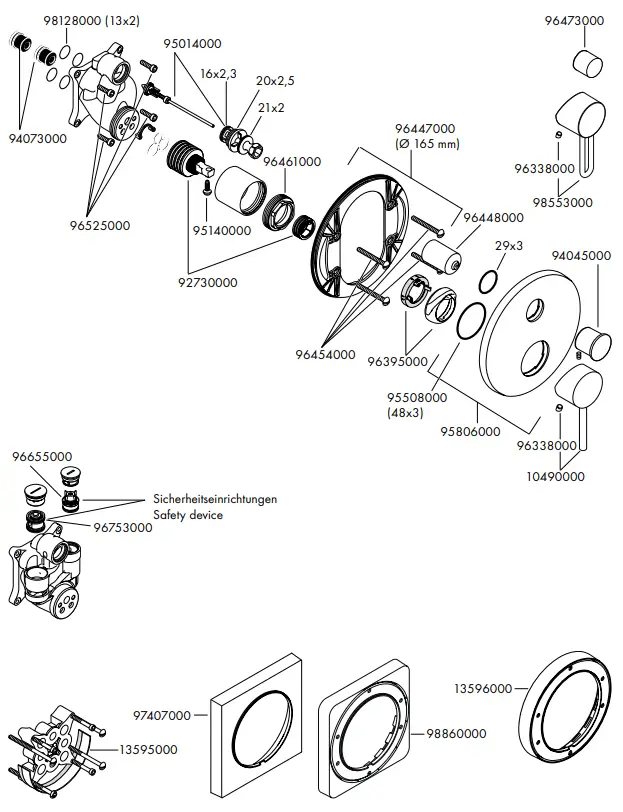

Spare parts

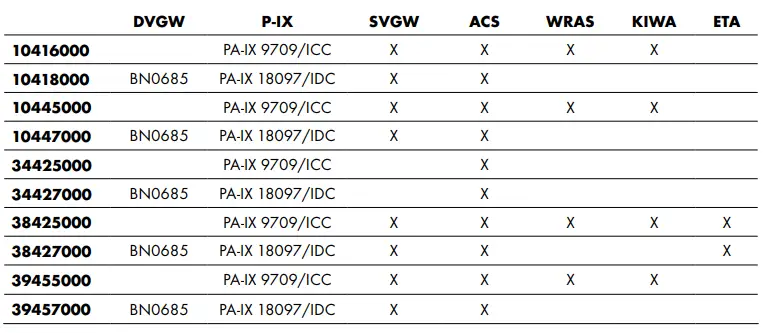

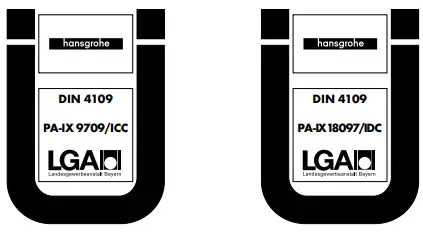

Test certificate
- 10416000 / 10445000 / 34425000 / 38425000 / 39455000
- 10418000 / 10447000 / 34427000 / 38427000 / 39457000
| Fault | Cause | Remedy |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective, sedimentation | – Exchange cartridge |
| Diverter not operating | – Residue | – Clean converter / grease O-rings |
| – Water pressure to low | – Increase water pressure | |
| – Diverter defective | – Exchange diverter | |
| Hot water temperature too low, no cold water. Instantaneous water | – Hot water limiter incorrectly set | – Set hot water limiter |
heater starts up when cold water is selected.
- Crossflow – Exchange cartridge

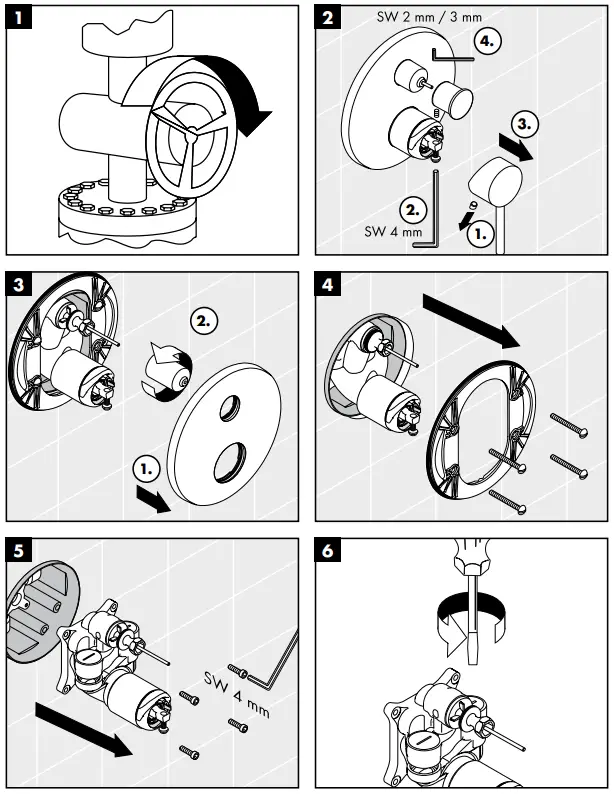

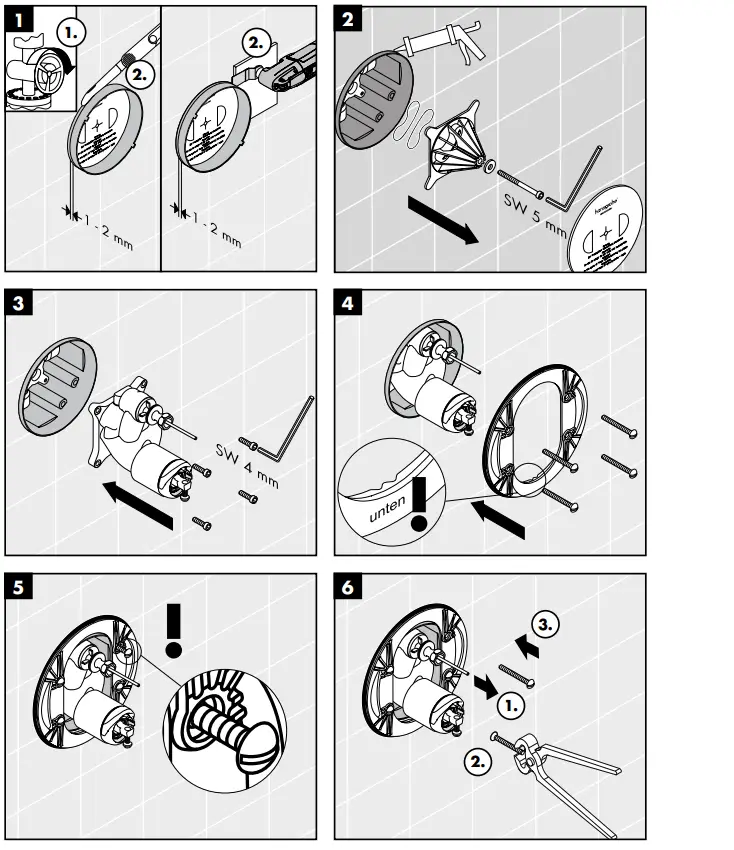

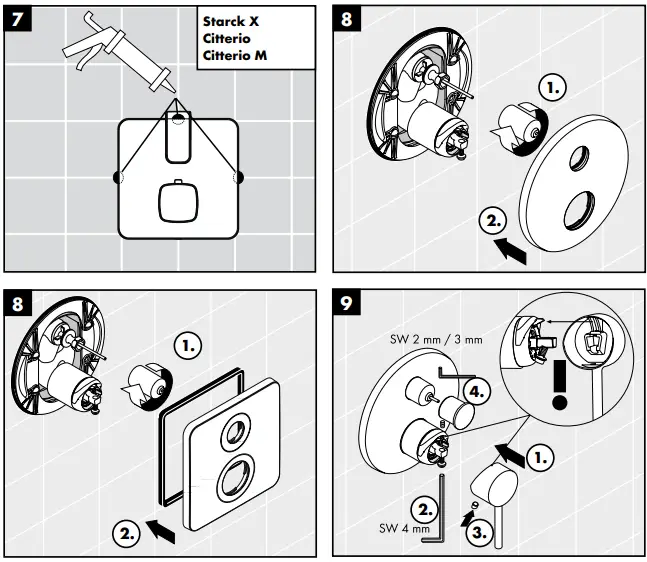

Assembly
