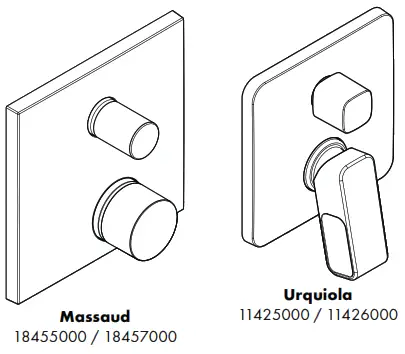

Massaud, Urquiola
Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C anti-pollution function

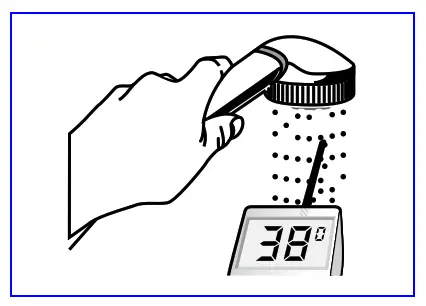

Symbol description
 | Do not use silicone containing acetic acid! |
 | To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater. |
 | Dimensions (see page 34) |
 | Flow diagram (see page 34) ① Shower outlet ② Tub outlet |

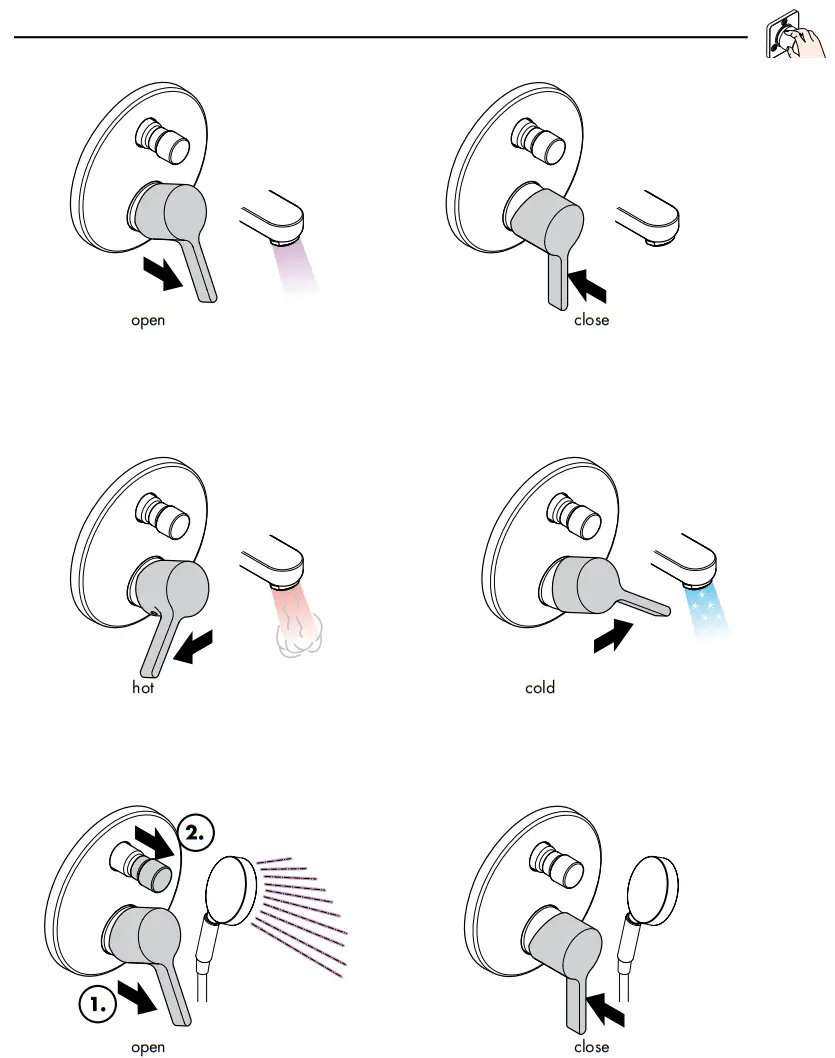

 | Operation (see page 35) |
 | Maintenance (see page 36) 11426000 / 18457000: The safety device must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). |
 | Cleaning Cleaning recommendations, see enclosed brochure. |

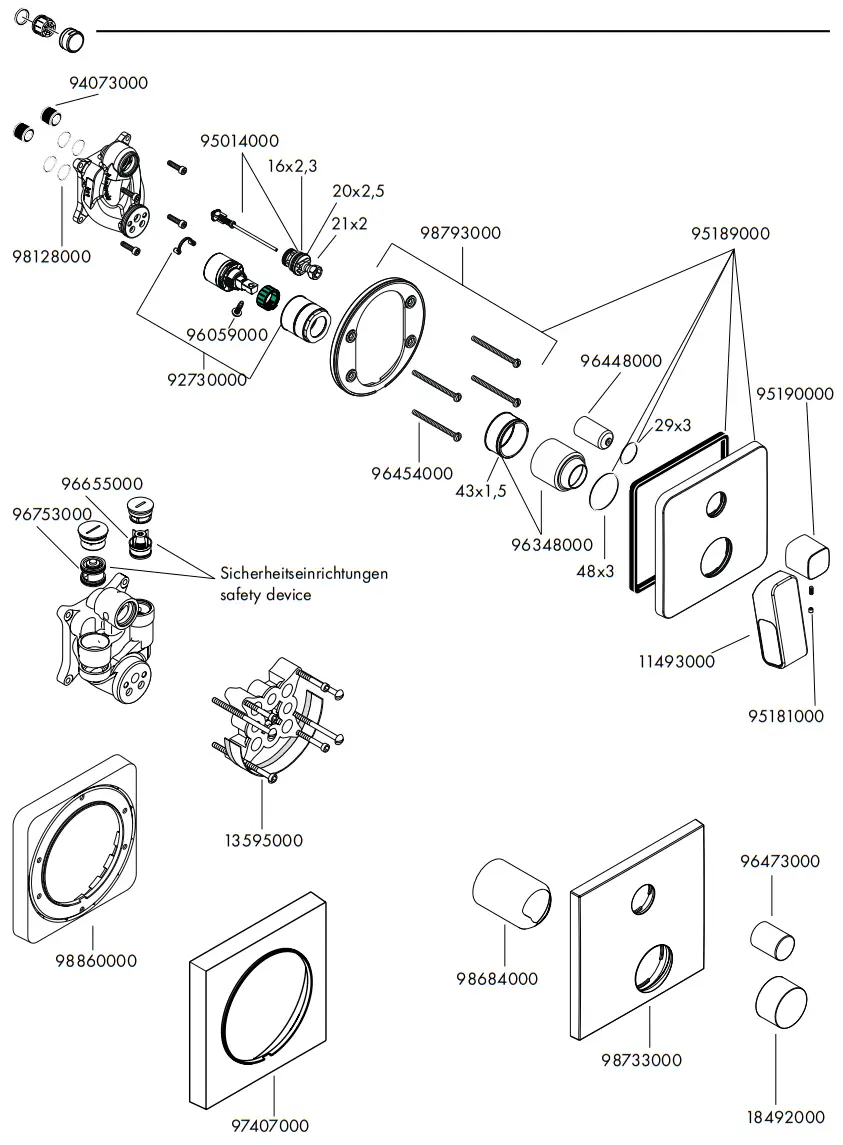

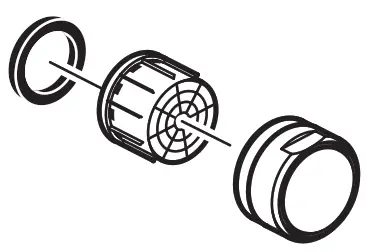

 | Spare parts (see page 38) |
 | Test certificate (see page 39) |
| Fault | Cause | Remedy |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective, sedimentation | – Exchange cartridge |
| Diverter not operating | – Residue | – Clean converter / grease 0-rings |
| – Water pressure to low | – Increase water pressure | |
| – Diverter defective | – Exchange diverter | |
| Hot water temperature too low, no cold water. Instantaneous water heater starts up when cold water is selected. | – Hot water limiter incorrectly set | – Set hot water limiter |
| – Crossflow | – Exchange cartridge |

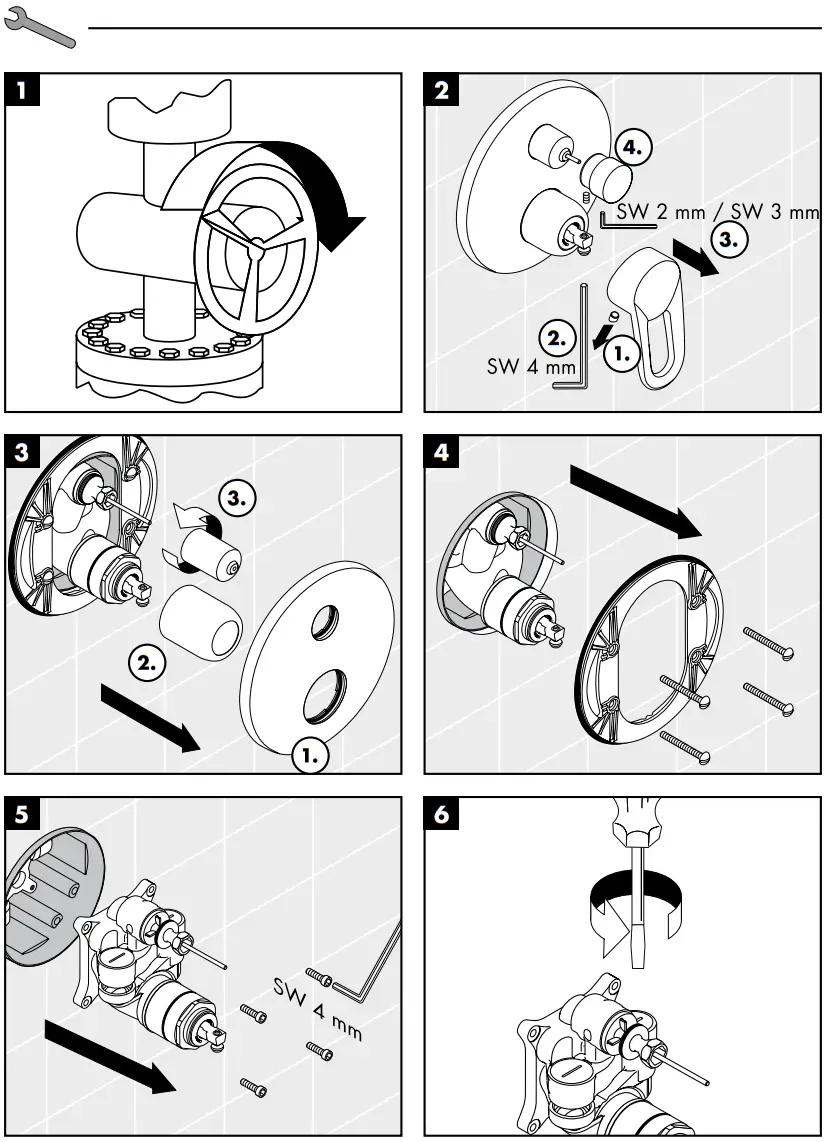

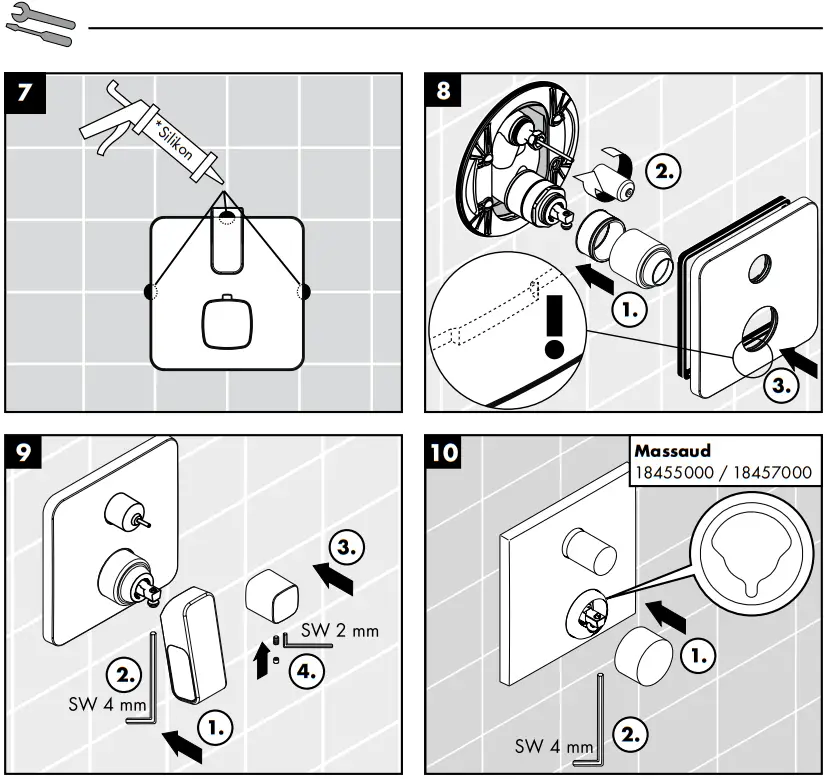

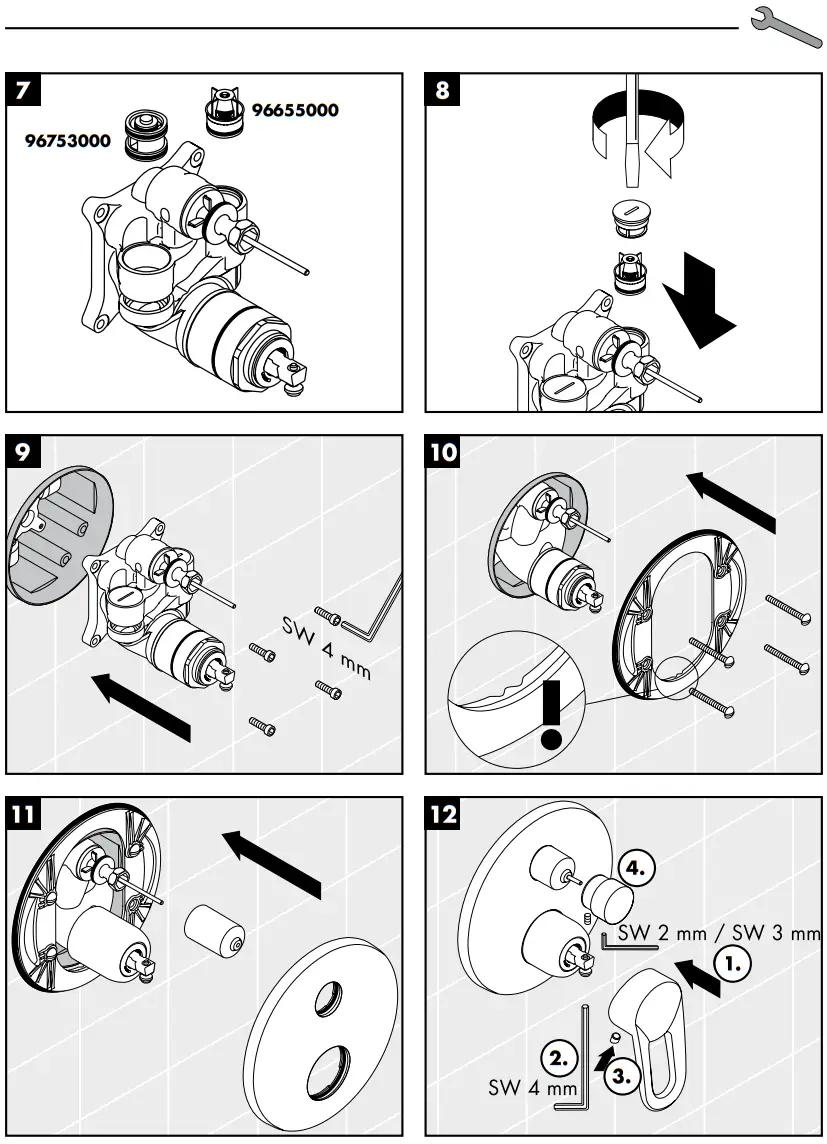

Assembly
 |  |
 |  |
 |  |
 |  |
| PA-IX | DVGW | SVGW | ACS | WRAS | NF | KIWA | |
| 11425000 | |||||||
| 11426000 | |||||||
| 18455000 | PA – IX 9709/ICC | X | X | ||||
| 18457000 | PA – IX 18097/ICD | X | X |
Hansgrohe · Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
06/2010
9.04931.04
