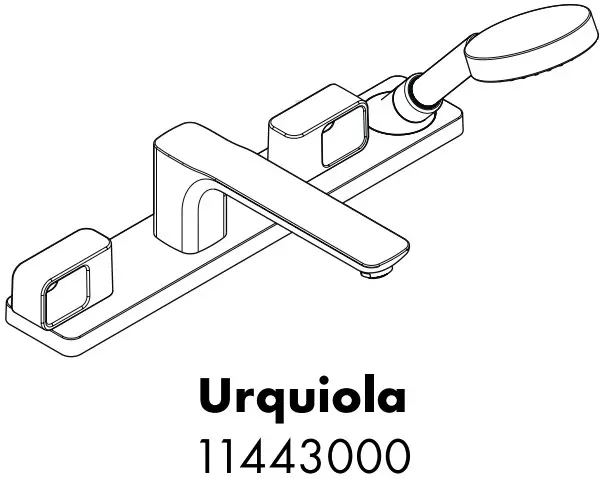

Instructions for use / assembly instructions
Safety Notes
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.The shower system may only be used for bathing, hygienic and body cleansing purposes.The hot and cold supplies must be of equal pressures. Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you. The product may not be used as a holding handle. A separate handle must be installed.

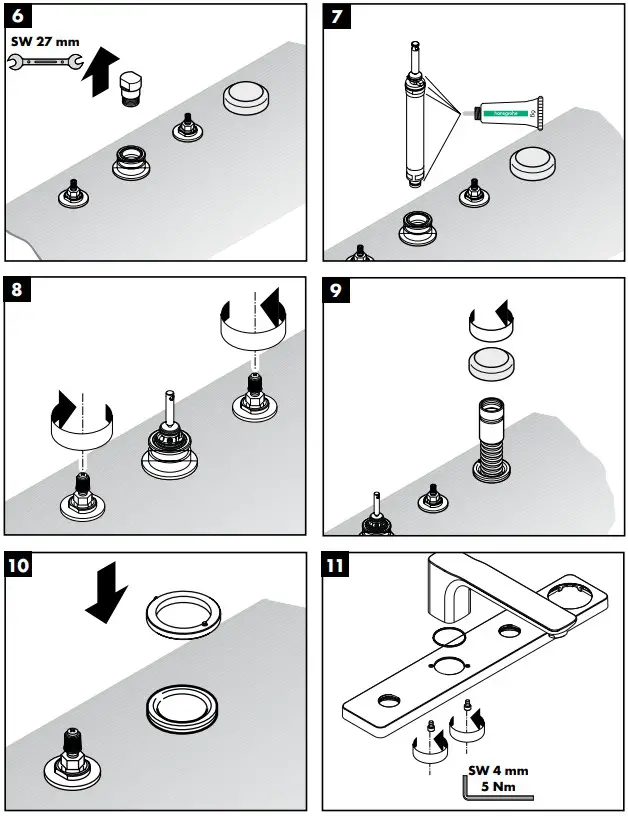

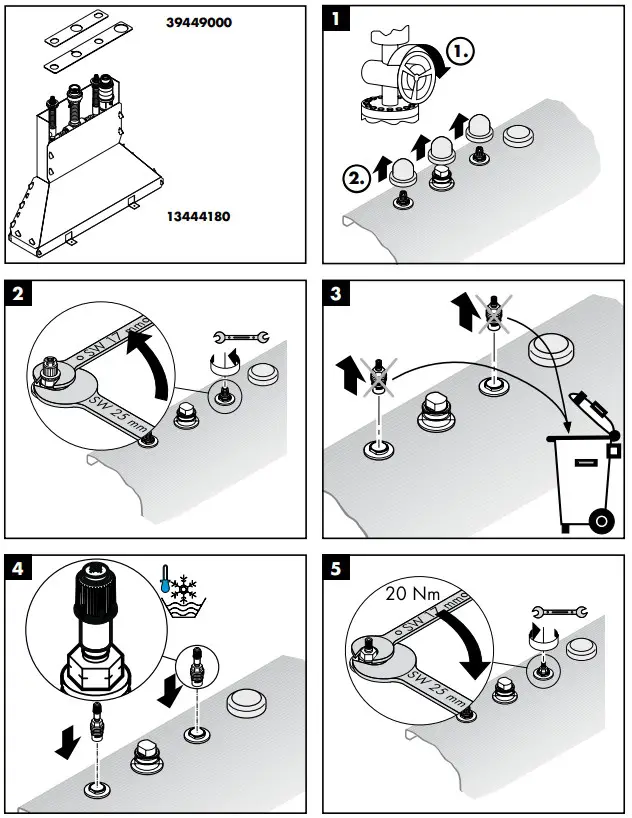

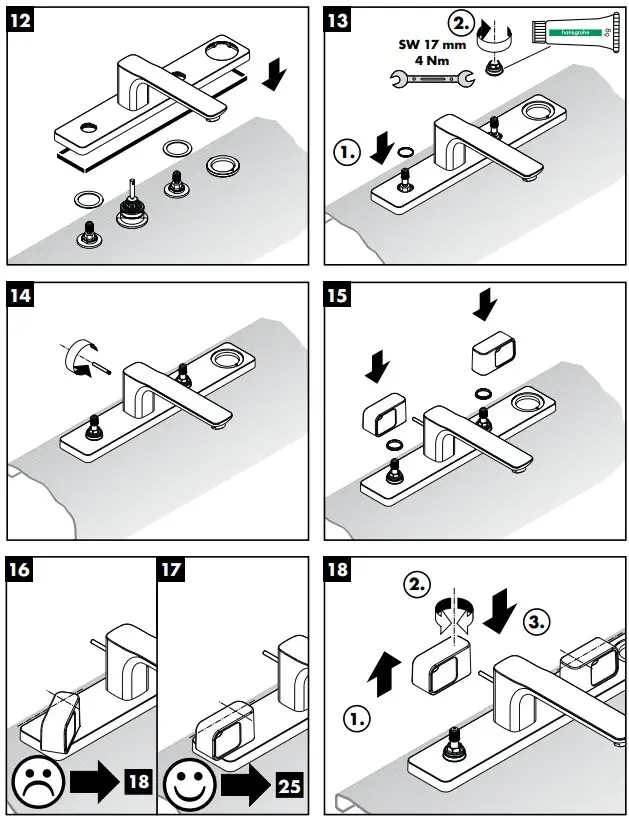

Installation Instructions
The fitting must be installed, flushed and tested after the valid norms.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C anti-pollution function
Symbol description

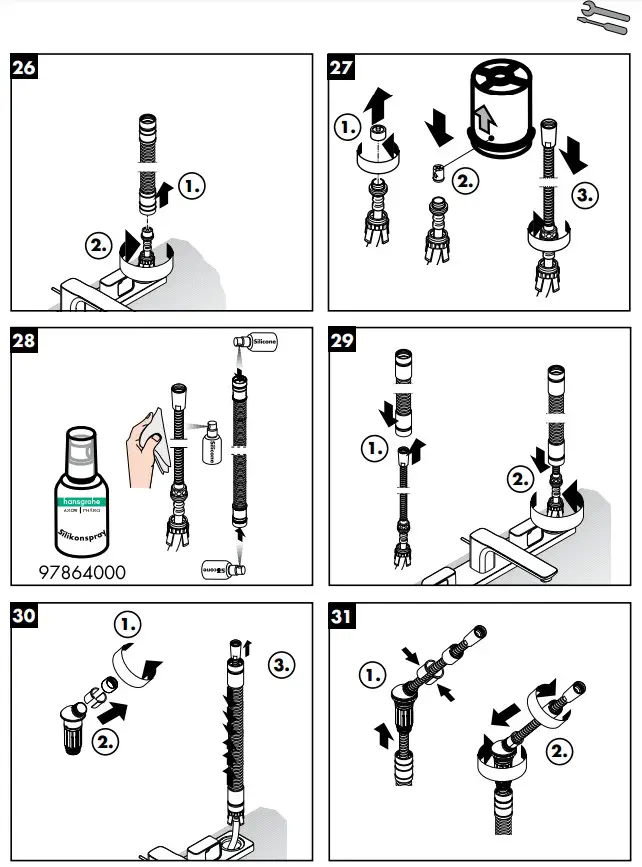

Maintenance non return valve
(see page 39)
The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

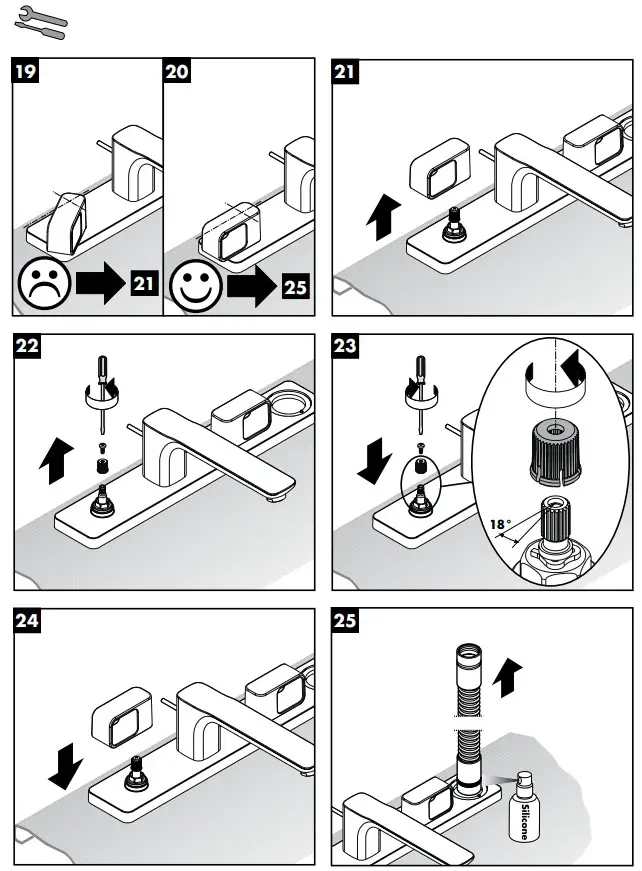

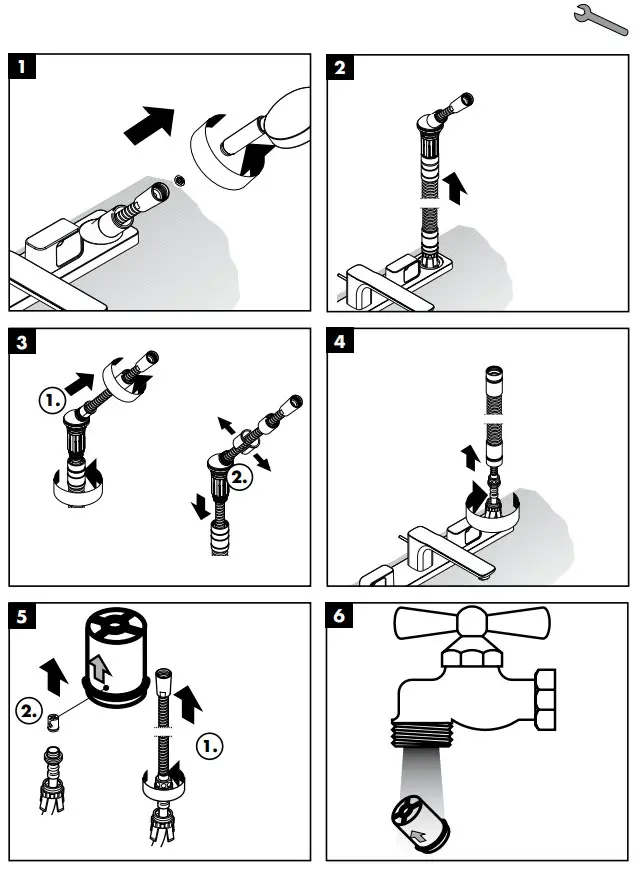

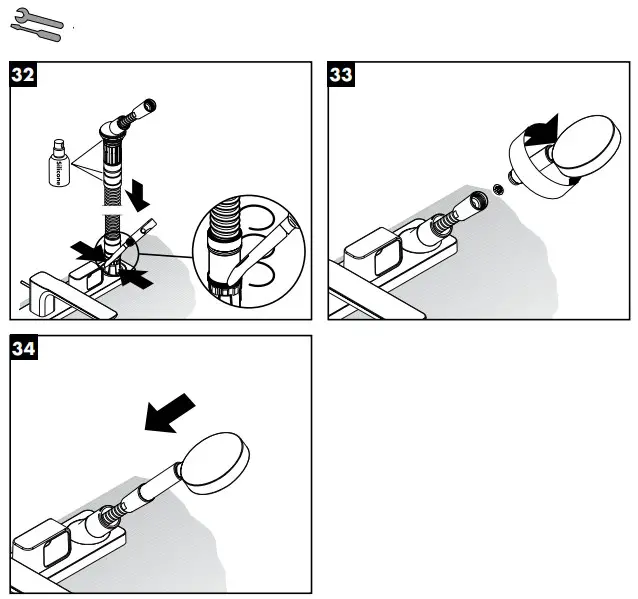

Maintenance Secuflex hose (see page 39)
Repeat cleaning when pull out becomes difficult.
Do not use silicone containing acetic acid!

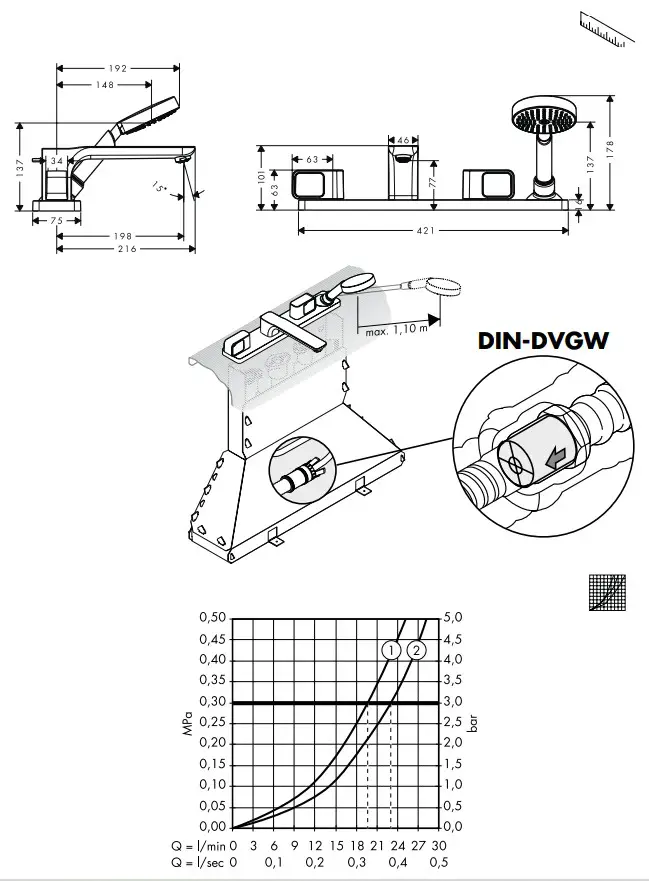

Dimensions (see page 37)
Flow diagram (see page 37)

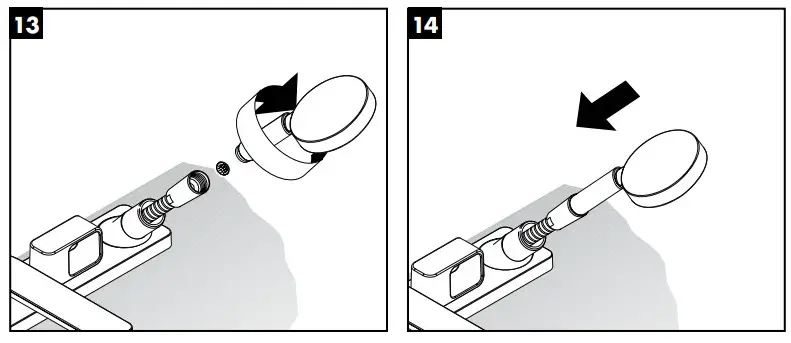

Handshower
BathSpout

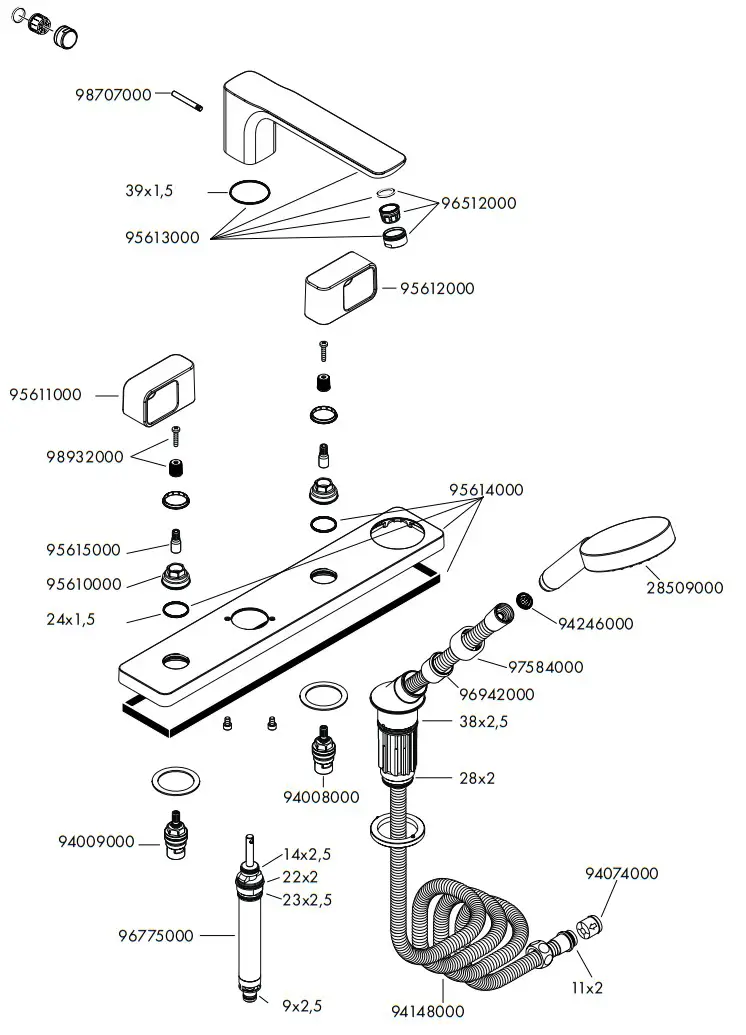

Spare parts (see page 42)

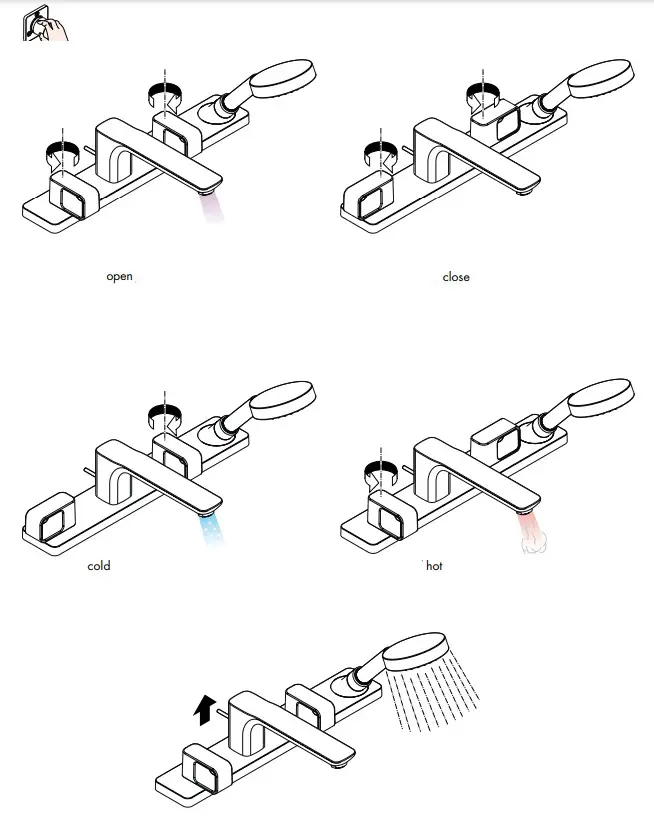

Operation (see page 38)
Cleaning recommendations, see enclosed brochure.
