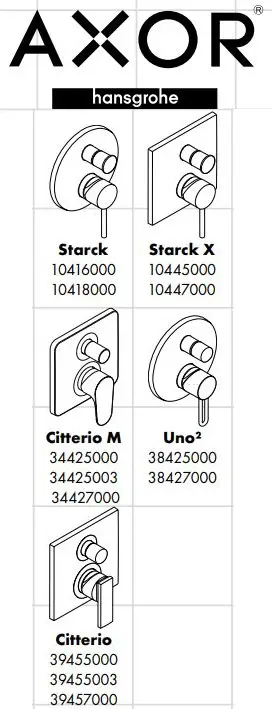

hansgrohe AXOR UNO2 Bath Faucet Levers Instruction Manual
Safety Notes
⚠ Gloves should be worn during installation to prevent crushing and cutting injuries.
⚠ The shower system may only be used for bathing, hygienic and body cleansing purposes.
⚠ The hot and cold supplies must be of equal pressures.

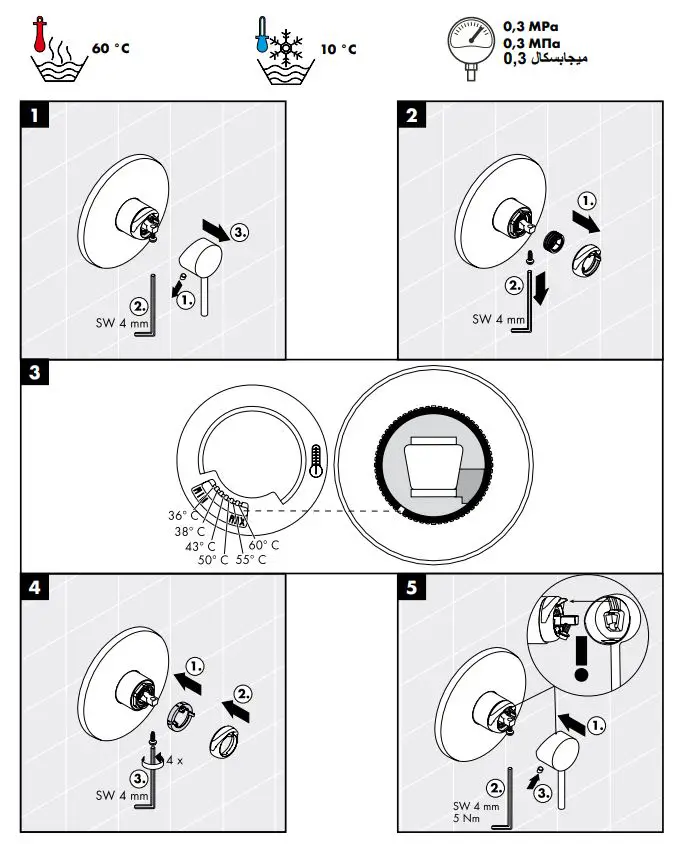

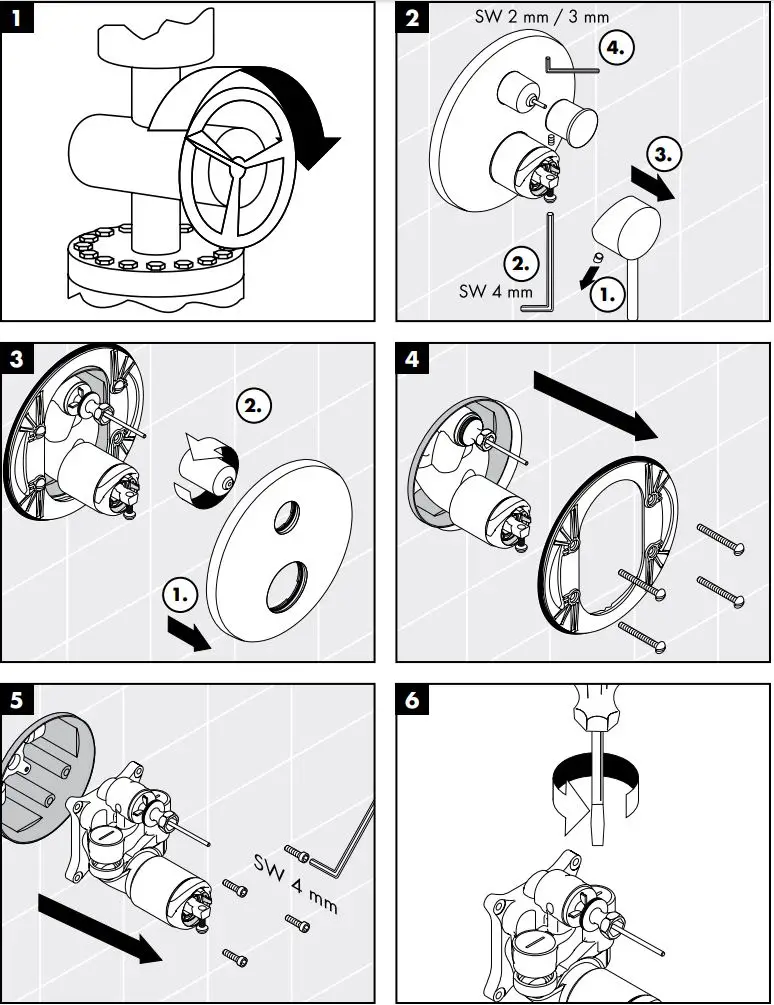

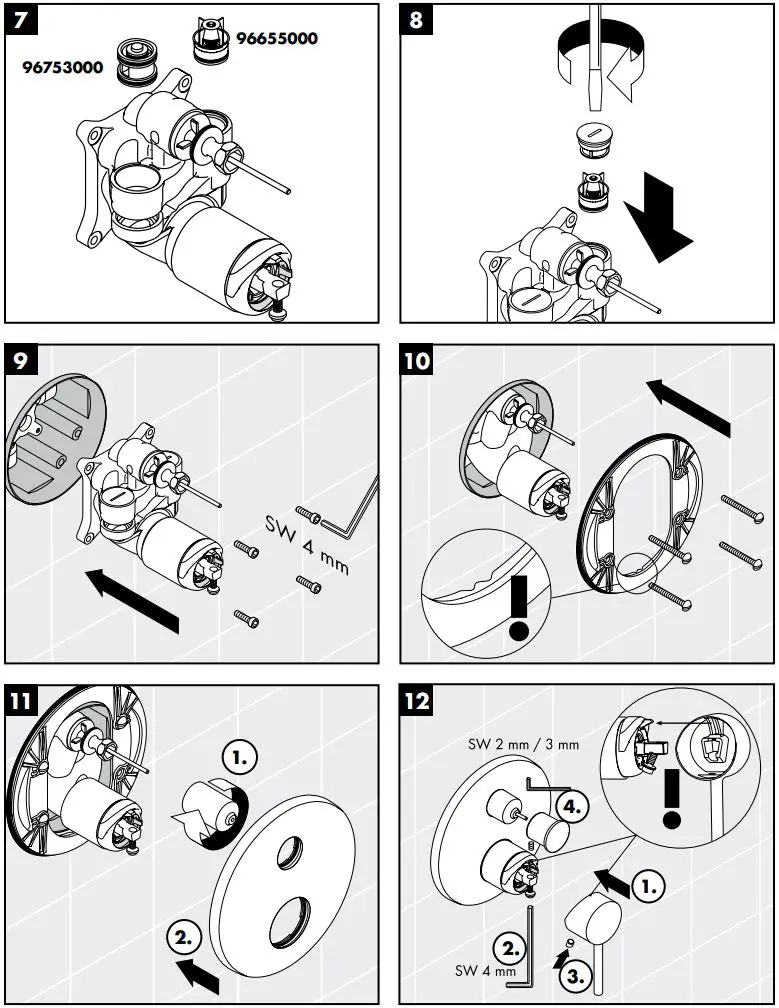

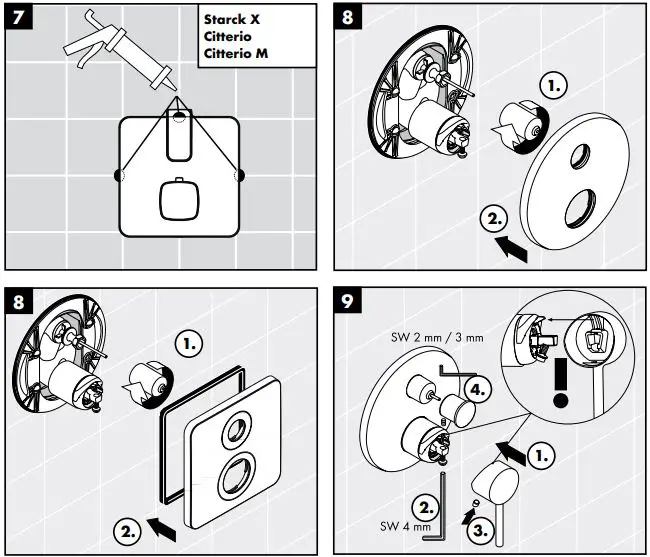

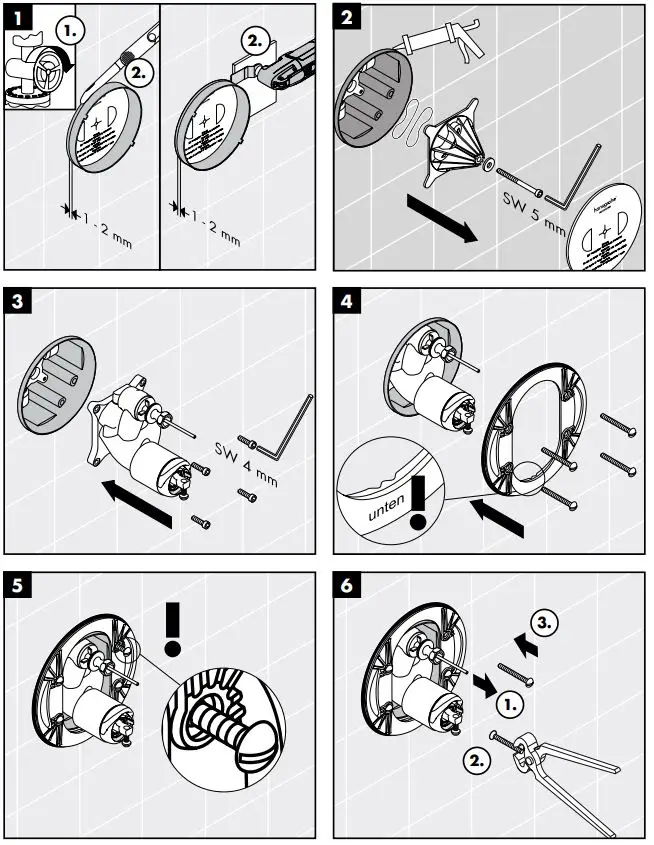

Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- Hansgrohe mixers can be used together with hydraulically and thermic ally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C anti-pollution function

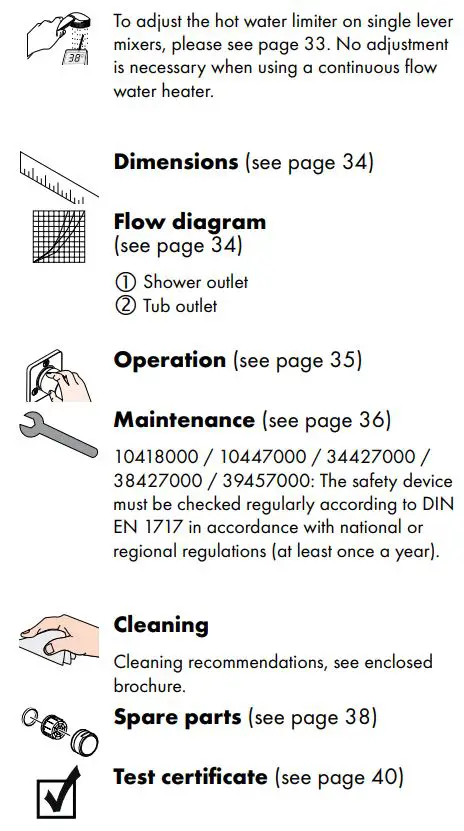

Symbol description
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
