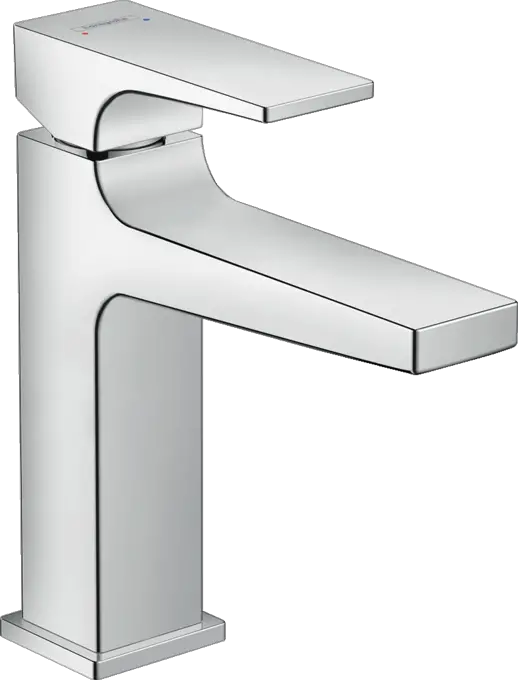

hansgrohe Metropol E Washbasins Lever Faucet
Product Information
The product is a shower system that can be used for bathing, hygienic, and body cleansing purposes. It is an Einhandmischer mixer with a warm water limiter that can be adjusted according to the user’s preference. The shower system requires the hot and cold supplies to have equal pressure to function properly. The operating pressure should not exceed 1 MPa, and the recommended operating pressure is 1.6 MPa. The product can be used together with hydraulically and thermally controlled continuous flow heaters, provided that the flow pressure is at least 0.15 MPa. The installation kit and special tool are not included in the product package.
Product Usage Instructions
Before using the shower system, make sure to wear protective gloves during installation to prevent crushing and cutting injuries. The hot and cold supplies must have equal pressures to ensure proper functioning of the shower system.

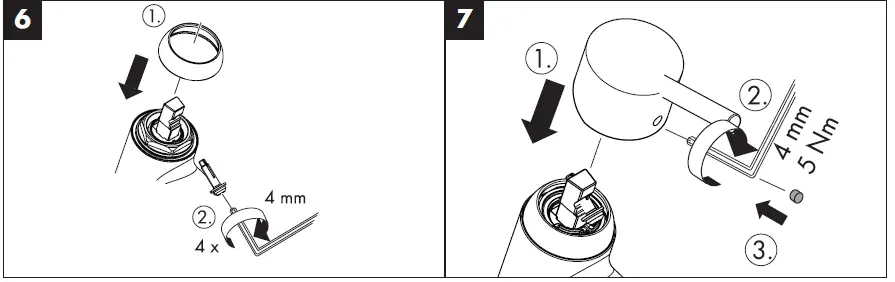

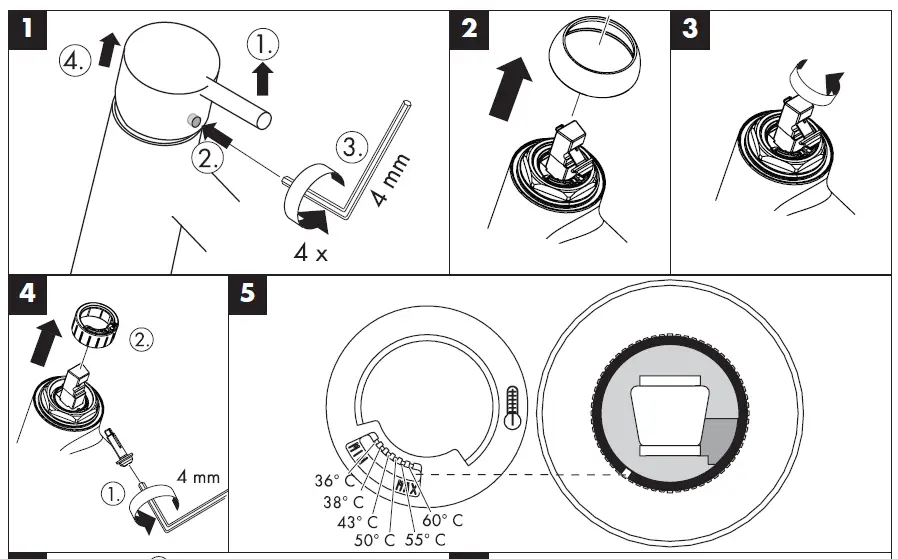

Adjusting the Hot Water Limiter
To adjust the hot water limiter on single lever mixers, refer to page 33 of the user manual. No adjustment is necessary when using a continuous flow water heater.
Flow Diagram
Refer to page 34 of the user manual for the flow diagram of the shower system.
Spare Parts
If you need spare parts for the shower system, refer to page 36 of the user manual.
Cleaning
For cleaning instructions, refer to the enclosed brochure.
Installation
Refer to page 31 of the user manual for installation instructions. The installation kit is not included in the product package, so you need to order it separately.
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic and body cleansing purposes.
- The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.

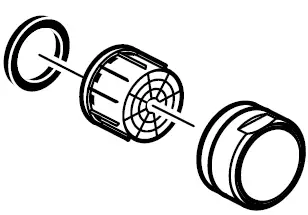

- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

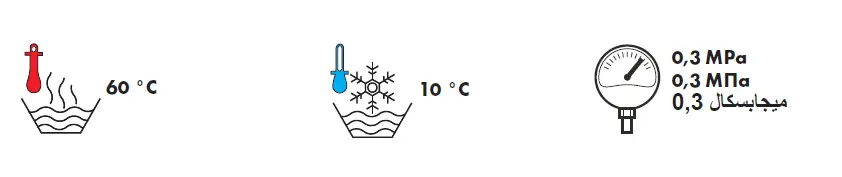

Symbol description
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!

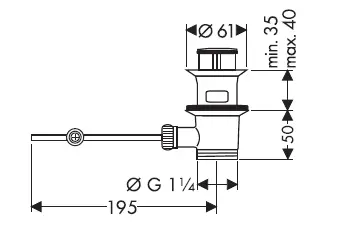

Dimensions

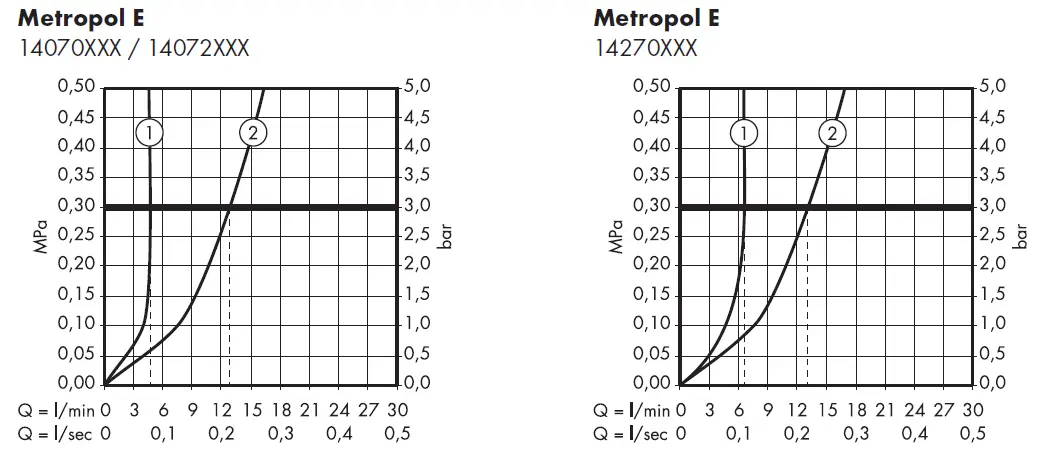

Flow diagram- with EcoSmart
- without EcoSmart
Spare parts
Special accessories
Installation kit order as an extra
Operation

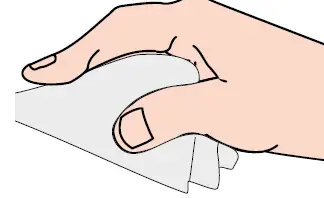

Cleaning
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!
Dimensions
Flow diagram
Spare parts
Special accessories
Installation kit order as an extra
Operation
Cleaning

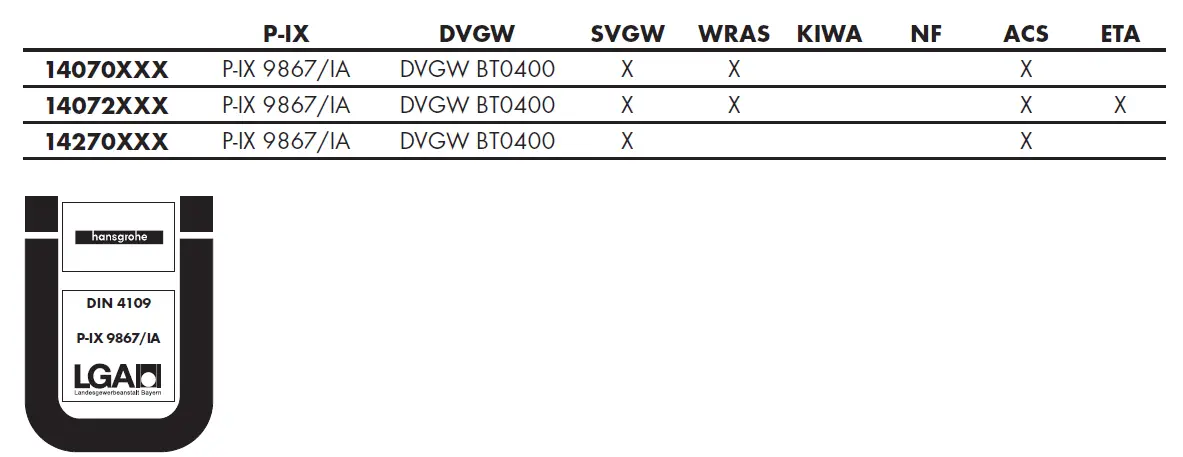

Test certificate

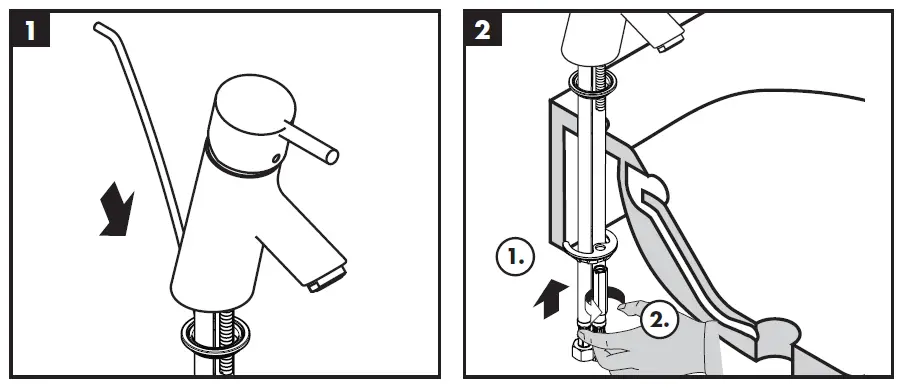

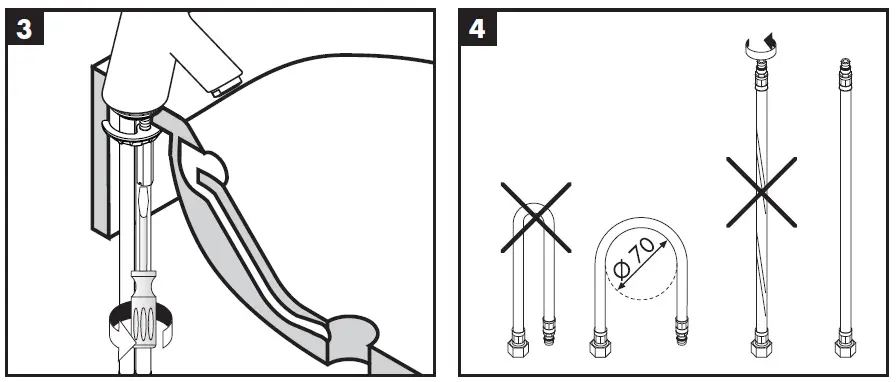

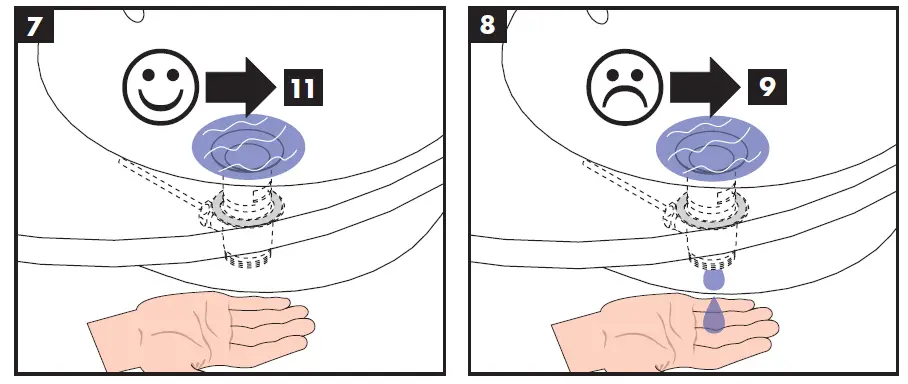

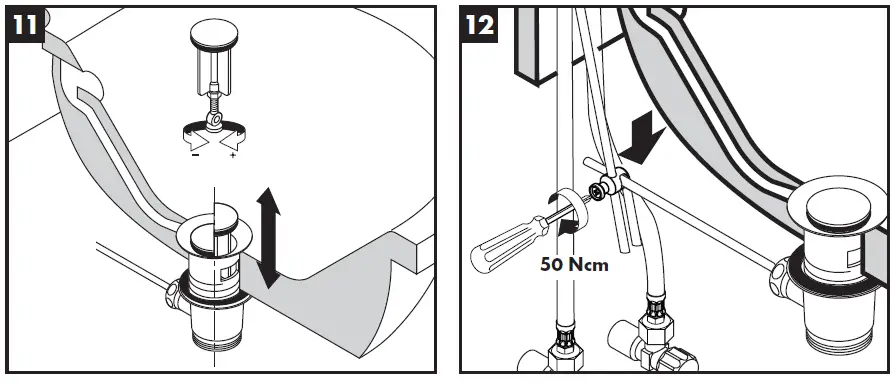

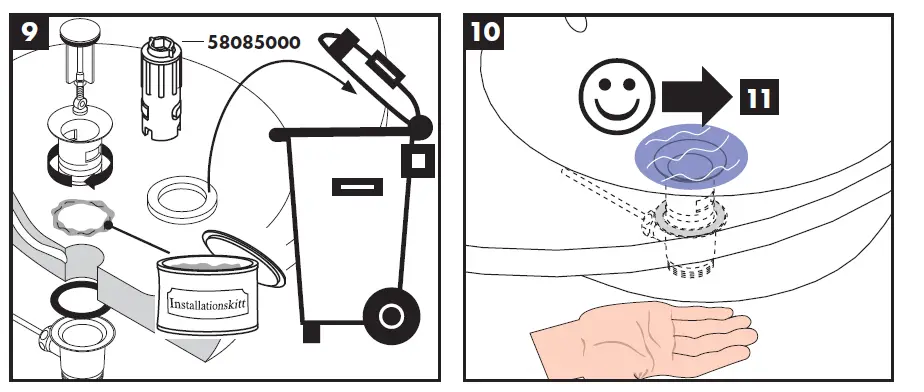

Test certificateAssembly Procedure
How To Use?

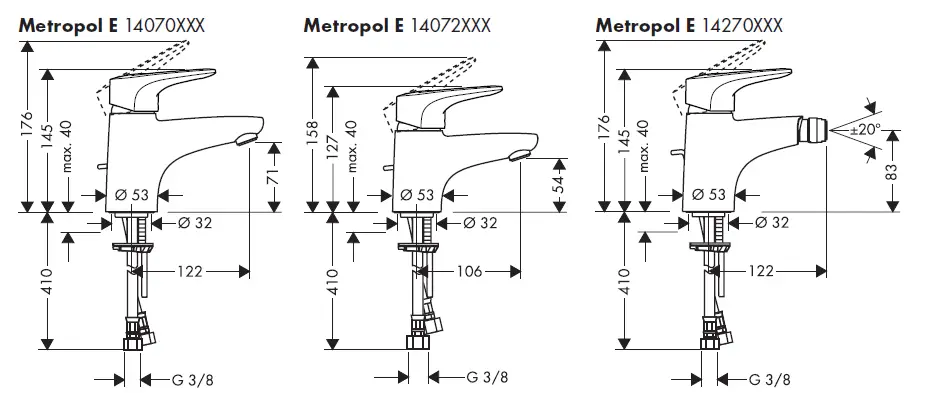

Dimension
open
cold
close
hot

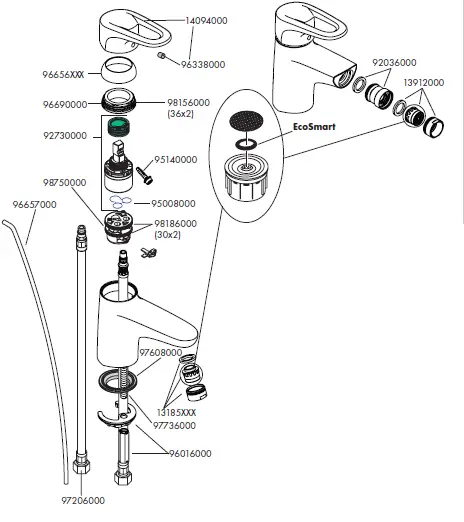

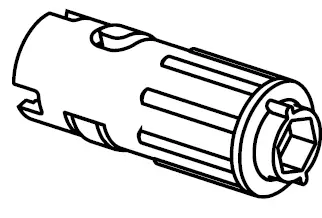

Parts
- XXX = Colors
- 000 = chrome plated
- 090 = gold plated
