14111XXX TALIS C Lever Sink Faucet DN15
Instruction Manual

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

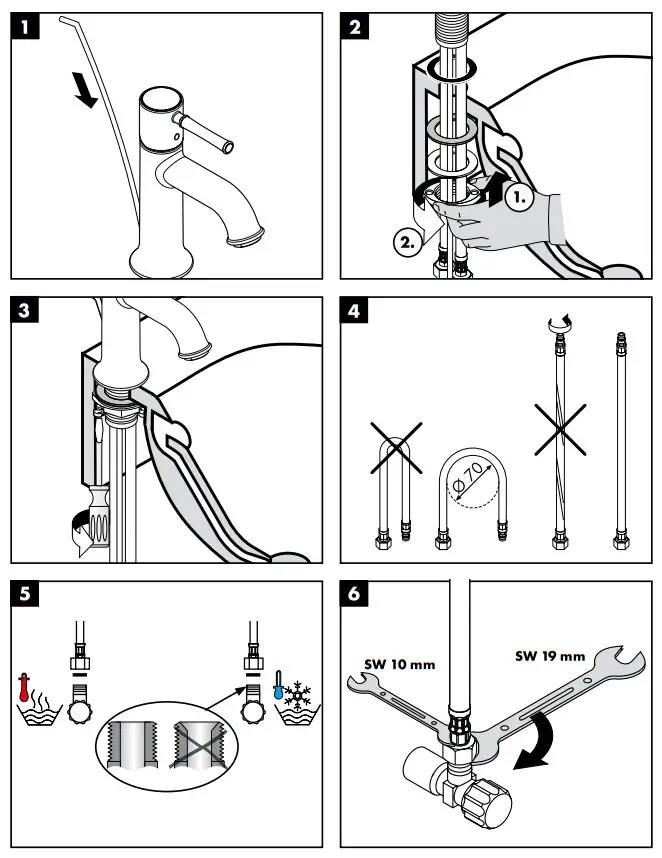

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

Hansgrohe mixers can be used together with hydraulically and thermic ally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

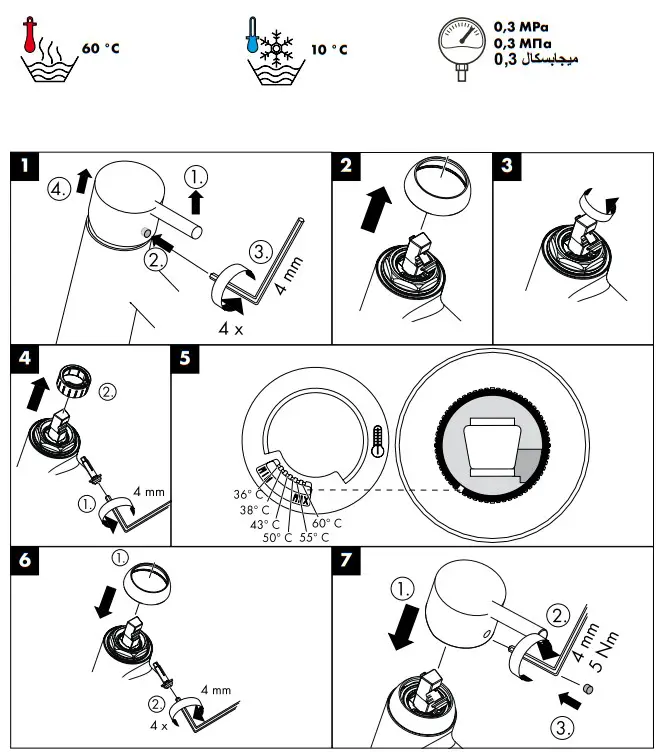

	To adjust the hot water limiter on single lever mixers,pleaseseepage33.No adjustment is necessary when using a continuous flow water heater.
	Do not use silicone containing acetic acid!

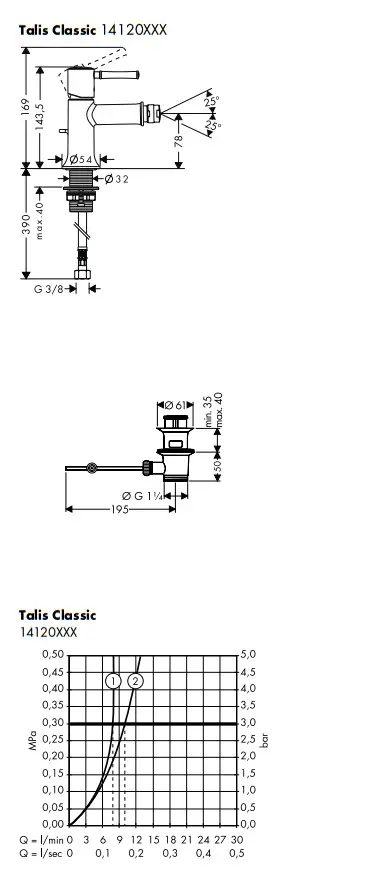

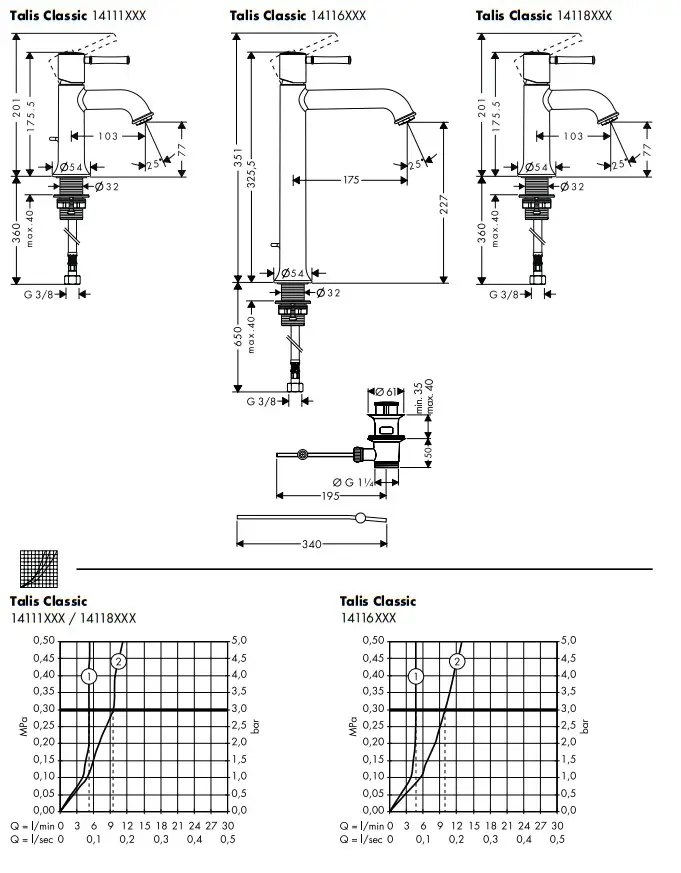

	Dimensions (see page 34 + 35)
	Flow diagram (see page 34 + 35) 1. with EcoSmart® 2. without EcoSmart®

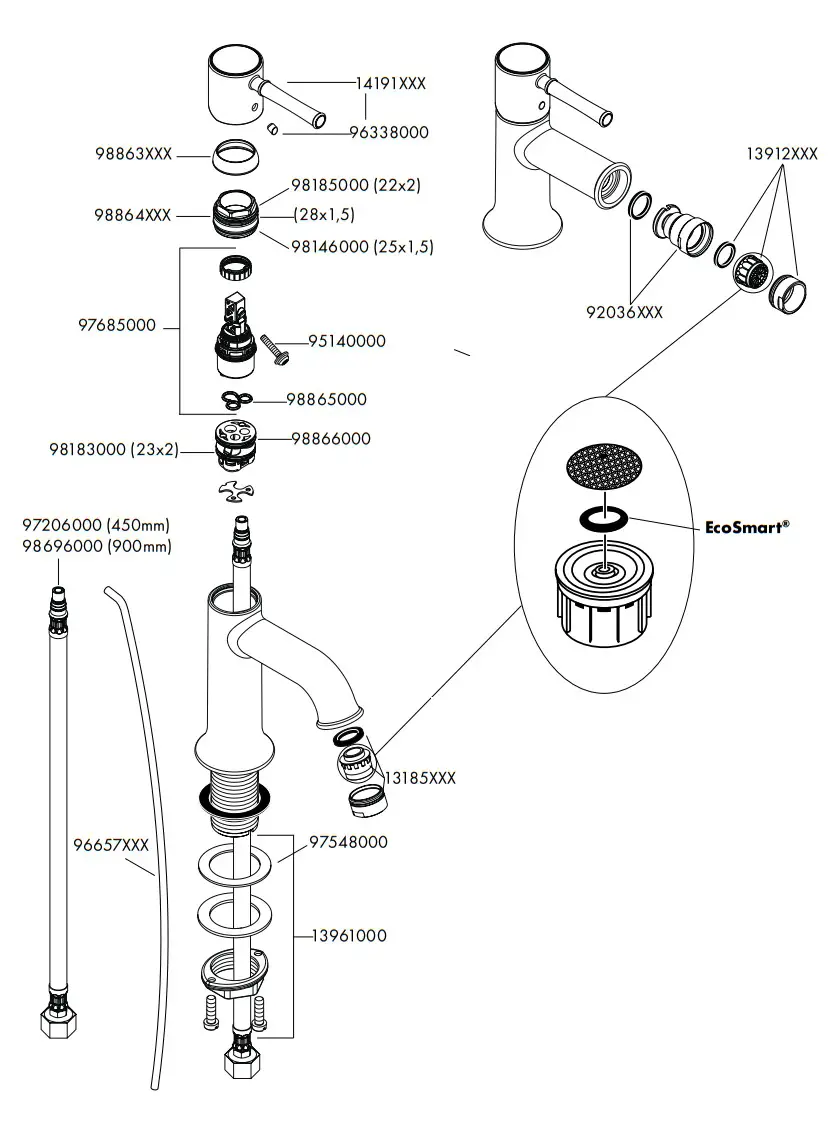

	Spare parts (see page 38)

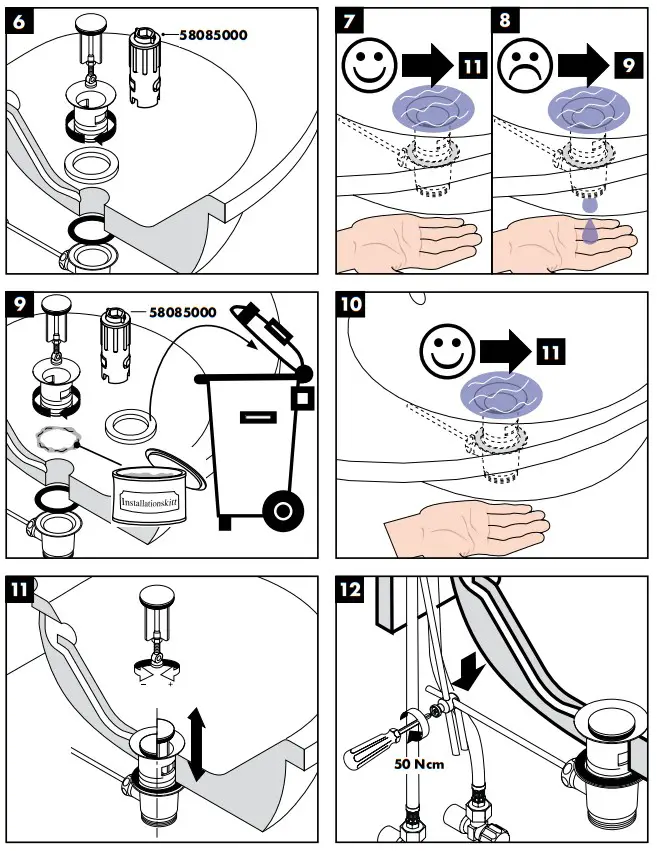

	Special accessories special tool (58085000) order as an extra
	Installation kit order as an extra
	Operation (see page 36)
	Cleaning (seepage37)enclosed brochure
	Test certificate (see page 39)

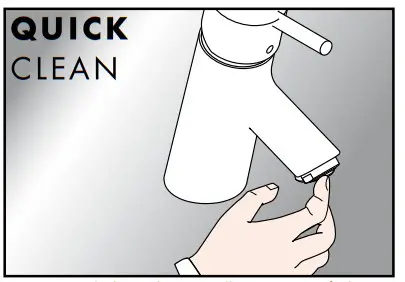

The Quick Clean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.

XXX =  Colors
000 =  chrome plated
820 = brushed nickel
