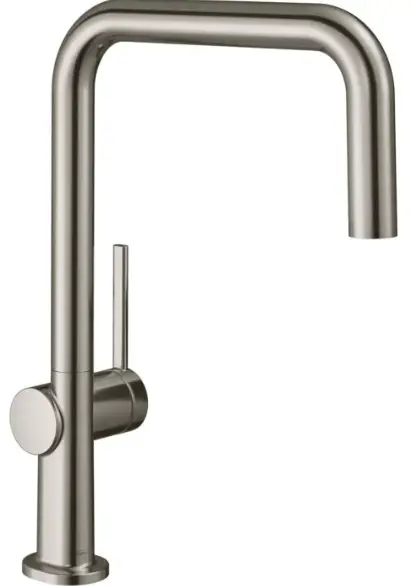

hansgrohe 72806XXX Talis M54-U220 Kitchen Faucet

Product Information

Product Name: Talis M54
Model Numbers:

• Talis M54 U 220 1jet 72806XXX
• Talis M54 U 220 Eco 1jet 72844XXX
• Talis M54 220 1jet 72804XXX
• Talis M54 220 Eco 1jet 72843XXX
• Talis M54 220 1jet 72807XXX
• Talis M54 220 1jet 72805XXX
• Talis M54 270 1jet 72840XXX
• Talis M54 270 1jet 72827XXX

Technical Data:

• Operating Pressure: max. 1 MPa
• Recommended Operating Pressure: 0.1 – 0.5 MPa
• Thermal Disinfection: Adjustment (see page 38)
• Flow Diagram (see page 40)
• Colors: XXX = Chrom (000), Brushed Black Chrome (340), Mattschwarz (670), Edelstahl-Optik (800)
• Cleaning: Refer to page 46 for cleaning instructions.


Product Usage Instructions

Safety Notes

• Wear gloves during installation to prevent crushing and cutting injuries.
• Ensure that the hot and cold water supplies have equal pressures.

Installation Instructions

• Follow the adjustment instructions on page 38 to adjust the hot water limiter. Note that using a hot water limiter with a continuous flow water heater is not recommended.
• Refer to page 40 for dimensions and flow diagram.
• If any spare parts are needed, refer to page 53.
• For cleaning instructions, refer to page 46. 3.

Troubleshooting

• If the faucet is dripping, it may be due to a defective or calcified cartridge. Replace or clean the cartridge accordingly.
• If there is water leakage at the mounting shaft, check if the O-ring on the connection hose is defective. Tighten or replace the O-ring as needed.
• If the warm water temperature is too low, adjust the hot water limiter.

Montage (French)

• Follow the instructions on page 33 for installation.
  Note: For detailed instructions in other languages, refer to the respective pages in the user manual.

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.
• The hot and cold supplies must be of equal pressures.

Installation Instructions

• Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honored.
• The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
• The plumbing codes applicable in the respective countries must be observed.
• 72805XXX, 72807XXX, 72827XXX: Only dishwashers and washing machines certified with the DVGW emblem may be connected to the appliance connection valve without an additional fuse.
• 72843XXX, 72844XXX: The mixer can not used together with a continuous flow water heater.

Technical Data

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0,1 – 0,5 MPa
• Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
• Hot water temperature: max. 60°C

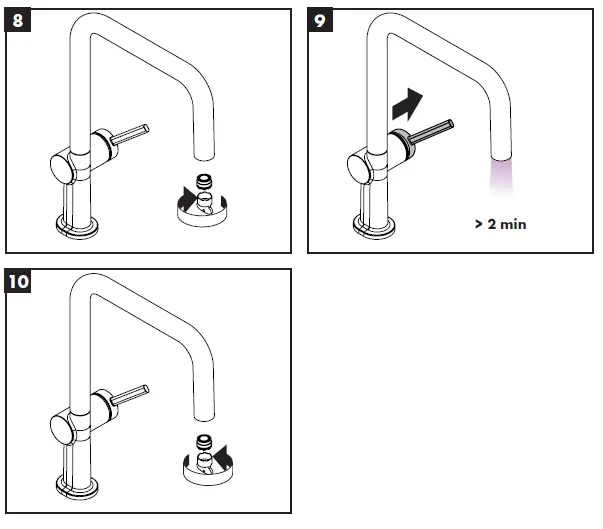

• Thermal disinfection: 70°C / 4 min
• The product is exclusively designed for drinking water!

Symbol description

• Do not use silicone containing acetic acid!
• Adjustment
  To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.
• Dimensions

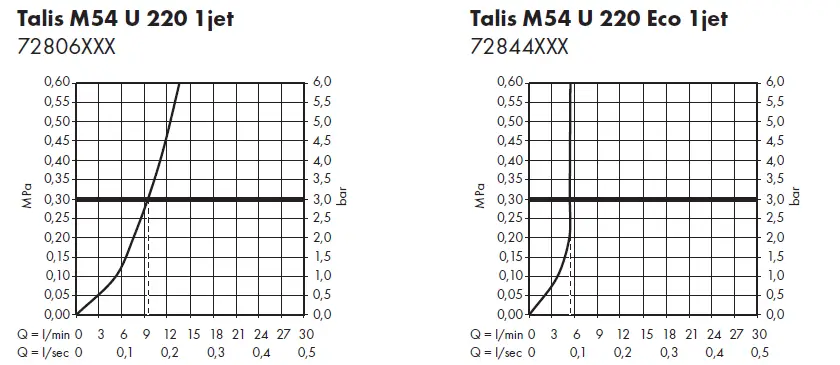

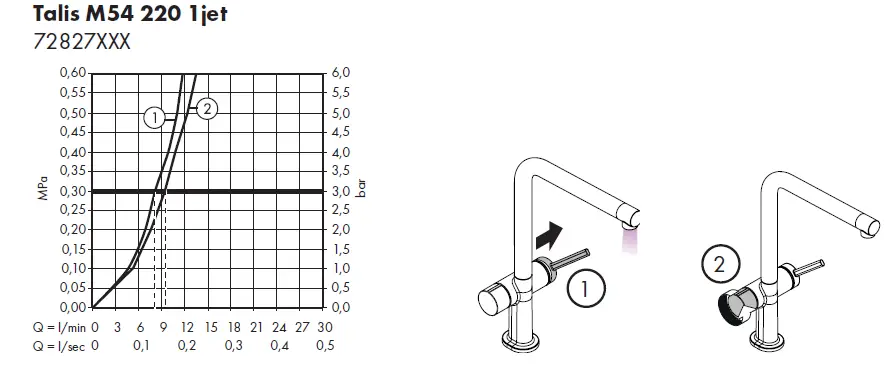

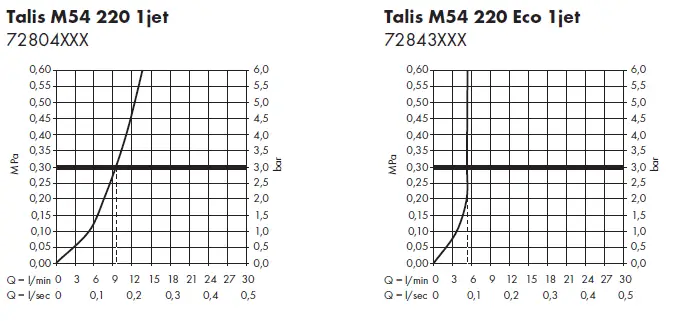

• Flow diagram
• Spare parts
  XXX = Colors
  000 = Chrome Plated
  340 = Brushed Black Chrome
  670 = Matt Black
  800 = Stainless Steel Optic
• Special accessories (order as an extra)
  • Adapter (G⅜ / G½) #93395000
•
• Operation

Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use.
Test certificate.

Troubleshooting

Fault: Cause: Remedy

• Mixer stiff
  • Cartridge defective, calcified
    • Exchange cartridge
• Mixer dripping
  • Cartridge defective
    •  Exchange cartridge
• Water escaping at the threaded base
  •  connection hoses not completely screwed into basic body
  • O-ring at the connection hose defective.
    • Tighten connection hoses by hand
    • Exchange O-ring
• Hot water temperature too low
  • Hot water limiter incorrectly set
    • Set hot water limiter

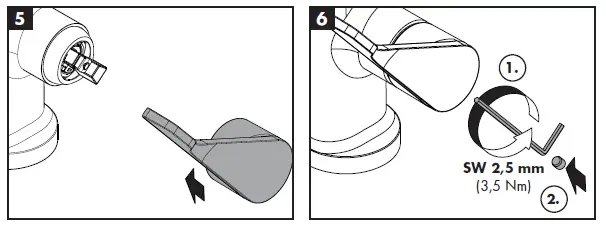

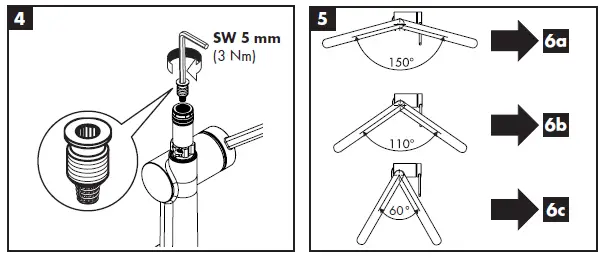

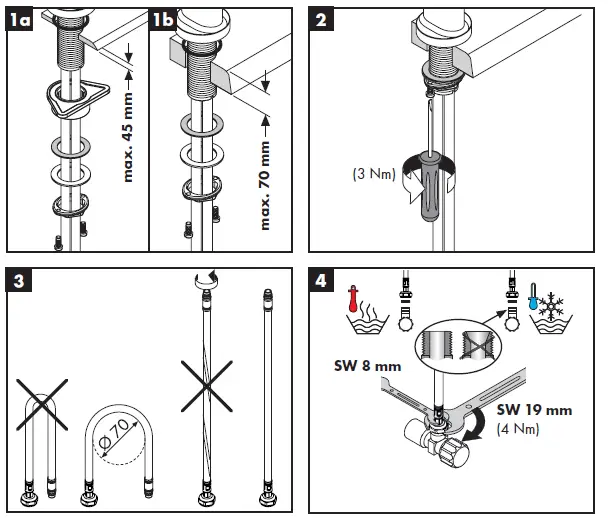

Assembly

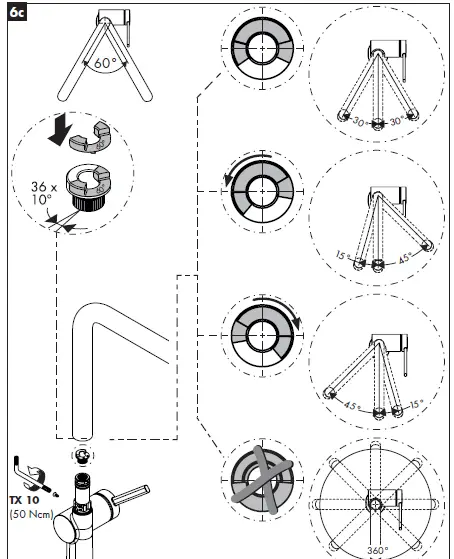

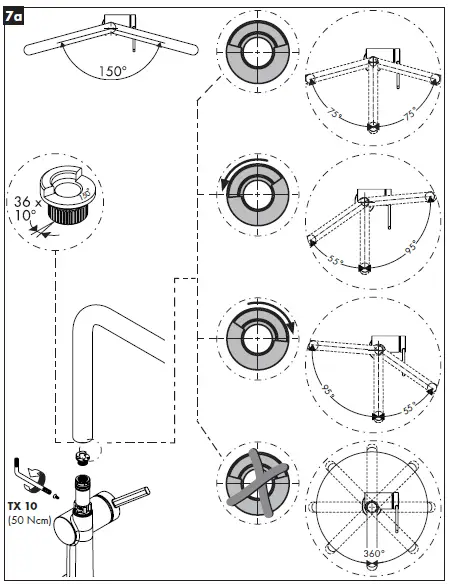

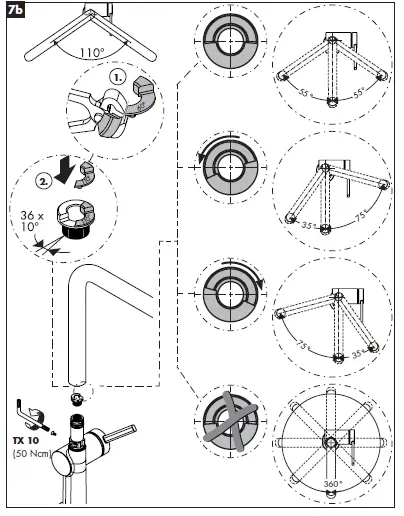

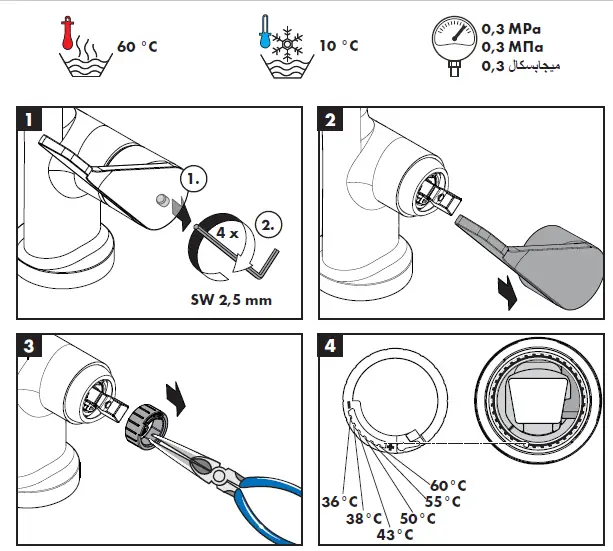

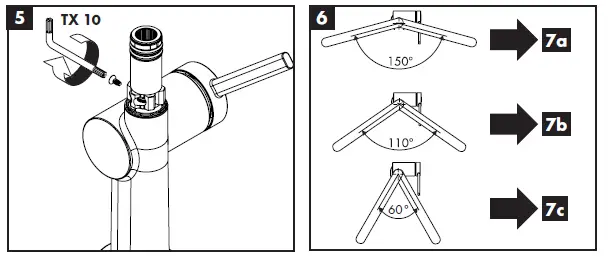

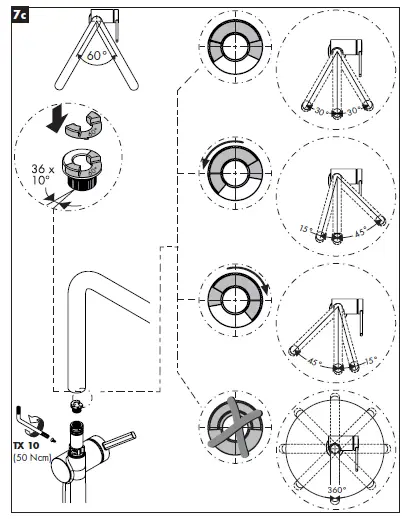

Adjustment

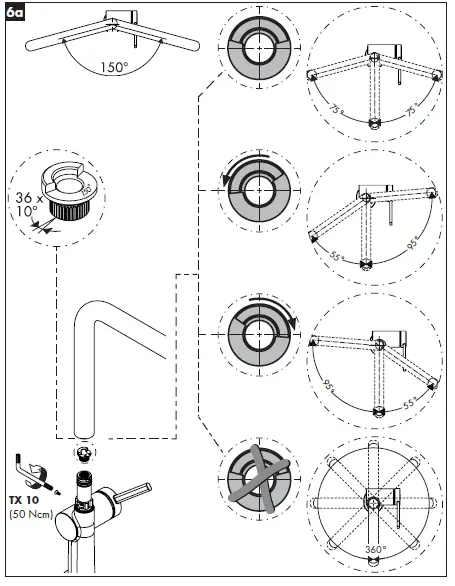

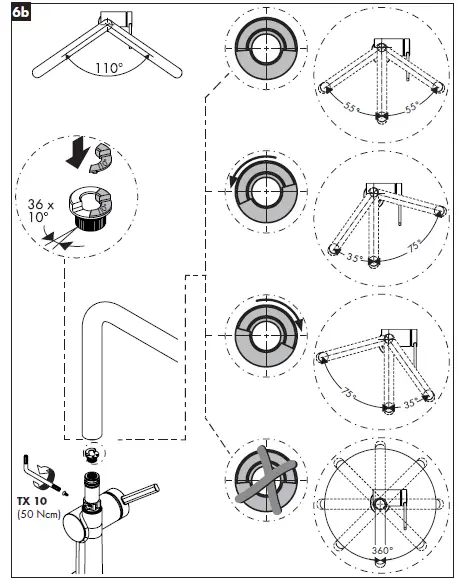

Operation

open

close

hot

cold

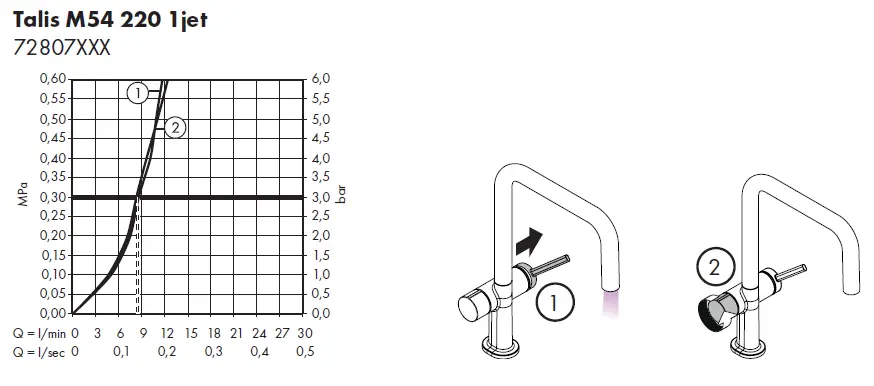

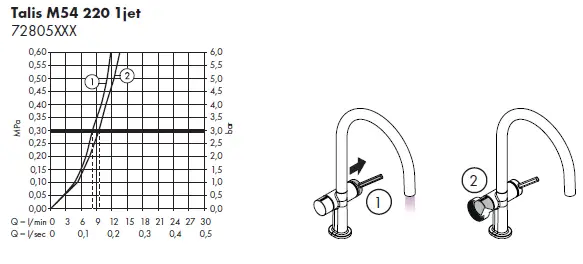

Talis M54 220 1jet 72805XXX

open

close

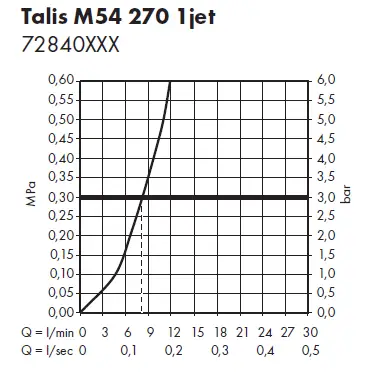

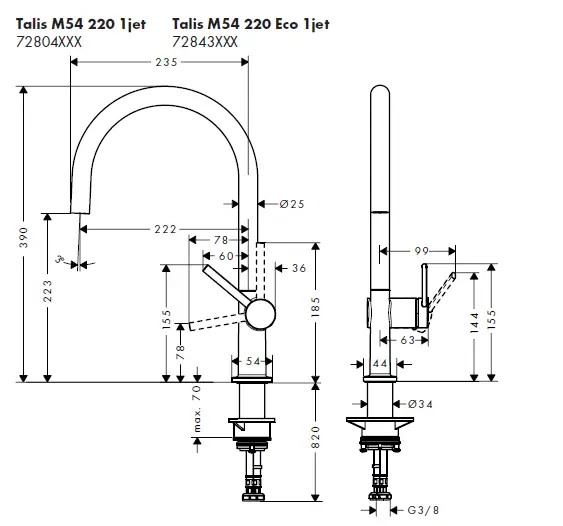

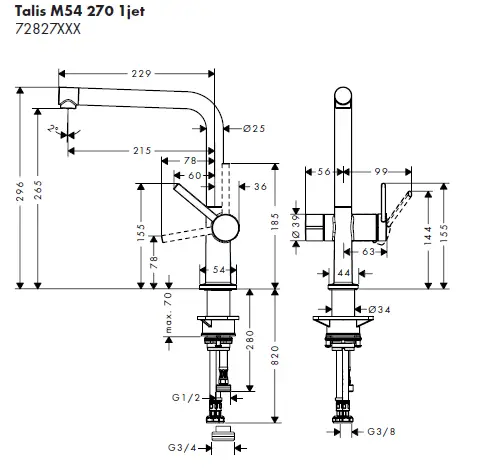

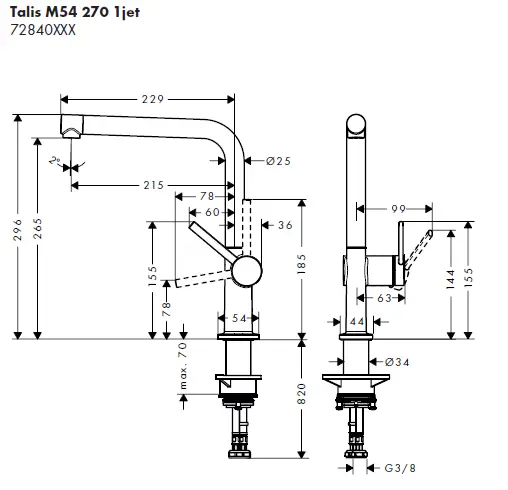

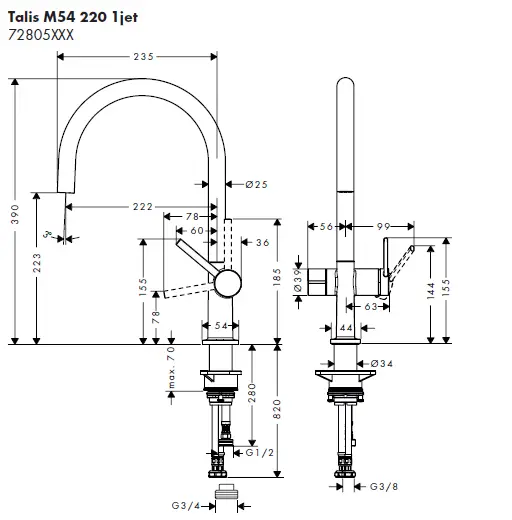

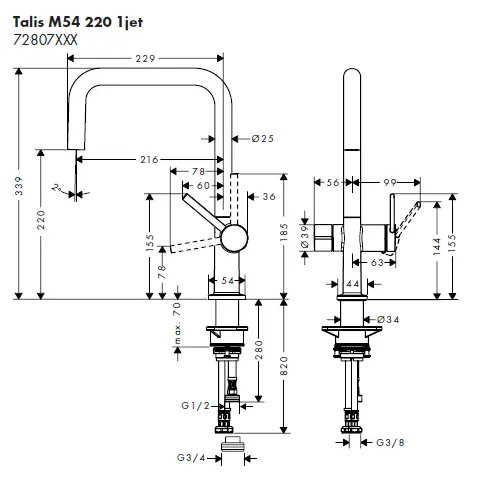

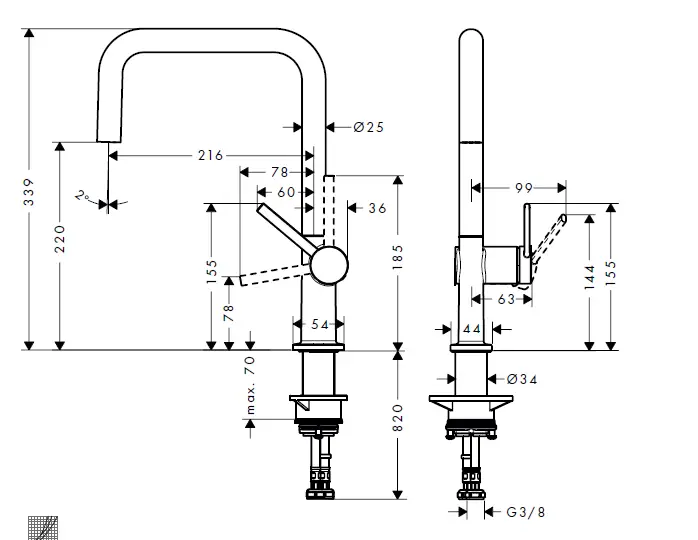

Dimension And Flow Chart

Talis M54 U 220 1jet 72806XXX

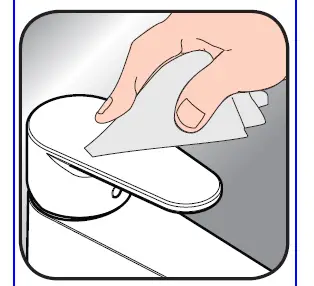

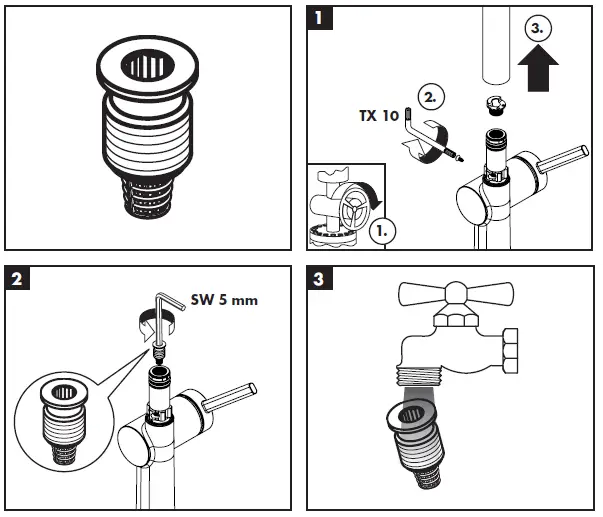

Cleaning

EN Cleaning recommendation / Warranty / Contact

www.hansgrohe.com/cleaning-recommendation

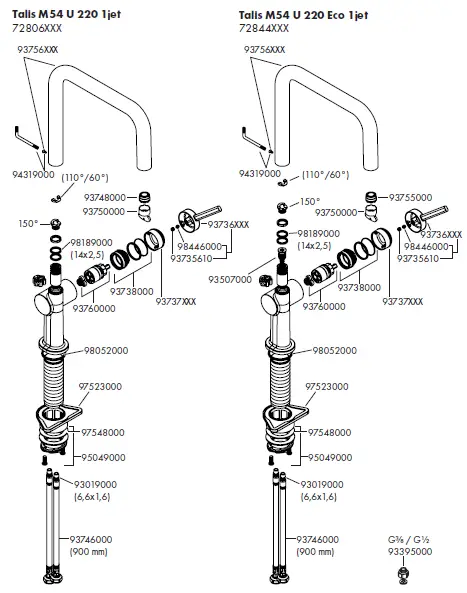

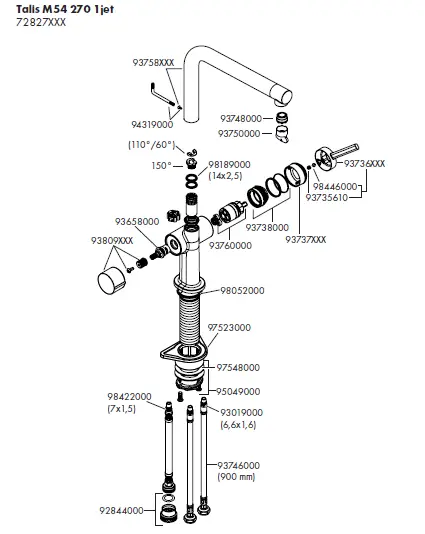

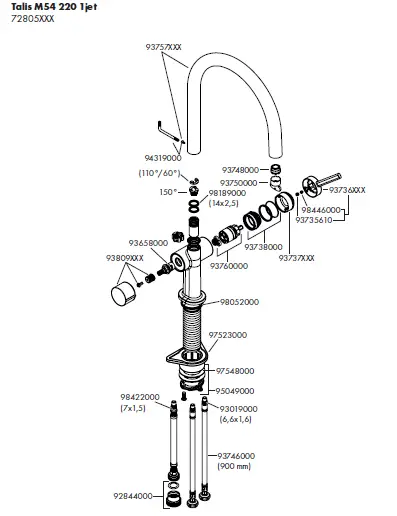

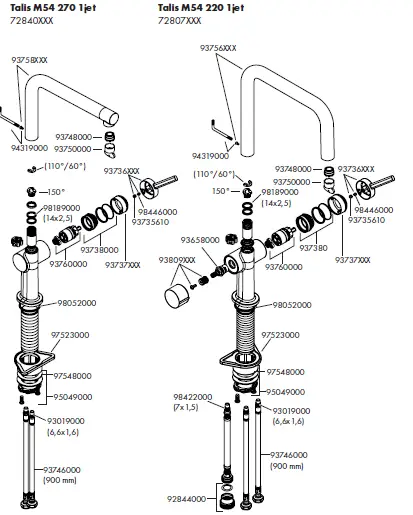

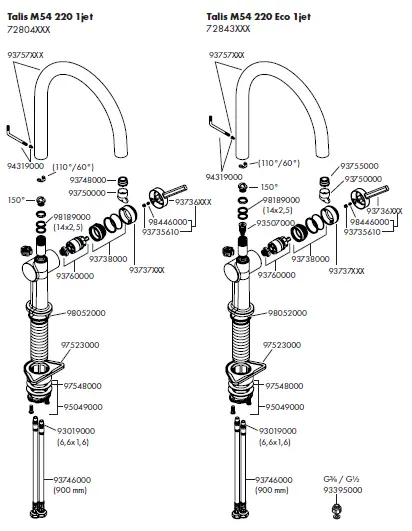

Spare Parts

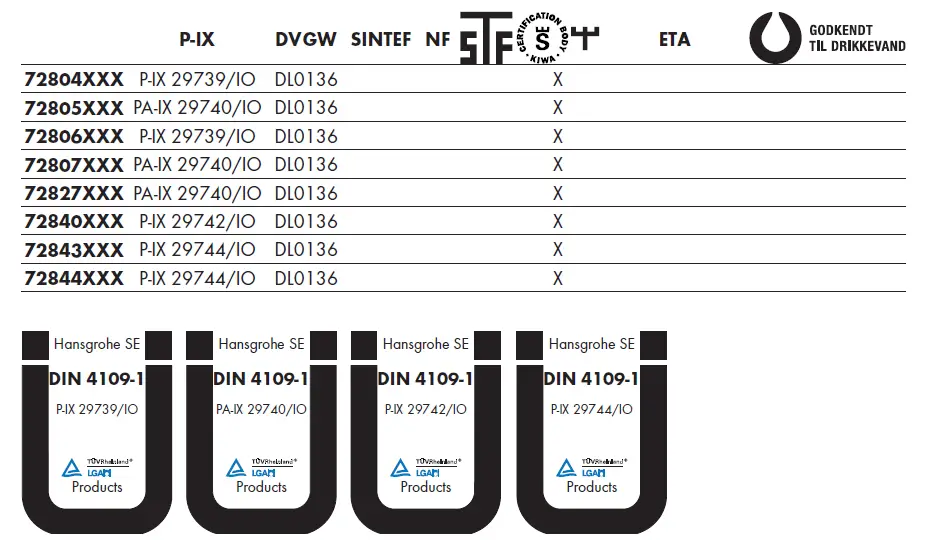

Test Certificate

Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
