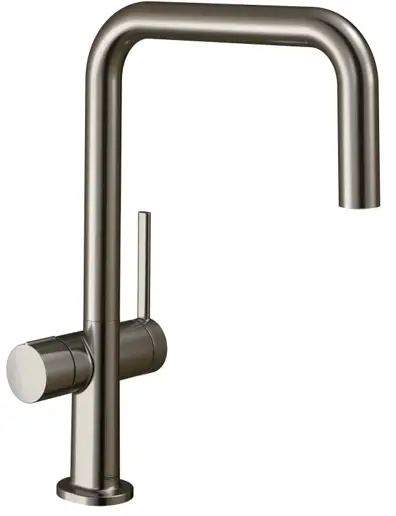

72807800 Talis M54 U 220 Kitchen Faucet
Device Hansgrohe Talis M54 Valve
Instruction Manual
72807800 Talis M54 U 220 Kitchen Faucet Device Hansgrohe Talis M54 Valve
 | |

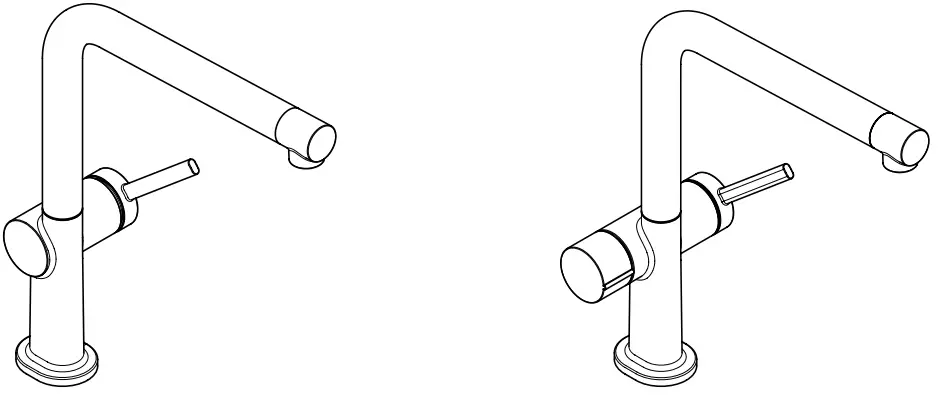

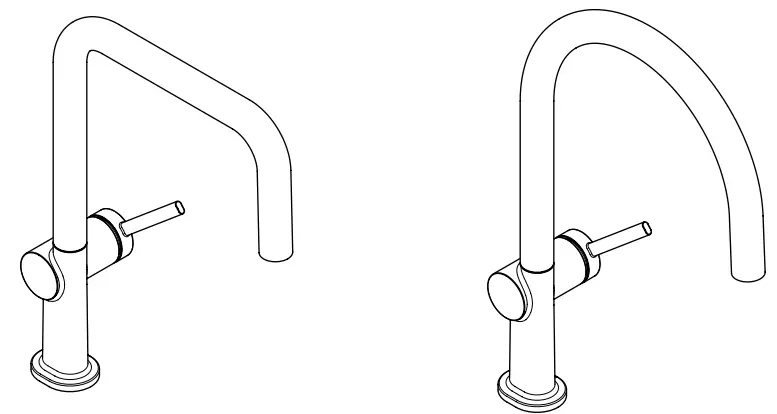

| Talis M54 U 220 1jet 72806XXX Talis M54 U 220 Eco 1jet 72844XXX | Talis M54 220 1jet 72804XXX Talis M54 220 Eco 1jet 72843XXX |
 | |
| Talis M54 220 1jet 72807XXX | Talis M54 220 1jet 72805XXX |
 | |
| alis M54 270 1jet 72840XXX | Talis M54 270 1jet 72827XXX |
Accepterad monteringsanvisning 2021:1
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The hot and cold supplies must be of equal pressures.
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- 72805XXX, 72807XXX, 72827XXX: Only dishwashers and washing machines certified with the DVGW emblem may be connected to the appliance connection valve without an additional fuse.
- 72843XXX, 72844XXX: The mixer can not used together with a continuous flow water heater.
Technical Data
Operating pressure: ………………………………………max. 1 MPa
Recommended operating pressure: ……………….0,1 – 0,5 MPa
Test pressure: …………………………………………….1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature:……………………………… max. 60°C
Thermal disinfection:………………………………….. 70°C / 4 min
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!

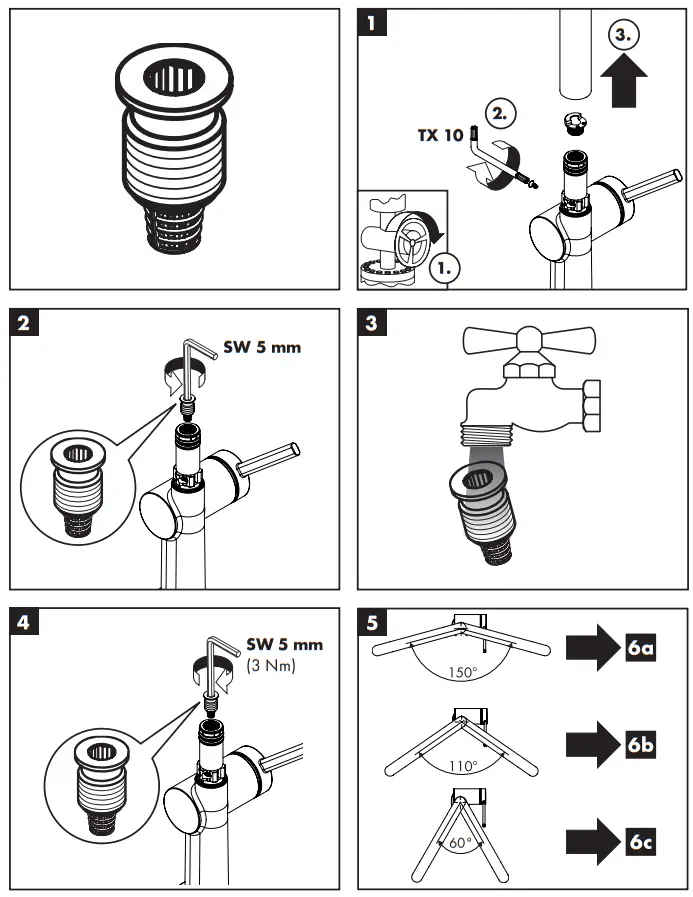

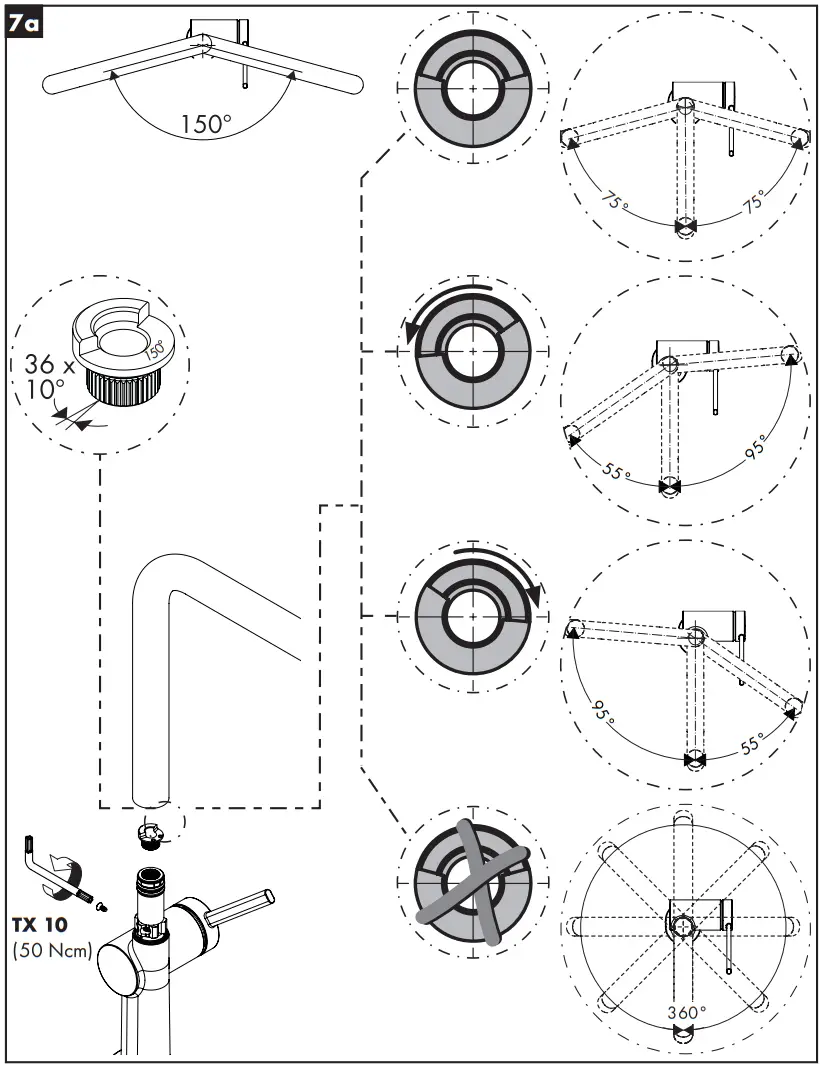

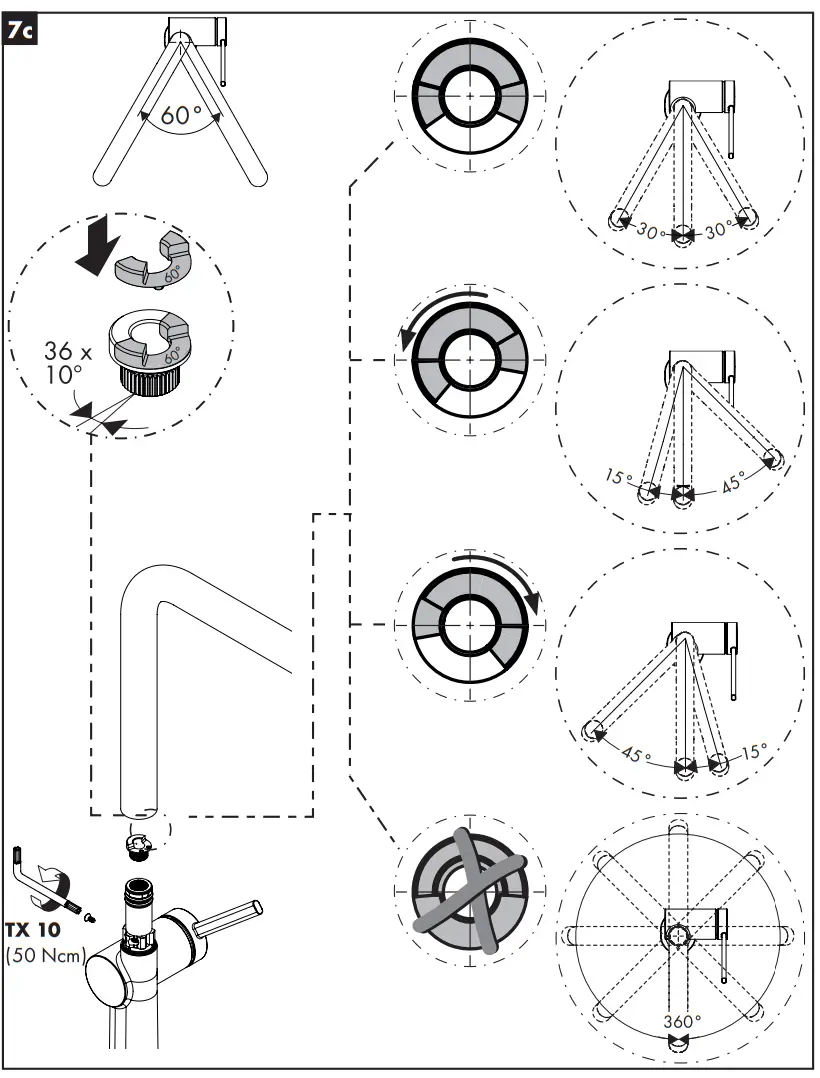

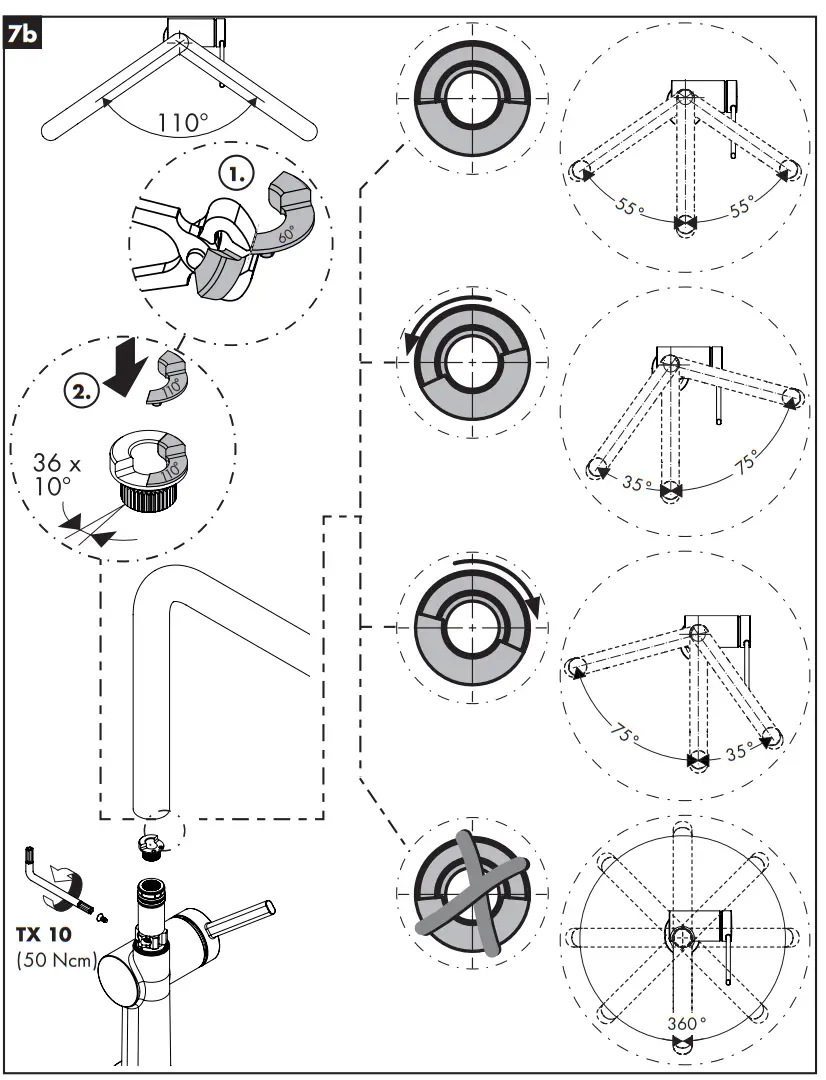

Adjustment (see page 38)
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

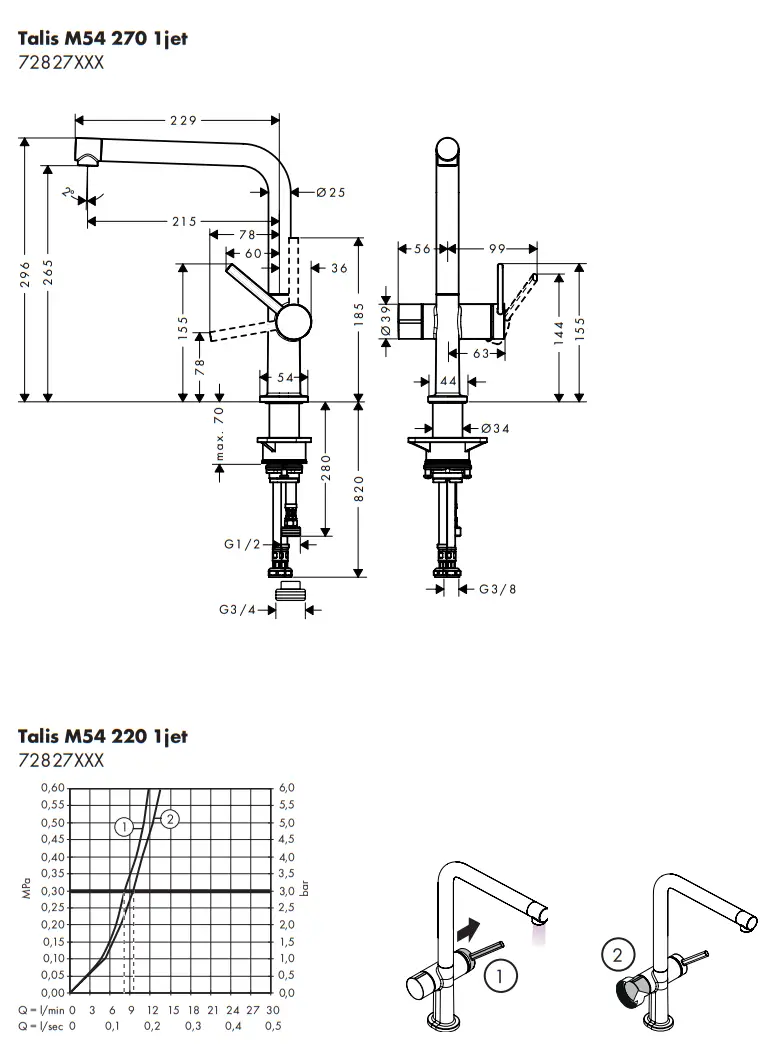

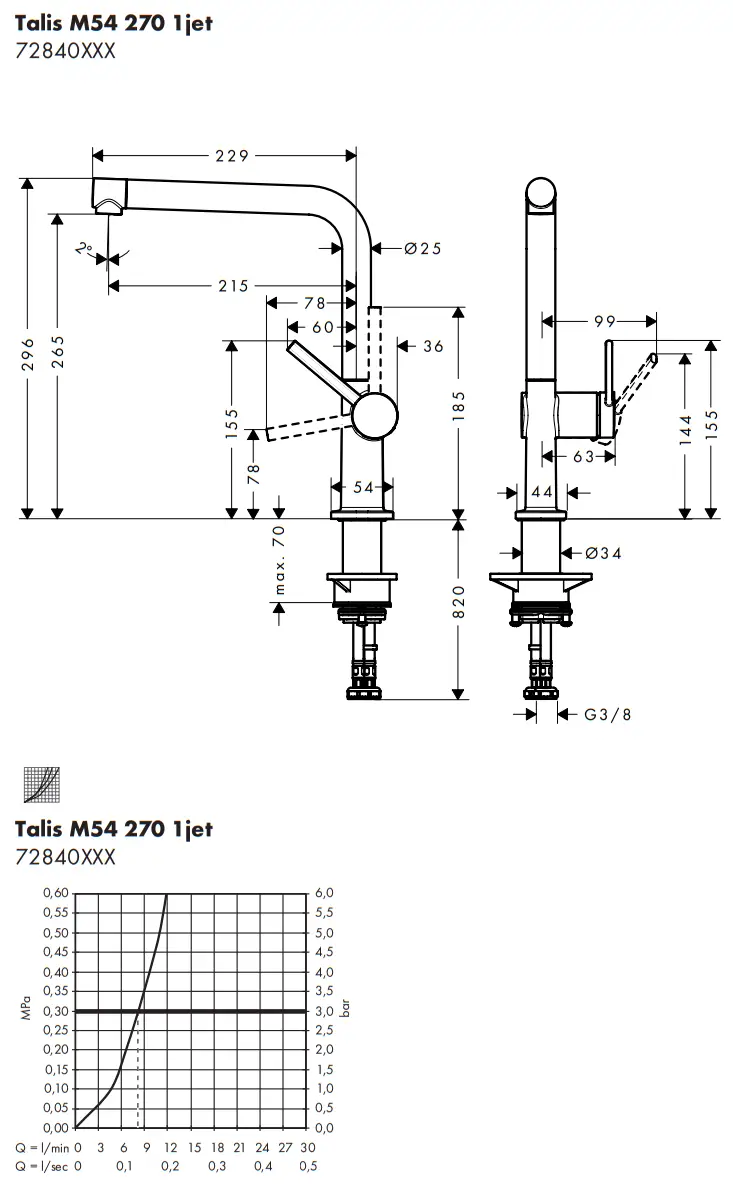

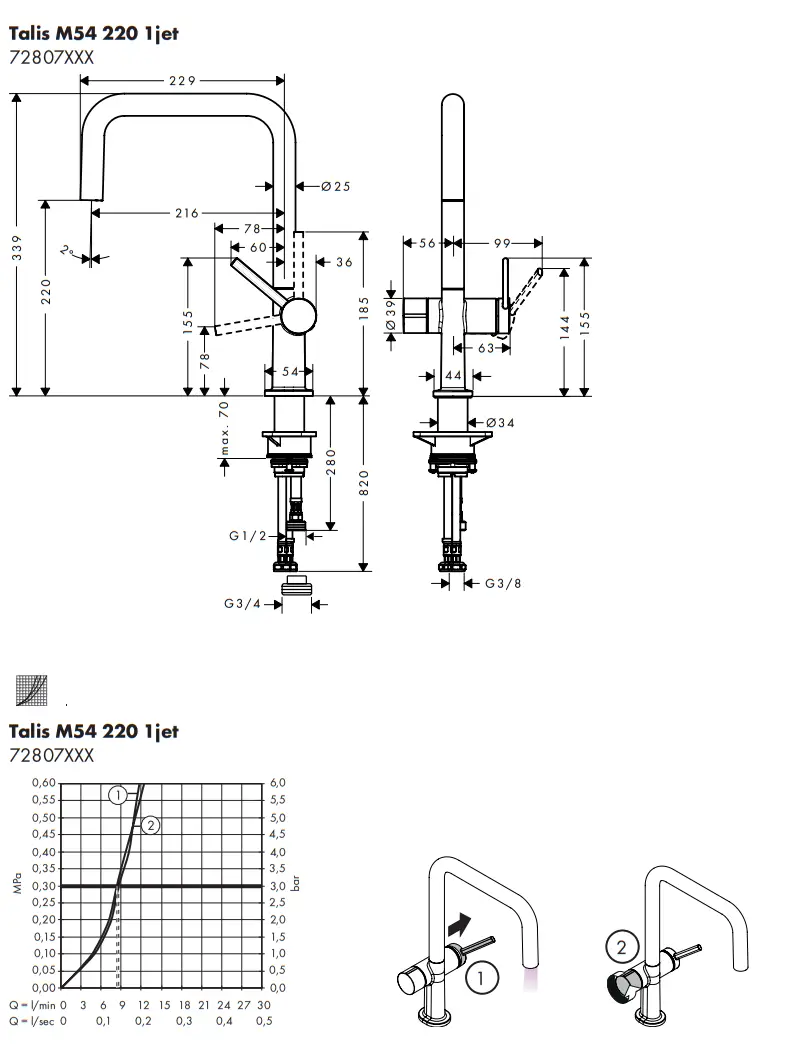

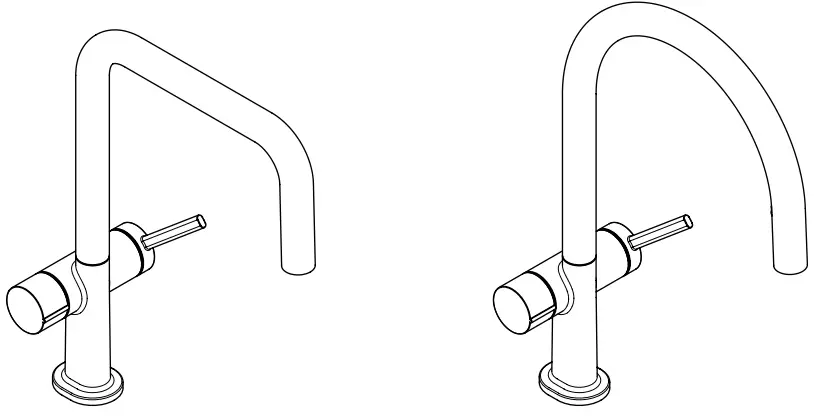

Dimensions (see page 40)

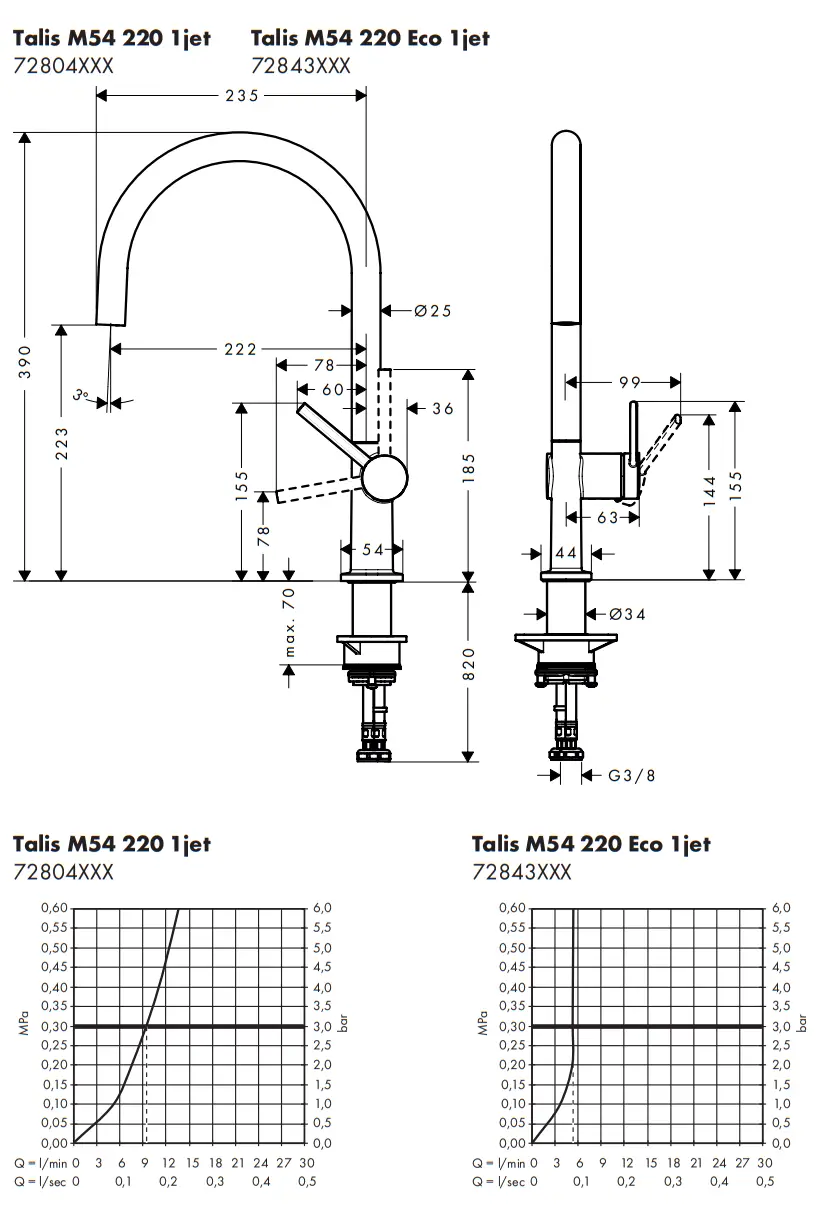

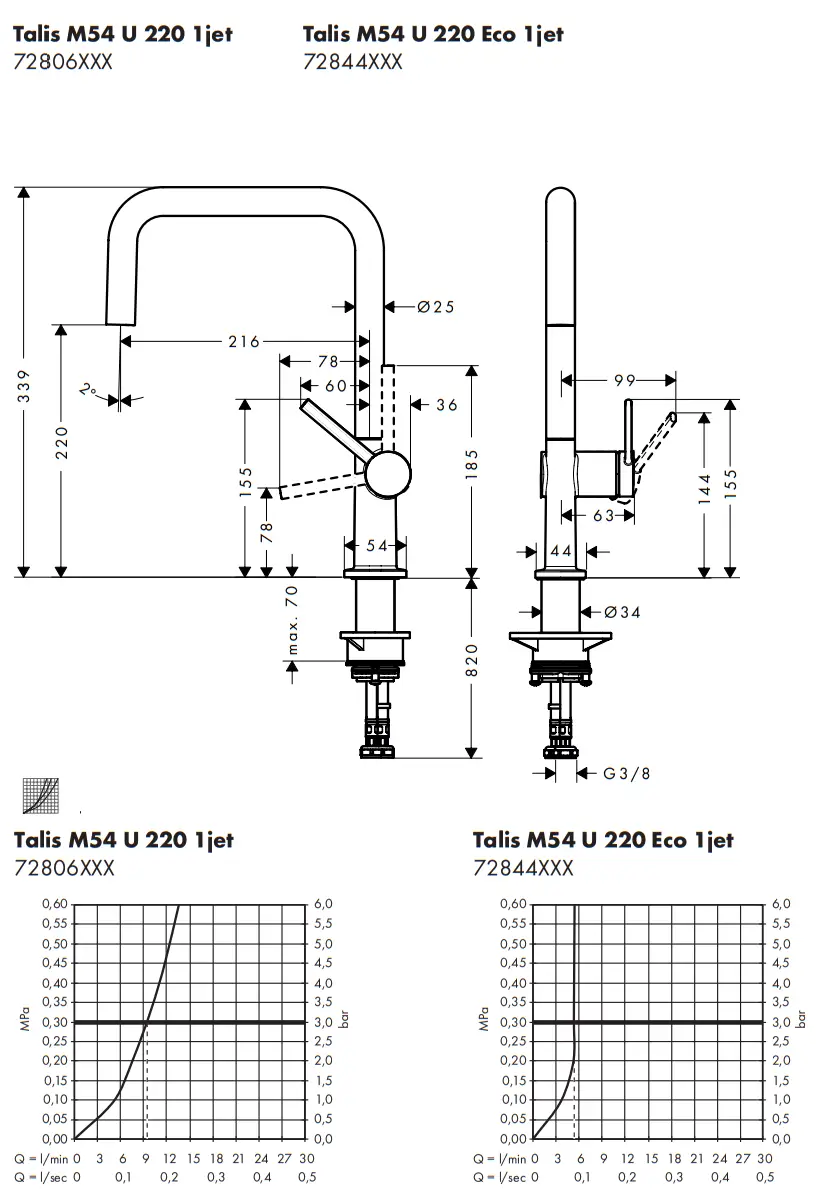

Flow diagram (see page 40)

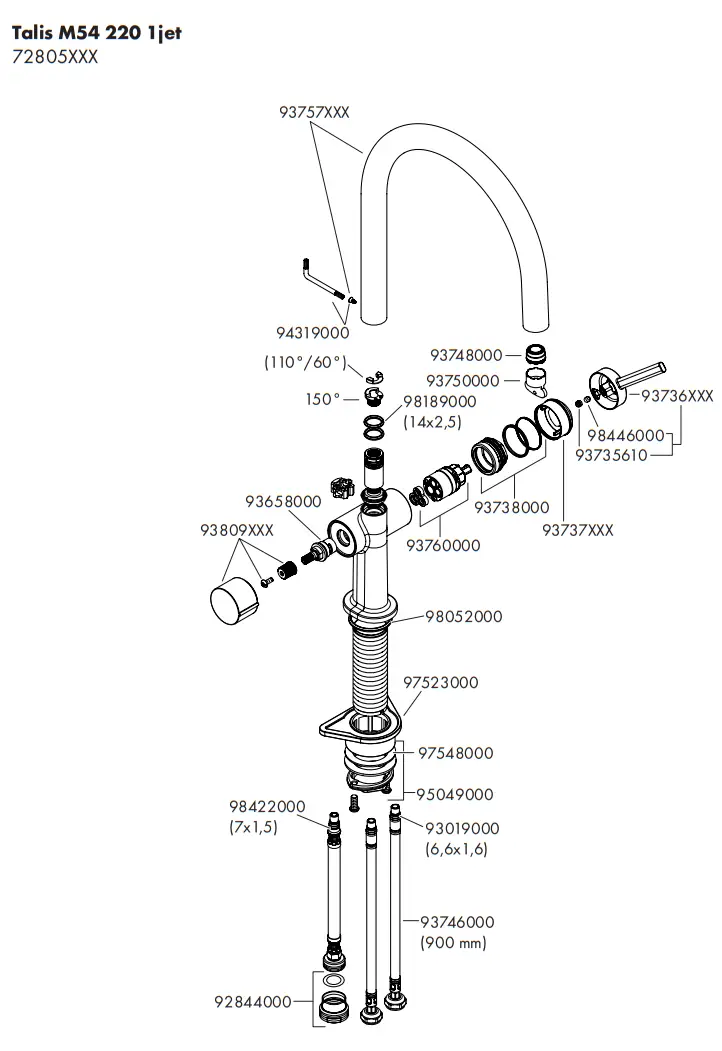

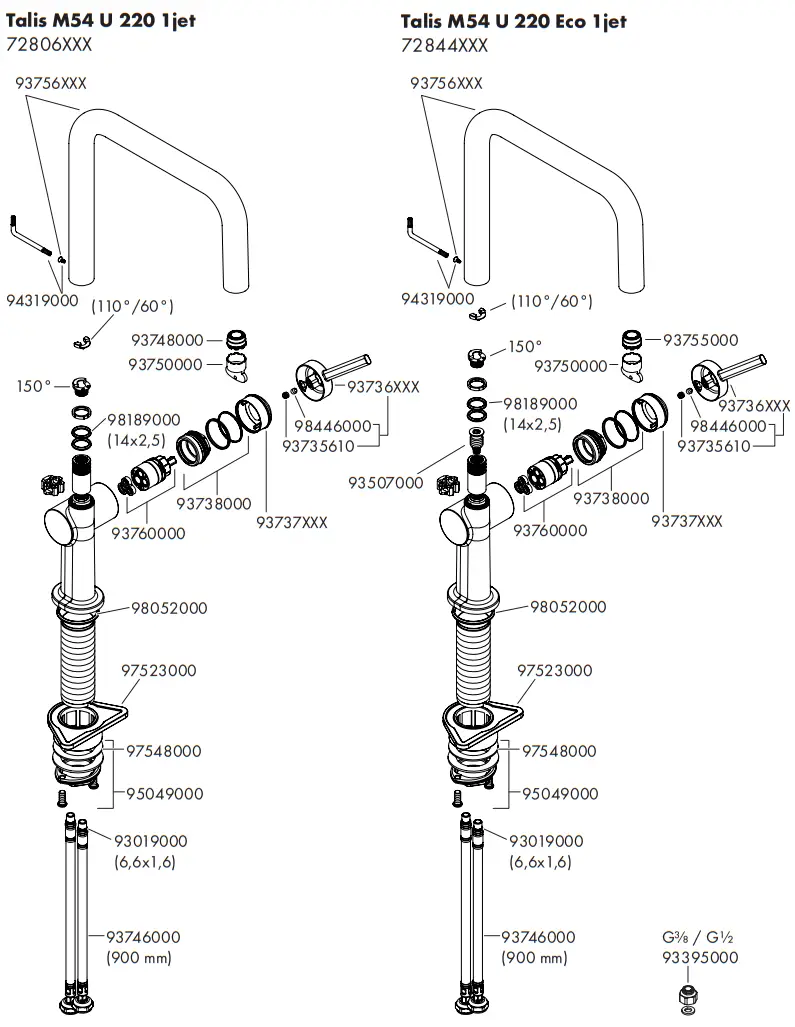

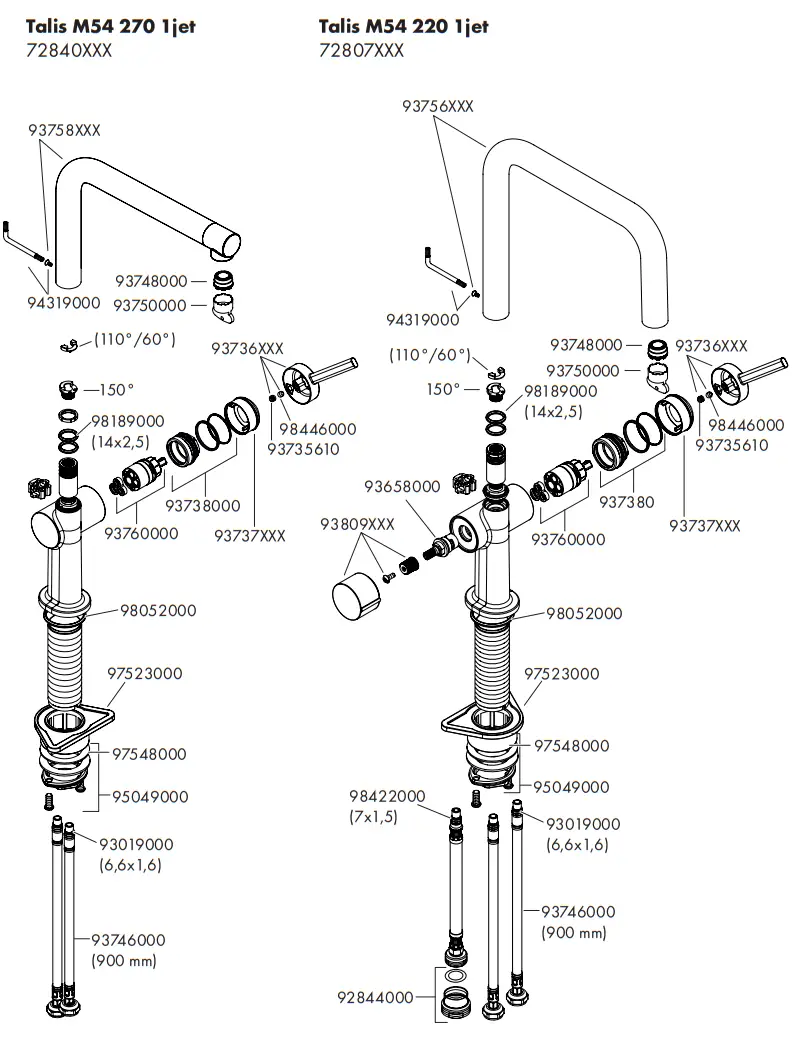

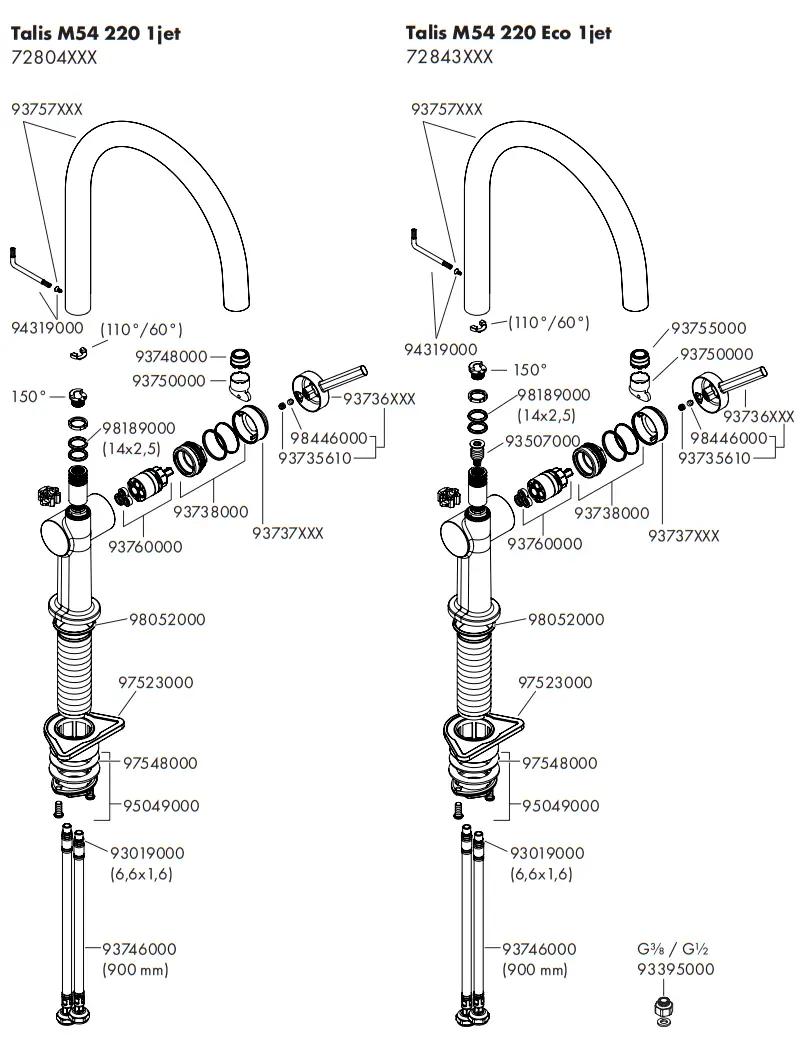

Spare parts (see page 53)
XXX = Colors
000 = Chrome Plated
670 = Matt Black
800 = Stainless Steel Optic
Special accessories (order as an extra)
Adapter (G⅜ / G½)
#93395000 (see page 51 / 52)

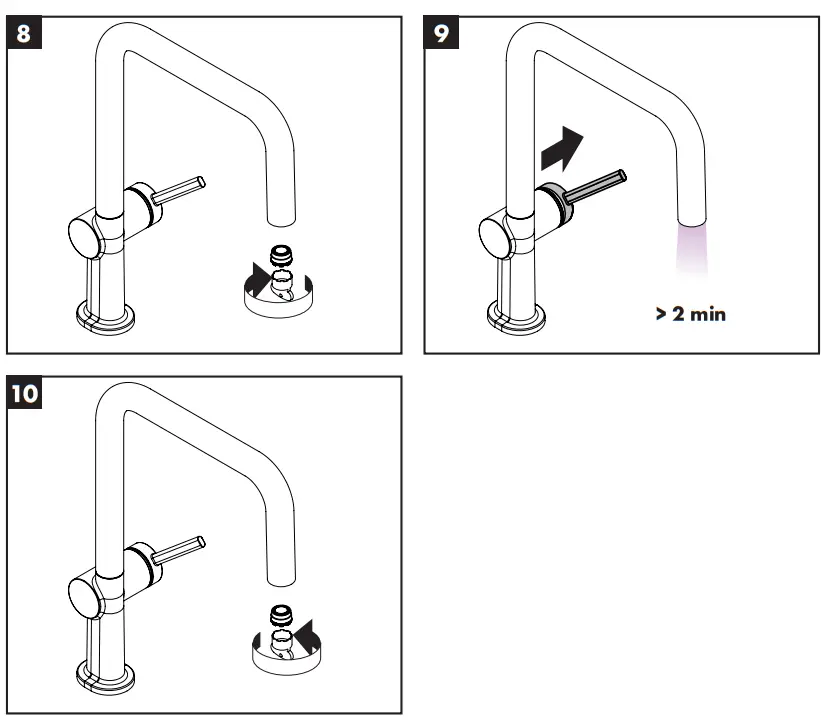

Cleaning (see page 46)

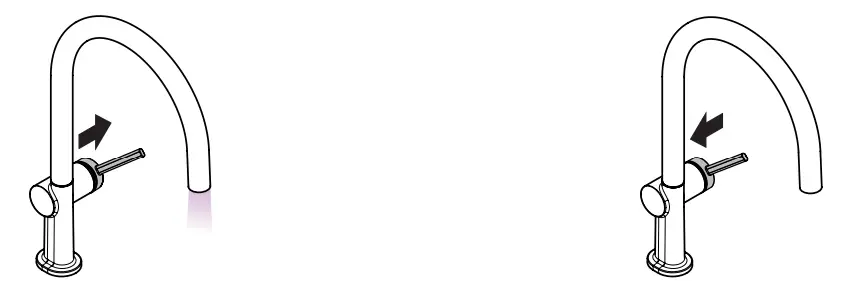

Operation (see page 39)
Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use.
Test certificate (see page 56)
| Fault | Cause | Remedy |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective | – Exchange cartridge |
| Water escaping at the threaded base | – connection hoses not completely screwed into basic body | – Tighten connection hoses by hand |
| – 0-ring at the connection hose defective. | – Exchange 0-ring | |
| Hot water temperature too low | – Hot water limiter incorrectly set | – Set hot water limiter |

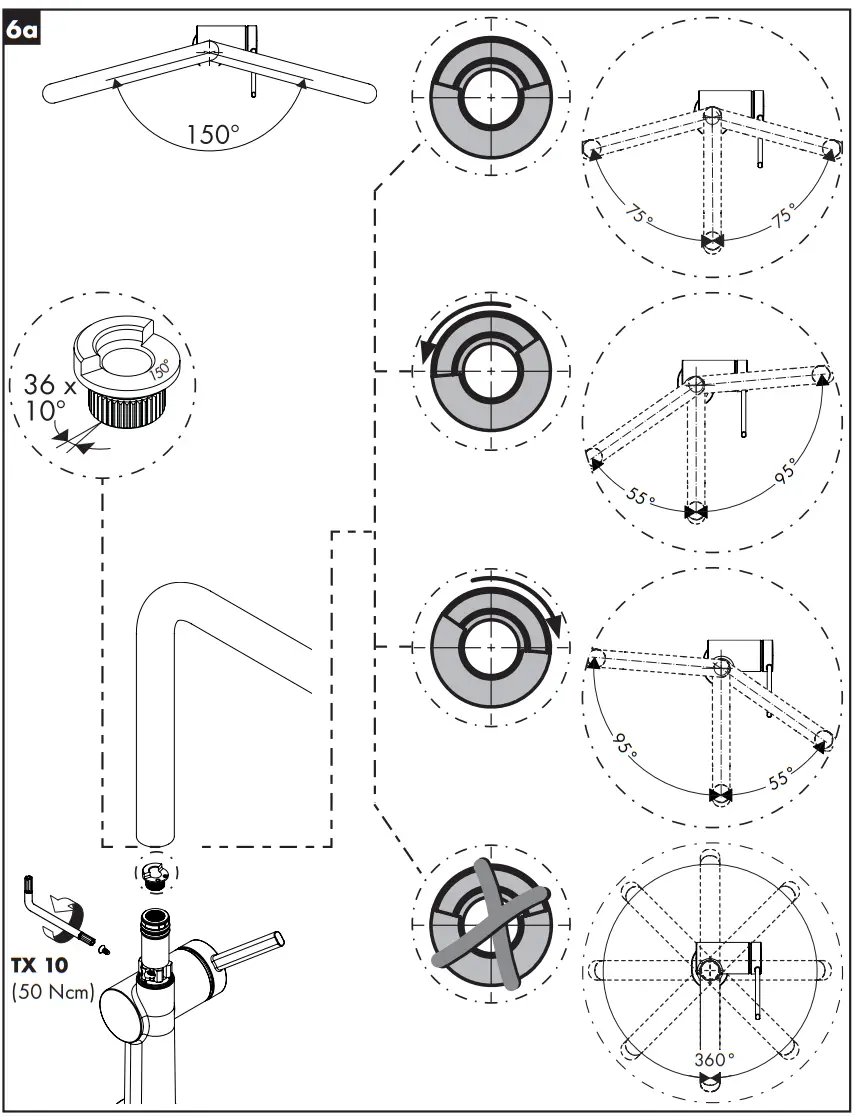

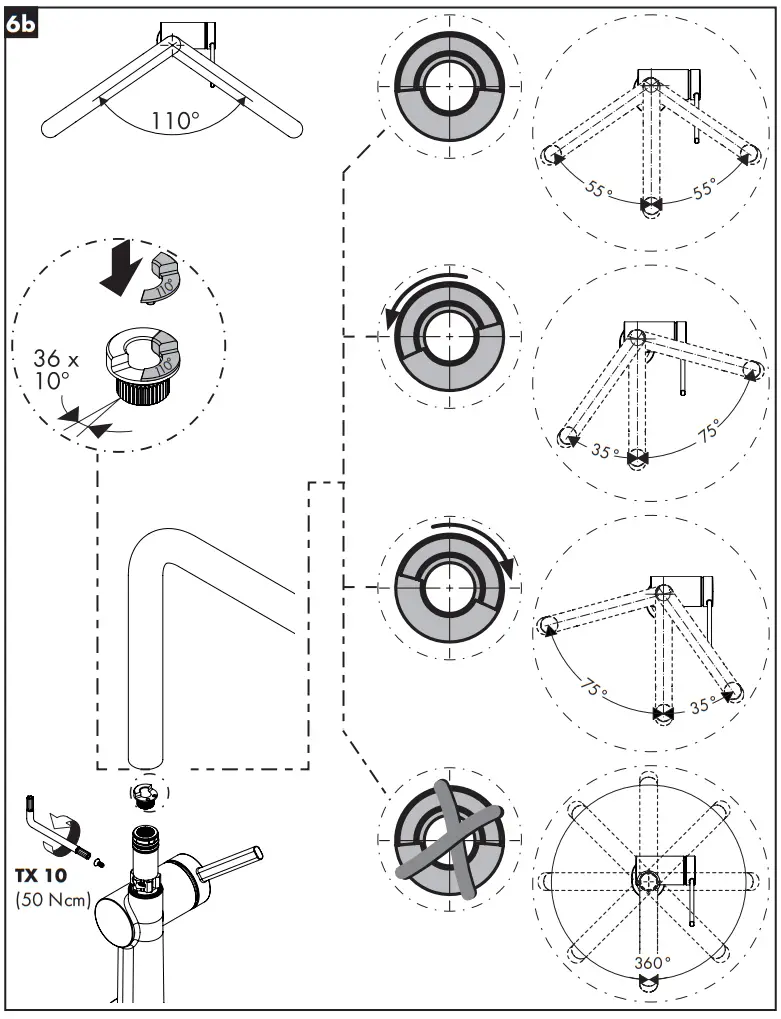

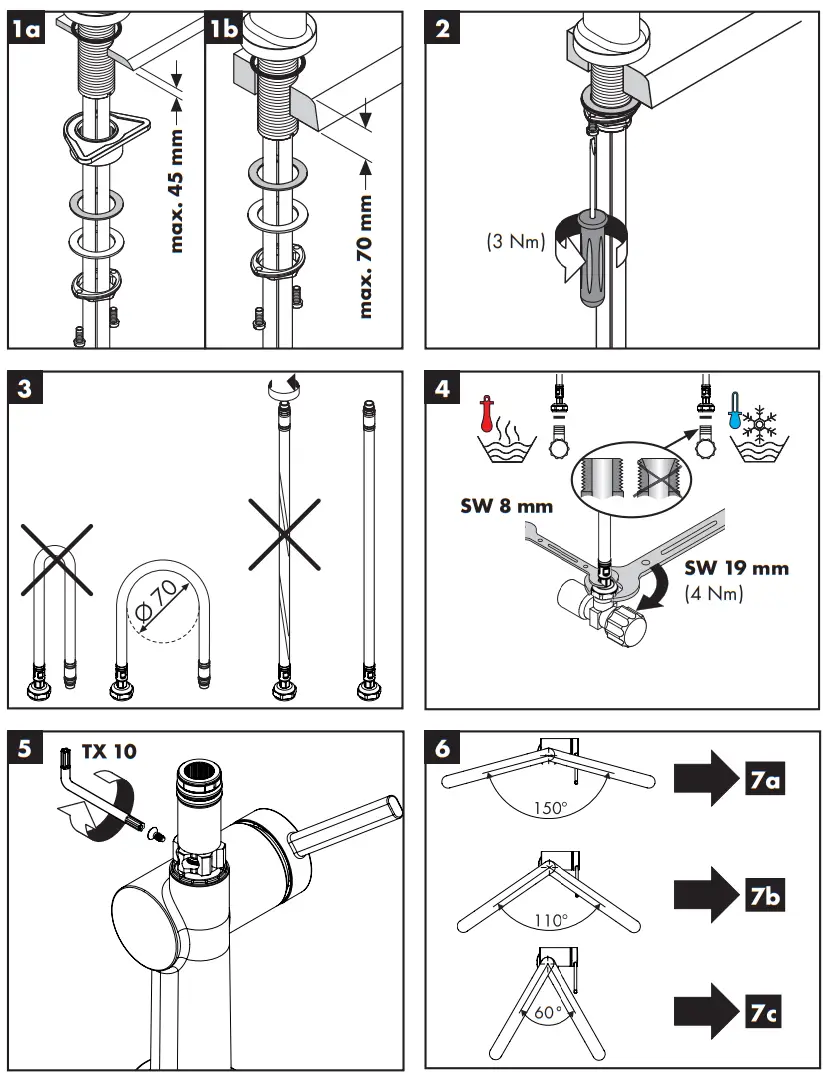

Assembly (see page 33).
 | |

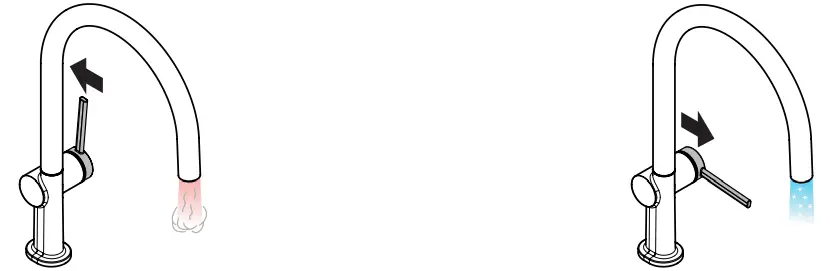

| open | close |
 | |
| hot | cold |
| Talis M54 220 1jet 72805XXX | Talis M54 220 1jet 72807XXX | Talis M54 270 1jet 72827XXX |
 | open | |
 | close | |
Cleaning recommendation / Warranty / Contact
 |  |
| www.hansgrohe.com/cleaning-recommendation | www.hansgrohe.com/cleaning-recommendation |
 |  |
| www.hansgrohe.com/cleaning-recommendation | www.hansgrohe.com/cleaning-recommendation |
72844XXX/72843XXX
| 72804XXX | P-IX | 29739/IO | DL0136 | X |
| 72805XXX | PA-IX | 29740/IO | DL0136 | X |
| 72806XXX | P-IX | 29739/IO | DL0136 | X |
| 72807XXX | PA-IX | 29740/IO | DL0136 | X |
| 72827XXX | PA-IX | 29740/IO | DL0136 | X |
| 72840XXX | P-IX | 29742/IO | DL0136 | X |
| 72843XXX | P-IX | 29744/IO | DL0136 | X |
| 72844XXX | P-IX | 29744/IO | DL0136 | X |
