Hansgrohe Talis S2 Variarc Lever Sink Faucet Instruction Manual

Instructions for use
assembly instructions
TALIS S2 VARIARC Lever Sink Faucet
Instruction Manual

TALIS S2 VARIARC Lever Sink Faucet

Safety Notes

Gloves should be worn during installation to preventcrushing and cutting injuries.
The hot and cold supplies must be of equal pressures.
Only dishwashers and washing machines certified with the DVGW emblem may be connected to the appliance connection valve without an additional fuse. If no consumer is connected to the appliance connection valve, it must be plugged.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms!

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Rate of flow by 0,3 MPa: 10 l/min
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

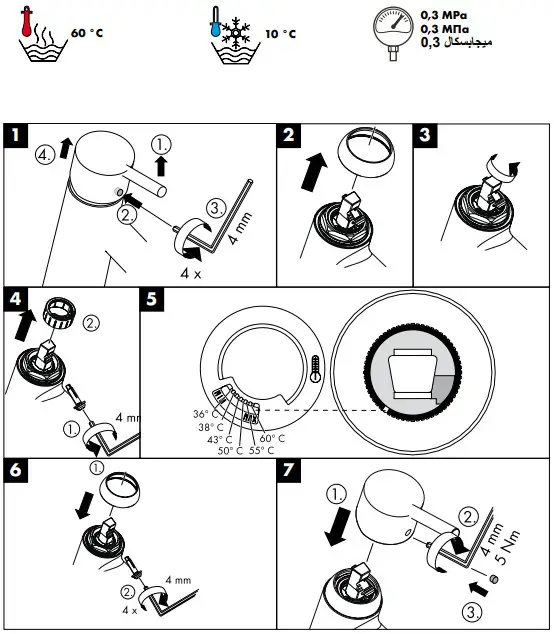

To adjust the hot water limiter on single lever mixers, please see page 23. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!
Dimensions (see page 20)

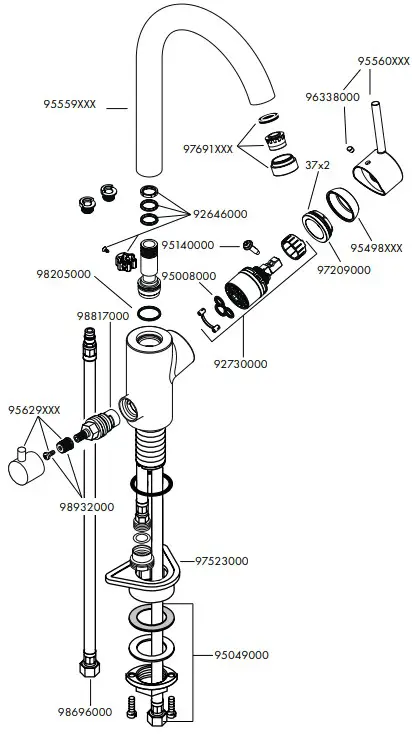

Spare parts (see page 22)
Operation (see page 21)
Cleaning see enclosed brochure.
Assembly see page 17

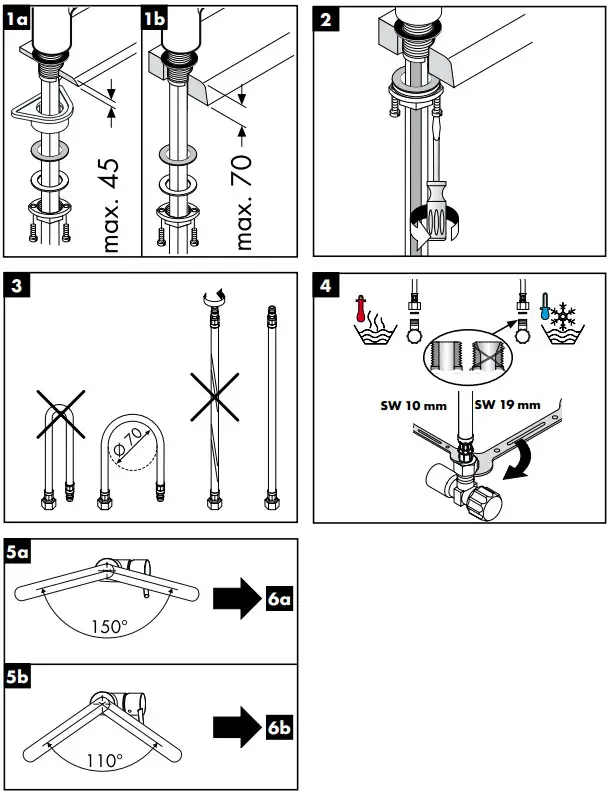

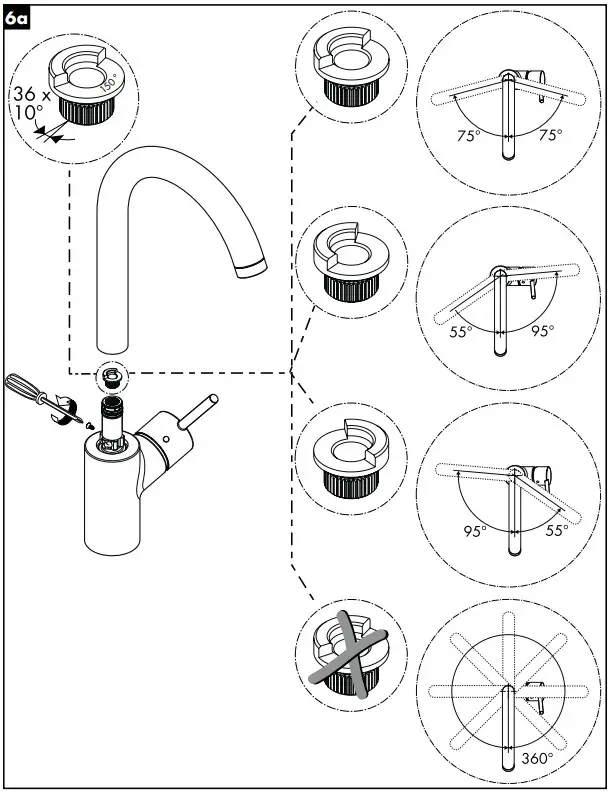

Assembly

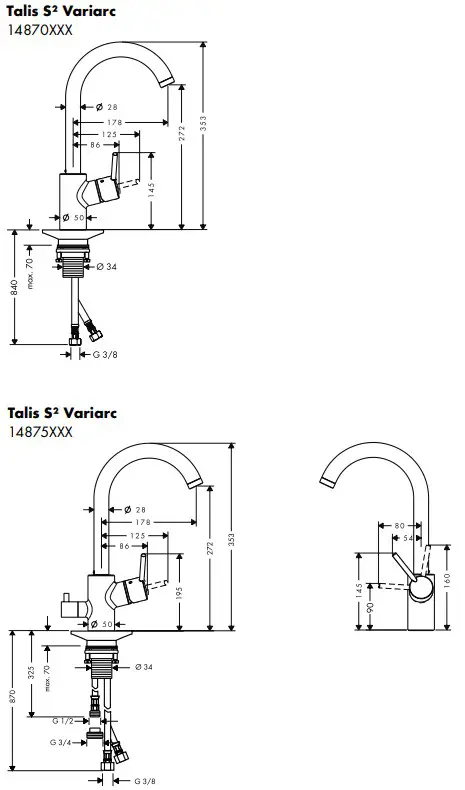

Dimensions

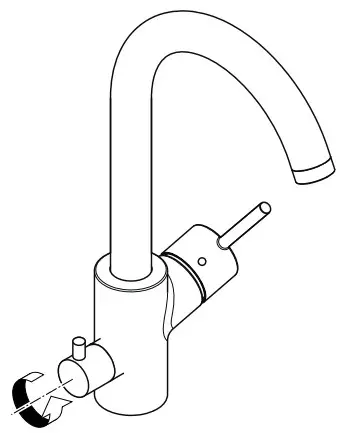

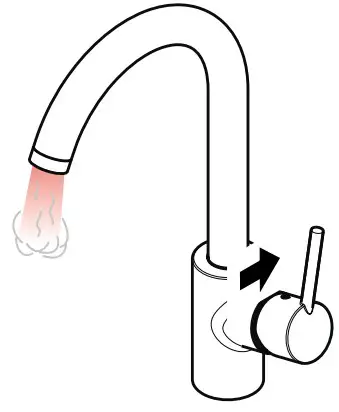

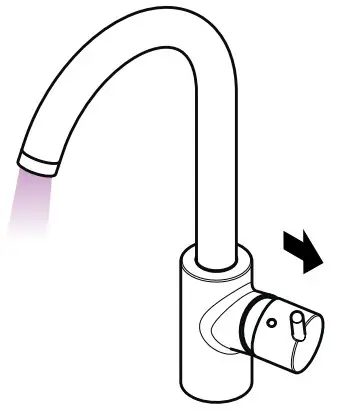

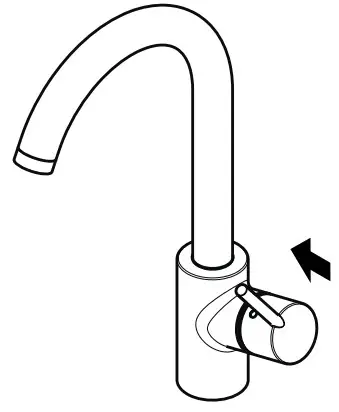

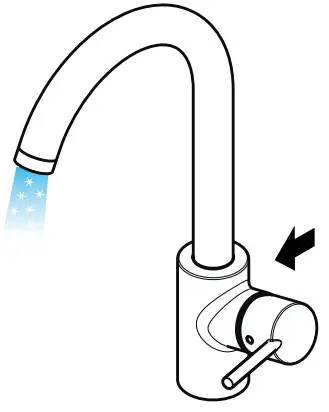

Operation

open	close
hot	cold
open	close

XXX = Colors
000 = chrome plated
800 = stainless steel opticTest certificate

Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
12/2010
9.09726.10
