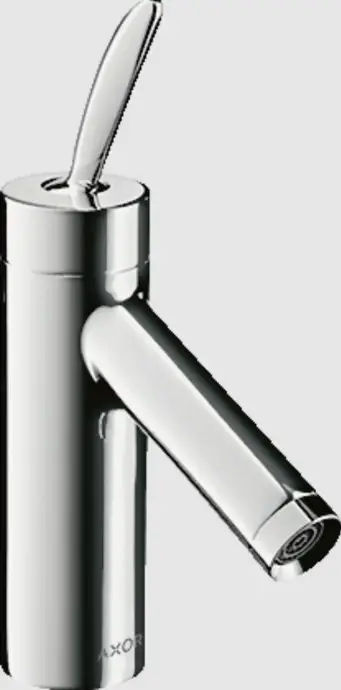

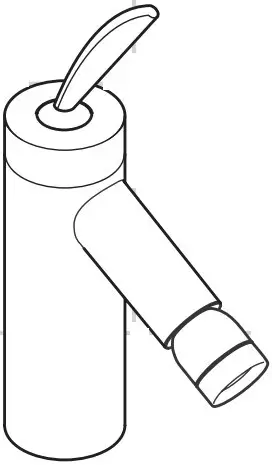

hansgrohe AXOR STARCK Classic Lever Sink Instruction Manual
Model
Starck: 10200000
Starck: 10004000 / 10010000 / 10015000 / 10018000
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures. \Installation Instructions
The fitting must be installed, flushed and tested after the valid norms.
If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol description
Do not use silicone containing acetic acid!

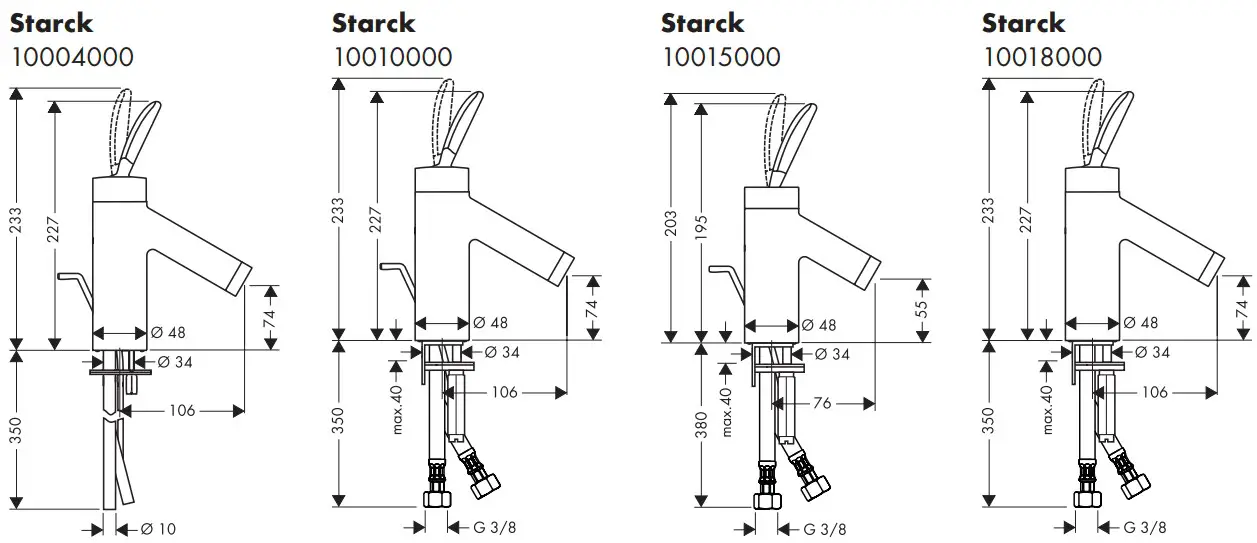

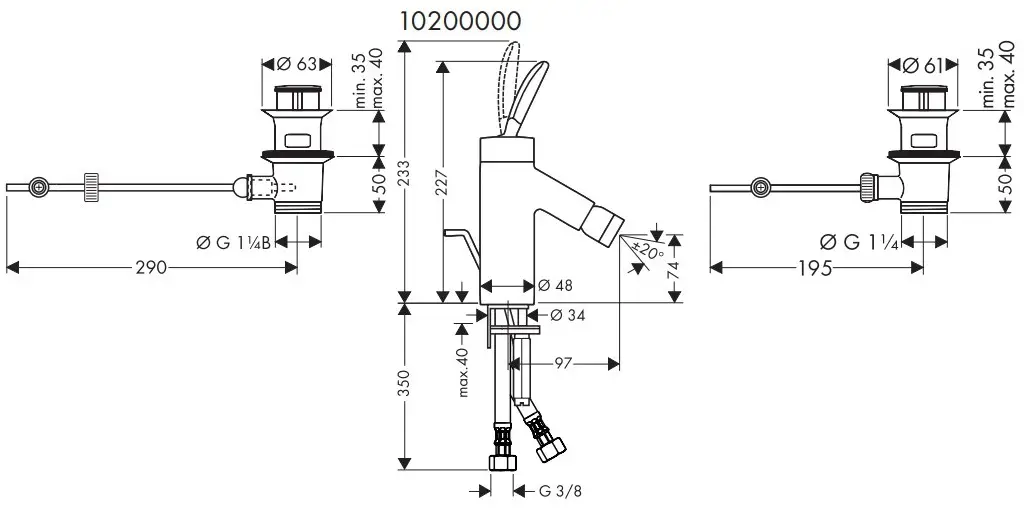

Dimensions (see page 34)

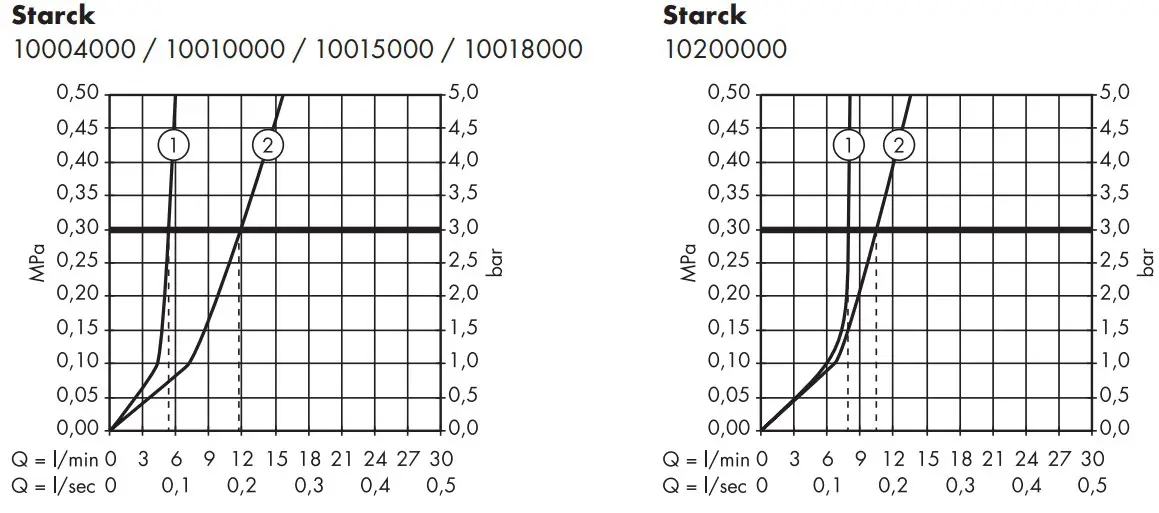

Flow diagram (see page 34)
- with EcoSmart®
- without EcoSmart®

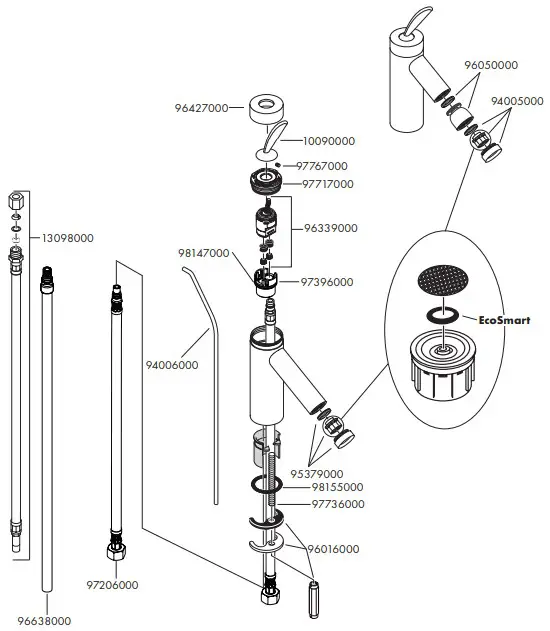

Spare parts (see page 35)
Special accessories
special tool (58085000) order as an extra
Installation kit order as an extra

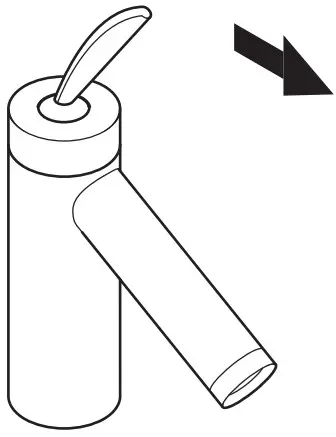

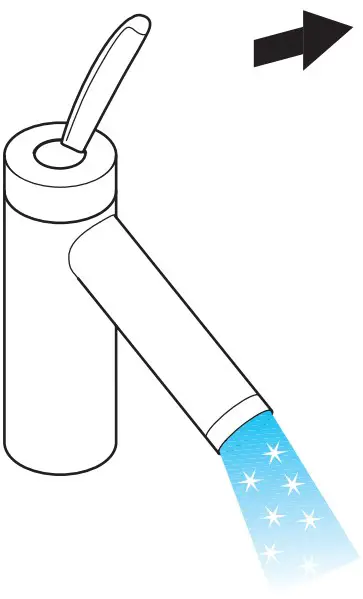

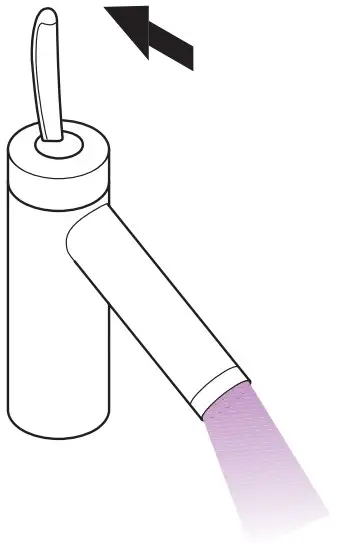

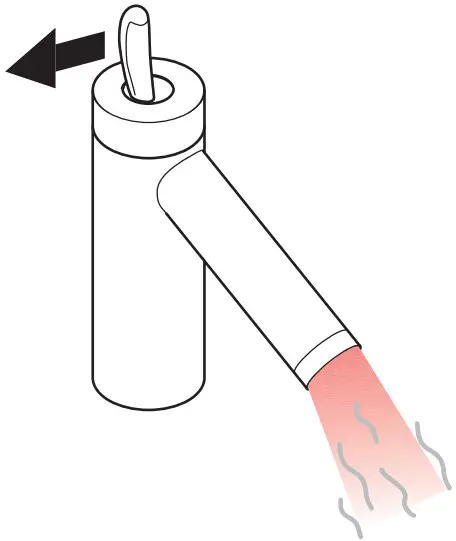

Operation (see page 33)
open
close
cold
hot
Cleaning see enclosed brochure.
Test certificate (see page 33)
| P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA | |
| 10004000 | X | X | ||||||
| 10010000 | P-IX 8536/IA | X | X | X | X | |||
| 10015000 | P-IX 8536/IA | X | X | X | X | |||
| 10018000 | P-IX 8536/IA | X | X | X | ||||
| 10200000 | P-IX 8536/IA | X | X | X | X | X |

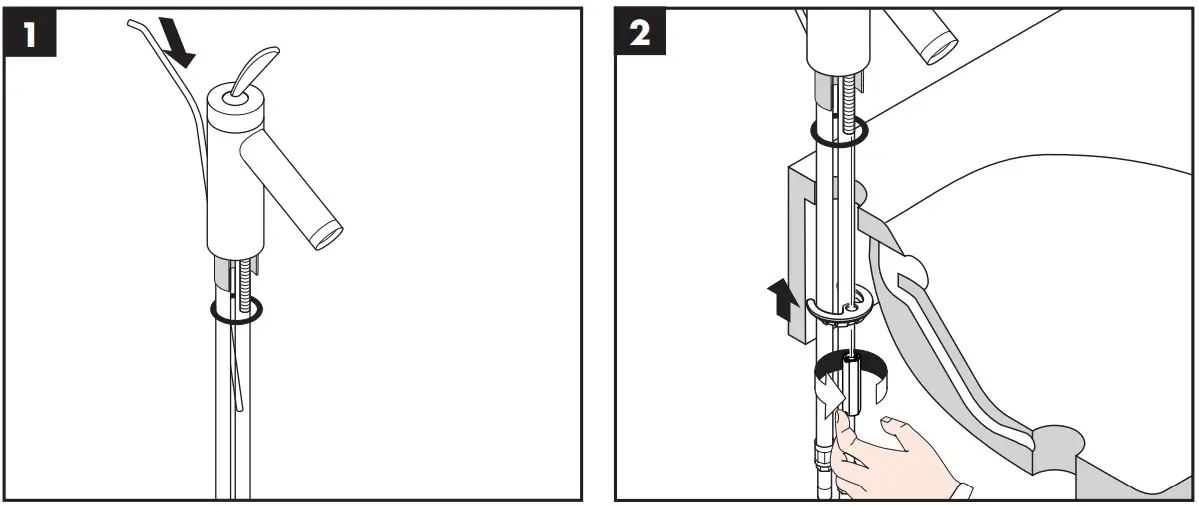

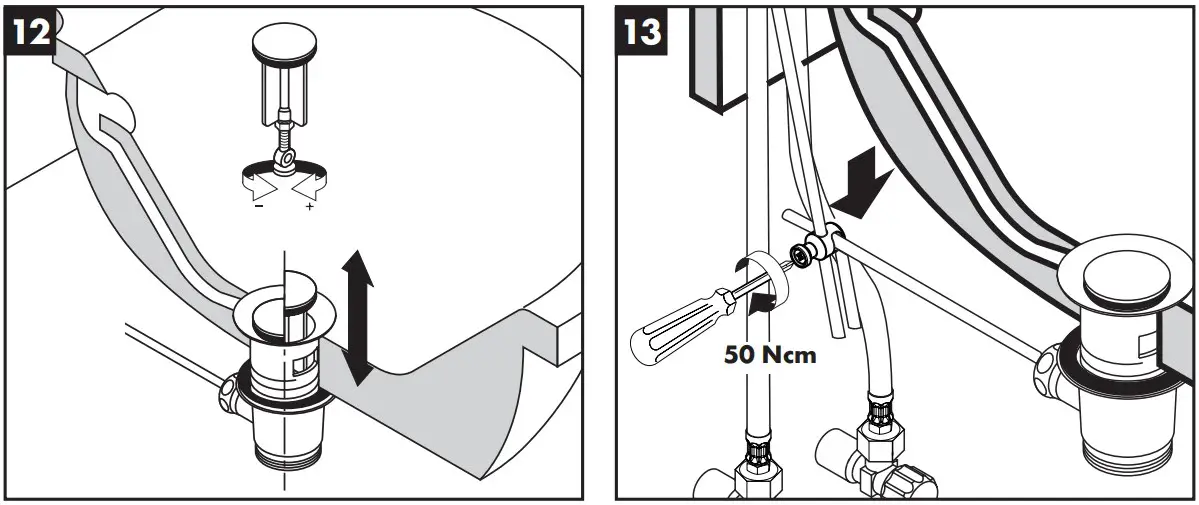

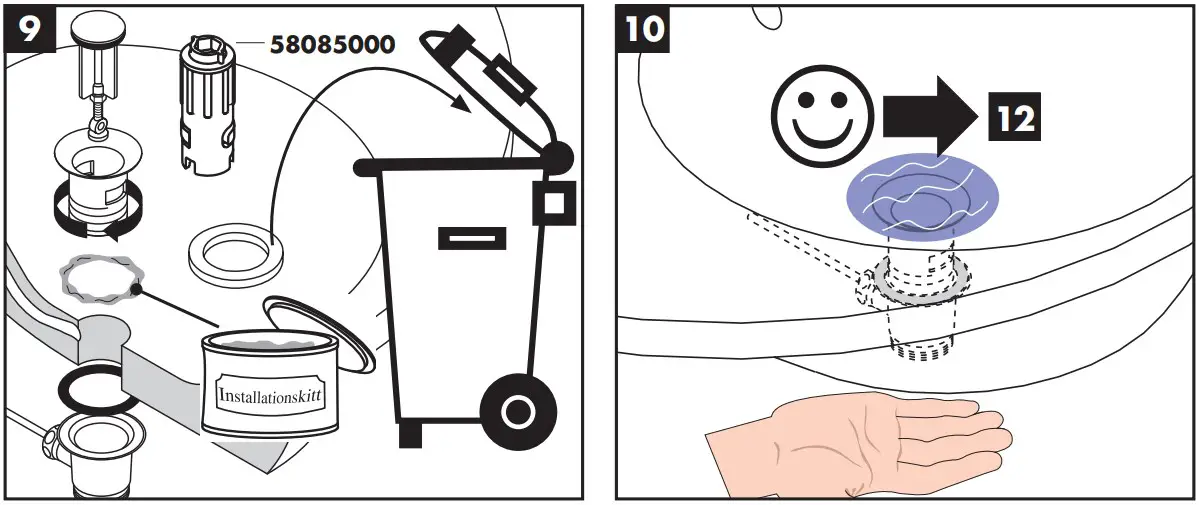

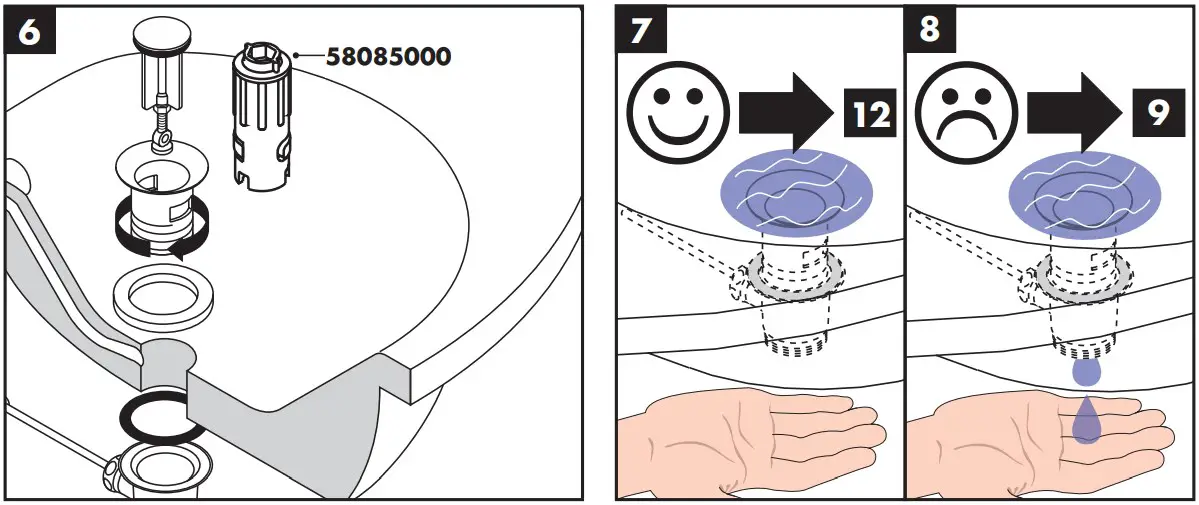

Assembly Instrcutions
