Hansgrohe 18112000 Axor Massaud Single Lever Sink Mixer Instruction Manual

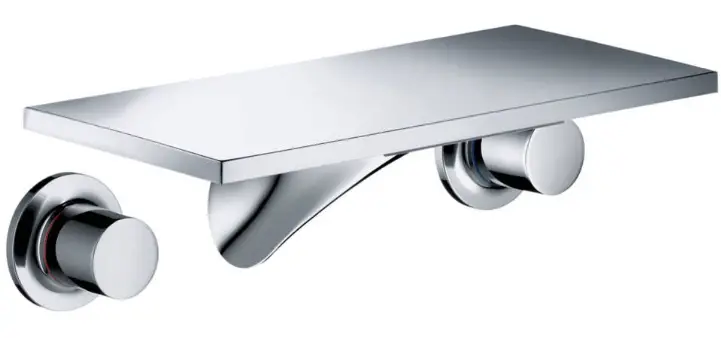

hansgrohe 18112000 AXOR MASSAUD Single Lever Sink Mixer

OTHER MODELS

• Massaud 18112000

• Massaud 18115000


Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
• Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

This mixer is equipped with a flush stream, which enhances the natural side of the life element water. As this flush stream does not contain any air, we recommend the use of Axor Massaud basins or very deep basins to prevent water spray

Symbol description

Do not use silicone containing acetic acid!

Dimensions
Flow diagram

 Spare parts
Operation
Cleaning

 Test certificate

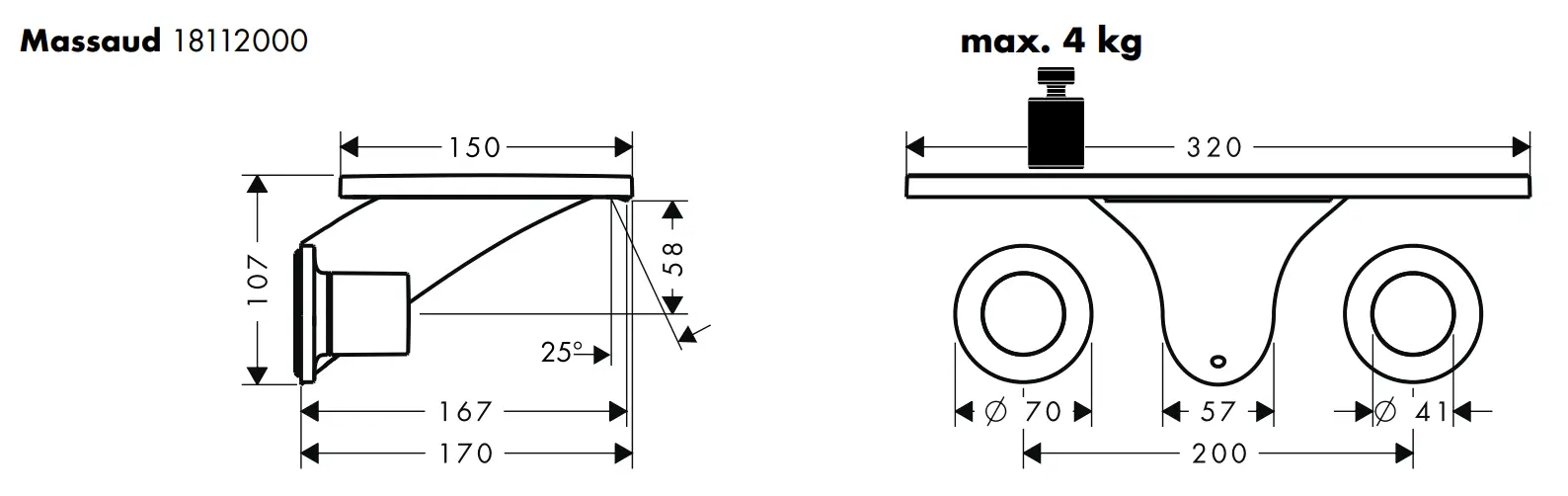

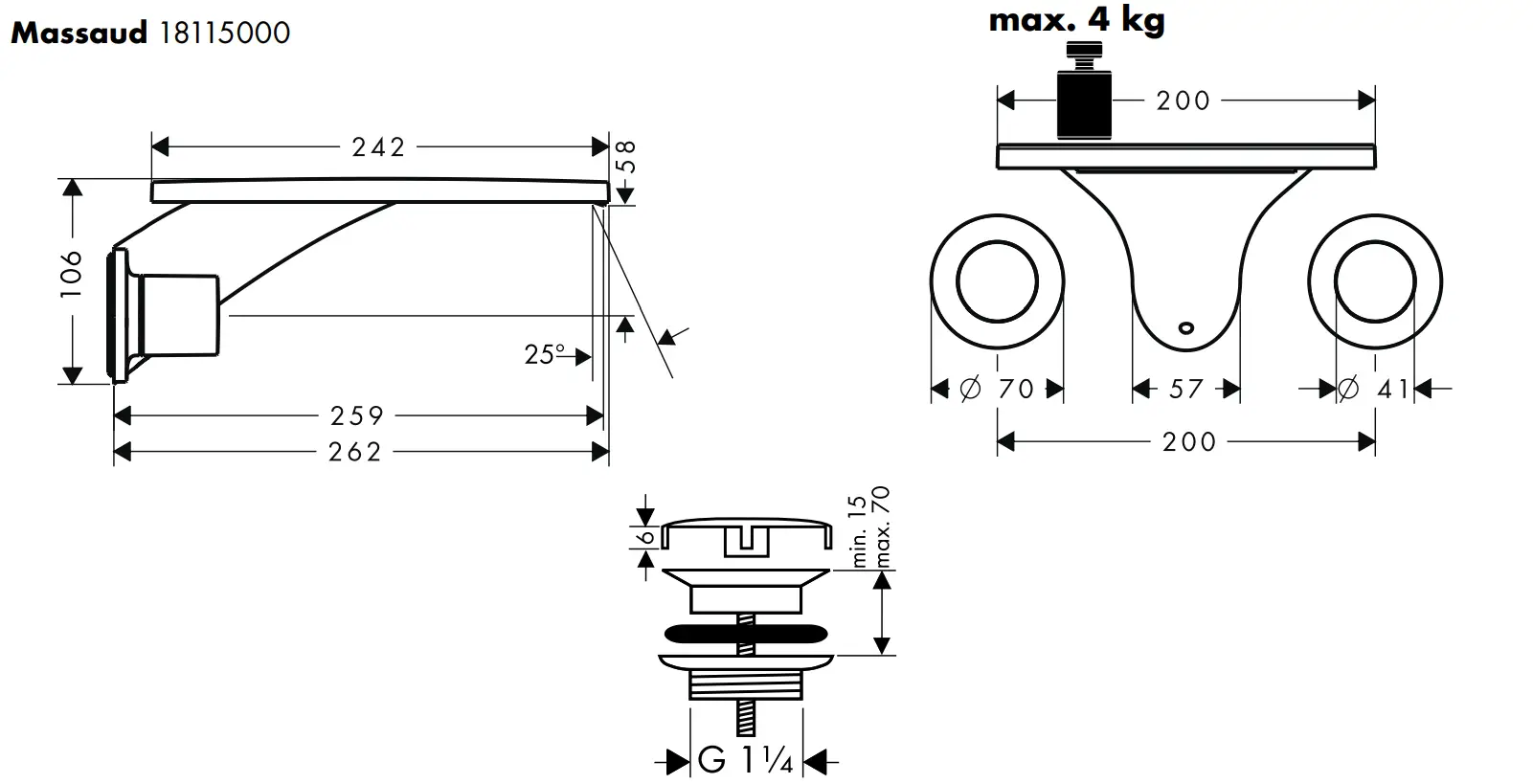

Dimensions

(see page 33)

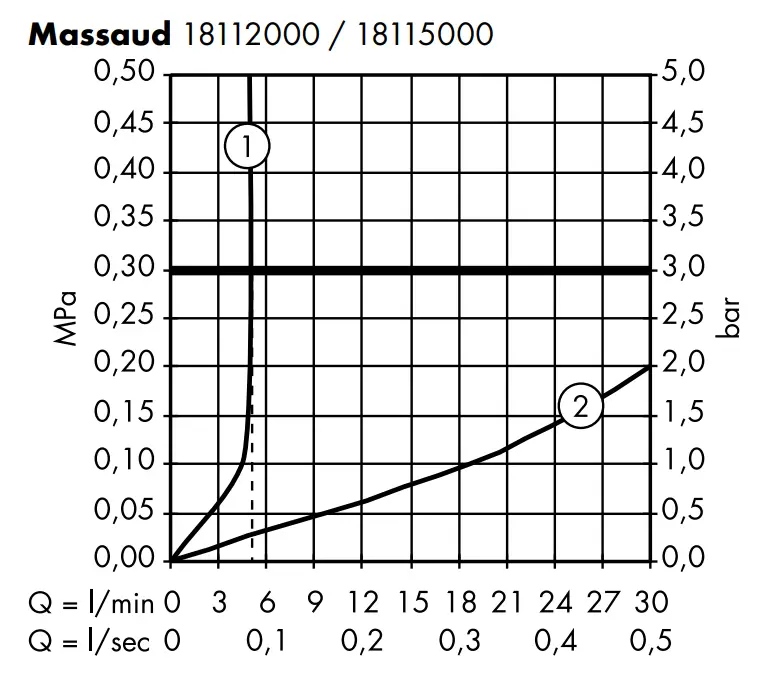

Flow diagram

(see page 33)

1. with EcoSmart®
2. without EcoSmart®

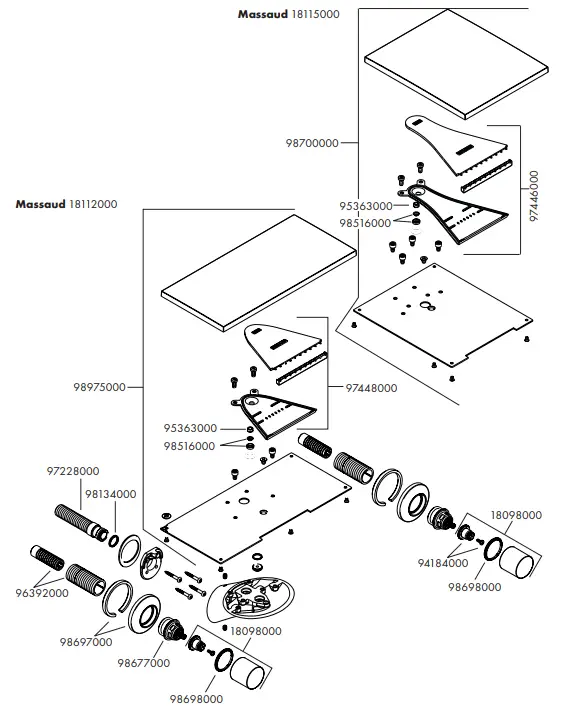

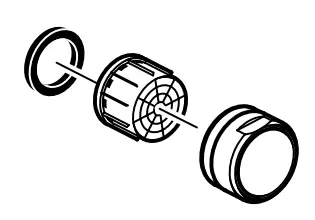

Spare parts

(see page 34)

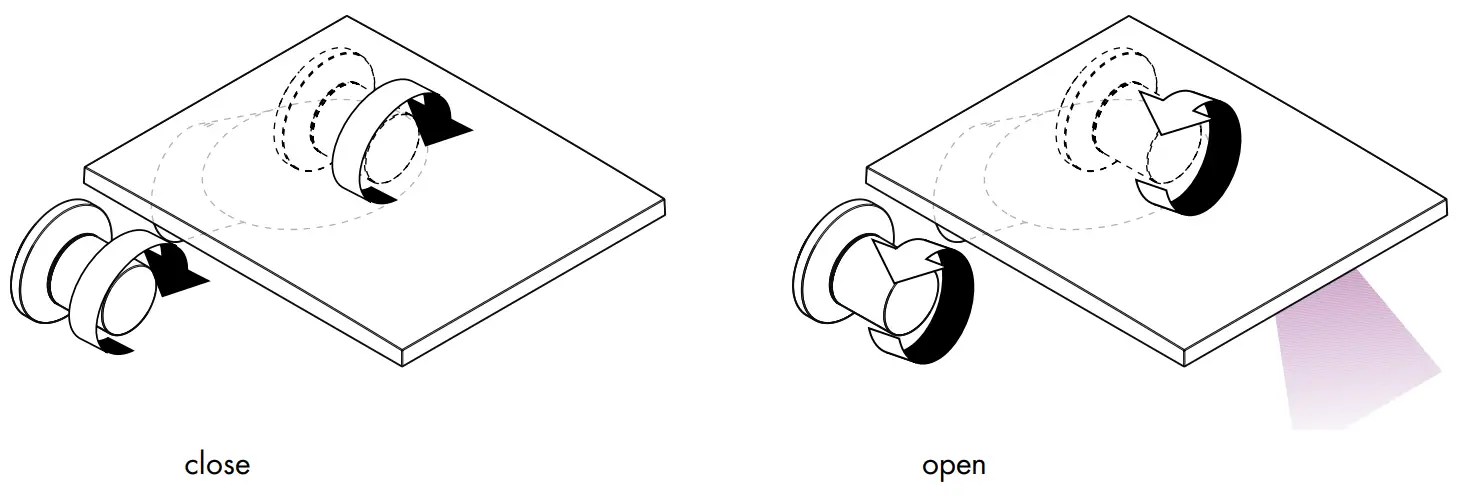

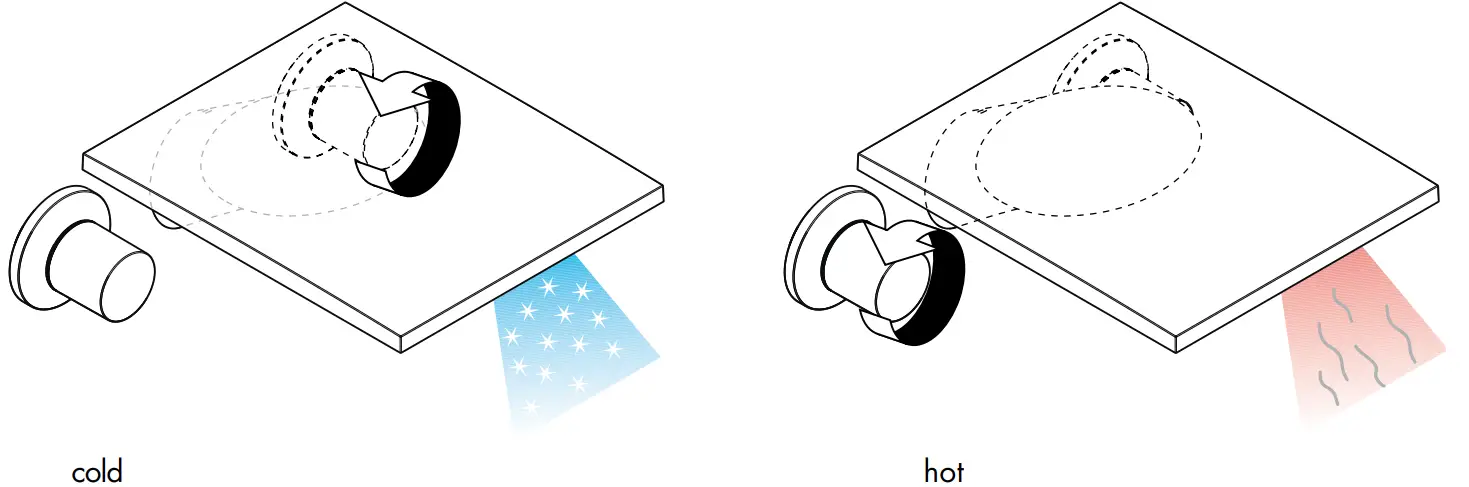

Operation

(see page 35)

Cleaning

see enclosed brochure

Test certificate

(see page 35)

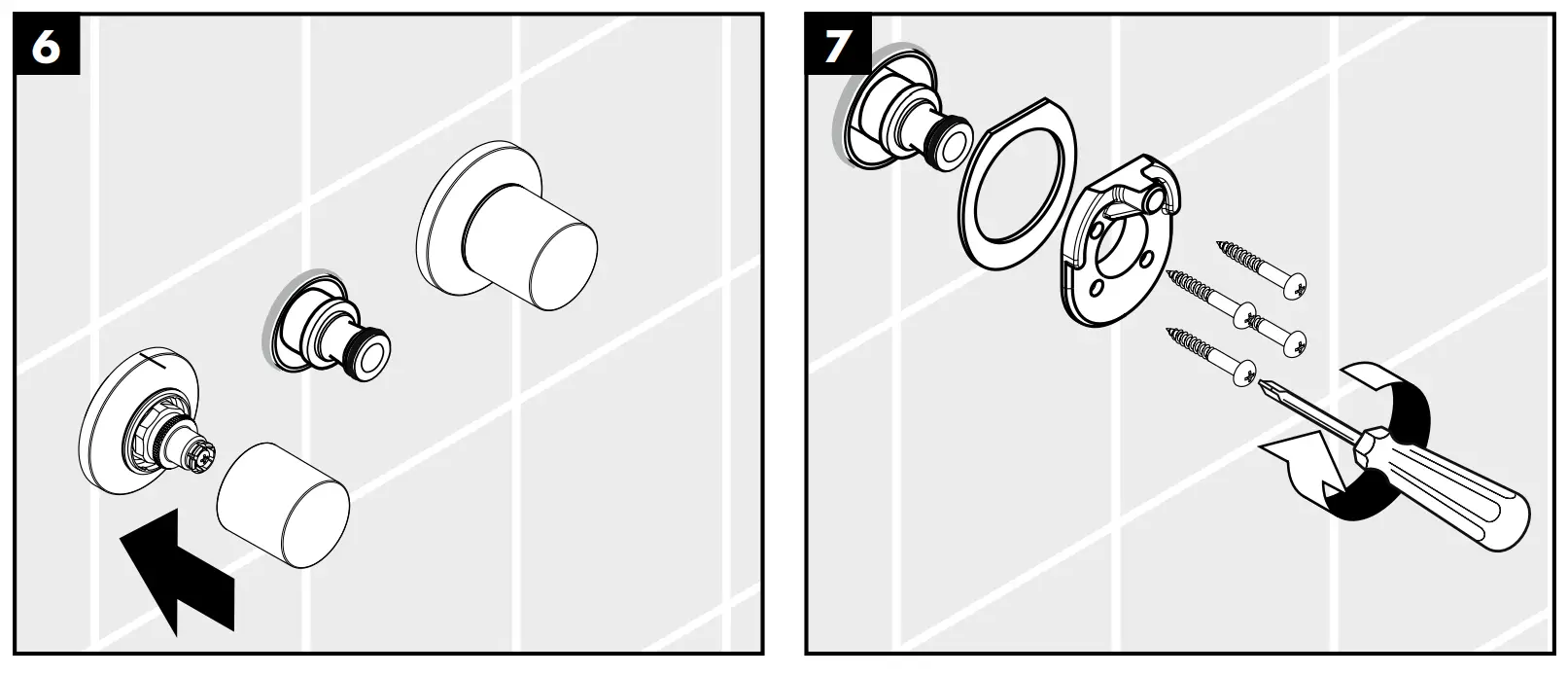

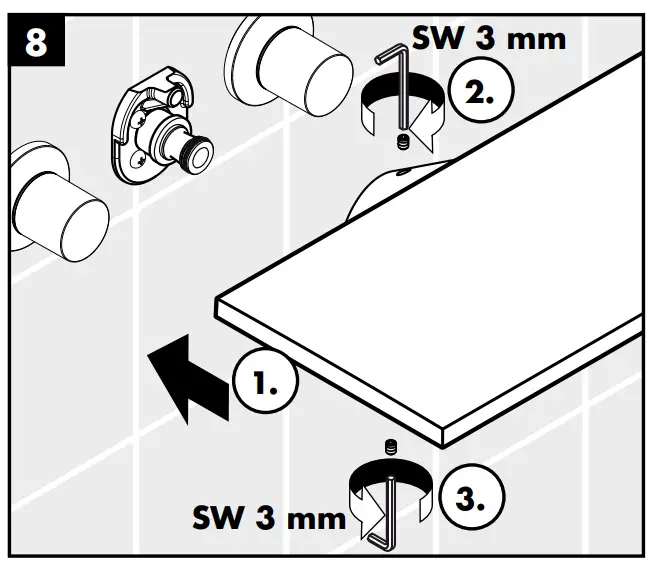

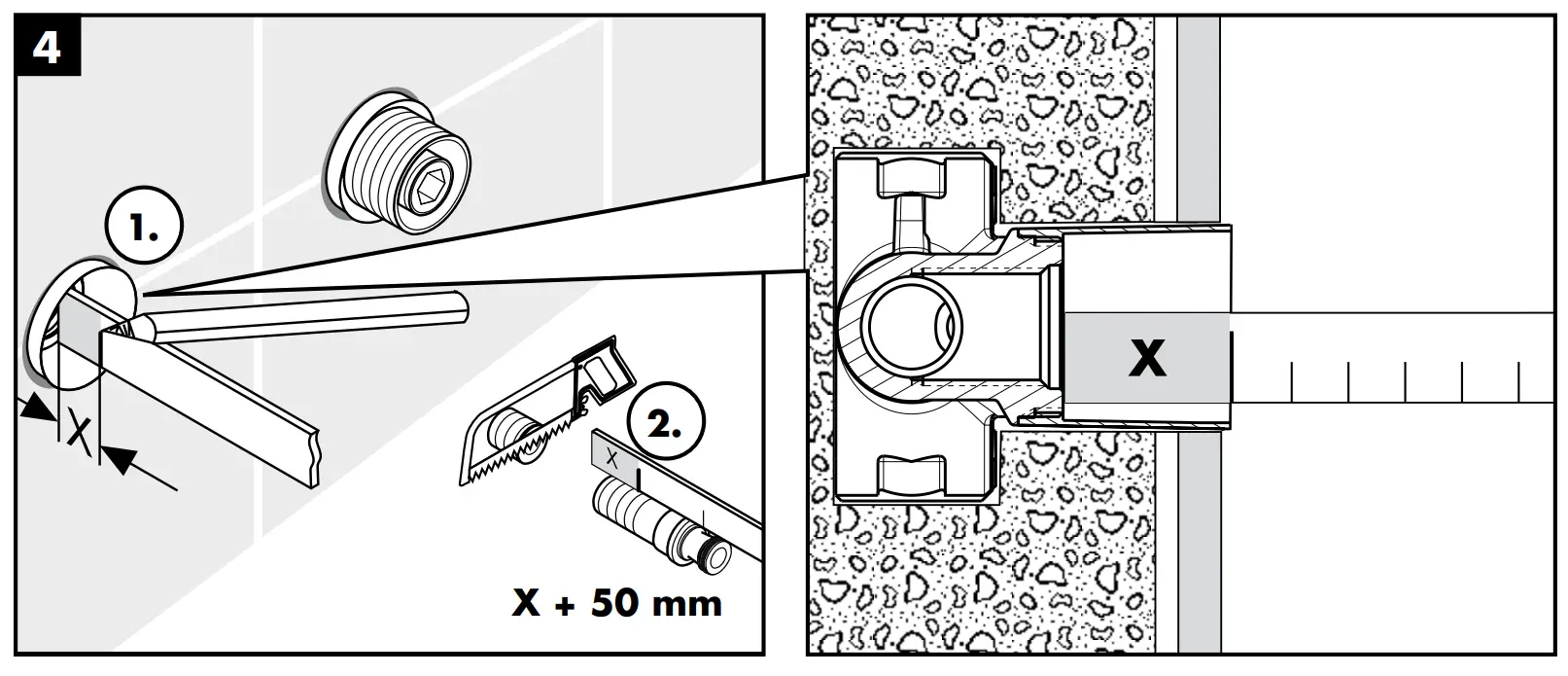

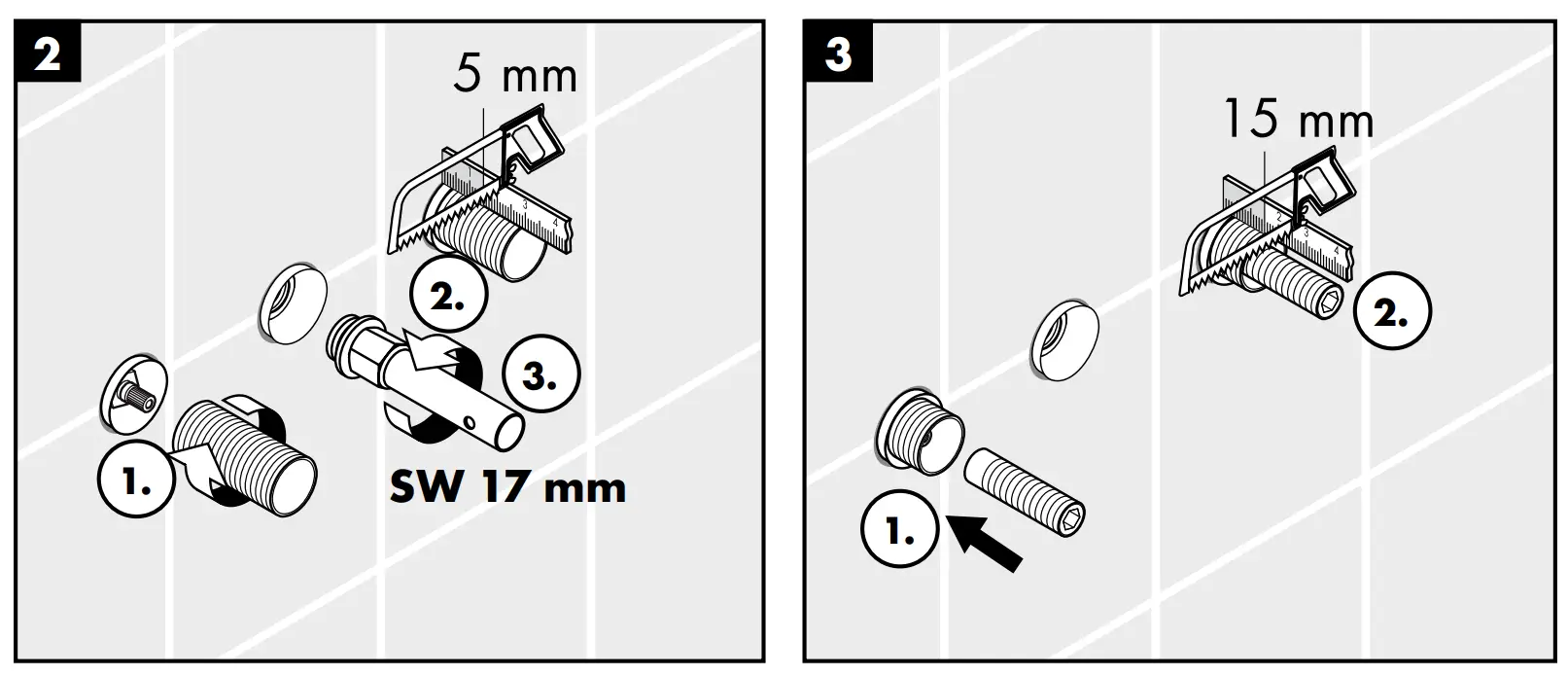

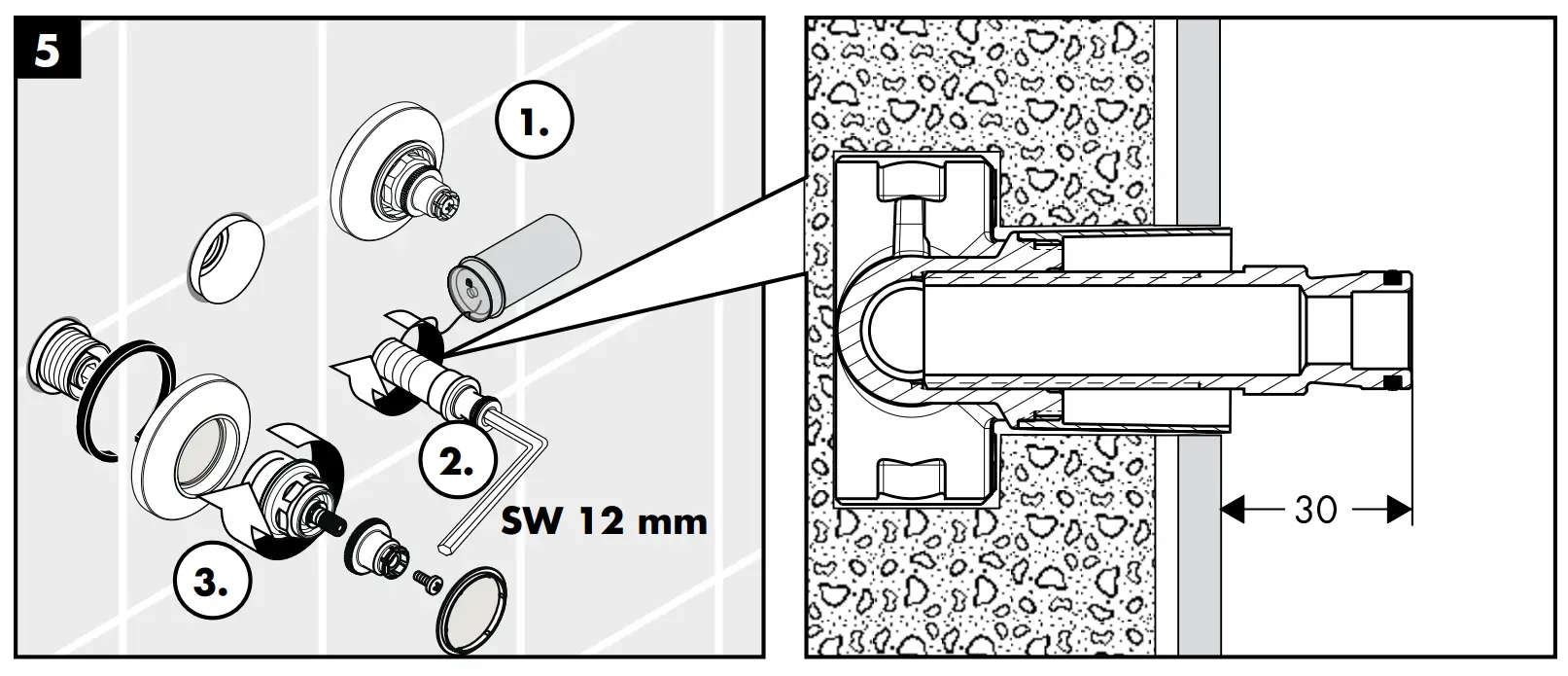

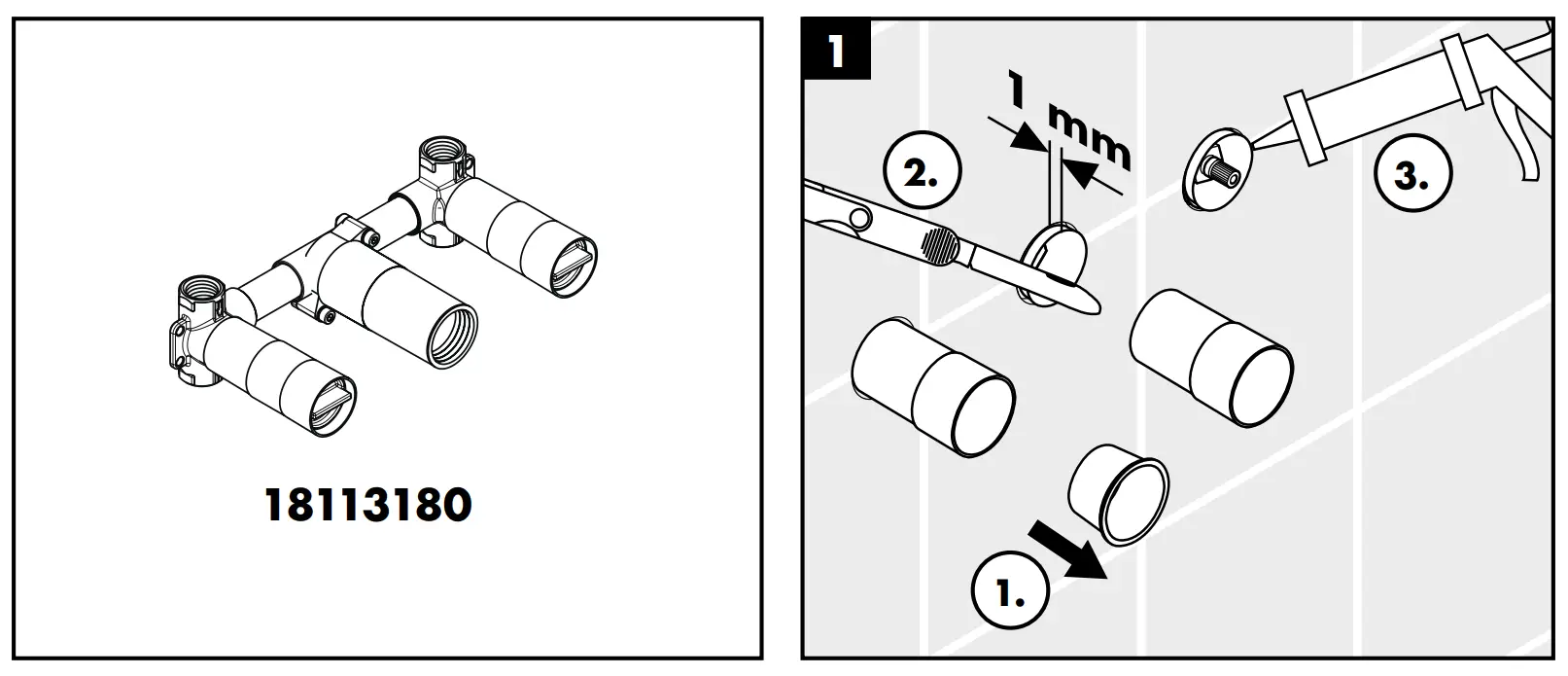

Assembly

see page 31
