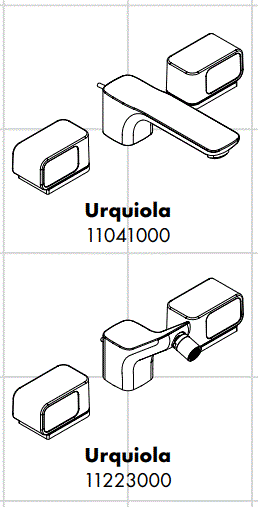

hansgrohe 11041000 AXOR Washbasin Mixers
Product Information:
The user manual provides instructions in multiple languages for the installation and use of a shower system. The shower system should only be used for bathing, hygiene, and body cleansing purposes. The hot and cold water supplies must be of equal pressures to ensure proper functioning of the shower system.
The manual includes technical data such as the maximum and recommended operating pressures, test pressure, and hot water temperature. The shower system can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.
Product Usage Instructions:
- Wear protective gloves during installation to prevent crushing and cutting injuries.
- Ensure that the hot and cold water supplies have equal pressures.
- Do not use silicone-containing acetic acid.
- Follow the installation instructions provided on page 31 of the manual.
- Refer to page 35 for dimensions and flow diagram.
- Refer to page 37 for operation instructions.
- Refer to page 38 for cleaning instructions and enclosed brochure.
- Spare parts and special accessories are listed on page 39, including a special tool (58085000) that can be ordered separately, as well as an installation kit.
- The test certificate is available on page 40.
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms.
If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol Description
Do not use silicone-containing acetic acid!

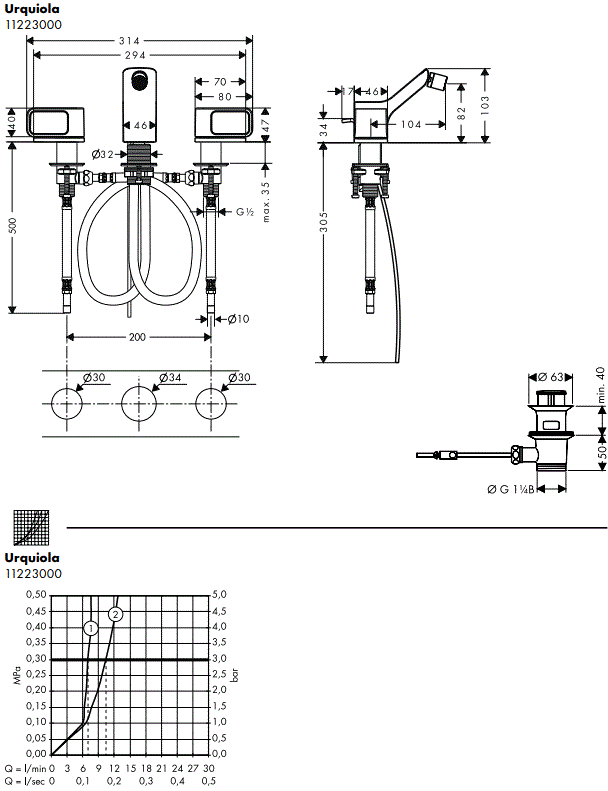

Dimensions (see page 35)- Flow diagram (see page 35)
- with EcoSmart®
- without EcoSmart®
Operation (see page 37)

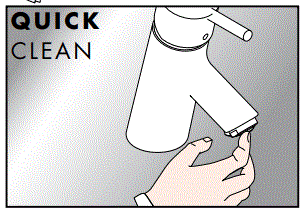

Cleaning (see page 38) enclosed brochure

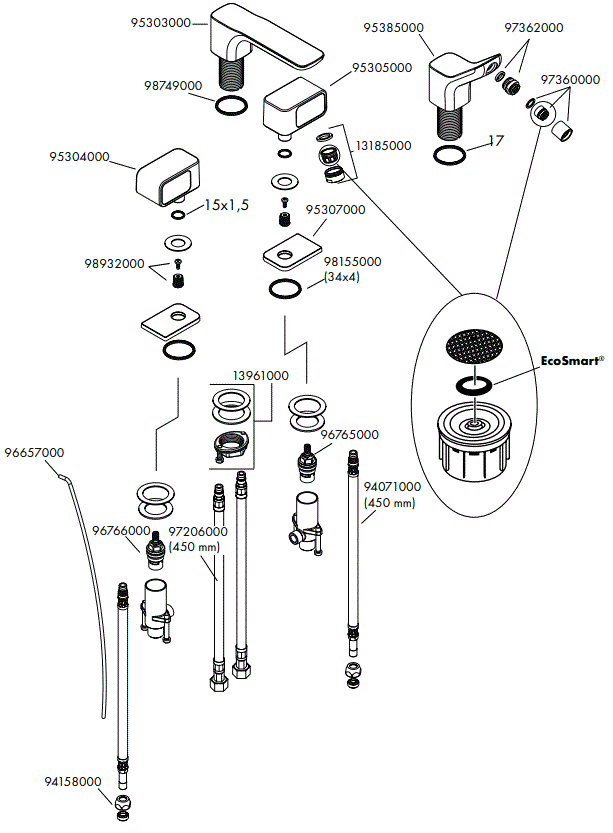

Spare parts (see page 39)
Special accessories
- special tool (58085000) order as an extra
Installation kit order as an extra- Test certificate (see page 40)

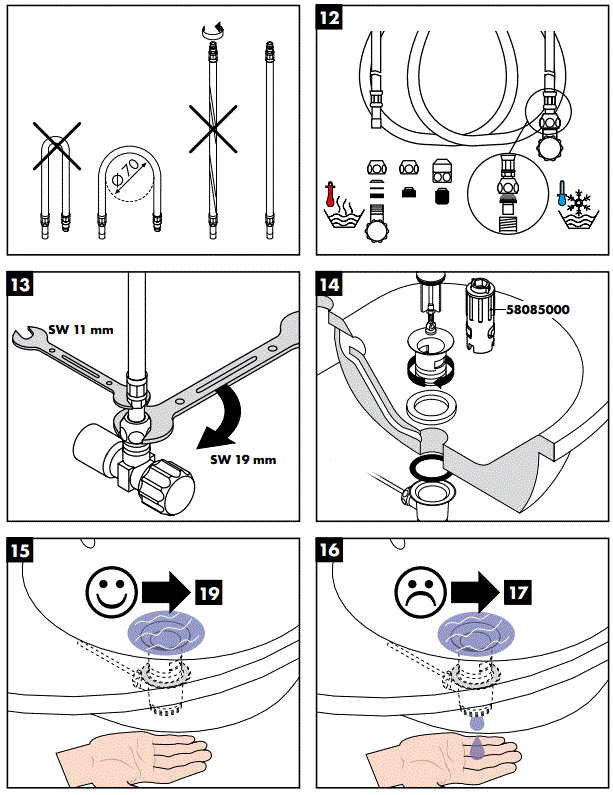

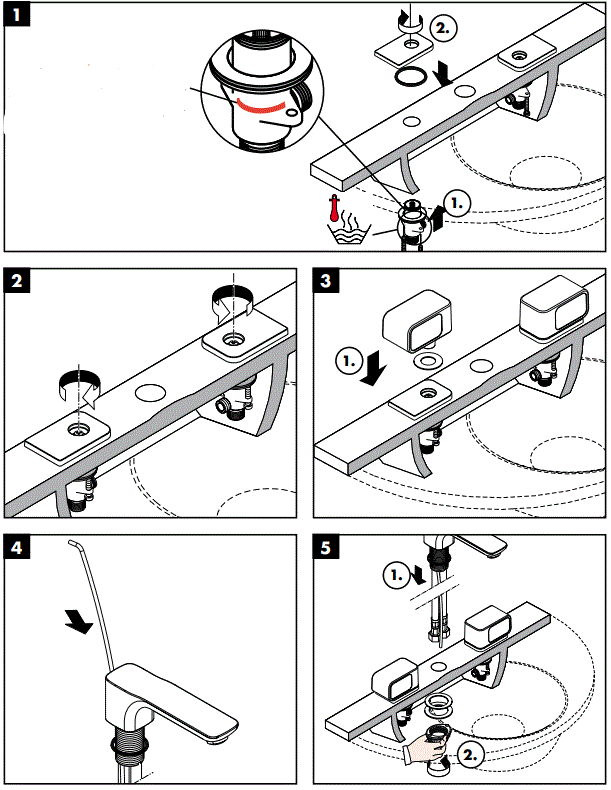

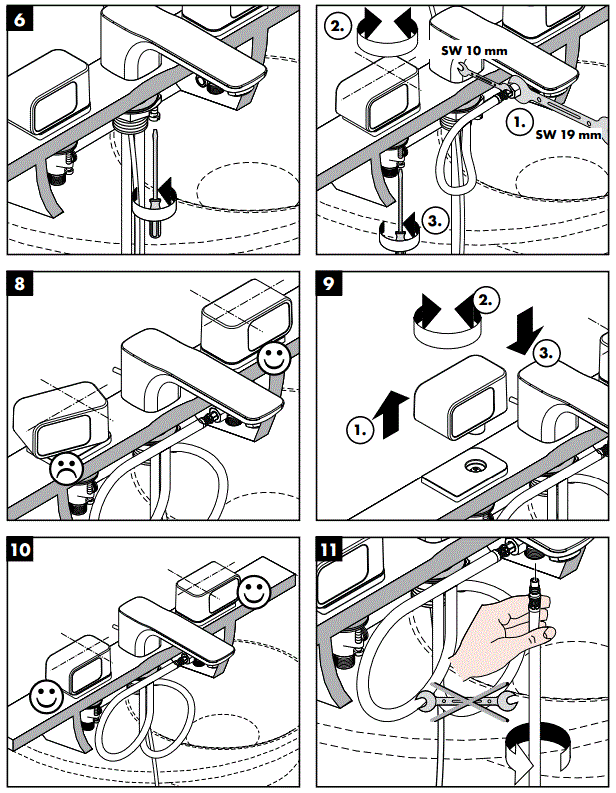

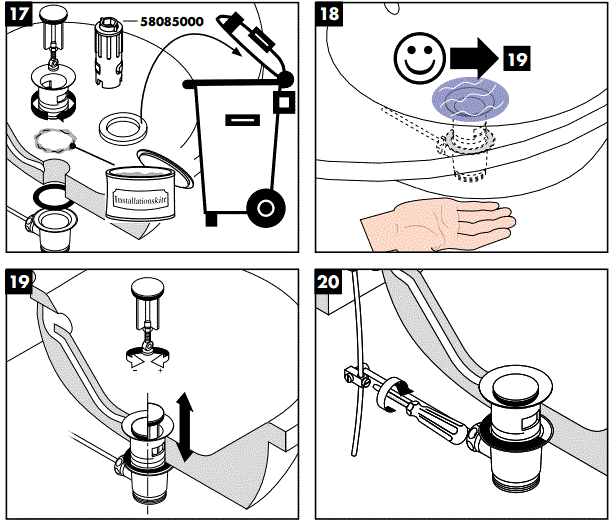

Assembly
INSTALLATION
