hansgrohe 71563000 Washbasin Mixers
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The product may only be used for bathing, hygienic and body cleaning purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- The drain valve must only be used as intended. It is not allowed to attach other objects to the drain valve, for example a semi-pedestal.
- The non return valve with integrated EcoSmart® (flow limiter) in the pull-out spray can be removed if there are problems with the flow heater or if a higher water throughput is required.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: 60°C
Thermal disinfection: 70°C / 4 min
The product is exclusively designed for drinking water!
Symbol description
- Do not use silicone containing acetic acid!
- Dimensions
- Flow diagram
- Spare parts
- Special accessories
- special tool #58085000
- Installation putty
- Cleaning
- Operation
Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use. - Test certificate

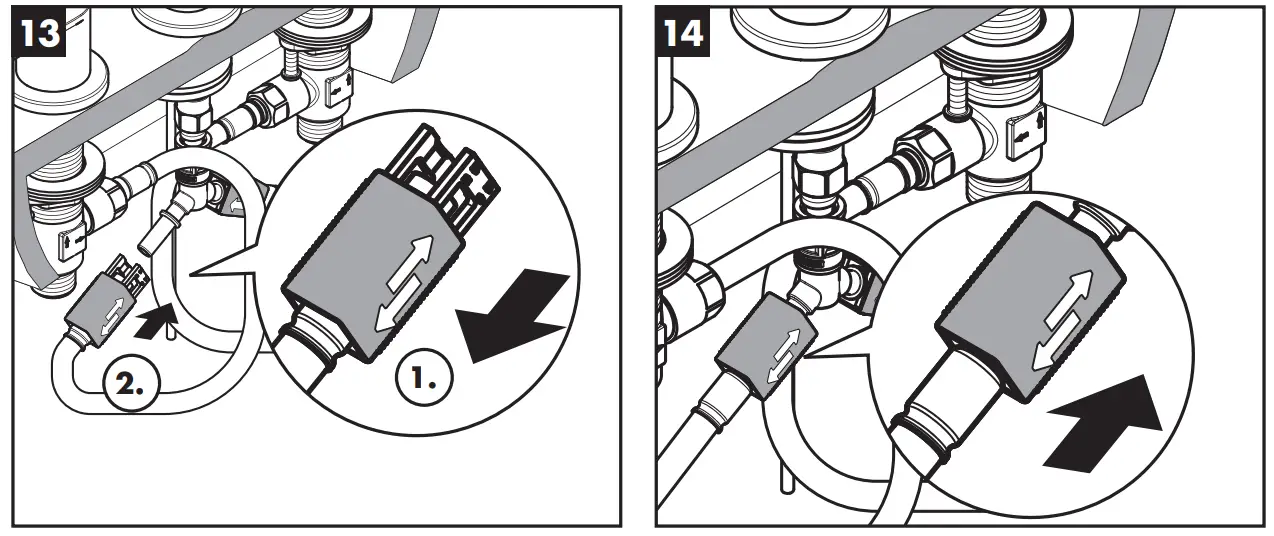

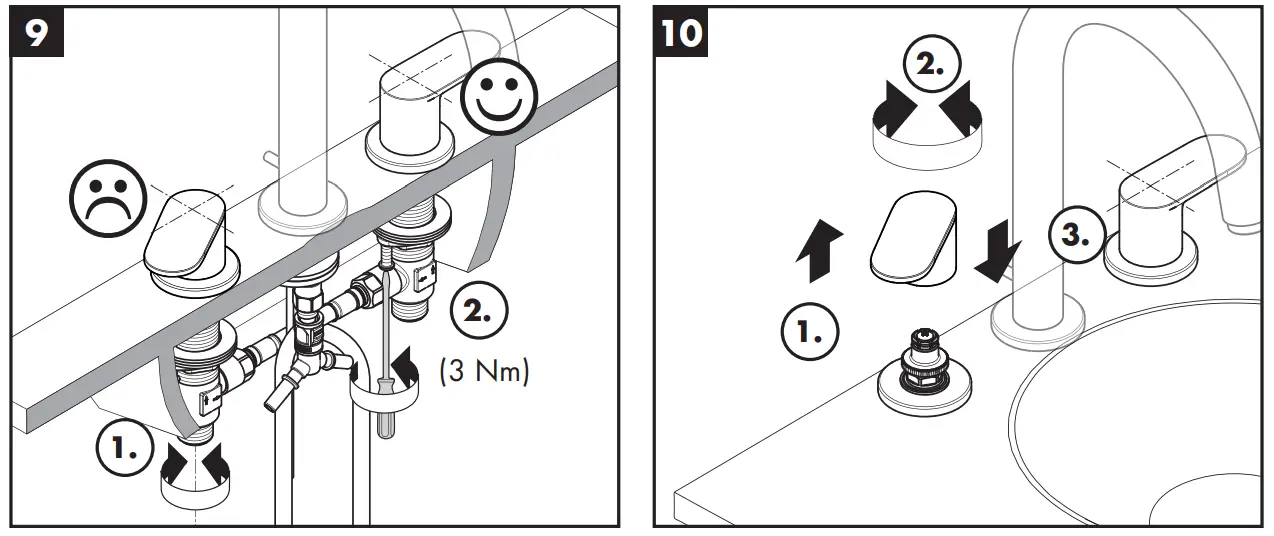

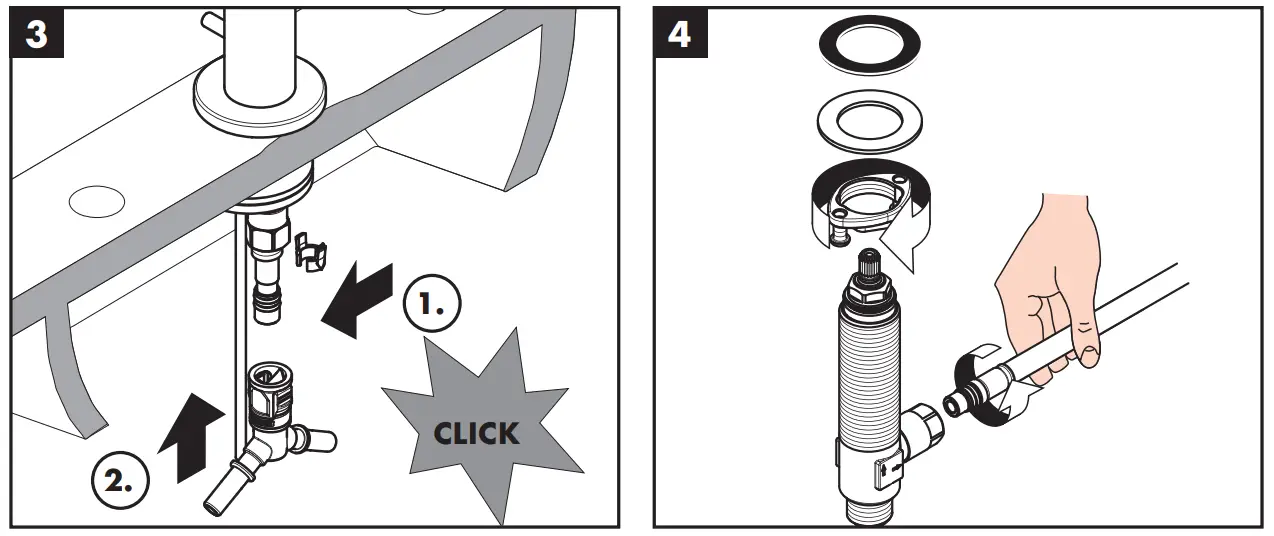

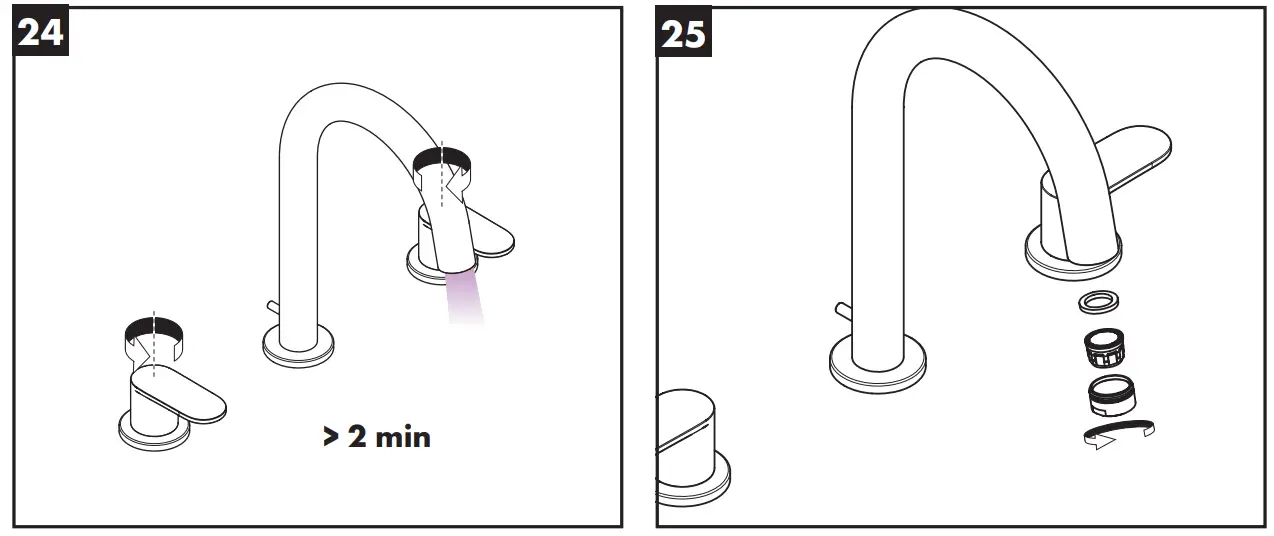

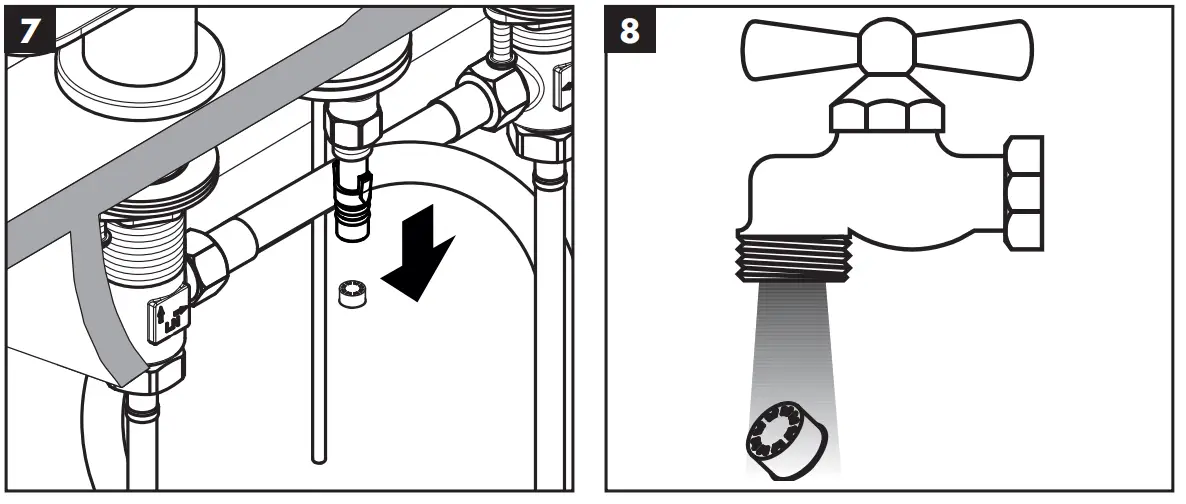

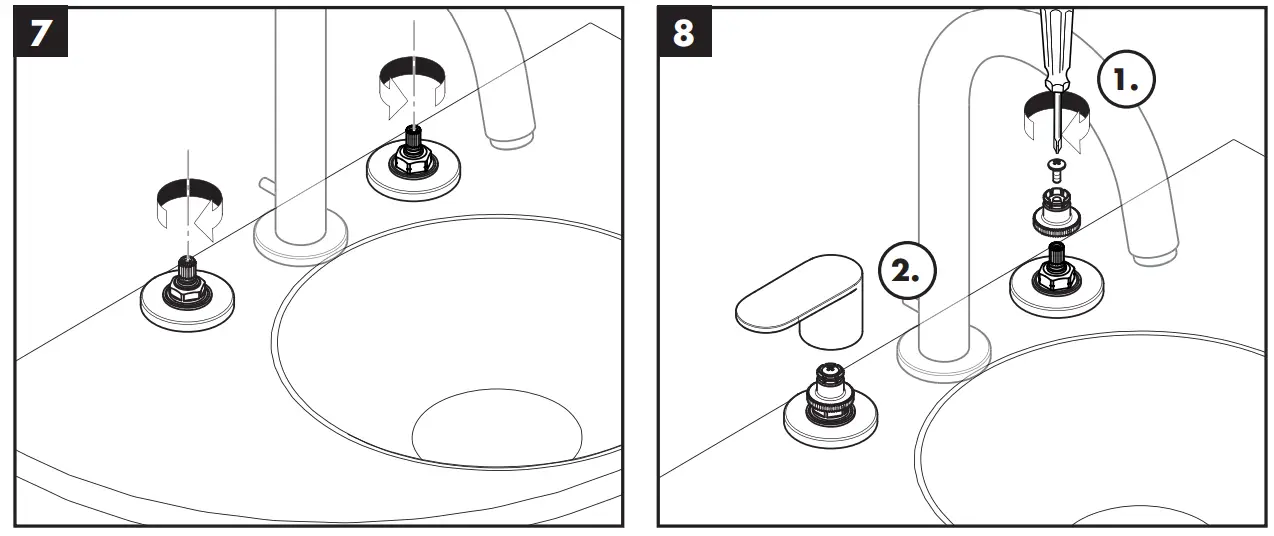

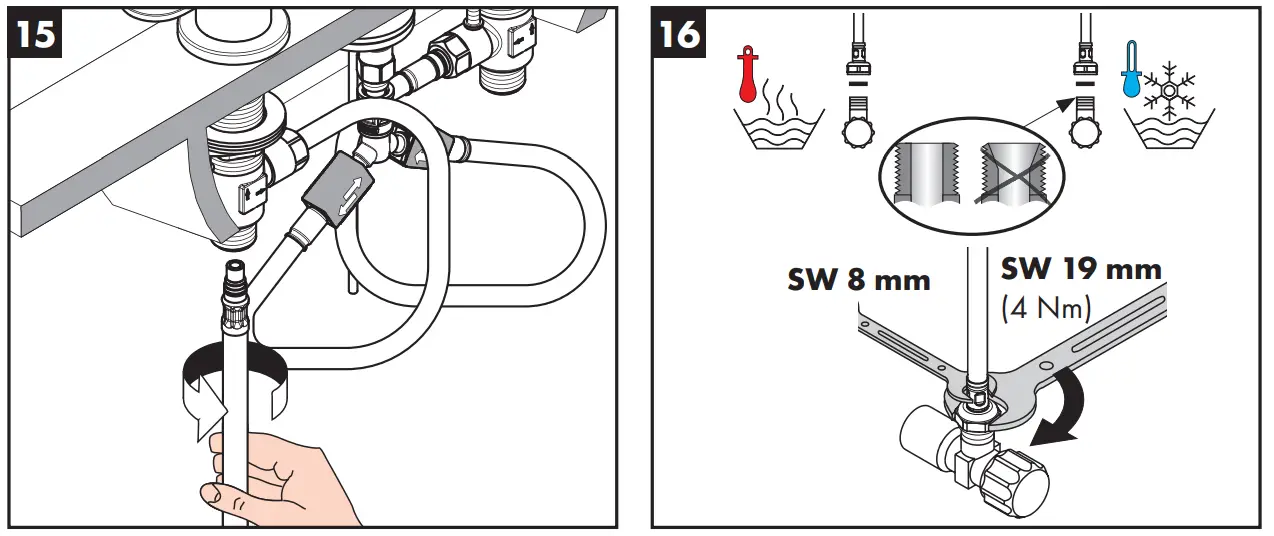

Assembly

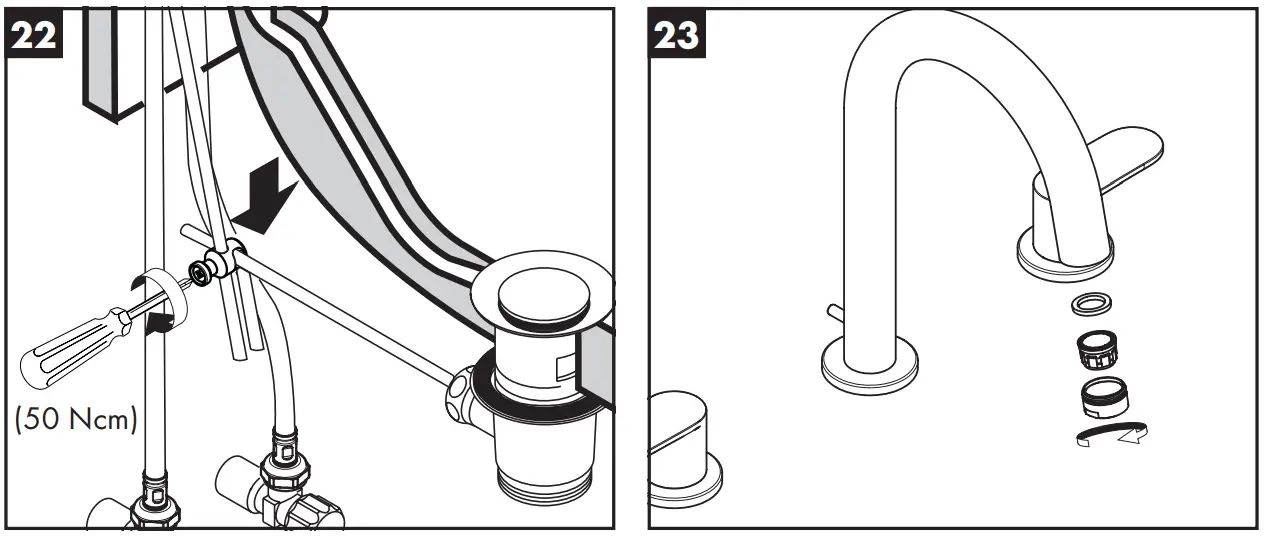

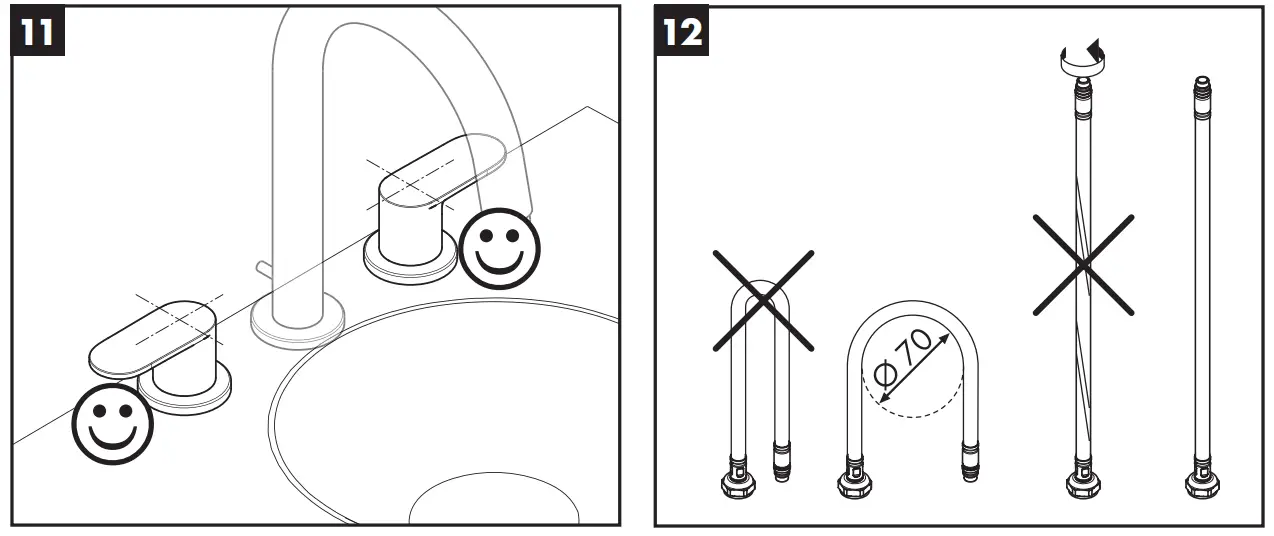

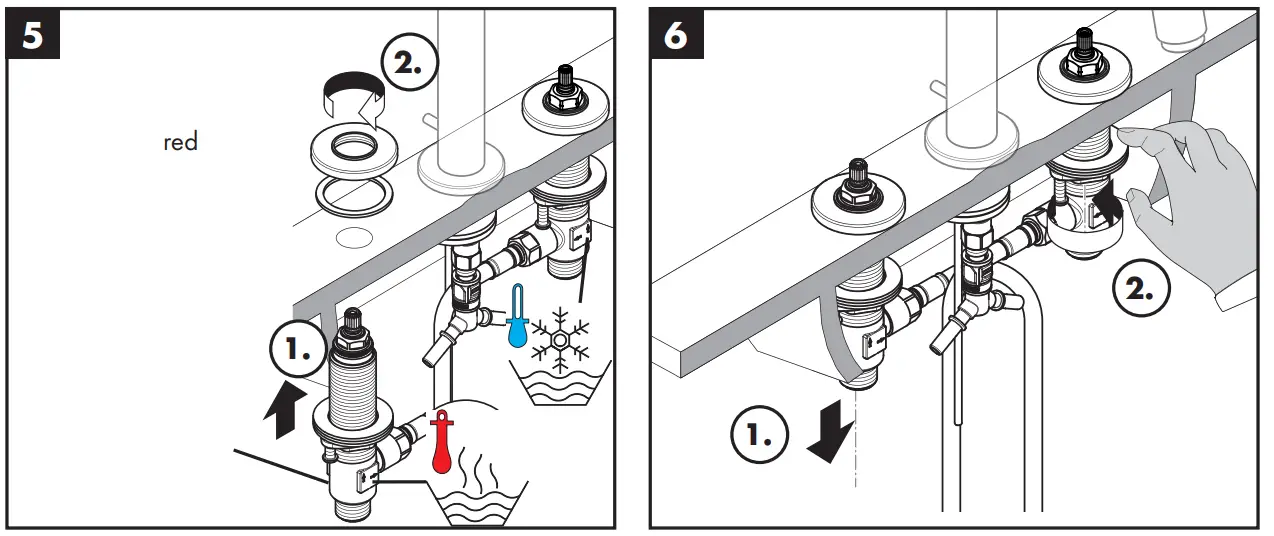

Assembly

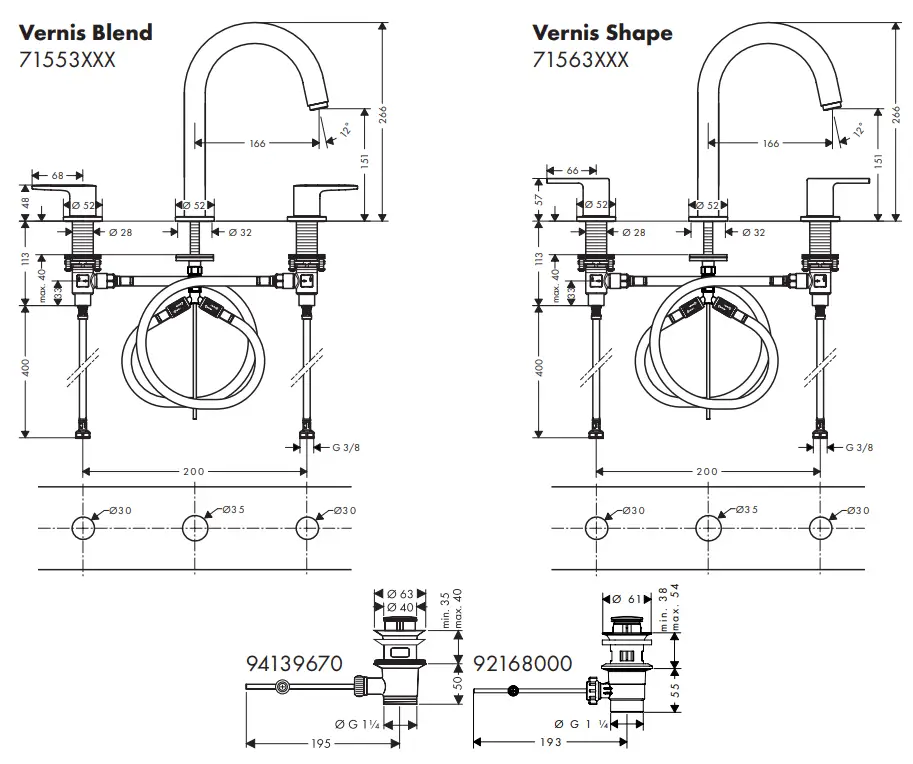

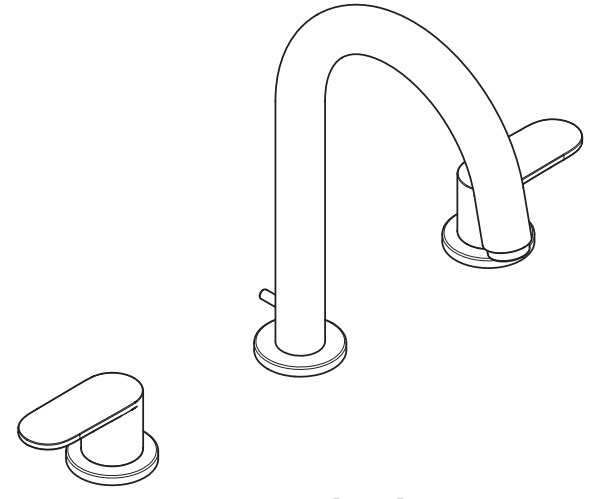

Dimensions

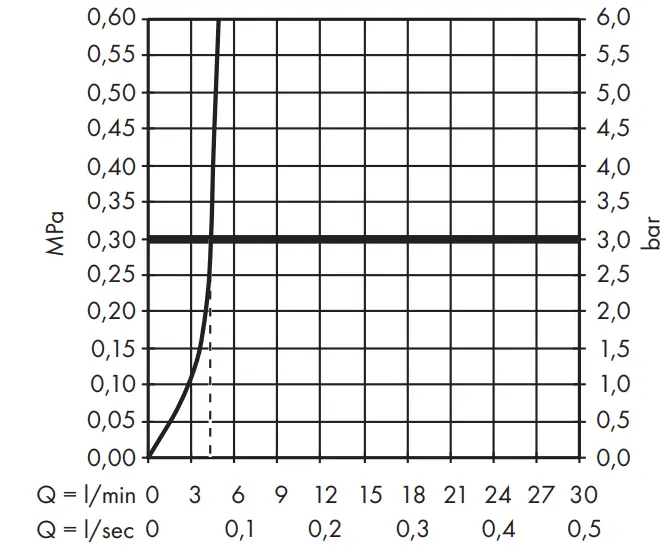

Flow diagram

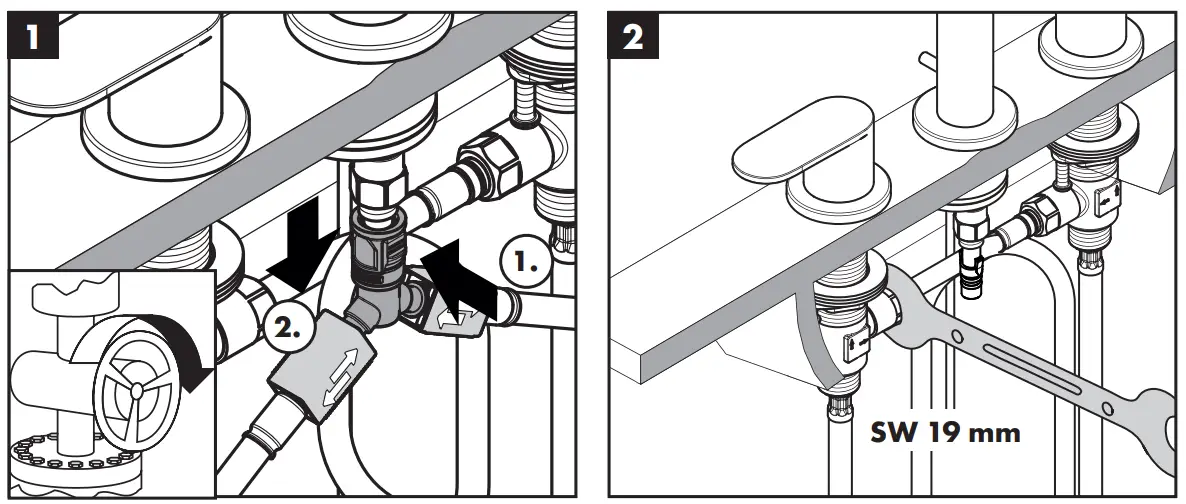

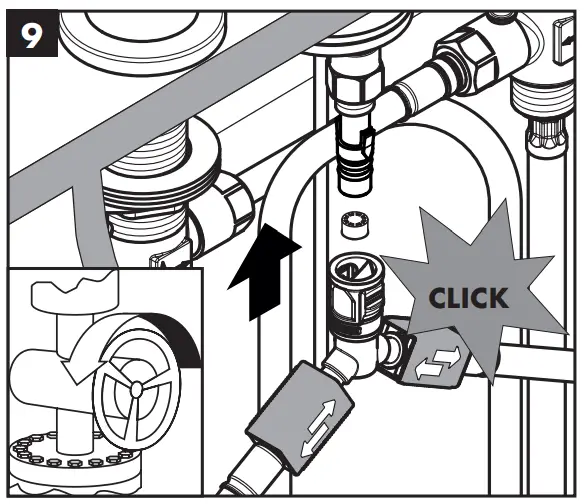

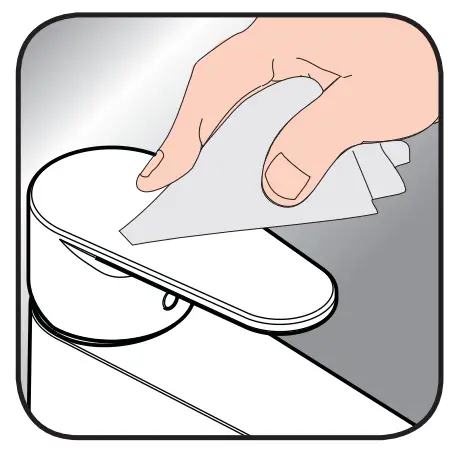

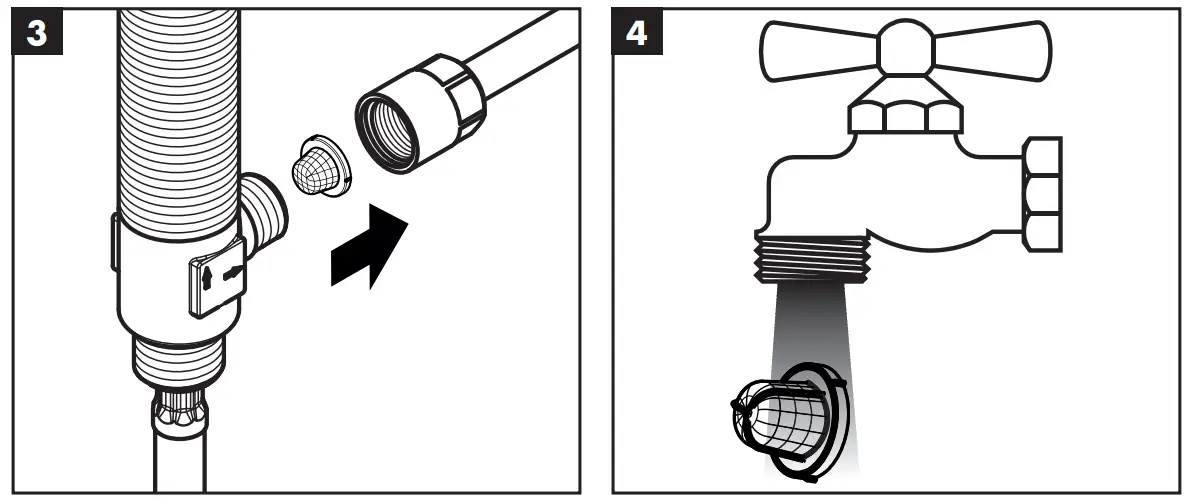

Cleaning
Cleaning recommendation / Warranty / Contact
http://www.hansgrohe.com/cleaning-recommendation
http://www.hansgrohe.com/cleaning-recommendation
http://www.hansgrohe.com/cleaning-recommendation
http://www.hansgrohe.com/cleaning-recommendation

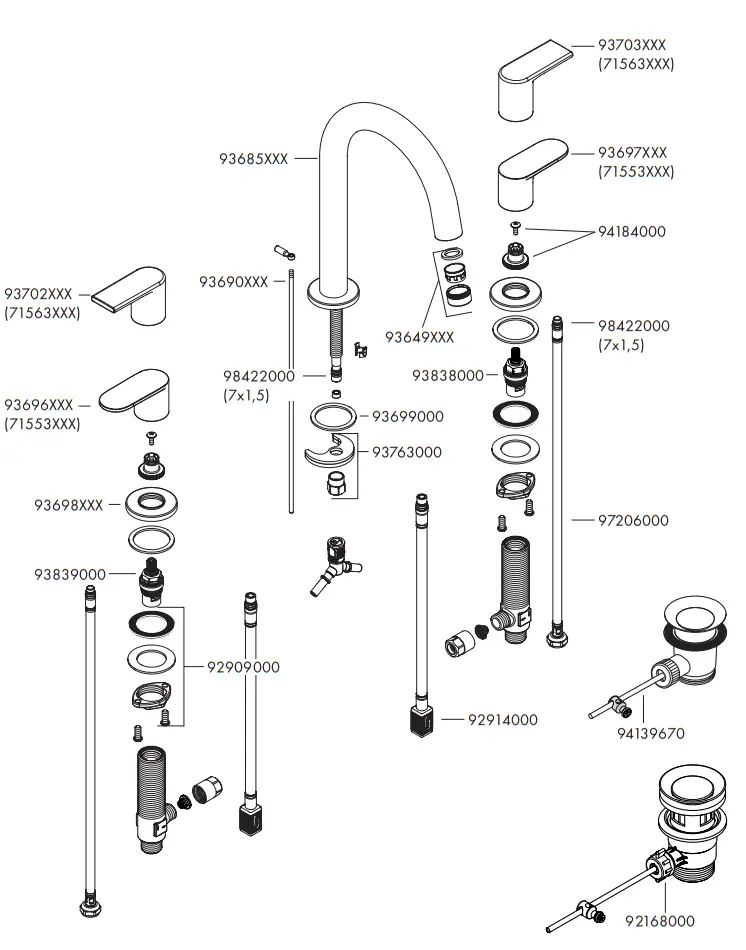

Spare parts
XXX = Colors
000 = Chrome Plated
670 = Matt Black
Vernis Blend
71553XXX
Vernis Shape
71563XXX

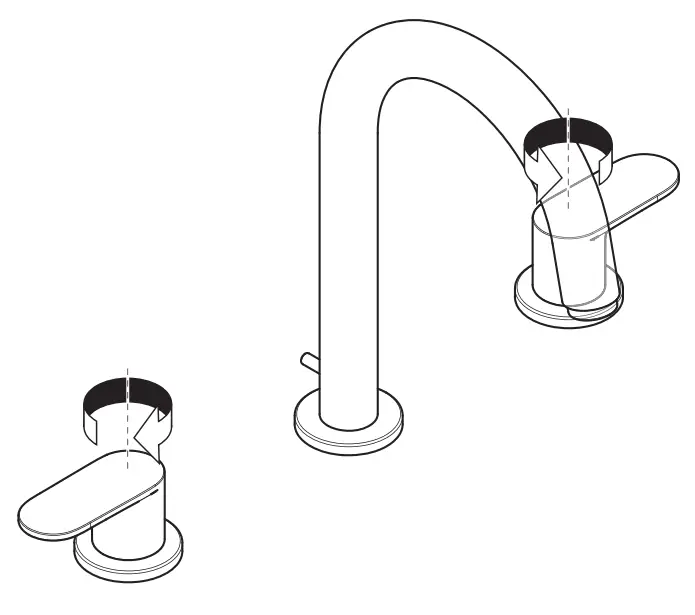

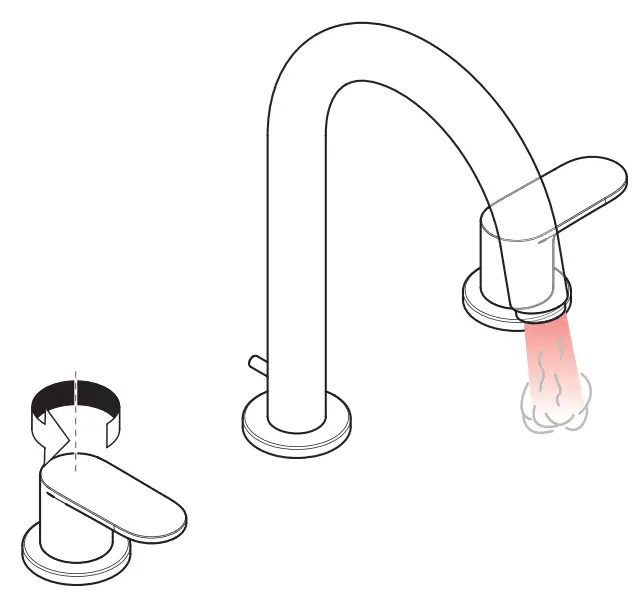

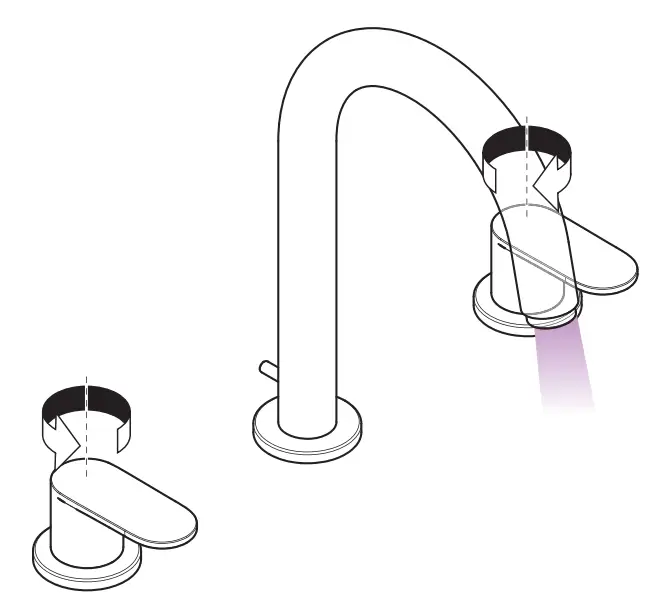

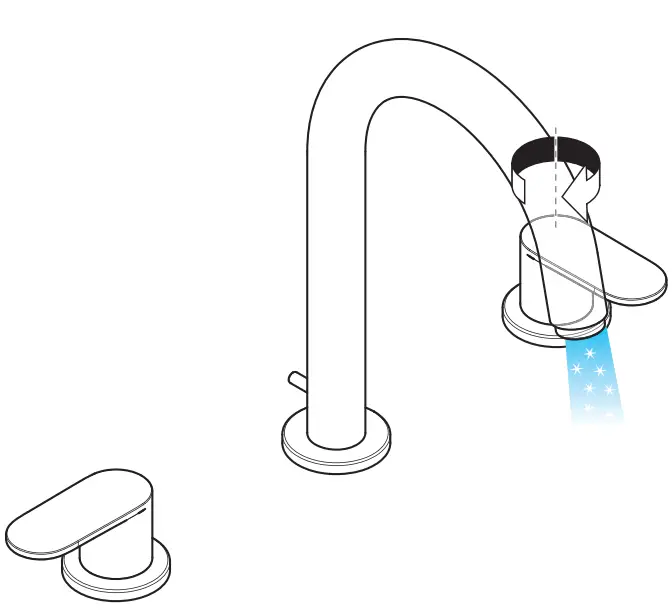

Operation
- open
- close
- cold
- hot
Test certificate
| P-IX | DVGW | SINTEF | NF |  | ETA |  | |
| 71553XXX | PA-IX 29968/IO | DM0444 | X | ||||
| 71568XXX | PA-IX 38008/IO | DM0446 | X |
Other Model
Vernis Blend
71553XXX71553XXX
Vernis Shape
71563XXX
Customer Service
Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
