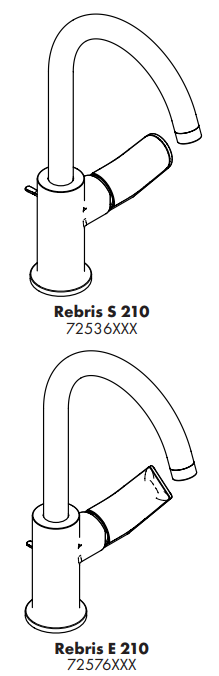

Instructions for use
Assembly instructions
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The product may only be used for bathing, hygienic and body cleaning purposes. The hot and cold supplies must be of equal pressures.

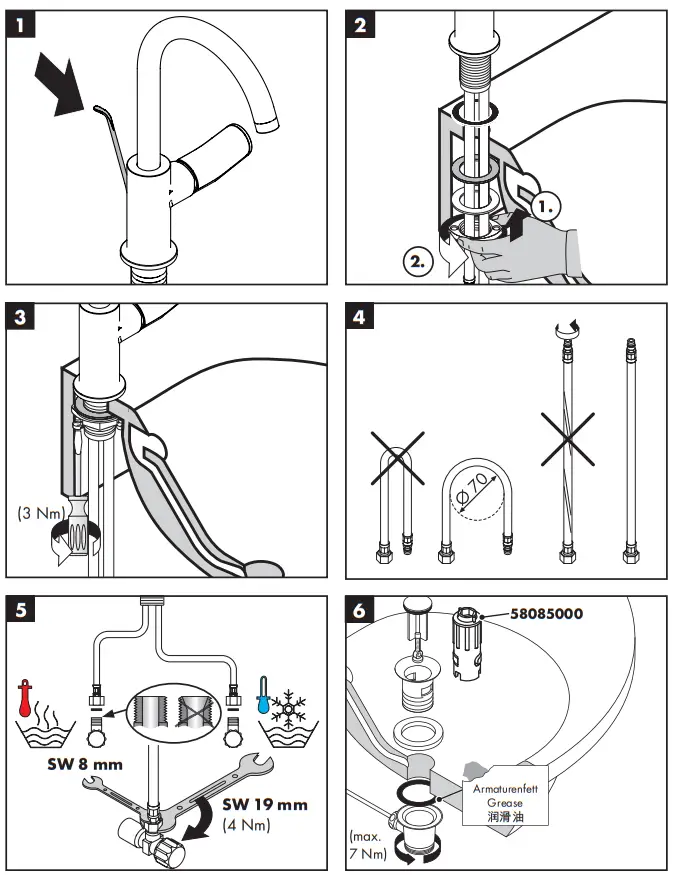

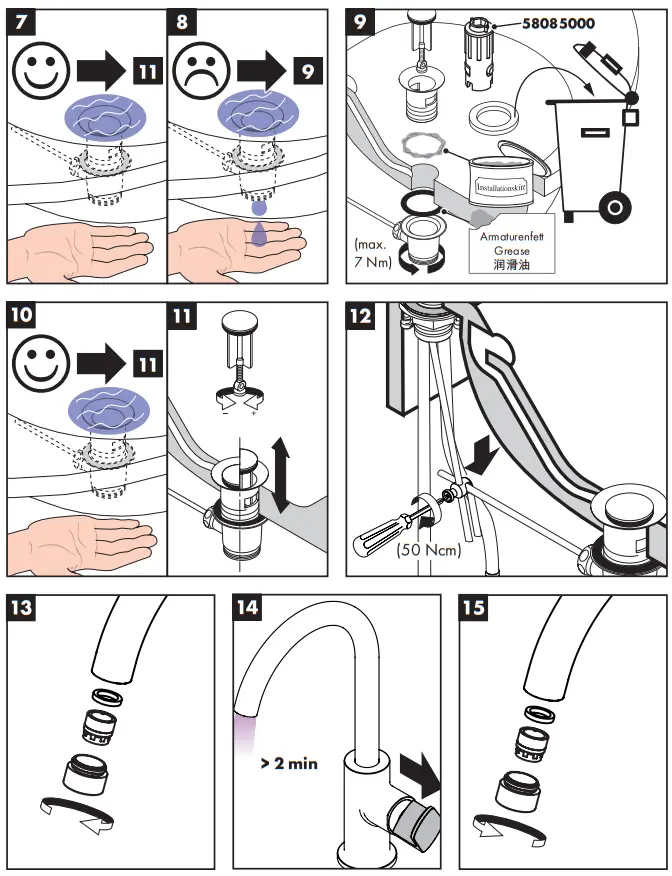

Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- The drain valve must only be used as intended. It is not allowed to attach other objects to the drain valve, for example a semi-pedestal.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 MPa |
| Hot water temperature: | (1 MPa = 10 bar = 147 PSI) max. 60°C |
| Thermal disinfection | 70°C / 4 min |
Symbol description
Do not use silicone containing acetic acid!

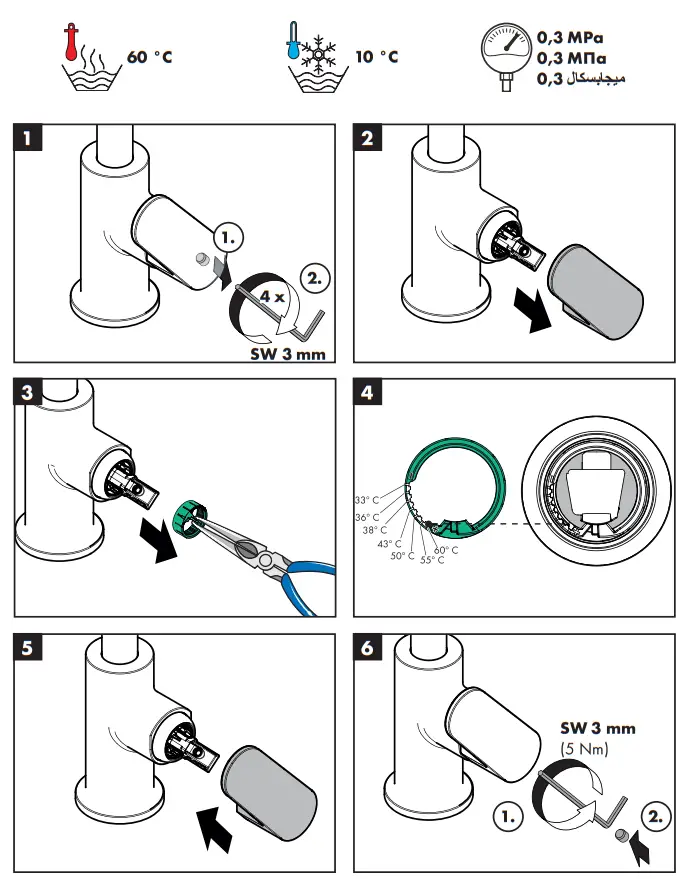

Adjustment (see page 36)
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

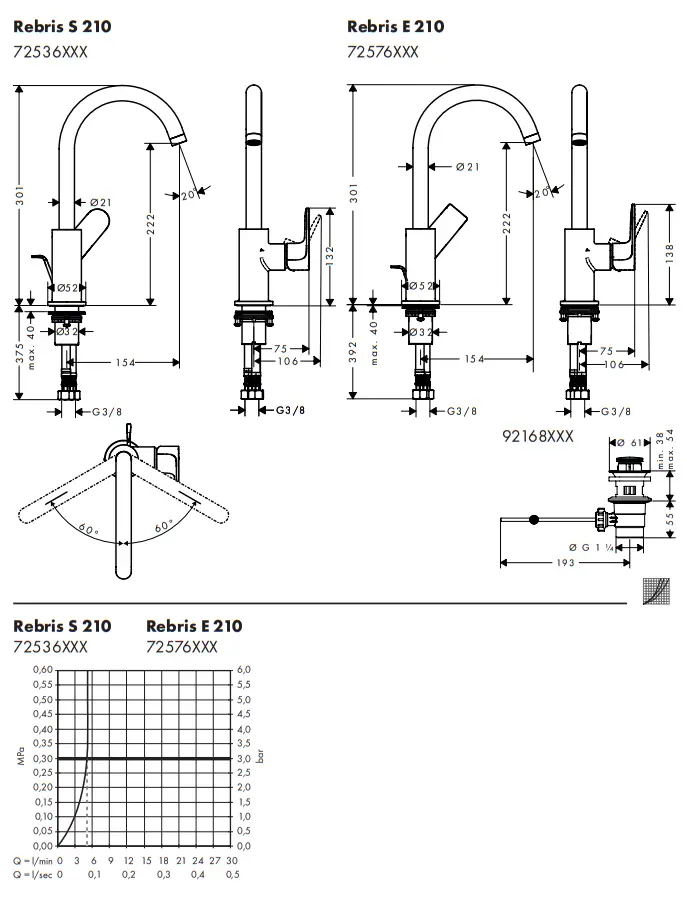

Dimensions (see page 37)
Flow diagram (see page

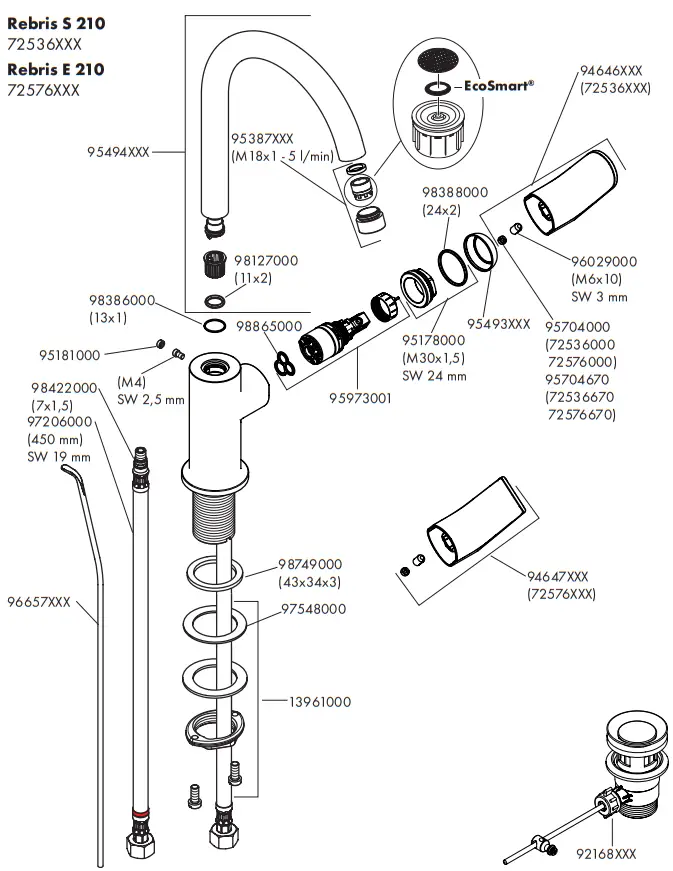

Spare parts (see page 39)
XXX = Colors
000 = Chrome Plated
670 = Matt Black
Special accessories (order as an extra)
special tool #58085000 (see page 34)
Installation putty (see page 35)
Cleaning (see page 38)

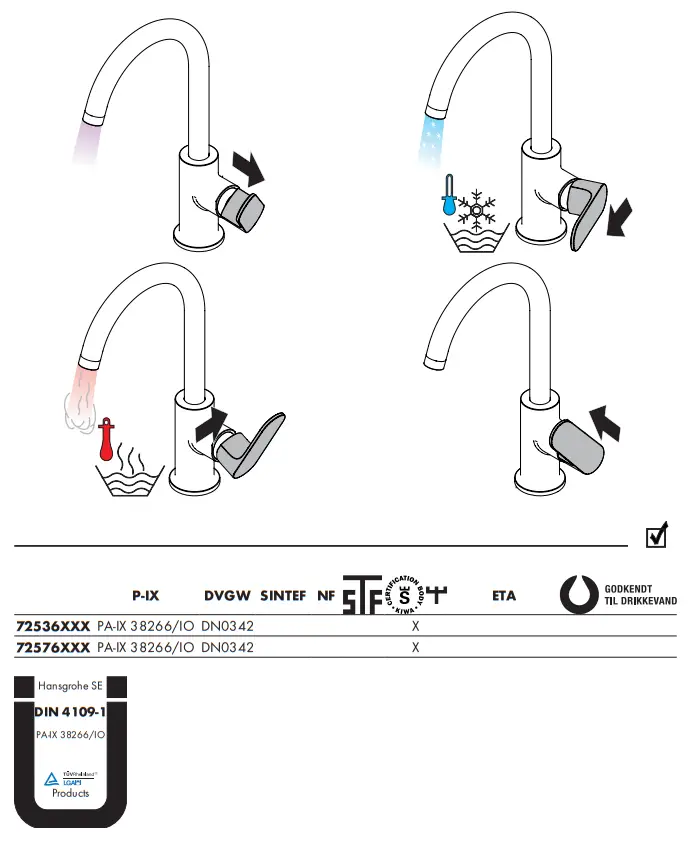

Operation (see page 40)
• Hansgrohe recommends not to use as drinking water
the first half liter of water drawn in the morning or
after a prolonged period of non-use.
Test certificate (see page 40)
www.hansgrohe.com/cleaning-recommendation
Cleaning recommendation / Warranty / Contact
Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 ·
Telefax +49 (0) 7836/511440
E-Mail: [email protected] ·
Internet: www.hansgrohe.com
