Hansgrohe Citterio M 34112000 Washbasin Mixers Instruction Manual

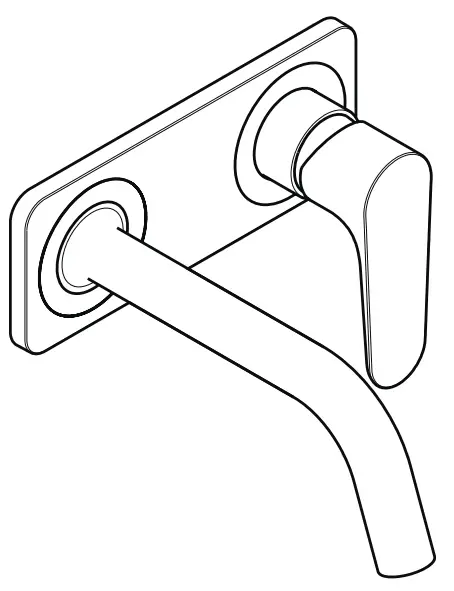

hansgrohe Citterio M 34112000 Washbasin Mixers

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
• Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Technical Data

This mixer series-produced with EcoSmart®
(flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

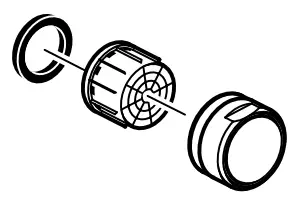

Symbol description

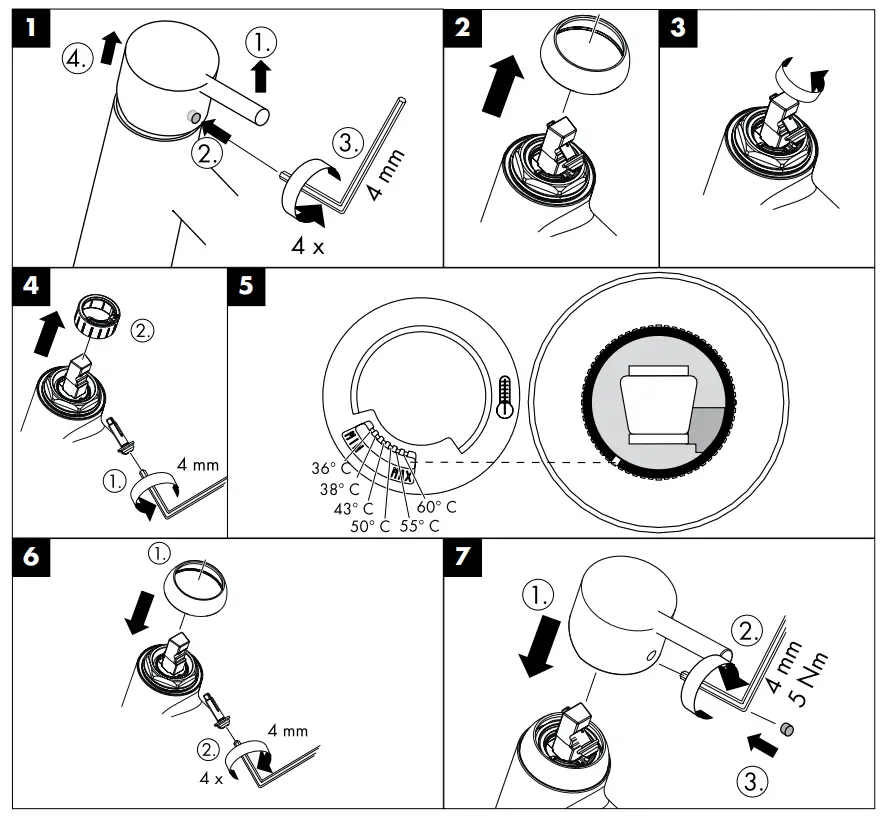

• To adjust the hot water limiter on single lever mixers, please see page 32. No adjustment is necessary when using a continuous flow water heater.

• Do not use silicone containing acetic acid!

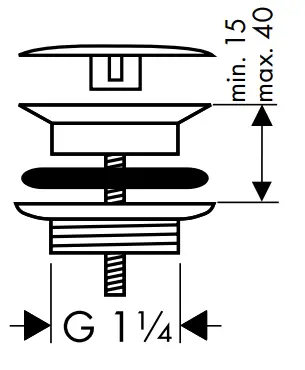

• Dimensions

• Flow diagram

• Spare parts

• Special accessories

• Operation

• Cleaning

• Test certificate

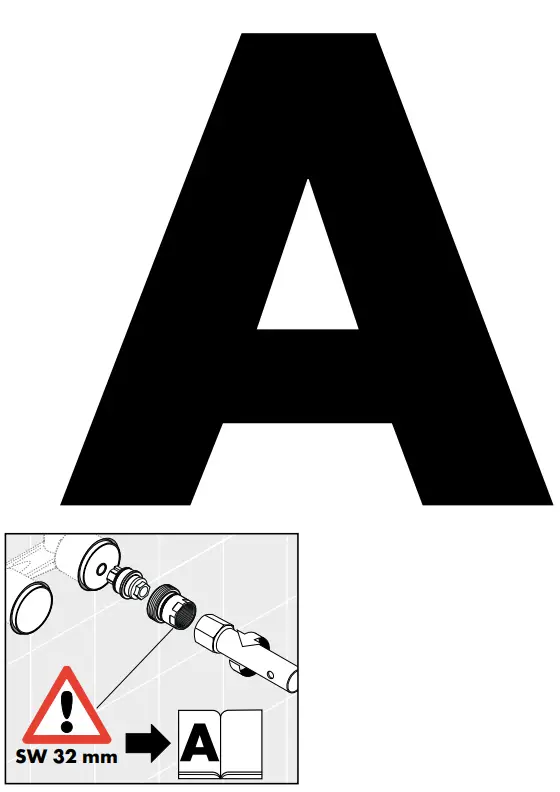

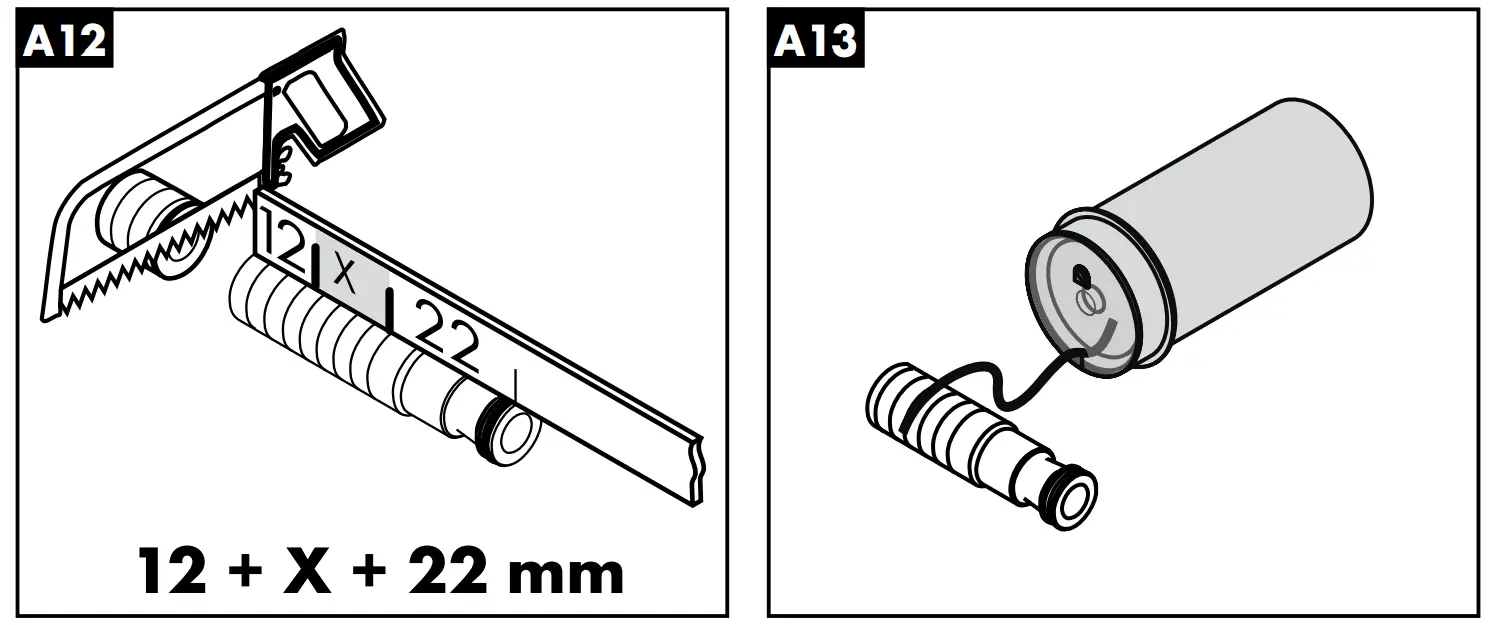

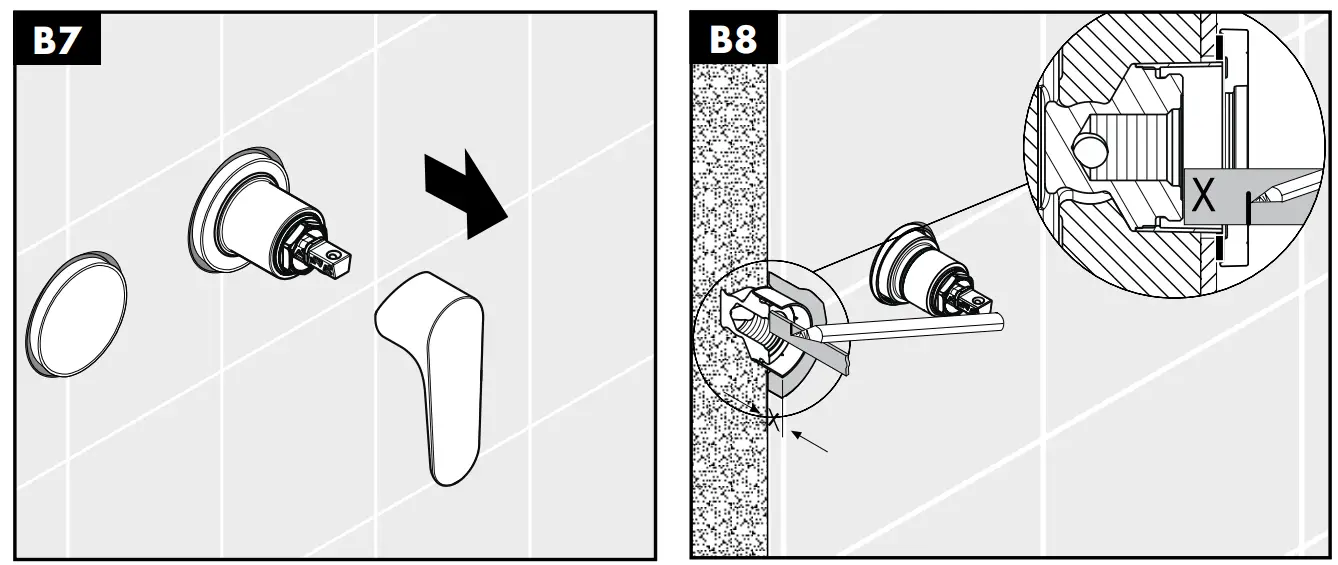

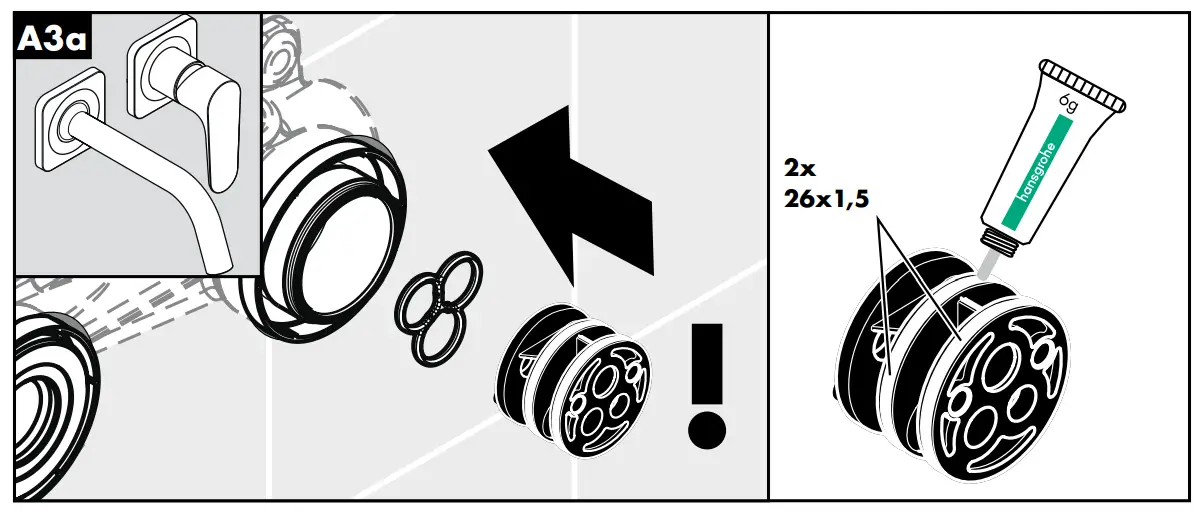

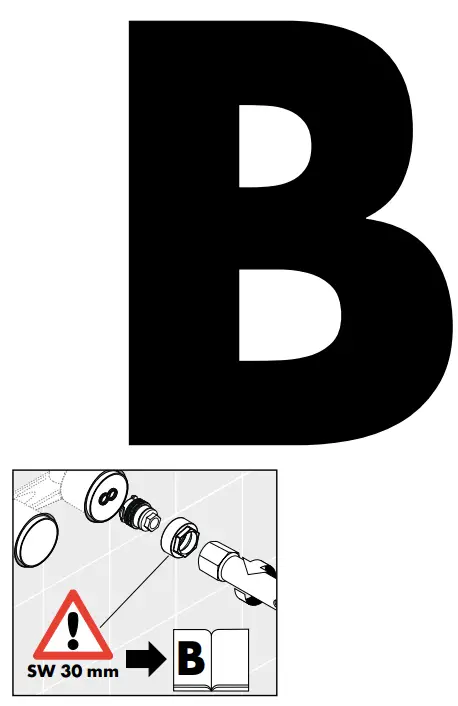

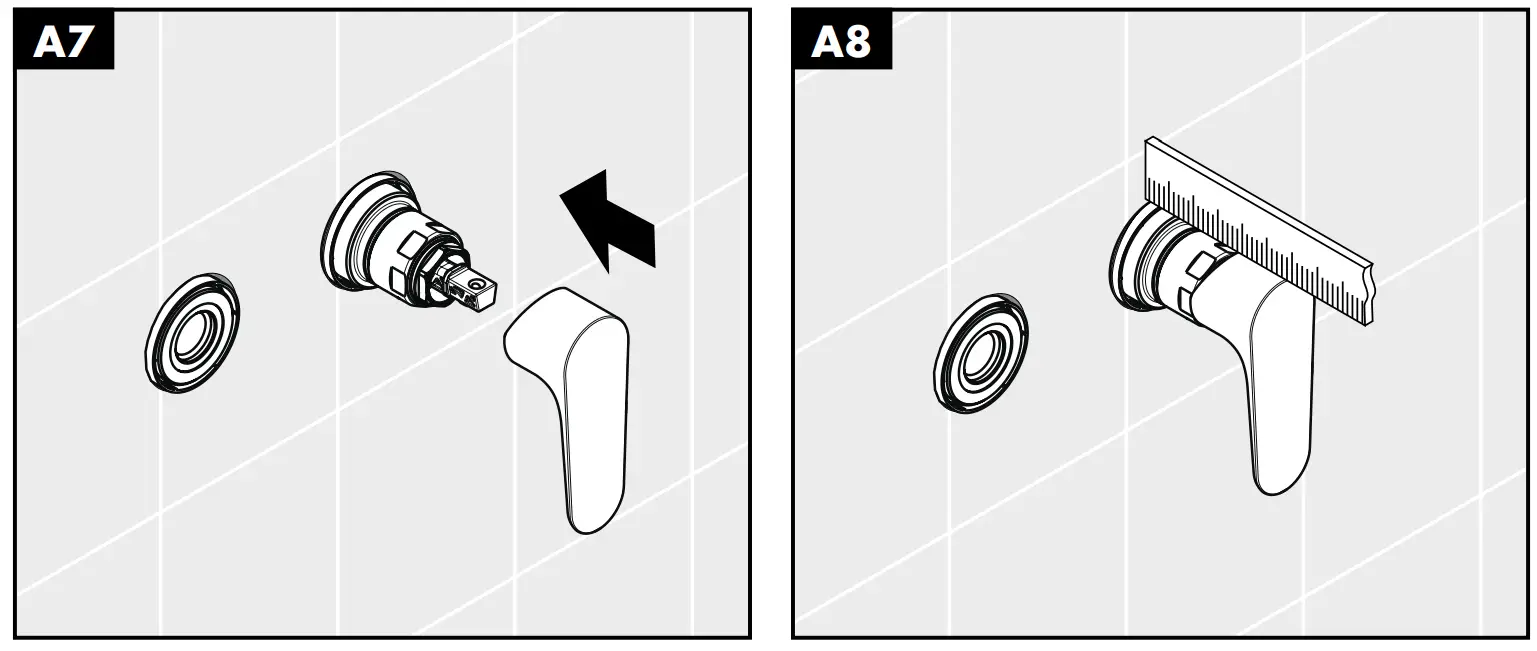

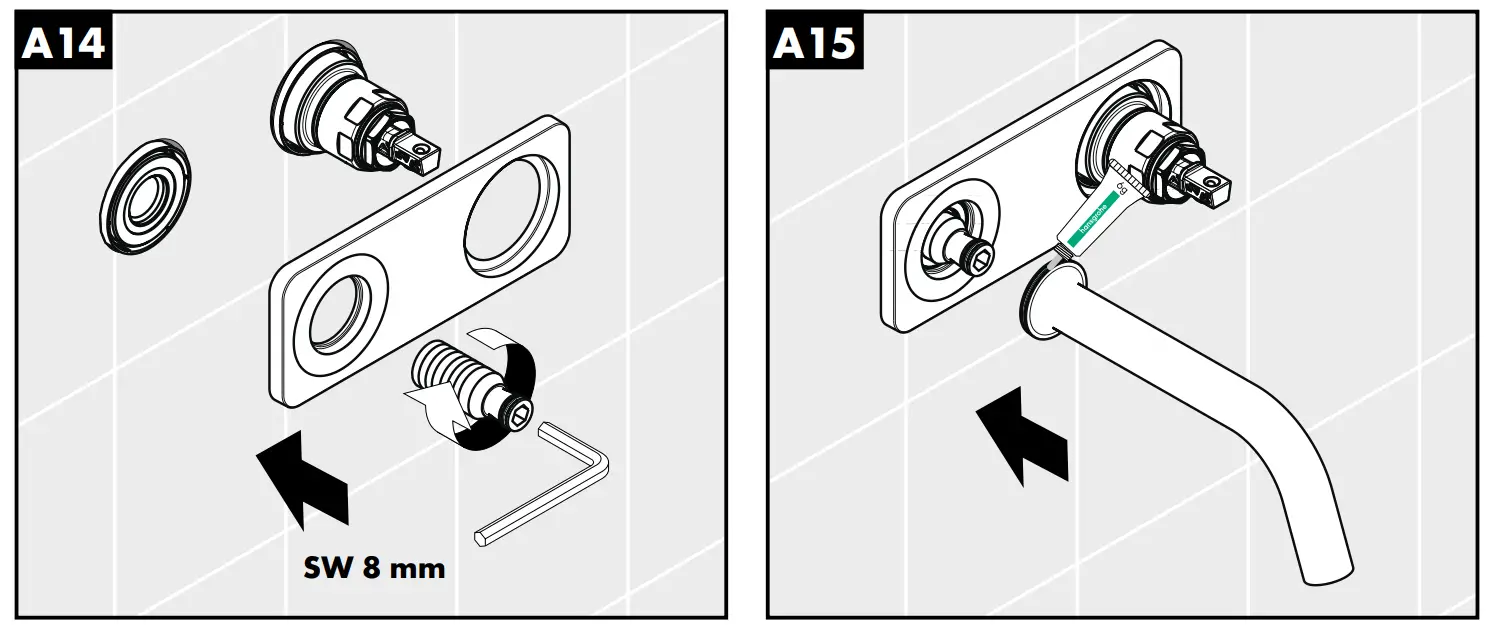

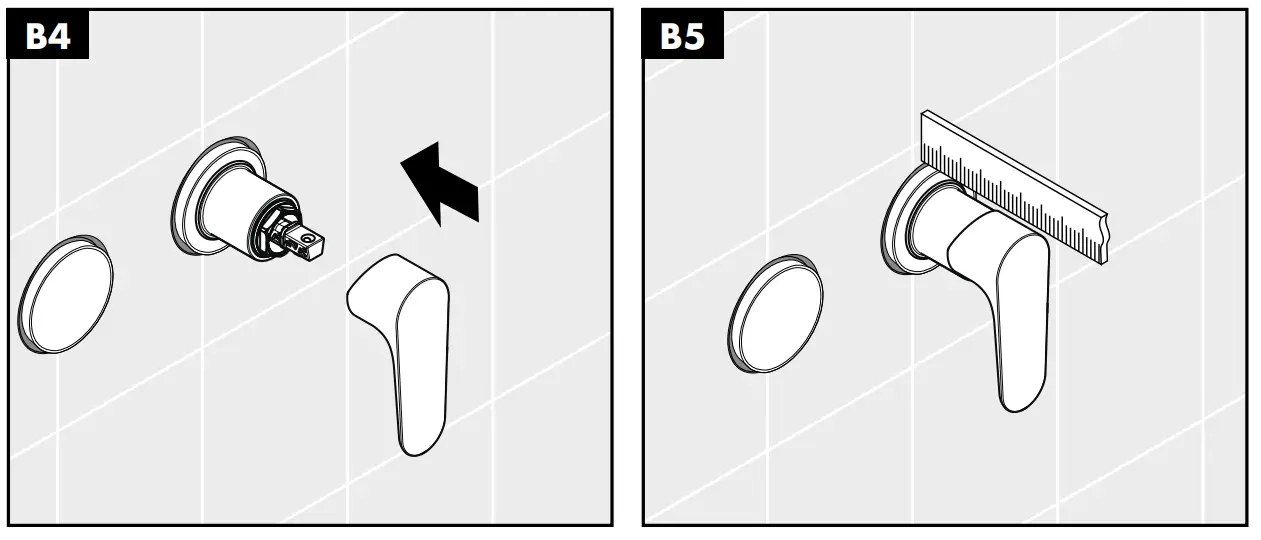

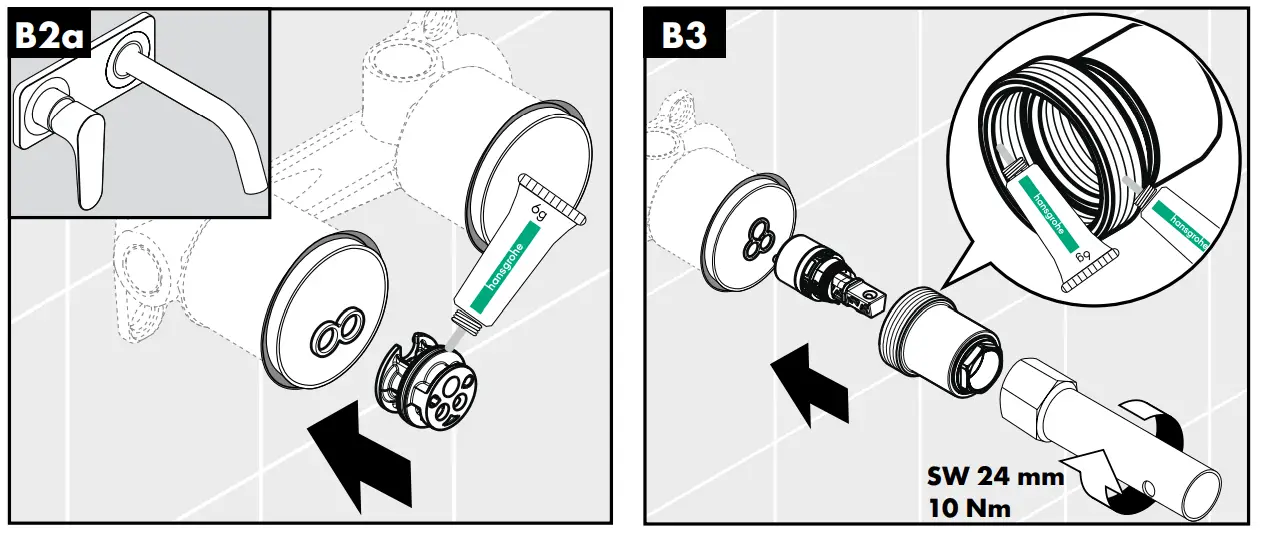

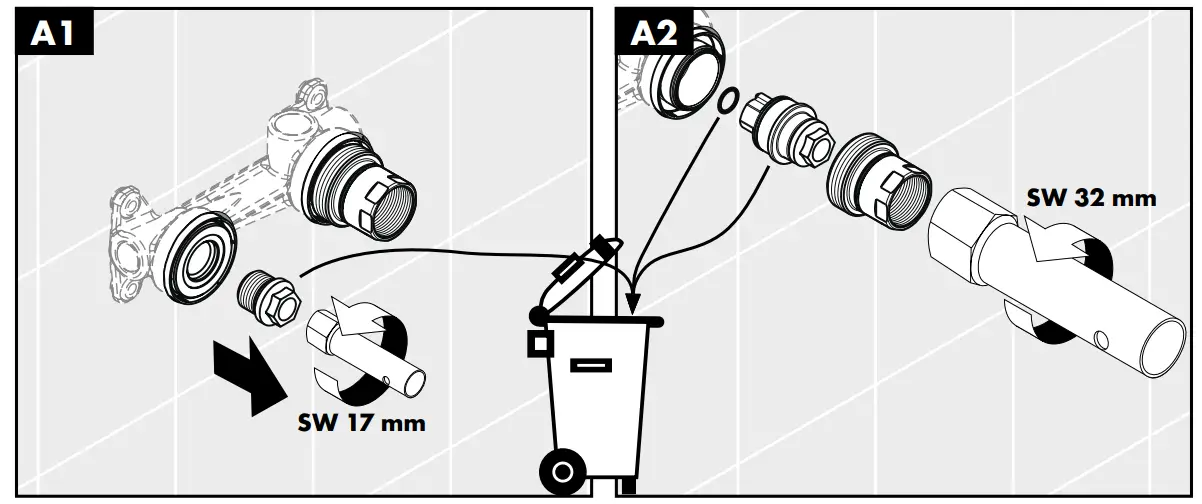

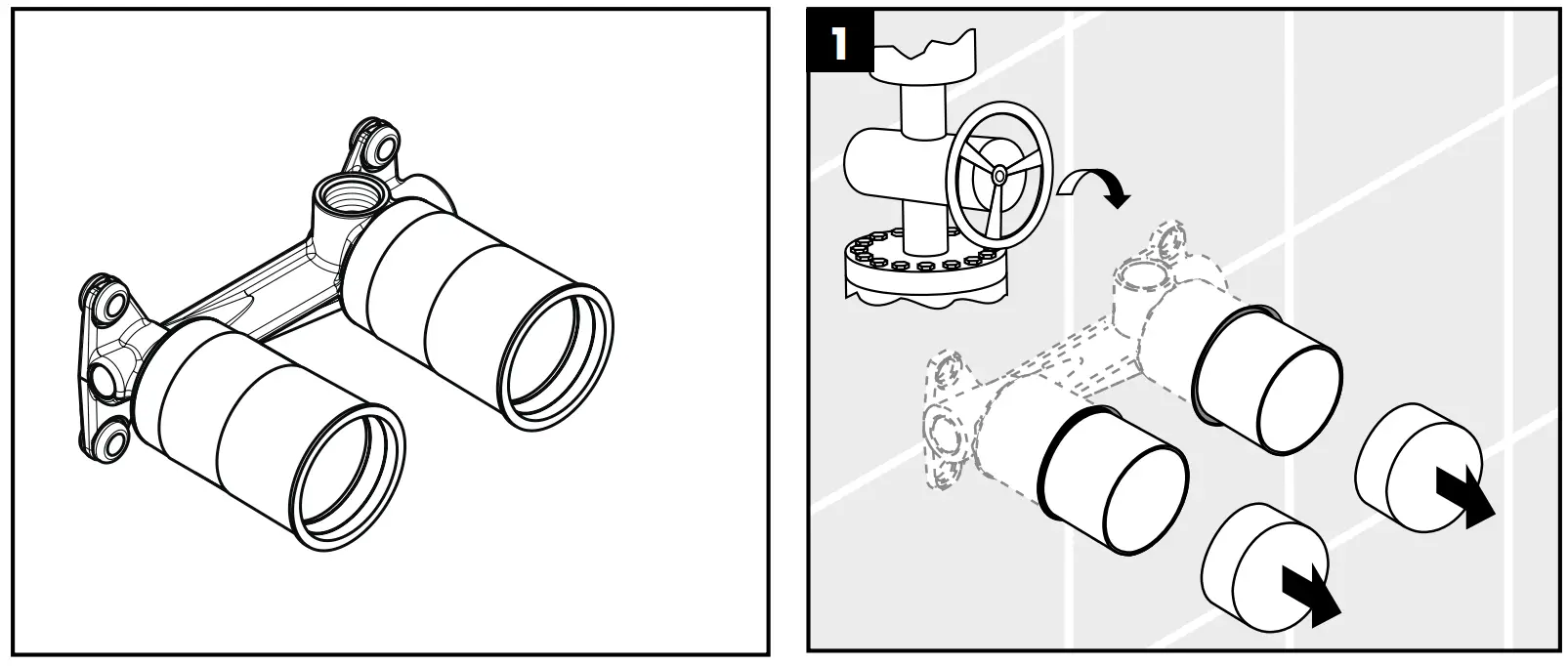

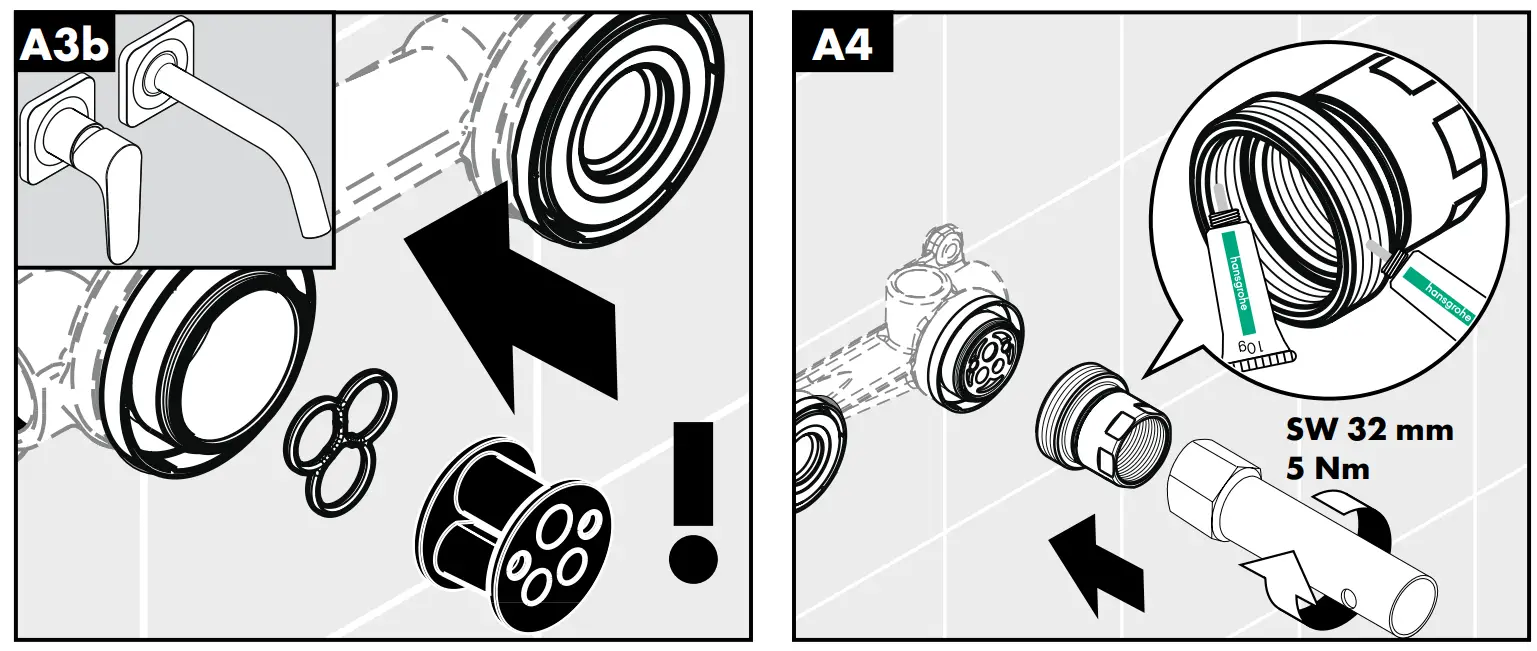

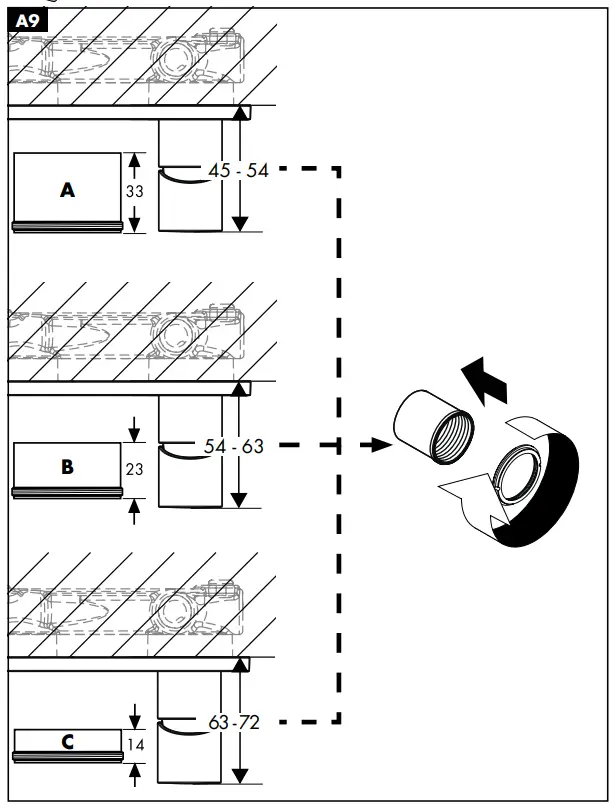

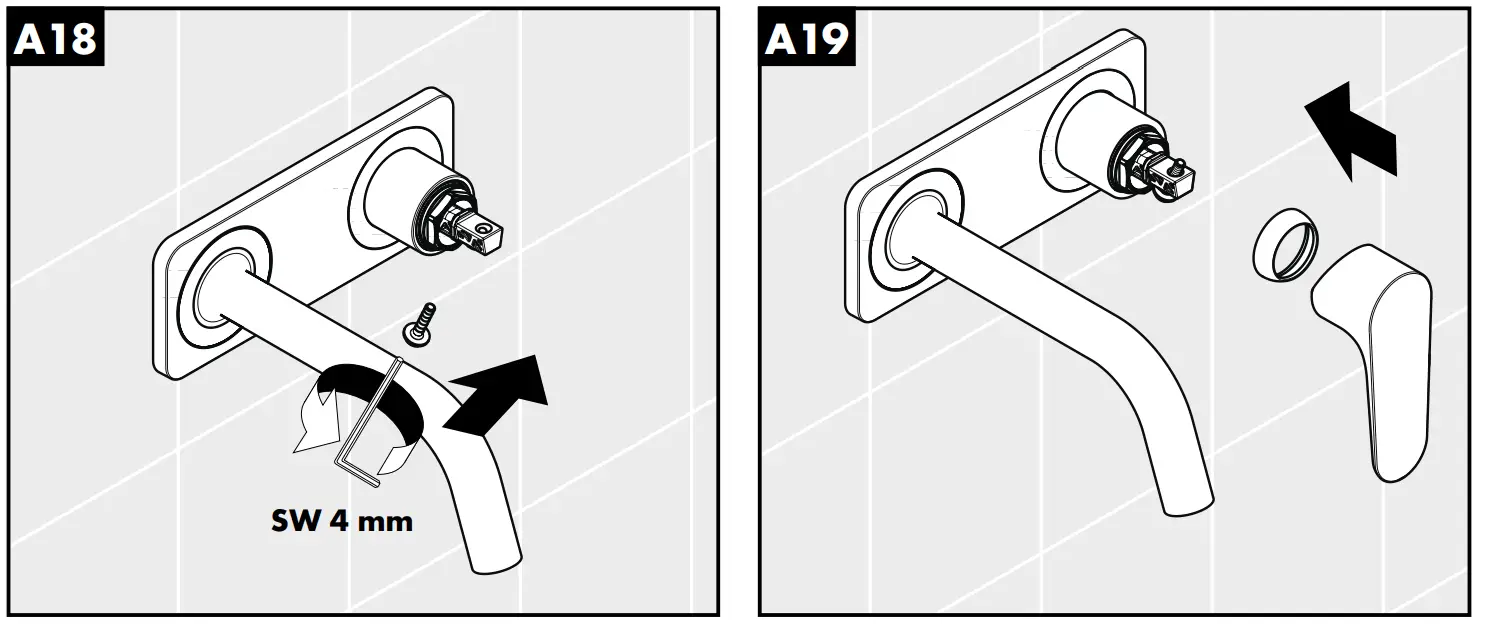

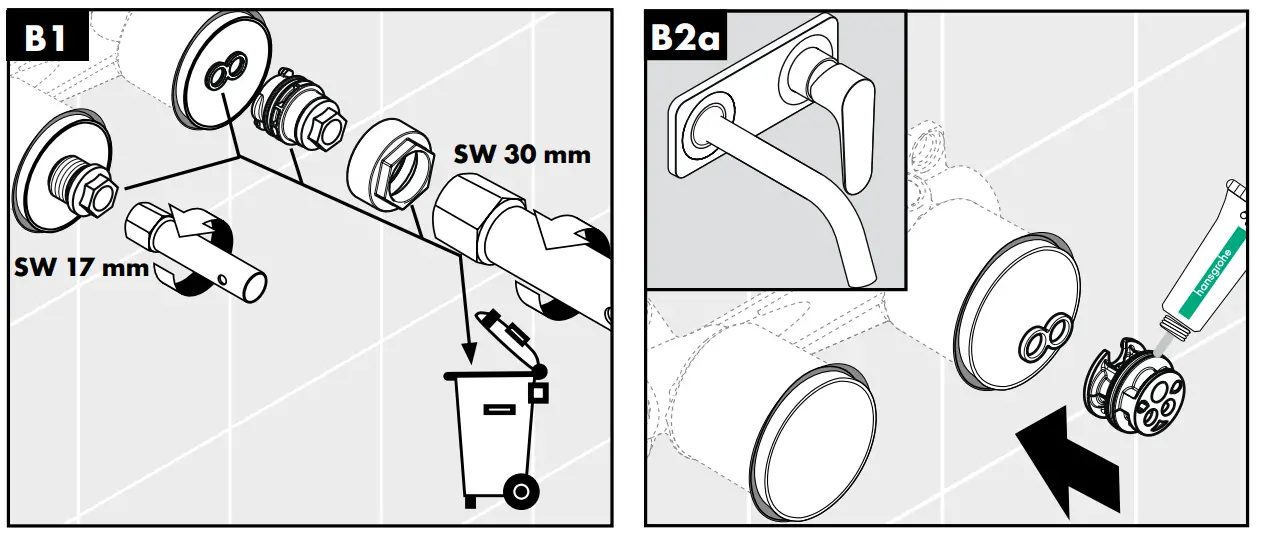

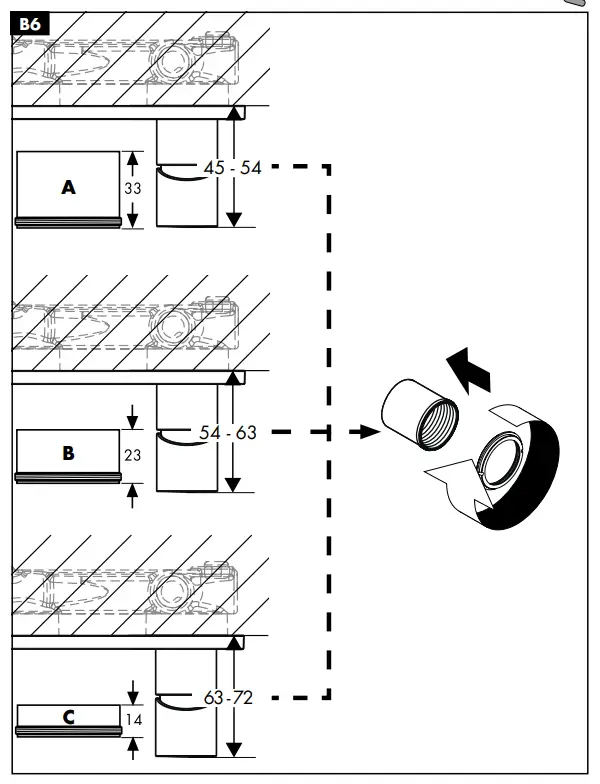

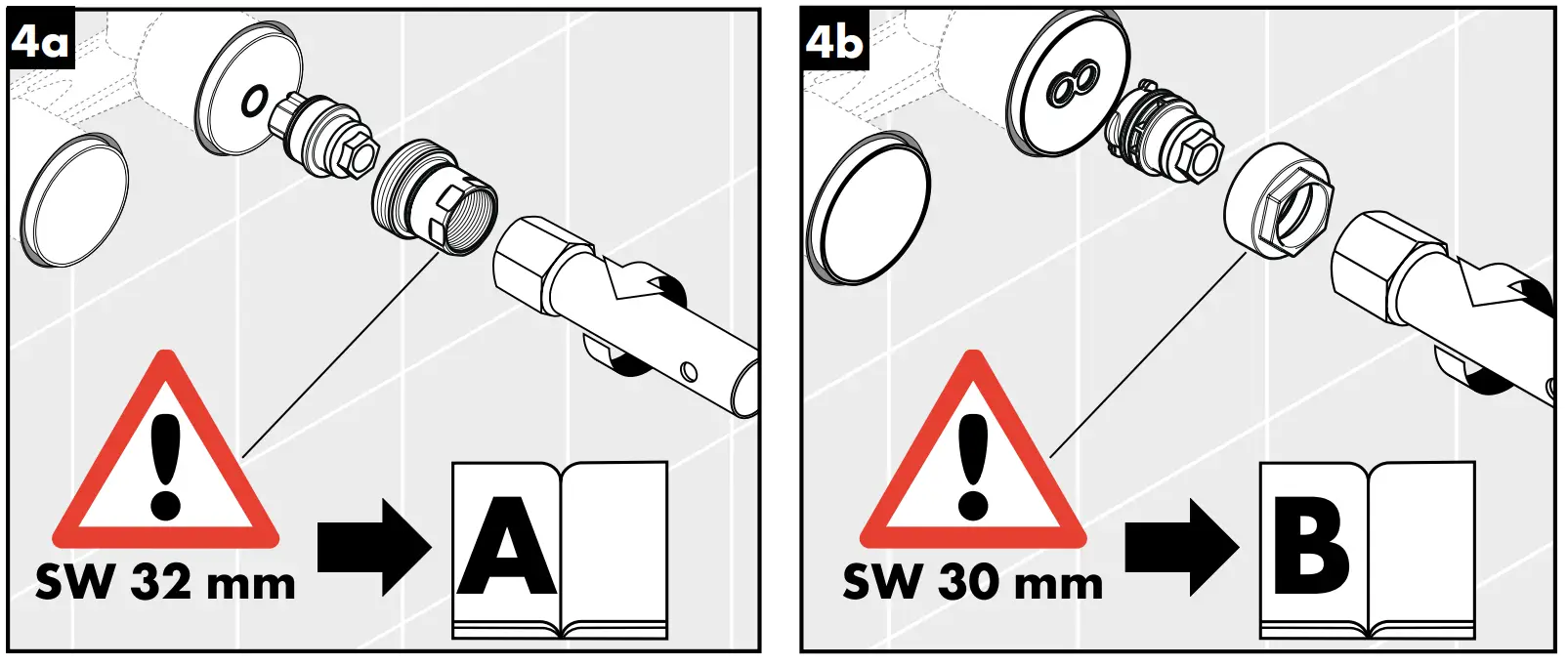

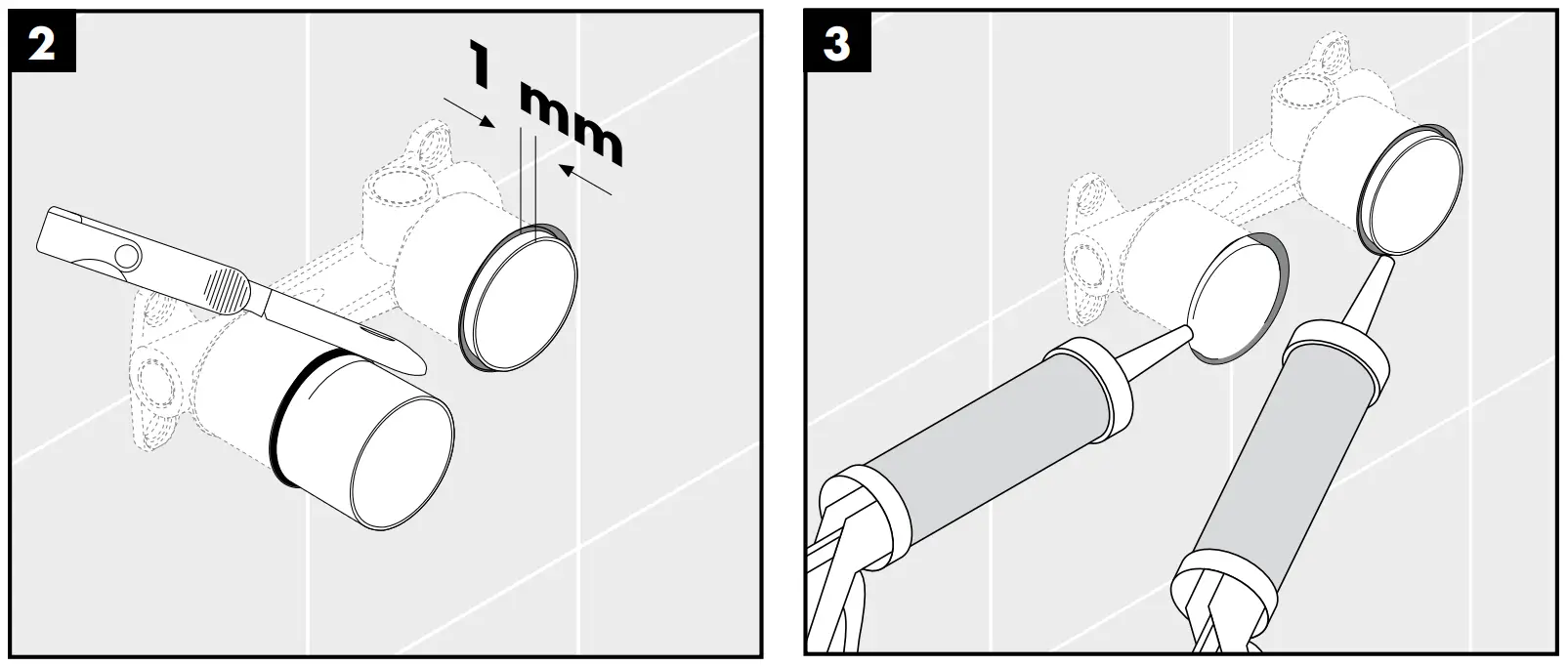

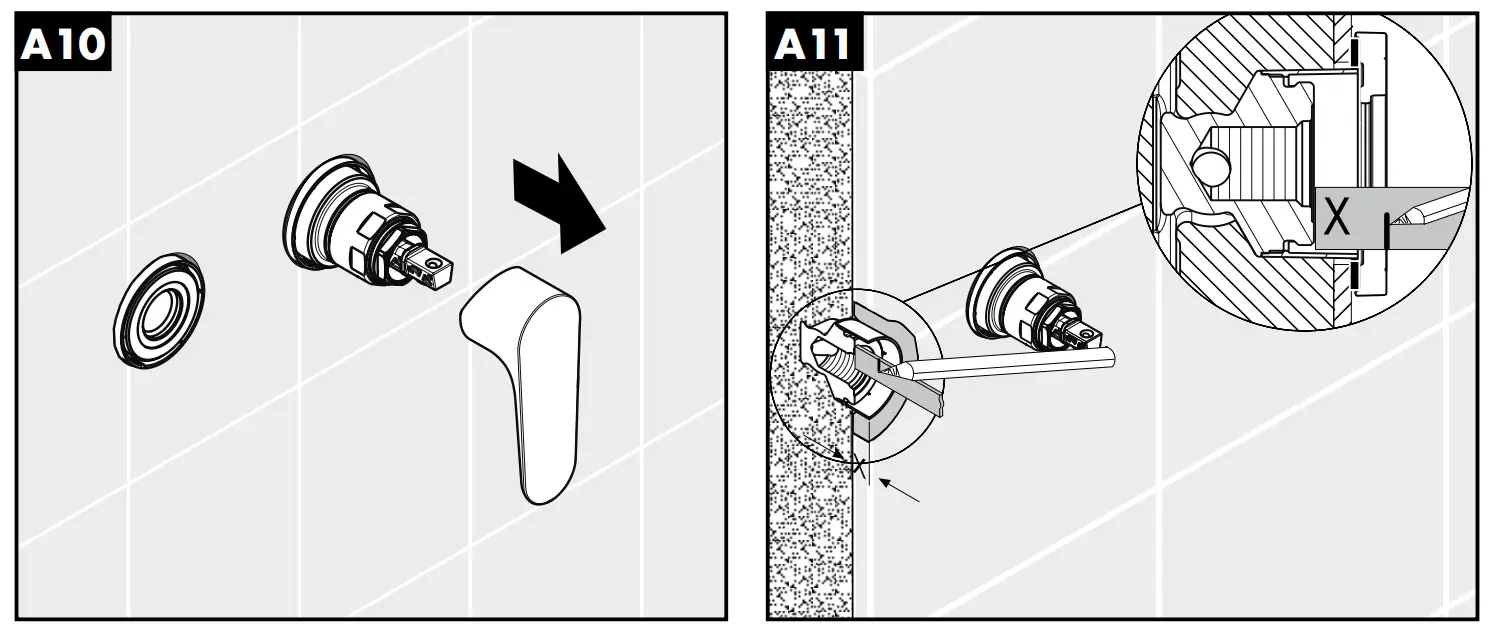

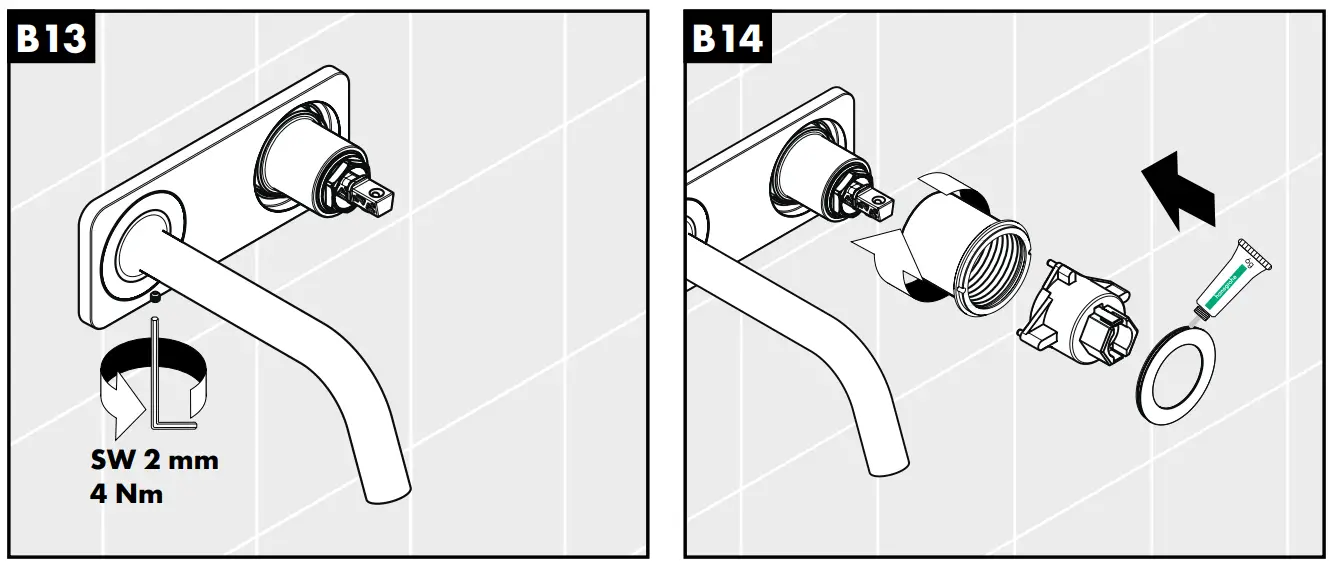

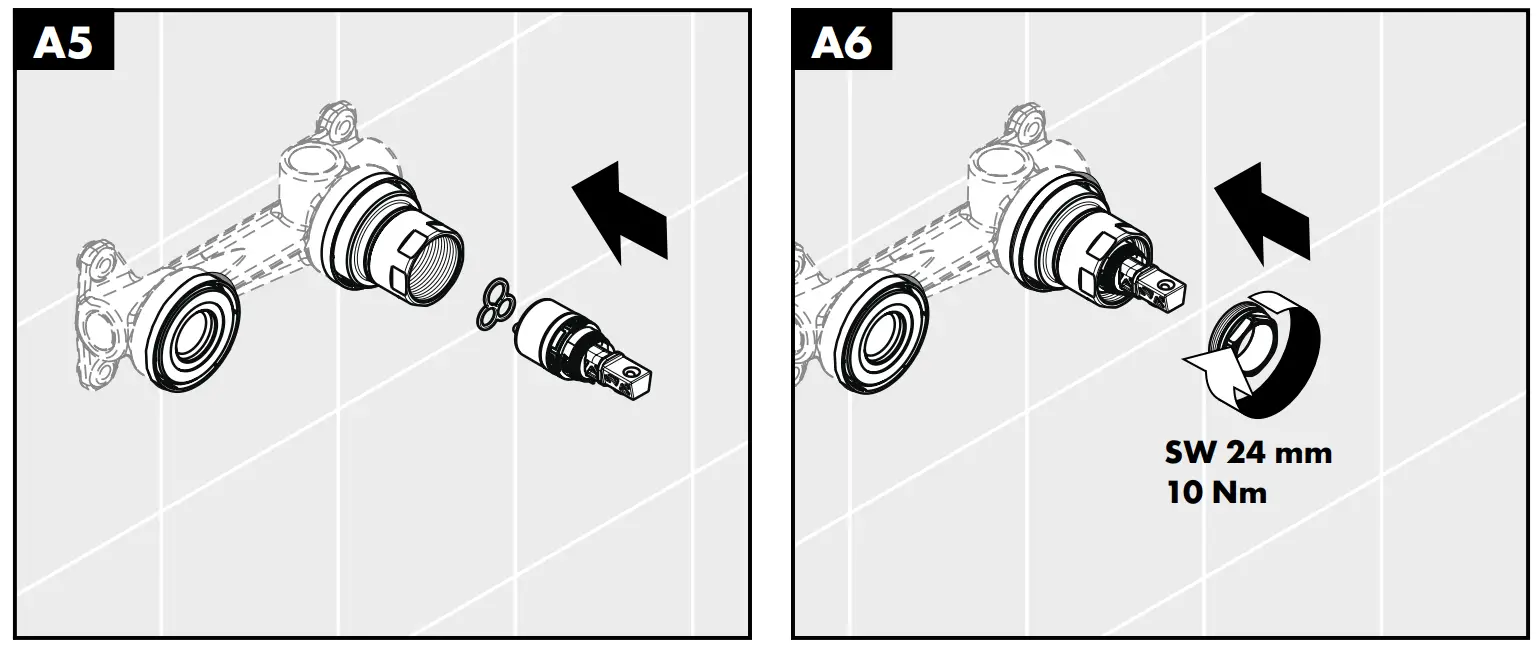

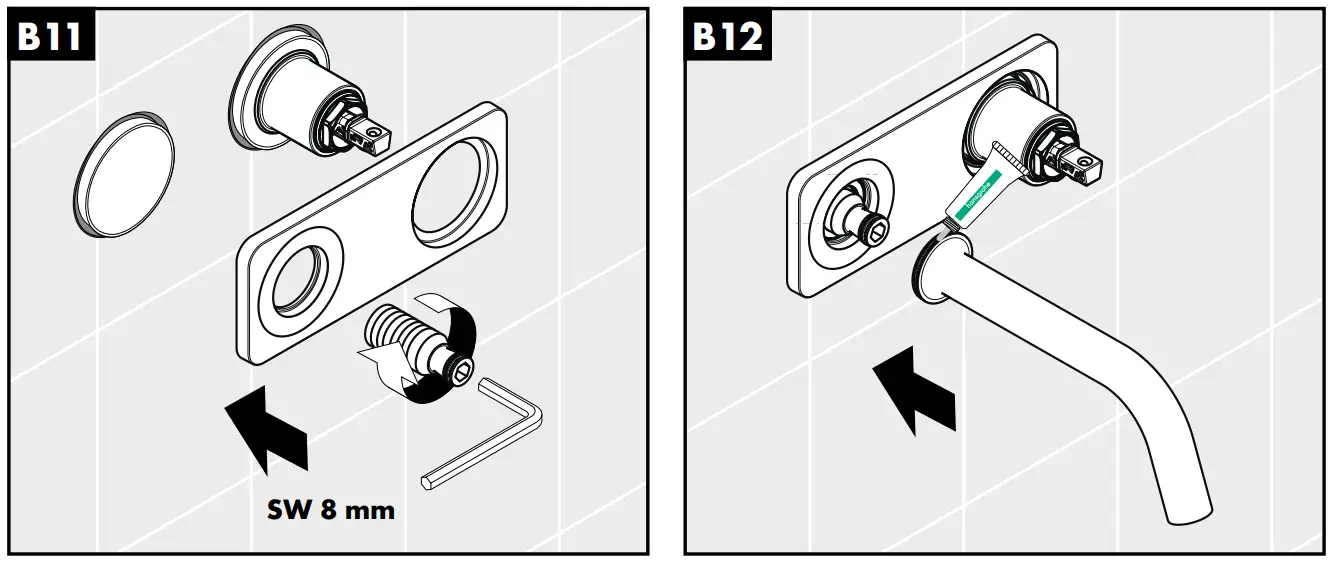

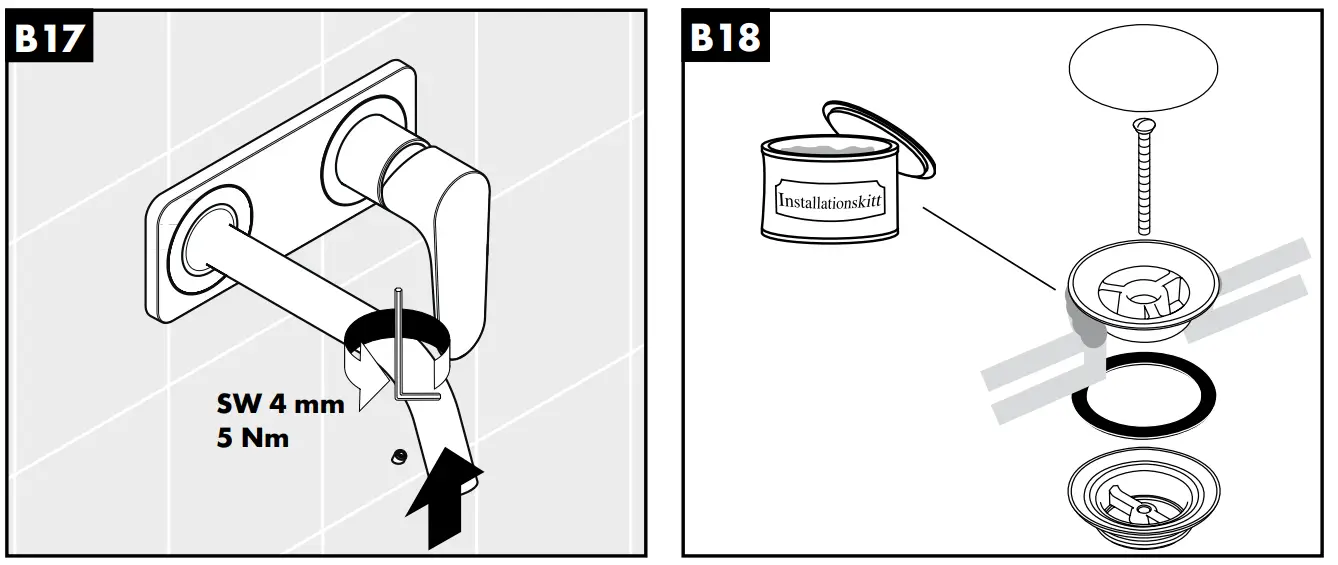

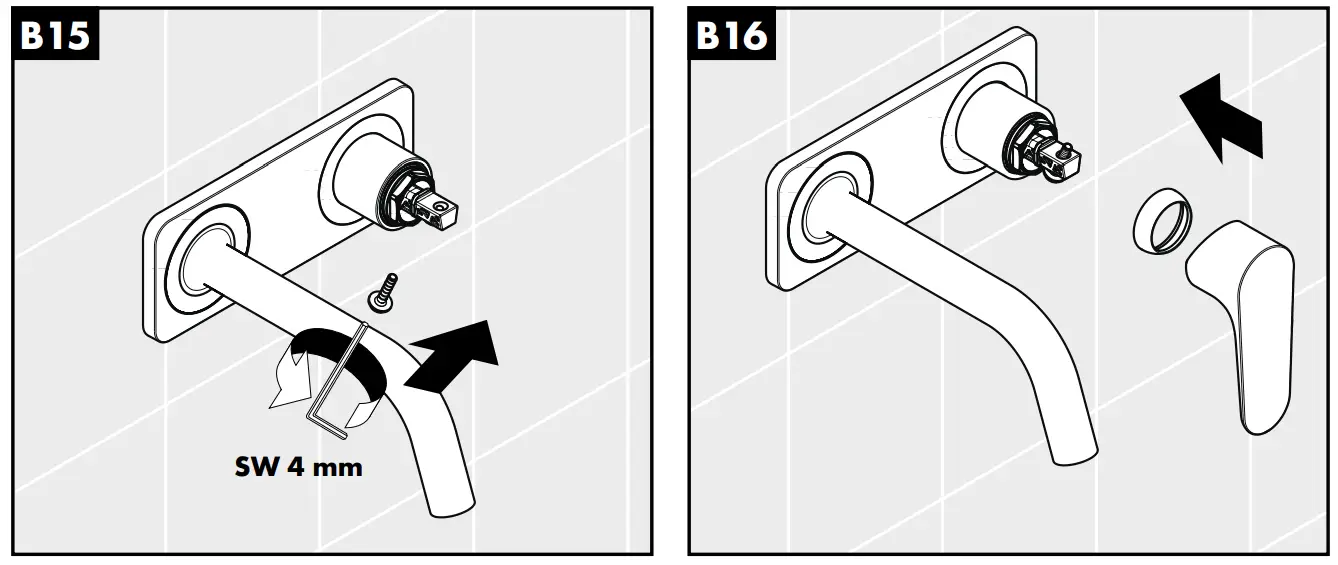

Assembly

Operating Instruction

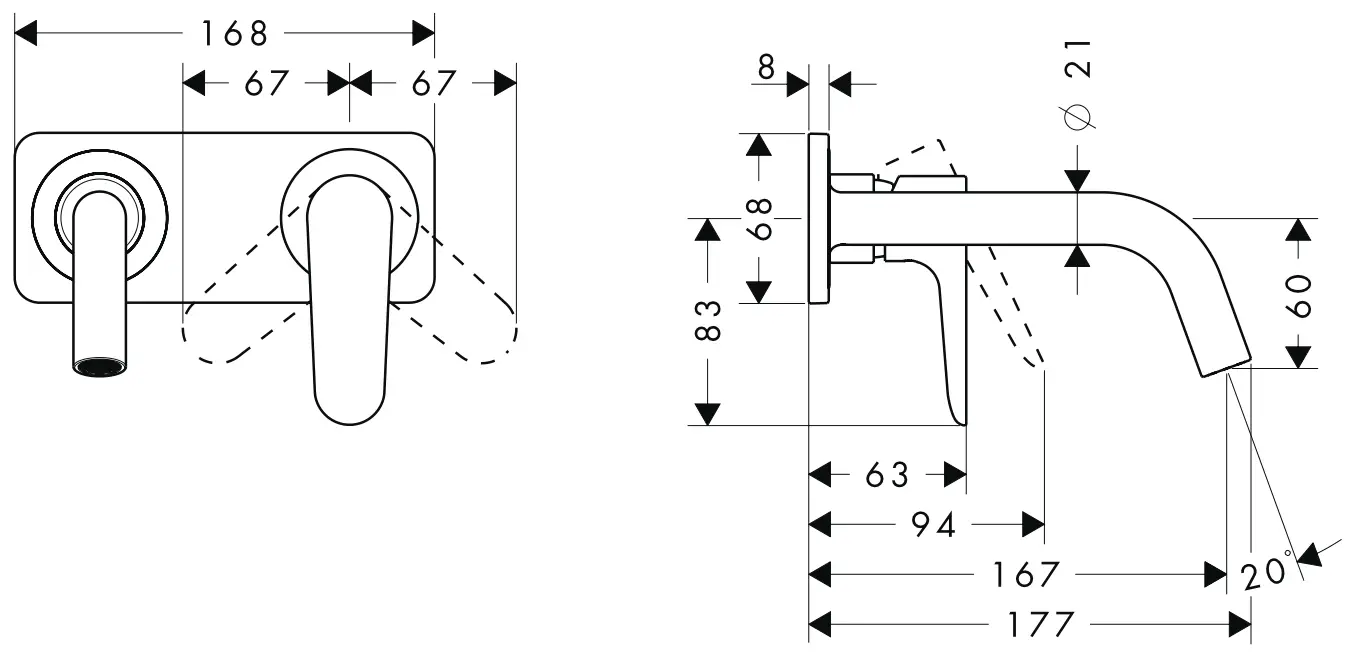

Dimensions

Citterio M 34112000

Citterio M 34115000

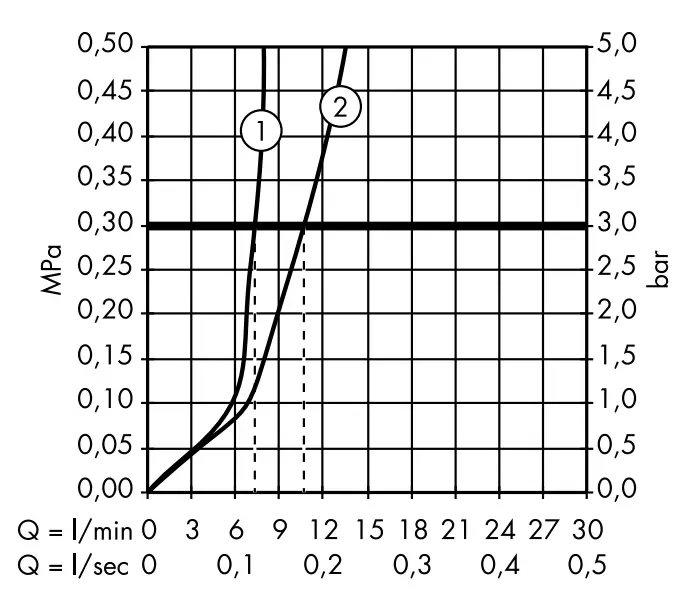

Flow diagram

① with EcoSmart®
② without EcoSmart®

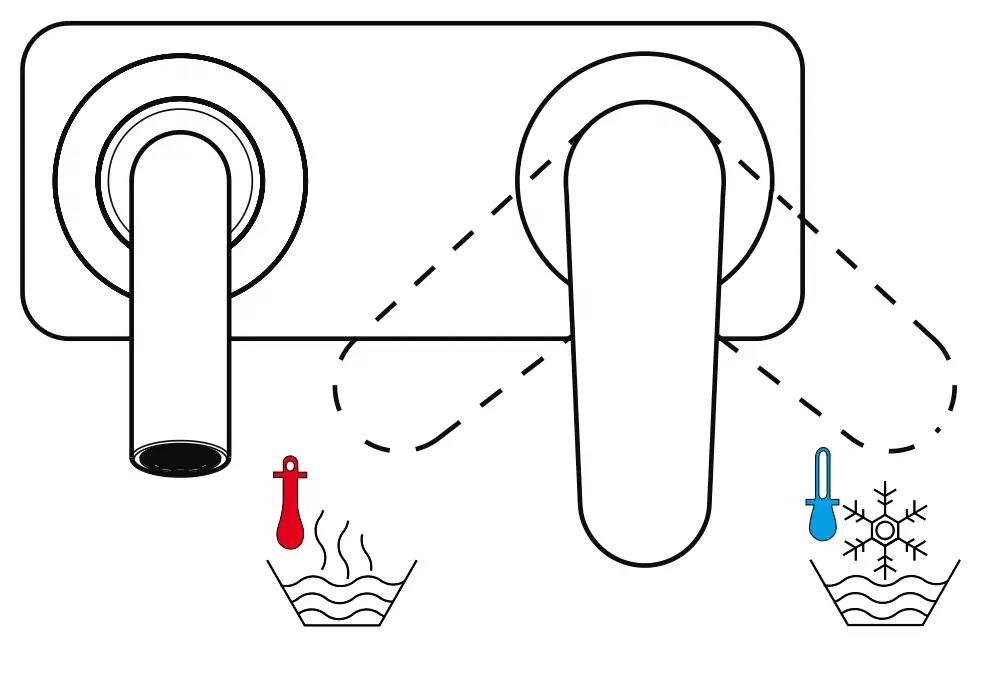

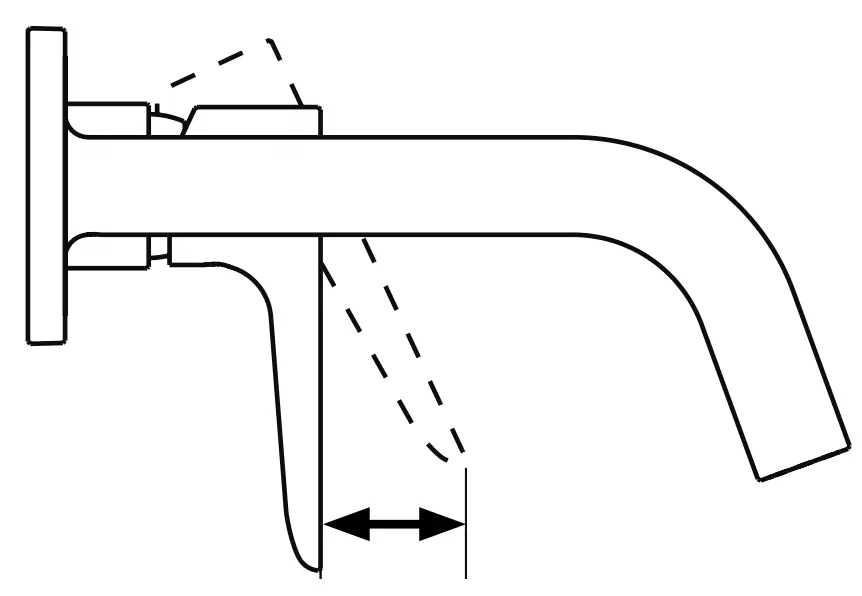

Operation

• close

• open


Test certificate

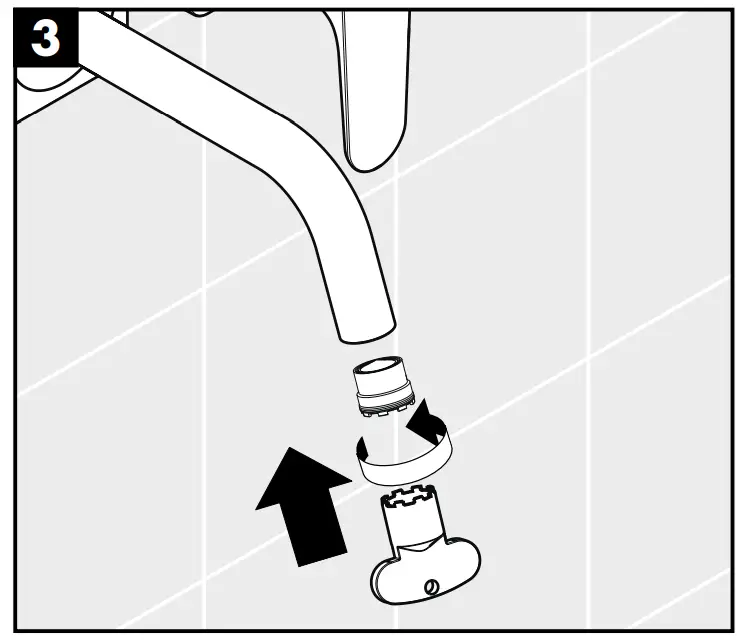

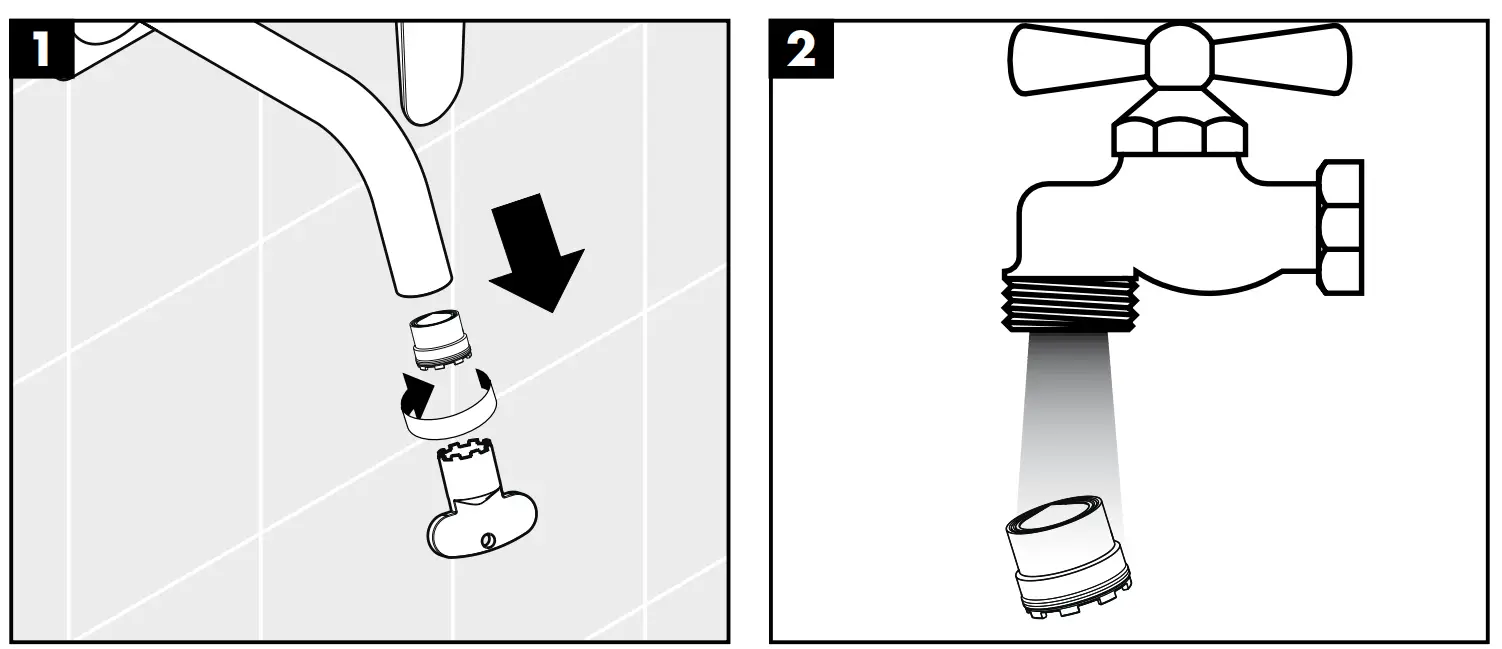

Cleaning

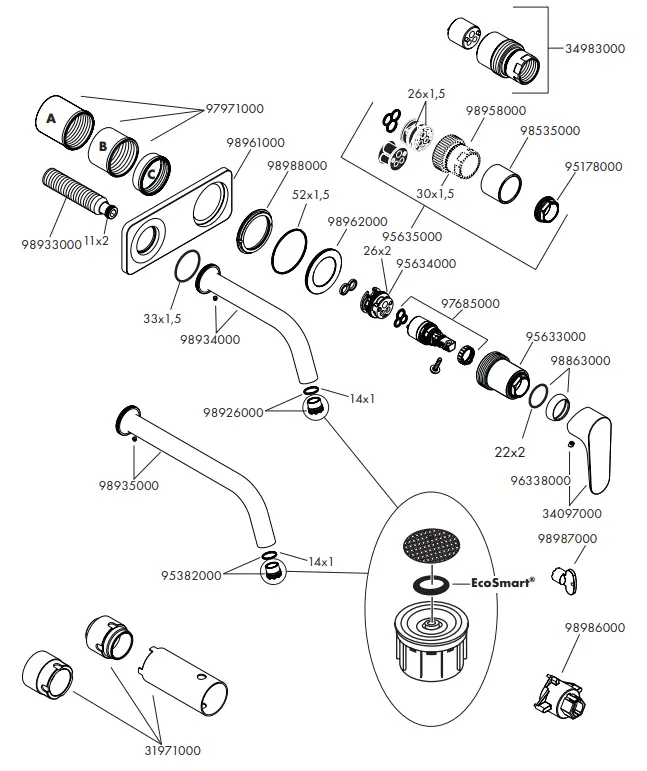

Spare parts
