hansgrohe 72406000 Bath Mixers
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The product may only be used for bathing, hygienic and body cleaning purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C / 4 min
- Safety against backflow
- The product is exclusively designed for drinking water!

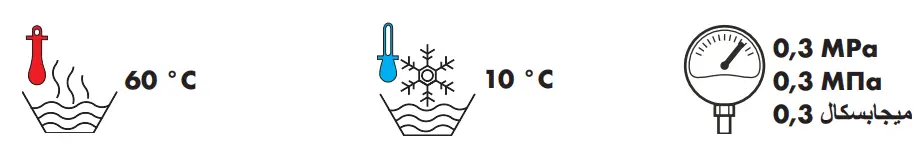

Symbol description
- Do not use silicone containing acetic acid!
- Adjustment
- Maintenance
- Dimensions
- Flow diagram
- Spare parts
- Special accessories
- Cleaning
- Operation
- Test certificate
Trouble Shooting
| Fault | Cause | Remedy |
| Mixer stiff | Cartridge defective, calcified | Exchange cartridge |
| Mixer dripping | Cartridge defective | Exchange cartridge |
| Diverter not operating | Residue | Clean converter / grease O-rings |
| Water pressure to low | Increase water pressure | |
| Diverter defective | Exchange diverter | |
| Hot water temperature too low, no cold water. Instantaneous water heater starts up when cold water is selected. | Hot water limiter incorrectly set | Set hot water limiter |
| Crossflow | Exchange cartridge |

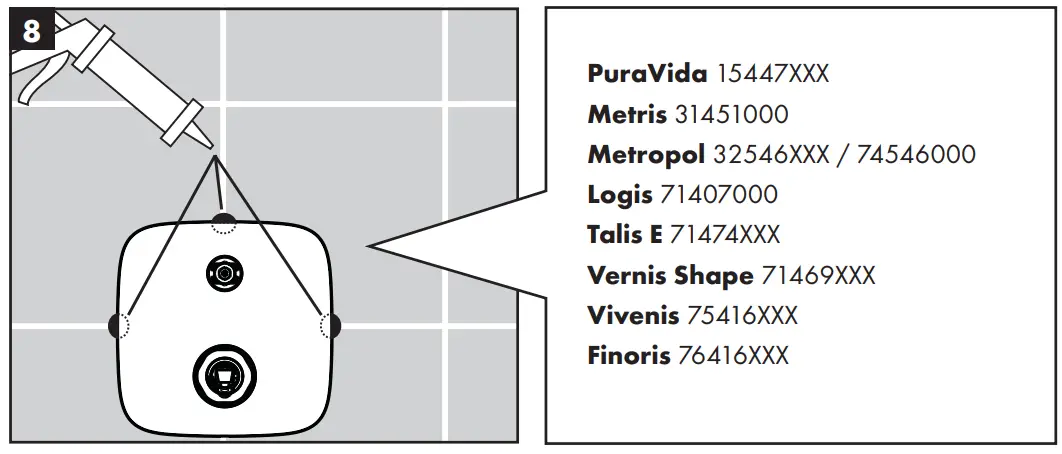

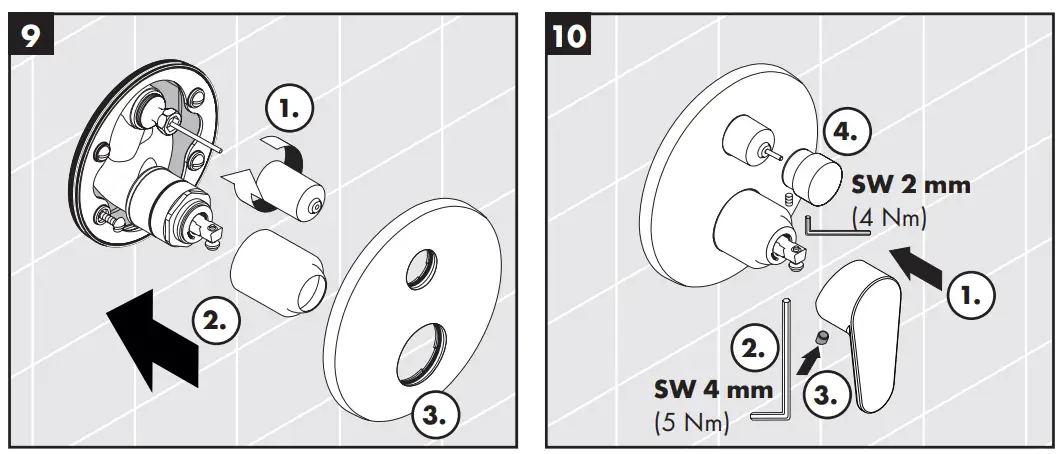

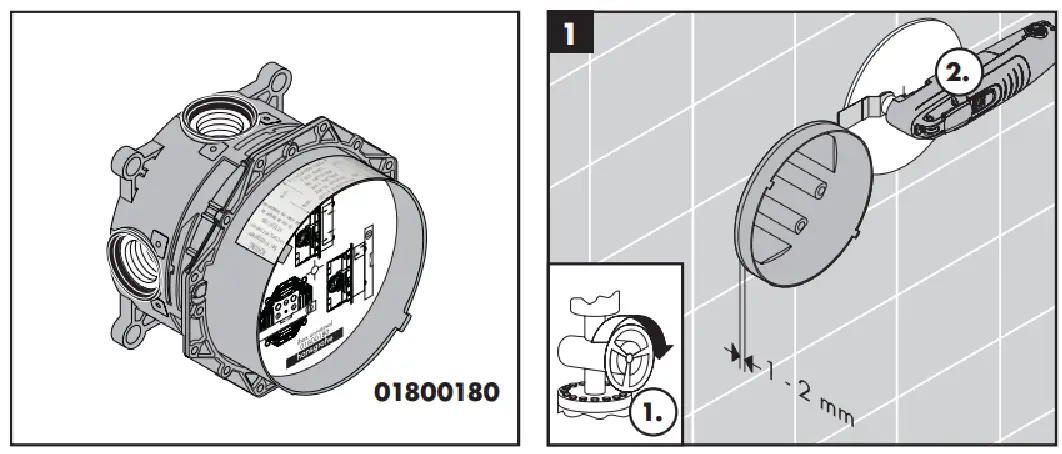

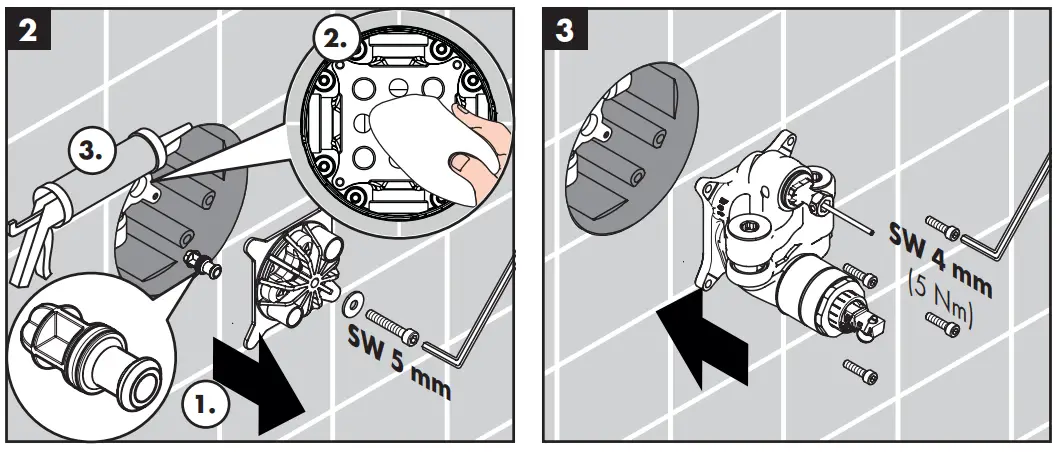

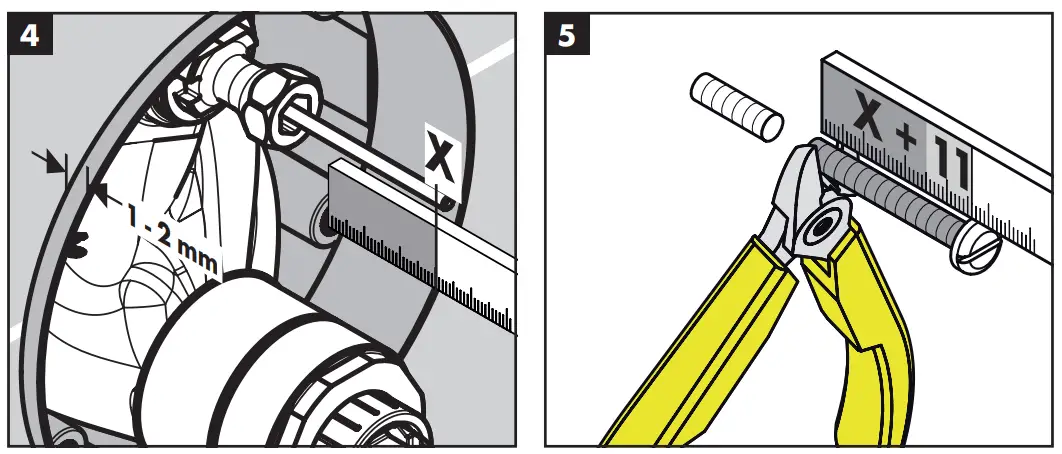

Assembly
Assembly

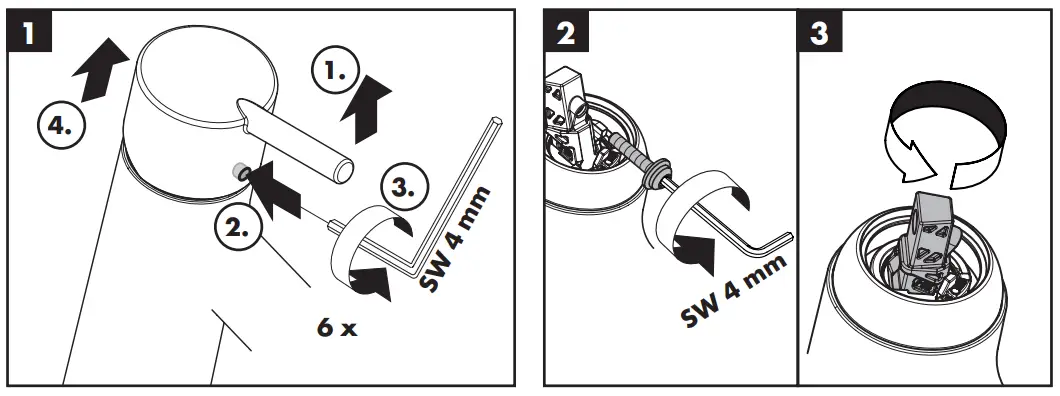

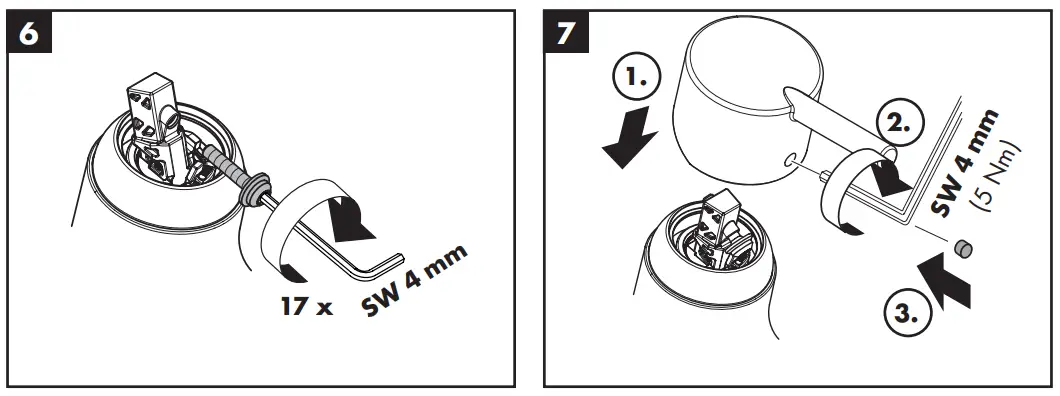

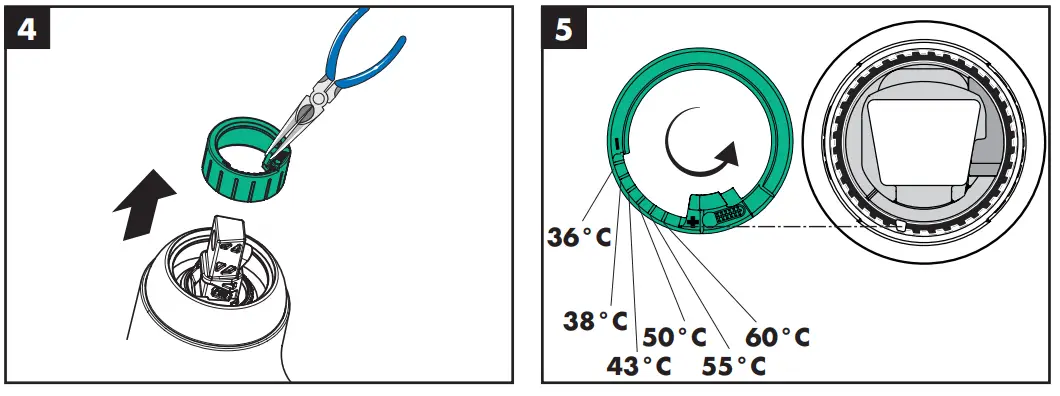

Adjustment
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.
Cleaning

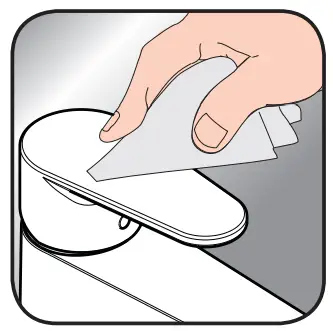

Cleaning recommendation / Warranty / Contact
 |
 |
 |
 |

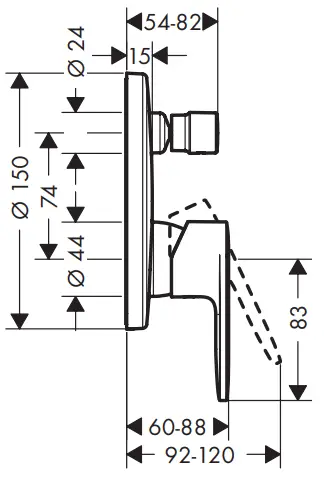

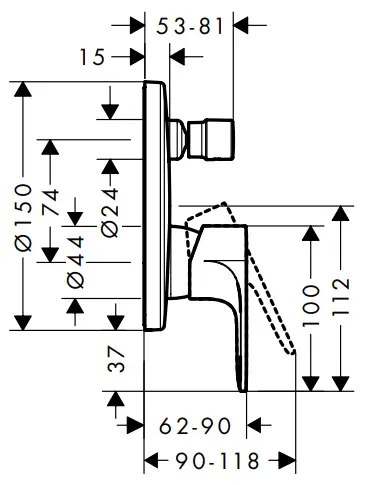

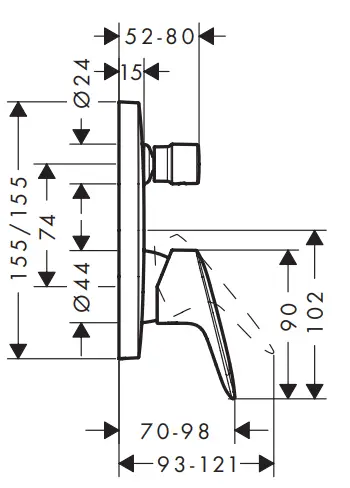

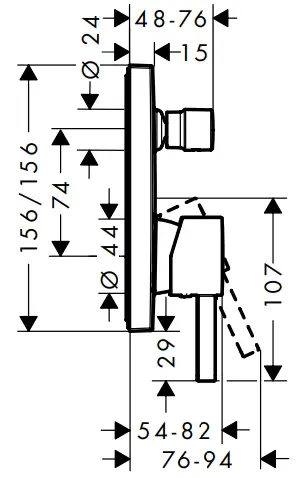

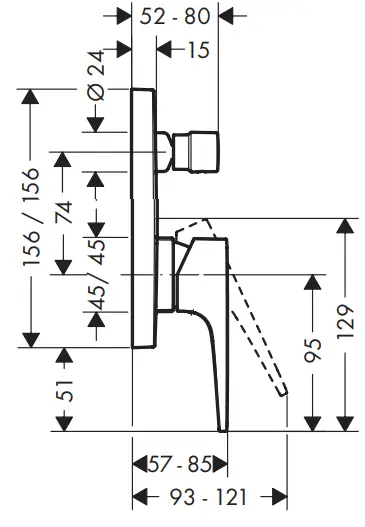

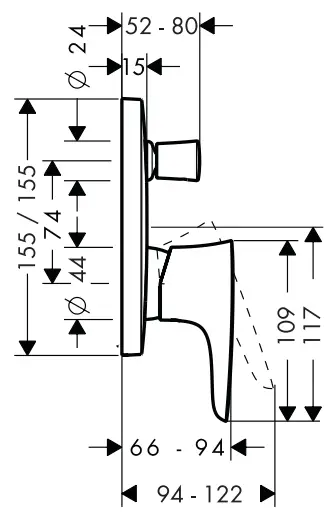

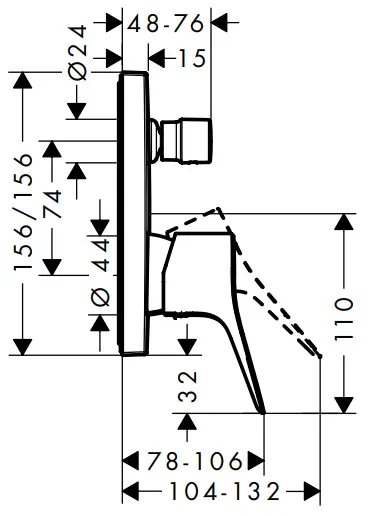

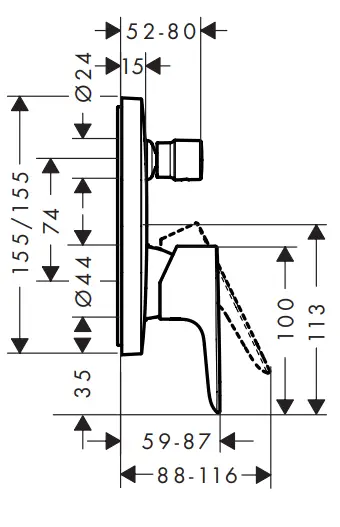

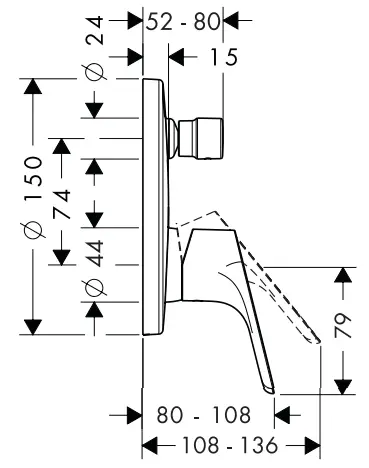

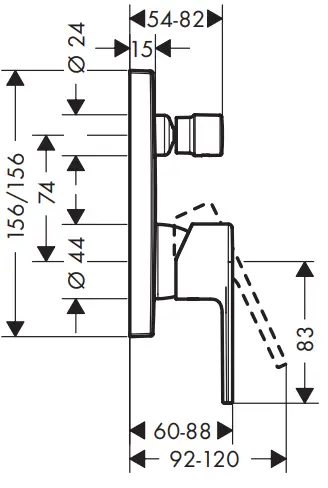

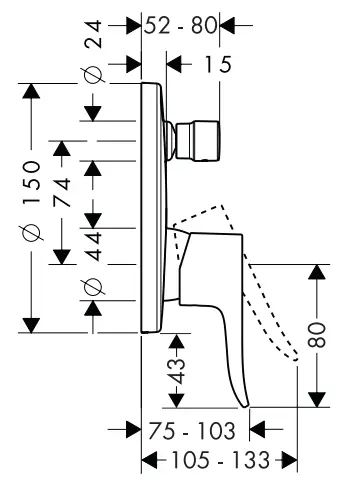

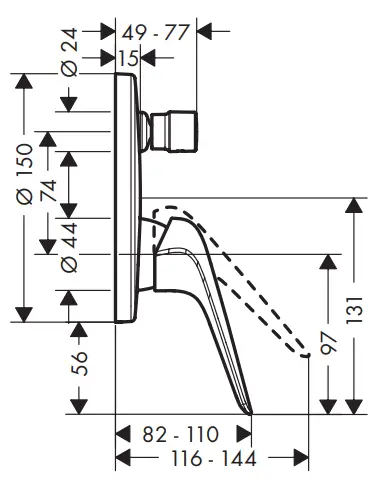

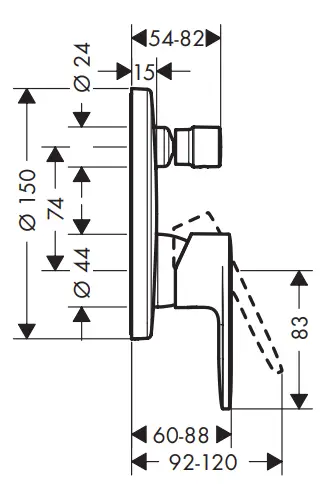

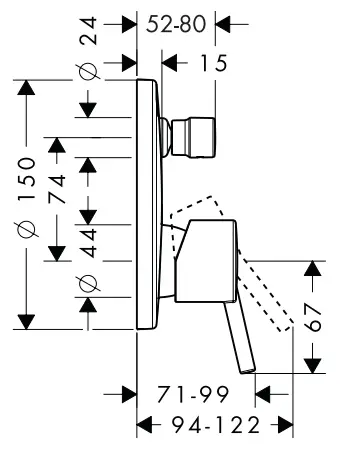

Dimensions
PuraVida
15447XXX
Metris
31451000
Metris S
31466000
Metris
31487000
Focus
31946000
Talis
32477000
Novus
71046000
Logis
71407000
Metropol
32546XXX / 74546000
Talis E
71474XXX
Rebris S
72467XXX
Rebris E
72469XXX
Talis S
72406000
Vernis Shape
71469XXX
Vernis Blend
71467XXX
Vivenis
75416XXX
Finoris
76416XXX

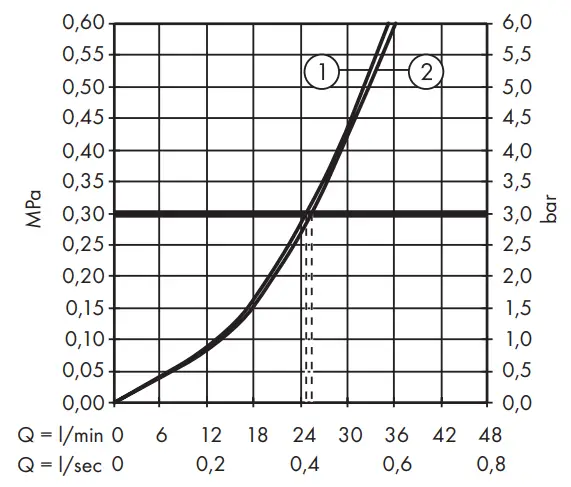

Flow diagram

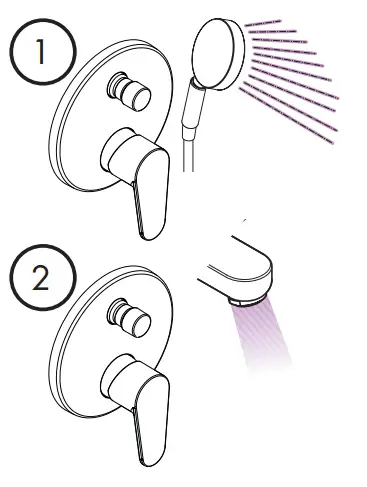

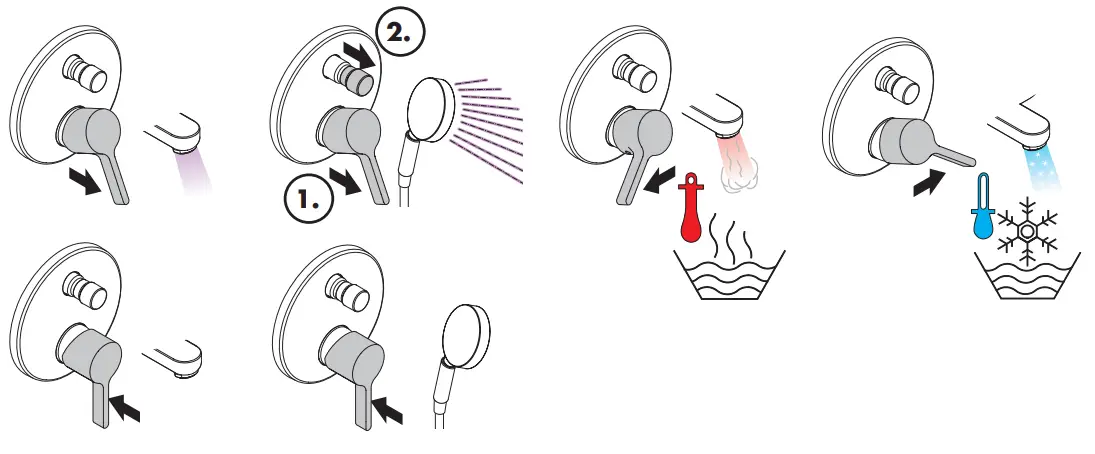

Operation

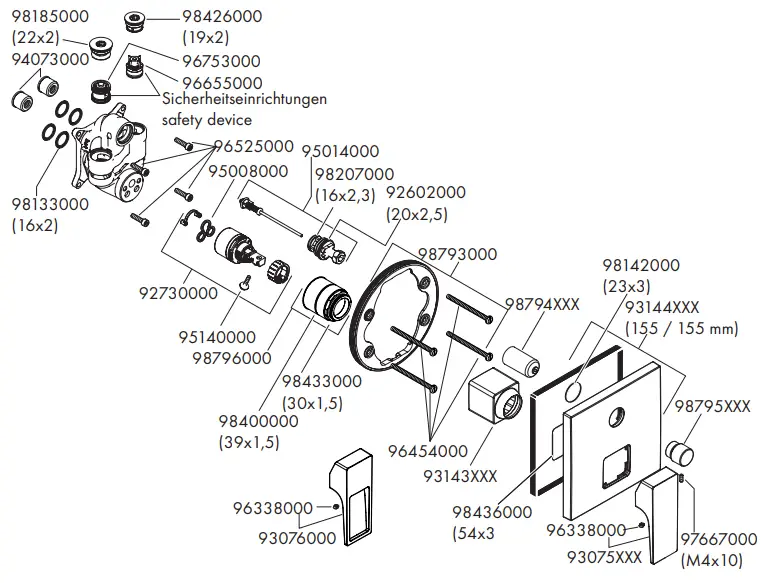

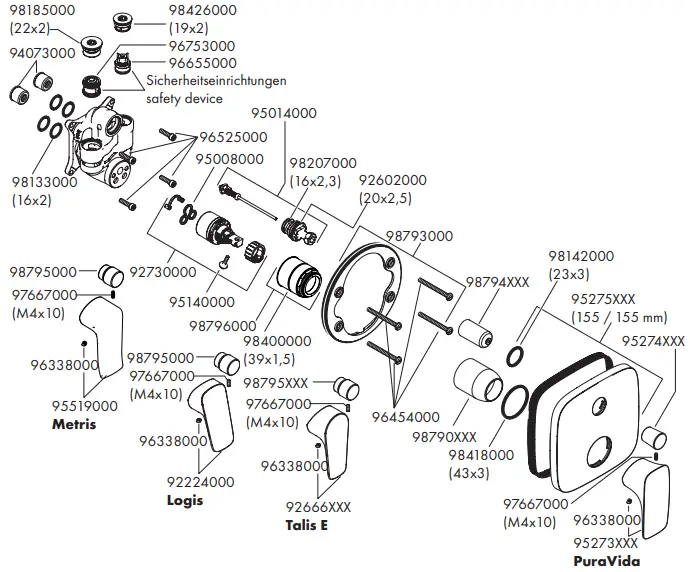

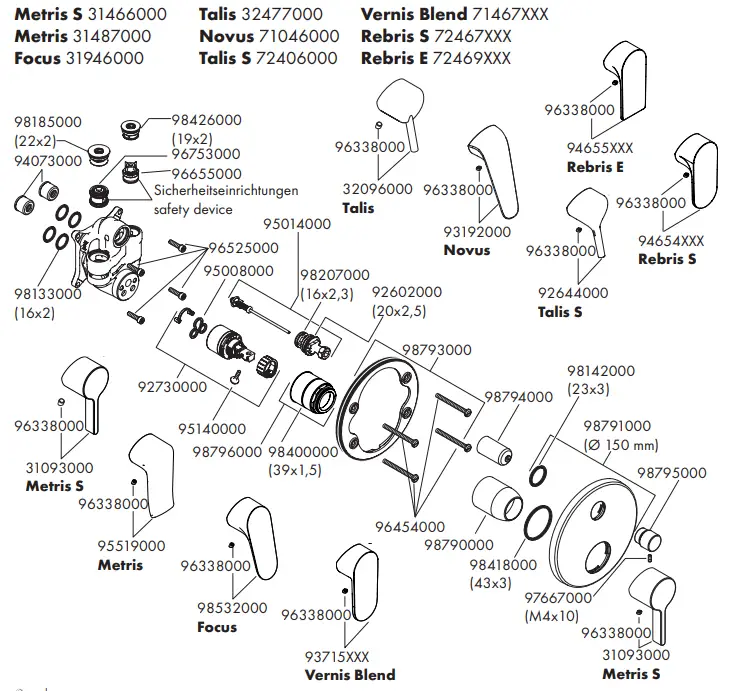

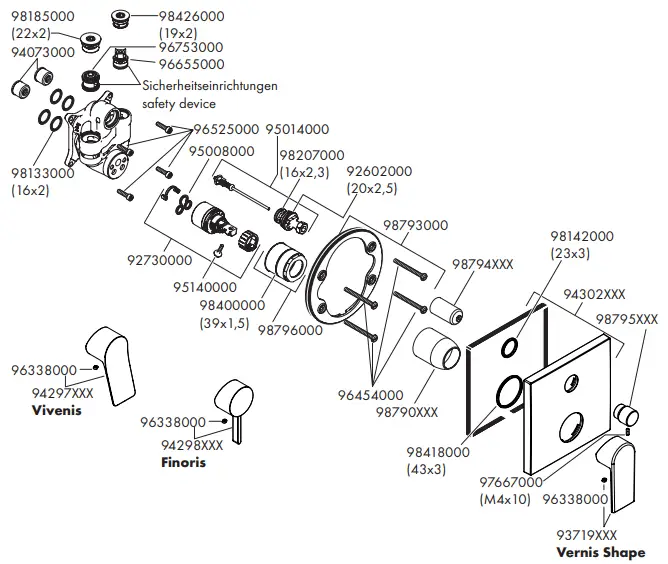

Spare parts
XXX = Colors
000 = Chrome Plated
140 = Brushed Bronze
340 = Brushed Black Chrome
400 = White/Chrome Plated
670 = Matt Black
700 = Matt White
990 = Polished Gold-Optic
Metropol 32546XXX
Metropol 74546000
PuraVida 15447XXX
Metris 31451000
Logis 71407000
Talis E 71474XXX
Vernis Shape 71469XXX
Vivenis 75416XXX
Finoris 76416XXX

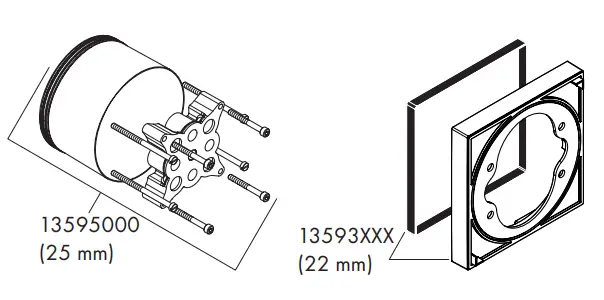

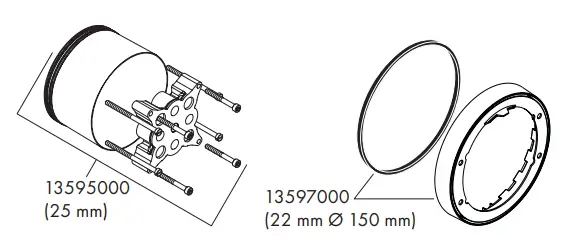

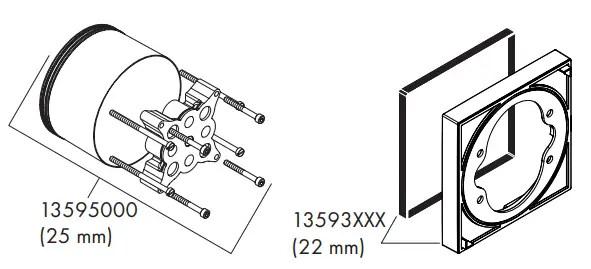

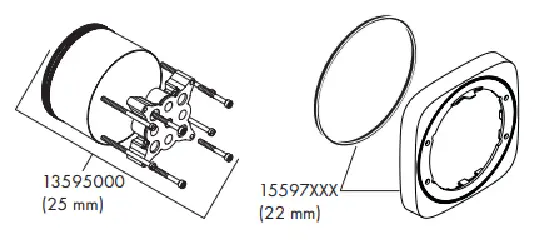

Special accessories
- extension 25 mm #13595000
- Extension Set 22 mm (when wall is not deep enough) #15597XXX, #13597000, #13593XXX

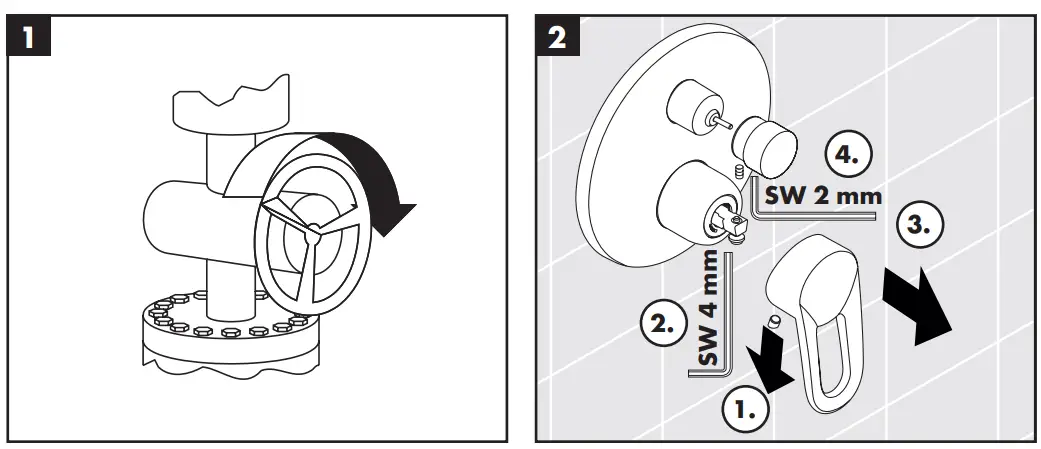

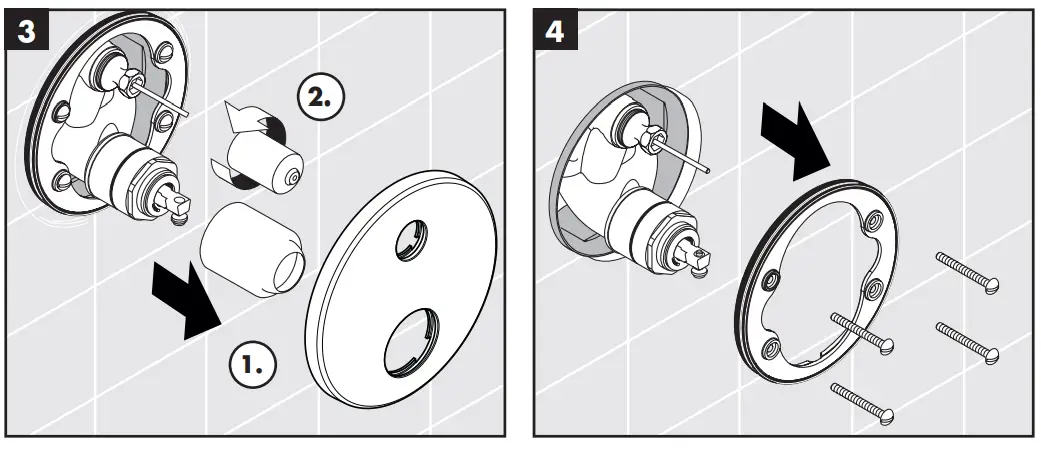

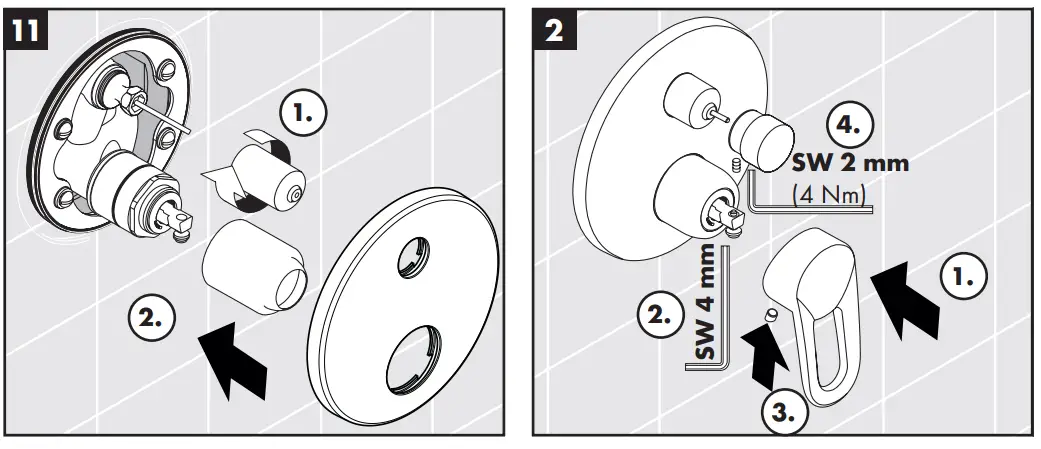

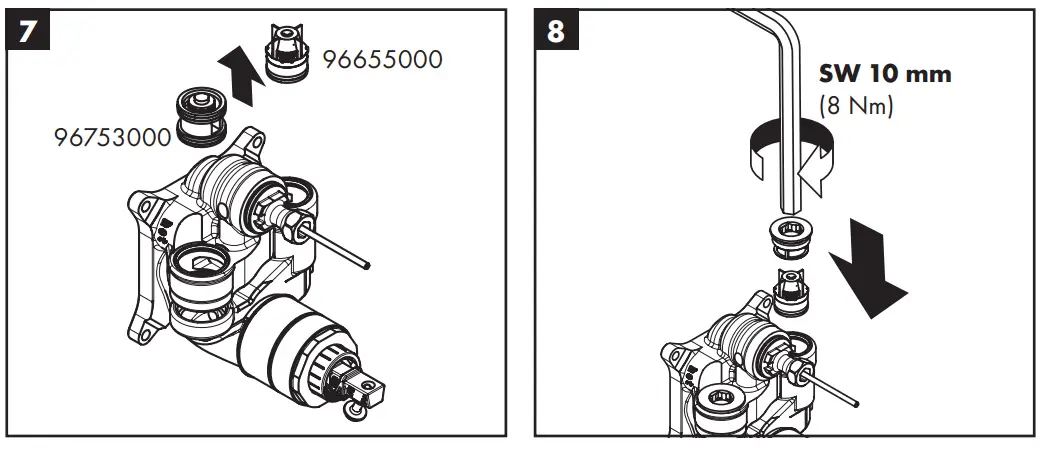

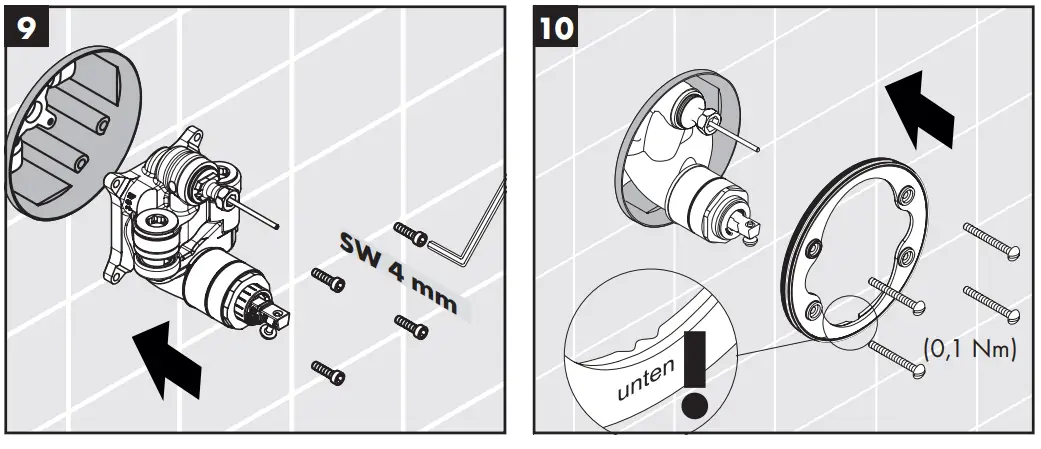

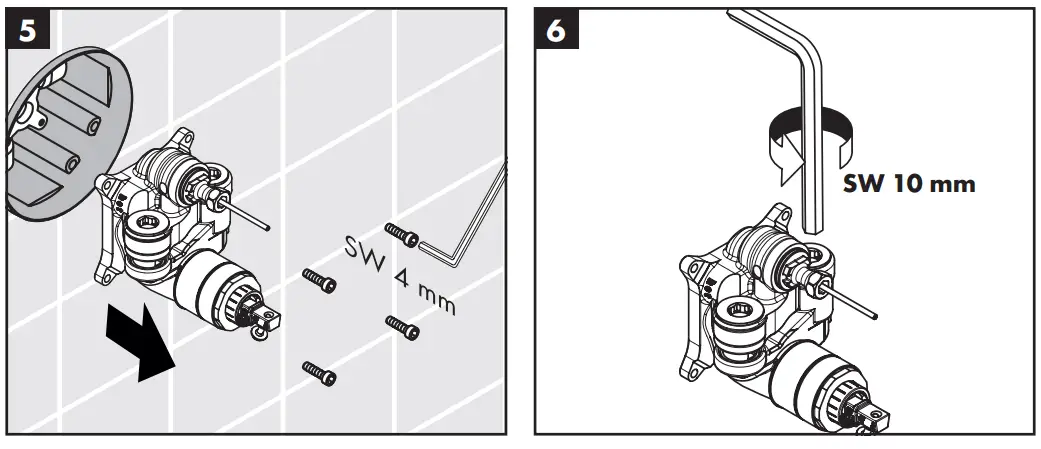

Maintenance
Test certificate
| P-IX | DVGW | SINTEF | NF |  | |
| 15447XXX | PA-IX 18097/IDC | ||||
| 31451000 | |||||
| 31466000 | PA-IX 18097/IDC | BN0685 | X | ||
| 31487000 | PA-IX 18097/IDC | ||||
| 31946000 | PA-IX 18097/IDC | ||||
| 32477000 | PA-IX 18097/IDC | BN0685 | |||
| 32546XXX | |||||
| 71046000 | |||||
| 71407000 | PA-IX 18097/IDC | ||||
| 71474XXX | PA-IX 18097/IDC | ||||
| 72406000 | PA-IX 18097/IDC | ||||
| 74546000 | |||||
| 71467XXX | PA-IX 18097/IDC | ||||
| 71469XXX | PA-IX 18097/IDC | ||||
| 75416XXX | PA-IX 18097/IDC | DM0707 | |||
| 76416XXX | PA-IX 18097/IDC | ||||
| 72467XXX | |||||
| 72469XXX |

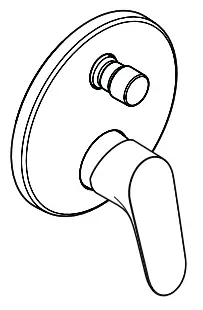

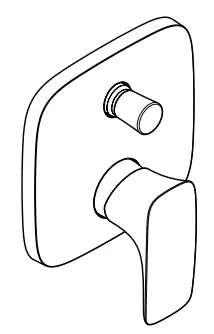

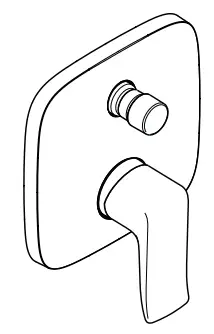

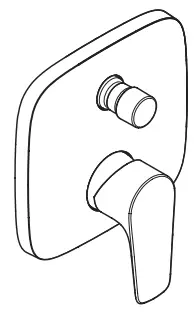

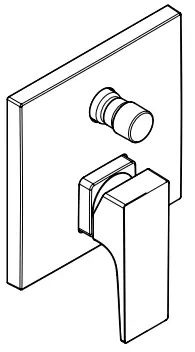

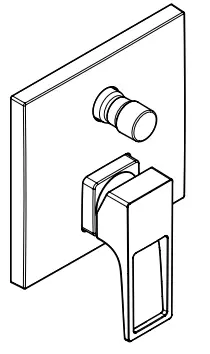

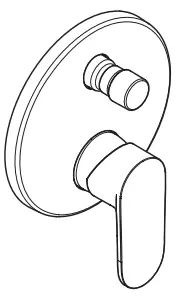

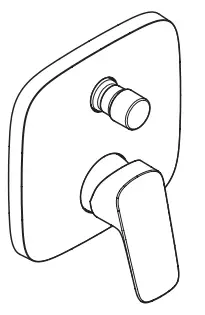

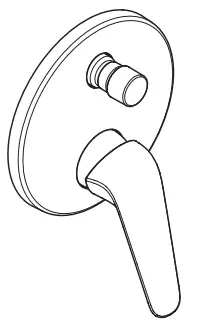

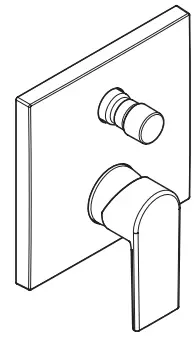

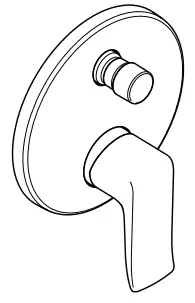

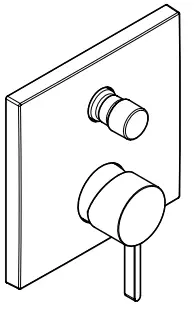

Other Models
PuraVida
15447XXX
Metris
31451000
Metris S
31466000
Metris
31487000
Focus
31946000
Talis
32477000
Metropol
32546XXX
Novus
71046000
Logis
71407000
Talis E
71474XXX
Talis S
72406000
Metropol
74546000
Vernis Blend
71467XXX
Vernis Shape
71469XXX
Vivenis
75416XXX
Finoris
76416XXX
Rebris S
72467XXX
Rebris E
72469XXX
