Instructions for use / Assembly instructions

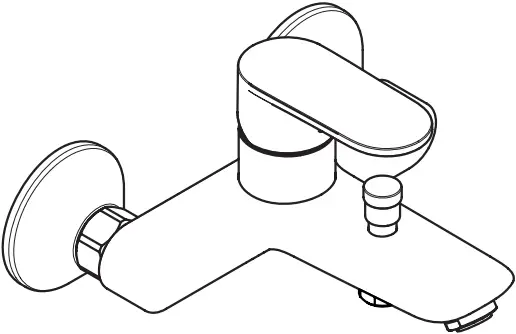

Vernis Blend Vernis Blend
71440XXX / 71447000 71454000 / 71475XXX

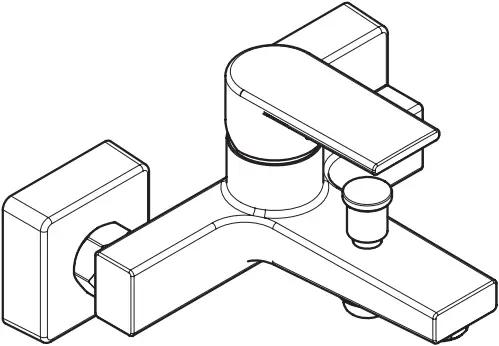

Vernis Shape Vernis Shape
71450XXX / 71457000 71453000 / 71476XXX
Vernis Blend Vernis Blend
71640XXX / 71647000 71646000

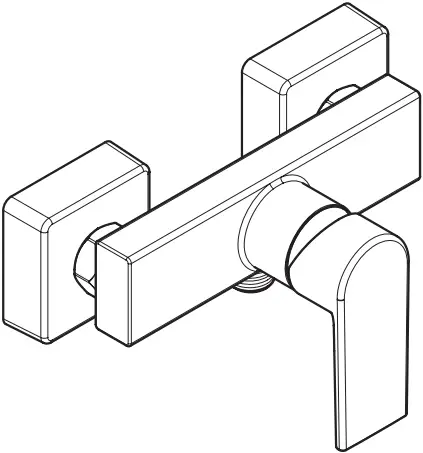

Vernis Shape Vernis Shape
71650XXX / 71657000 71656000
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The product may only be used for bathing, hygienic and body cleaning purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- The diverter (type HC) installed in the bath mixer is designed as an anti-retraction device. For this reason, the lower edge of the diverter must be at least 25 mm above the highest possible dirty water level.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C / 4 min
Safety against backflow
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!

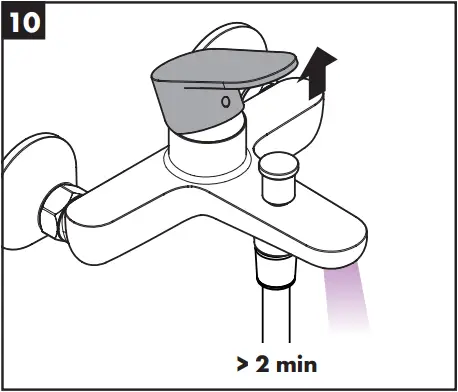

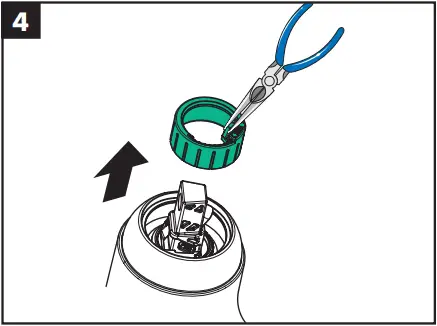

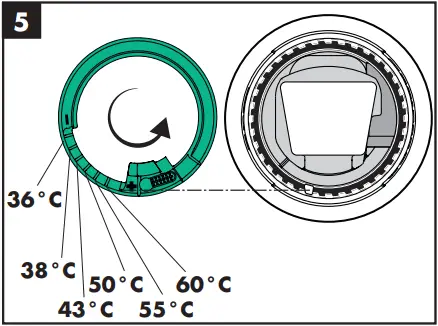

Adjustment
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.
Maintenance
The check valves must be checked regularly according to EN 806-5 in accordance with national or regional regulations (at least once a year).

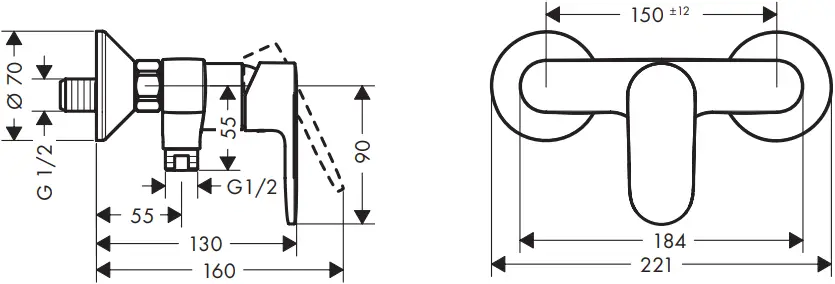

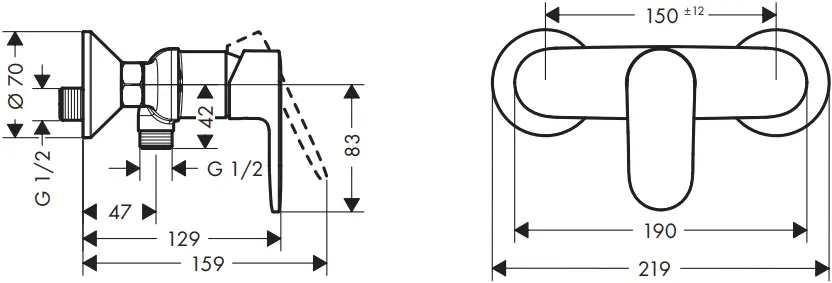

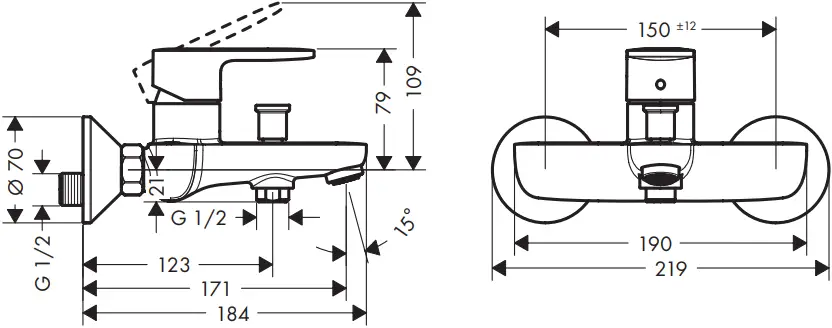

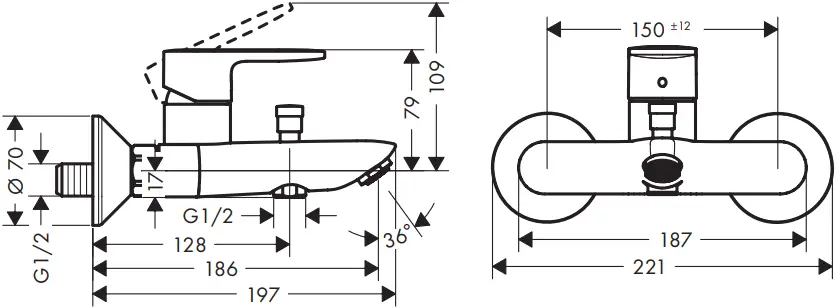

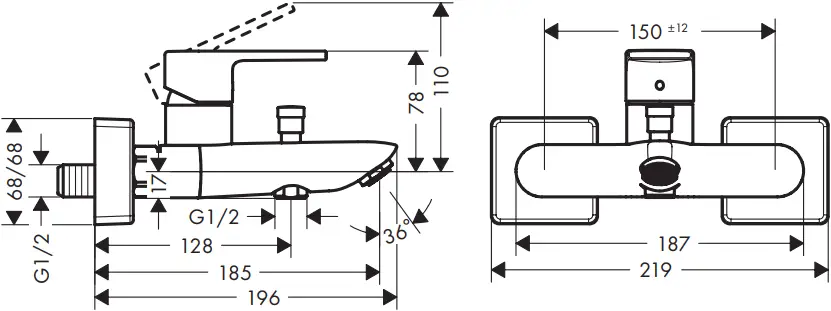

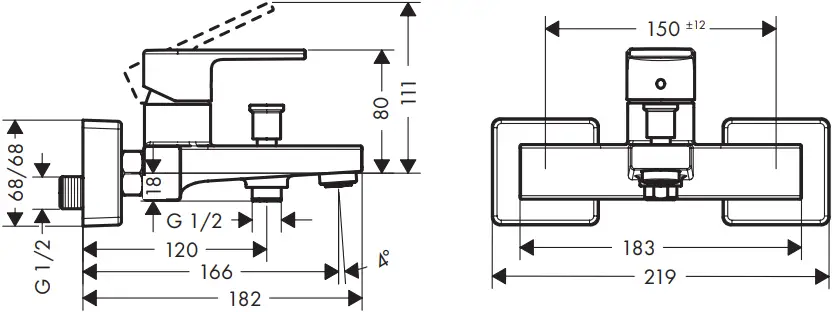

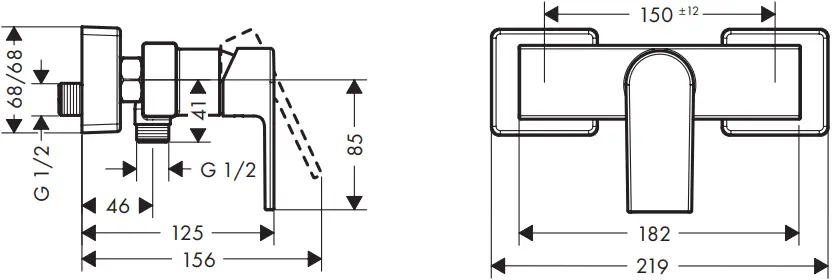

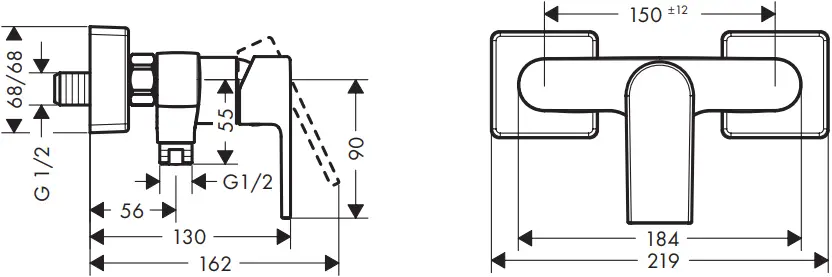

Dimensions

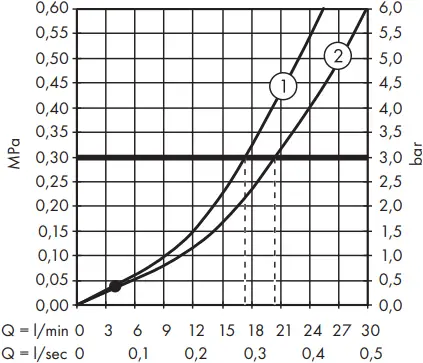

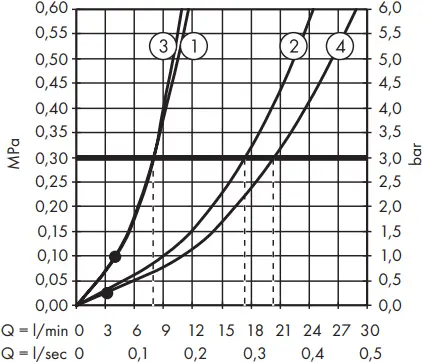

Flow diagram

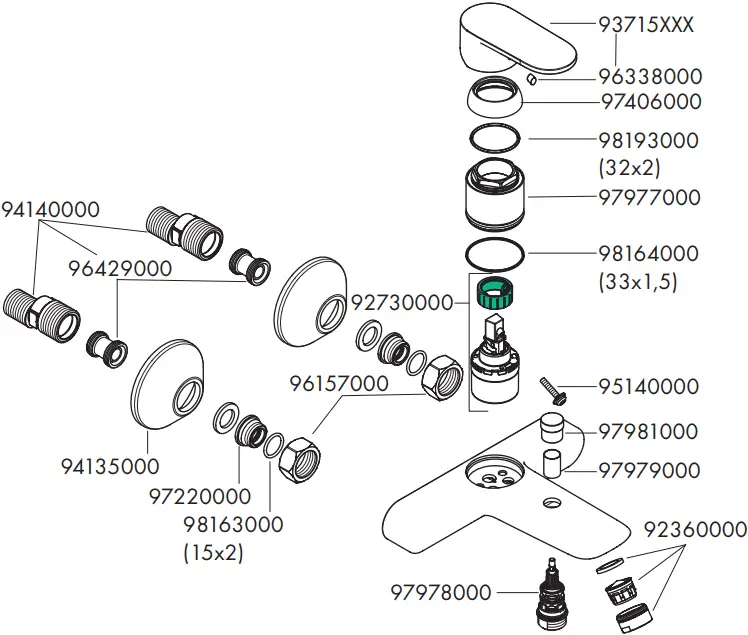

Spare parts
XXX = Colors
000 = Chrome Plated
670 = Matt Black
Cleaning
Operation
Test certificate
| Fault | Cause | Remedy |
| Insufficient water | – Aerator calcified, dirty | – Clean aerator, replace as necessary |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective | – Exchange cartridge |
| Hot water temperature too low | – Hot water limiter incorrectly set | – Set hot water limiter |
| Instantaneous heater didn’t work | – Filters are dirty | – Clean the filter / exchange filter |
| – check valve hasn’t moved back | – Exchange check valves | |
| – Flow limiter in handshower isn’t removed | – Remove flow limiter |

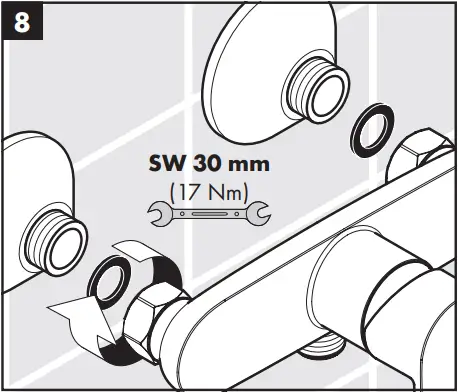

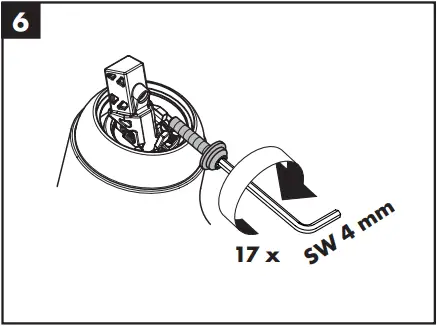

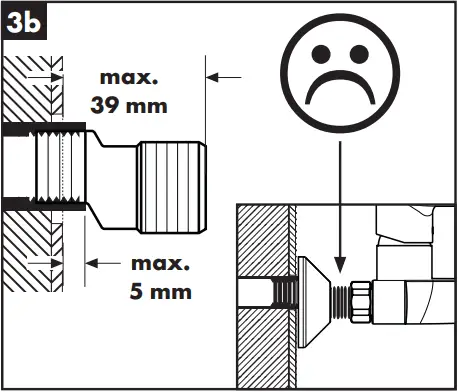

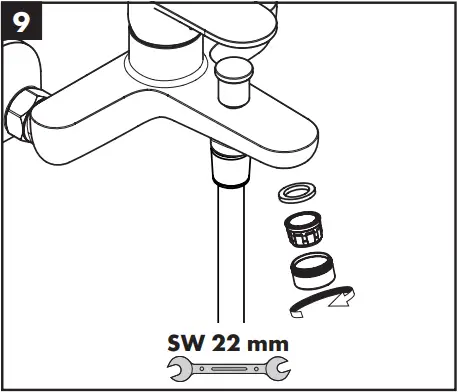

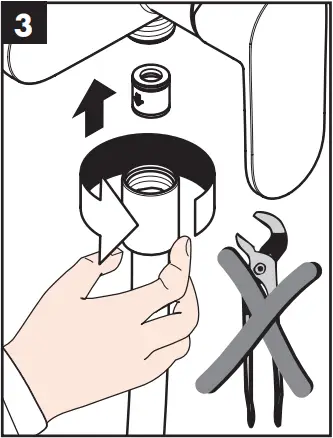

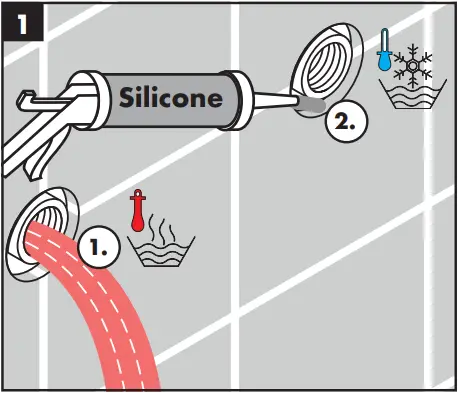

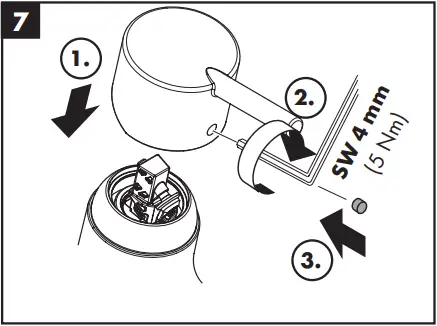

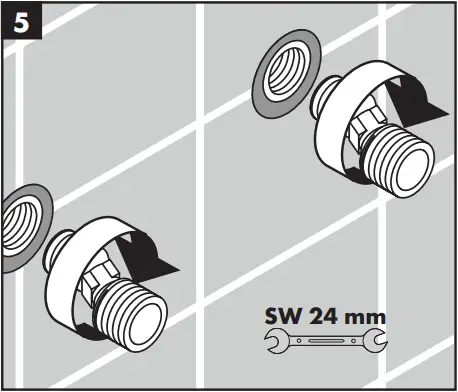

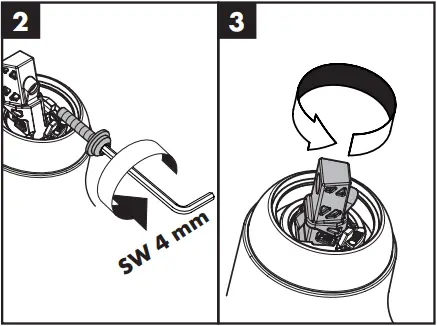

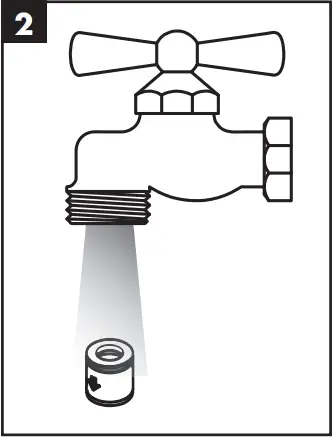

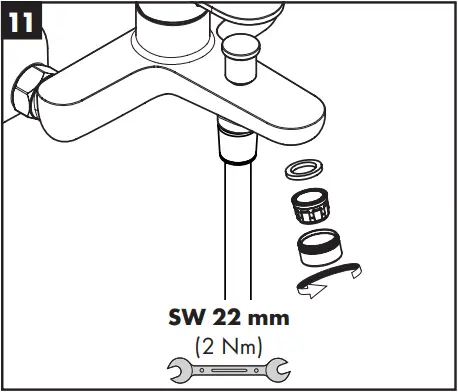

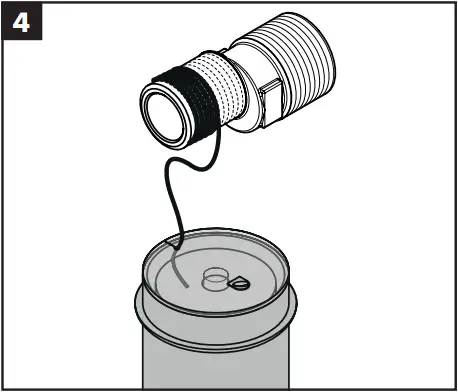

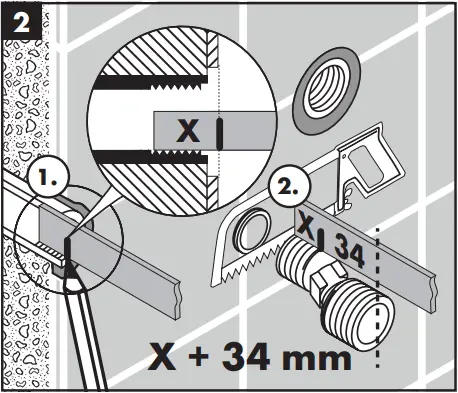

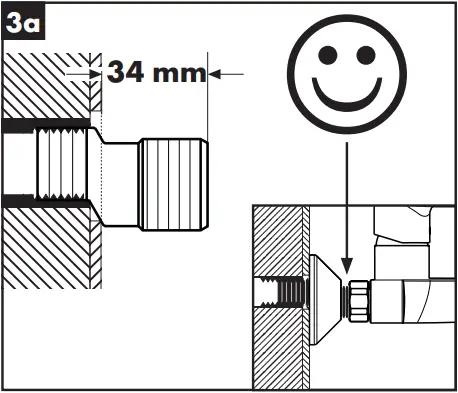

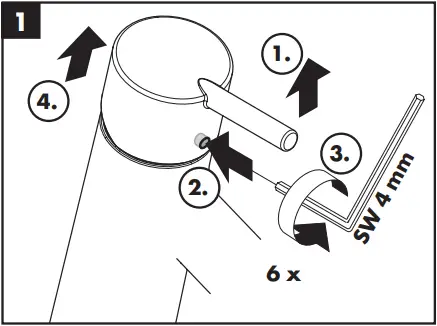

Assembly
Assembly
Adjustment

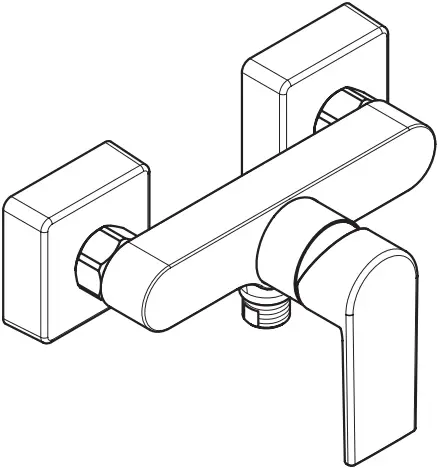

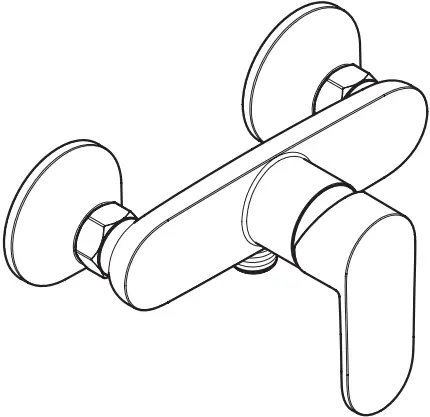

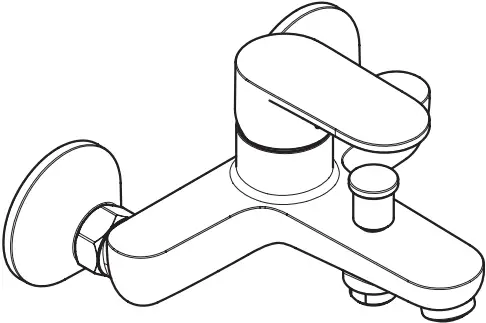

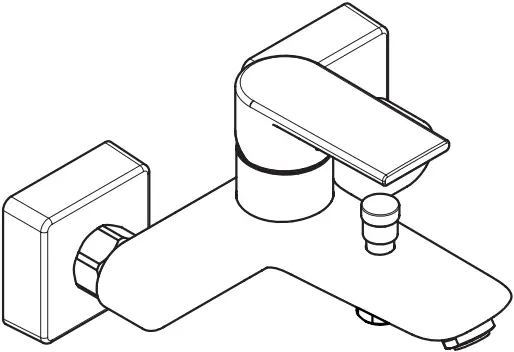

Dimensions
Vernis Blend
71440XXX / 71447000
Vernis Shape
71450XXX / 71457000
Vernis Blend
71640XXX / 71647000
Vernis Shape
71650XXX / 71657000
Vernis Blend
71454000 / 71475XXX
Vernis Shape
71453000 / 71476XXX
Vernis Blend
71646000
Vernis Shape
71656000

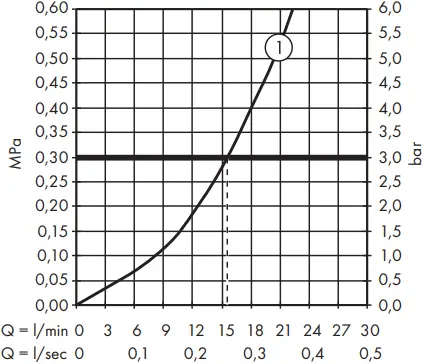

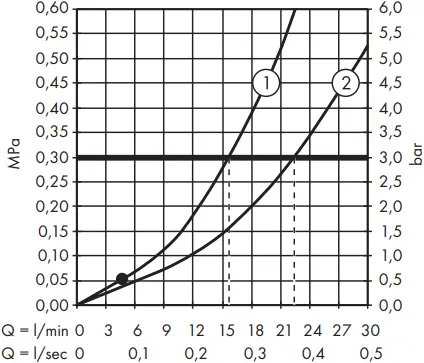

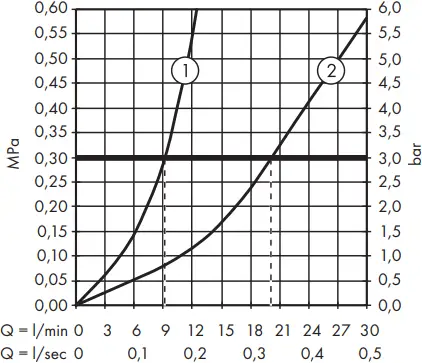

Flow diagram
Vernis Blend 71440XXX / 71447000
Vernis Shape 71450XXX / 71457000
Vernis Blend 71640XXX / 71647000
Vernis Shape 71650XXX / 71657000
Vernis Blend 71475XXX
Vernis Shape 71476XXX
Vernis Blend 71454000
Vernis Shape 71453000
Vernis Blend 71646000
Vernis Shape 71656000

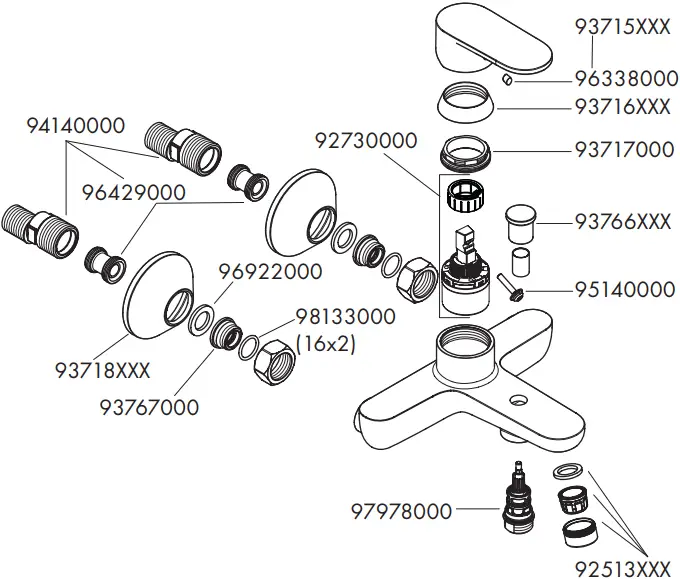

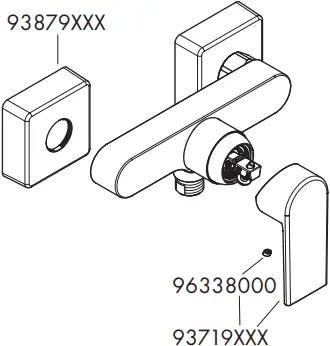

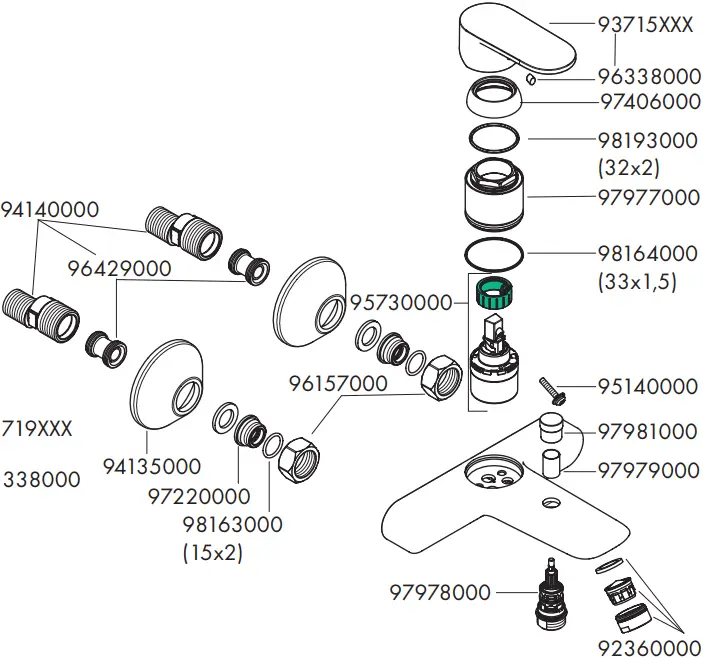

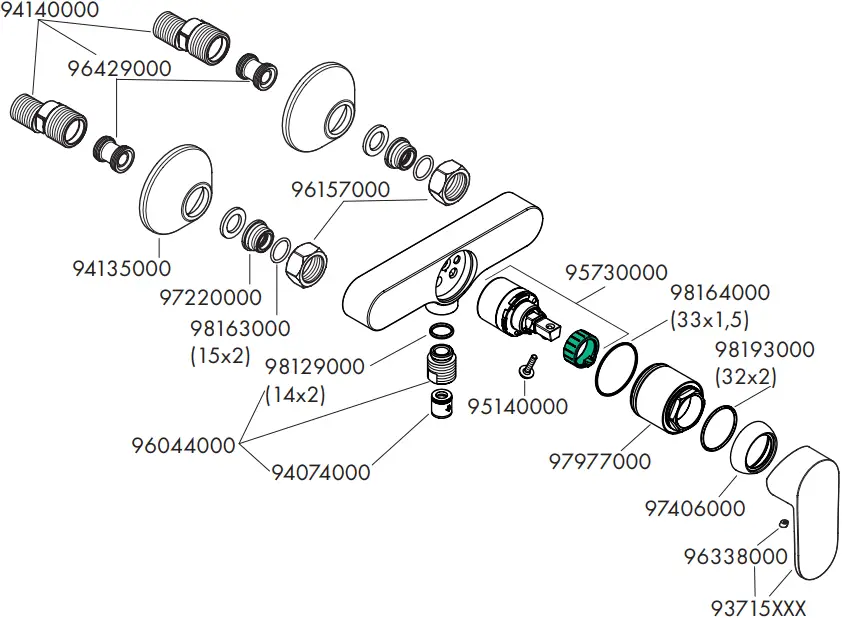

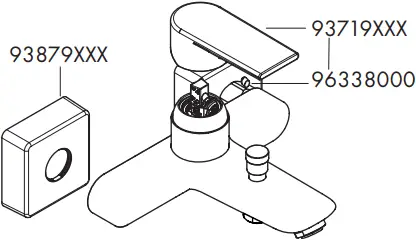

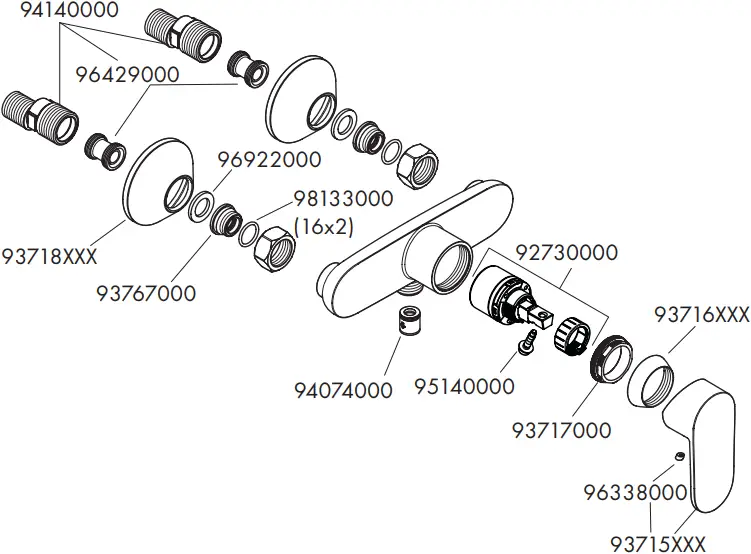

Spare parts
Vernis Blend
71440XXX / 71447000
Vernis Shape
71450XXX / 71457000
Vernis Blend
71640XXX / 71647000
Vernis Shape
71650XXX / 71657000
Vernis Blend
71454000
Vernis Shape
71453000
Vernis Blend
71646000
Vernis Shape
71656000
Vernis Blend
71475XXX
Vernis Shape
71476XXX

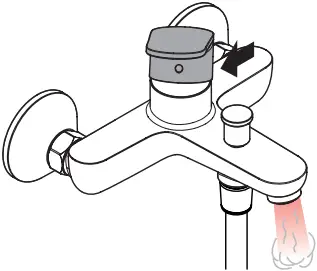

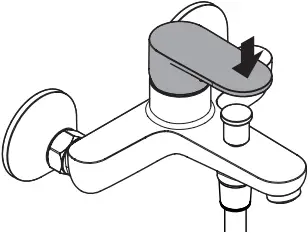

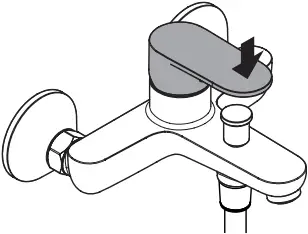

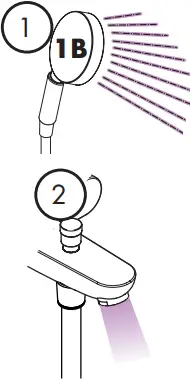

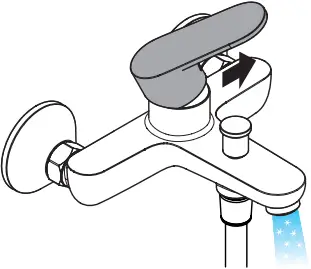

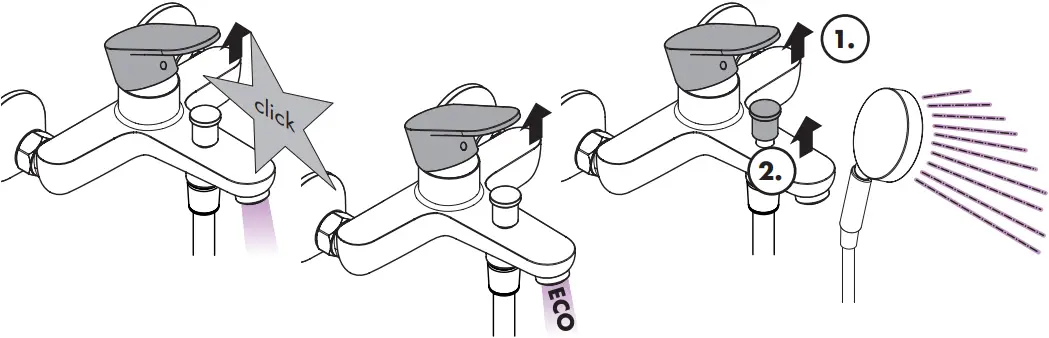

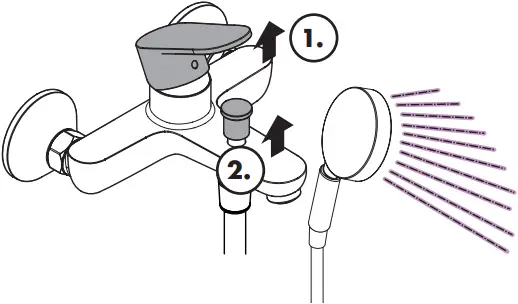

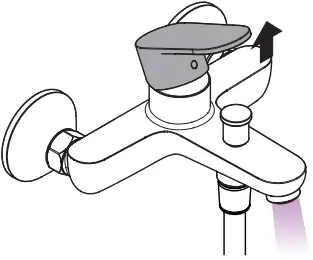

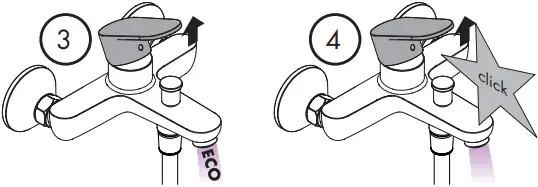

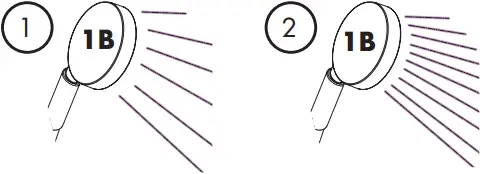

Operation
open
close
hot cold
Vernis Blend 71454000 / 71646000
Vernis Shape 71453000 / 71656000
open
close
hot cold

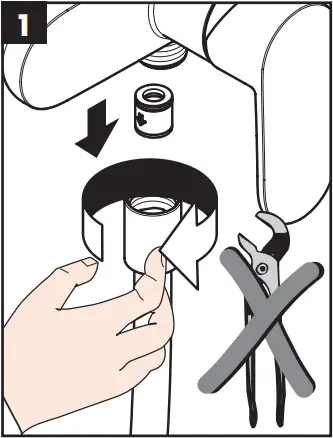

Cleaning
Cleaning recommendation / Warranty / Contact
www.hansgrohe.com/cleaning-recommendation
www.hansgrohe.com/cleaning-recommendation
www.hansgrohe.com/cleaning-recommendation
www.hansgrohe.com/cleaning-recommendation
Maintenance
Test certificate
P-IX | DVGW | SINTEF | NF |  | ETA |  | |
| 71440XXX | PA-IX 38135/IIDB | ||||||
| 71447000 | PA-IX 38135/IIDB | ||||||
| 71450XXX | PA-IX 38137/IIDB | ||||||
| 71453000 | |||||||
| 71454000 | |||||||
| 71457000 | PA-IX 38137/IIDB | ||||||
| 71475XXX | PA-IX 28116/ICB | ||||||
| 71476XXX | PA-IX 28116/ICB | ||||||
| 71640XXX | PA-IX 38131/IA | ||||||
| 71646000 | |||||||
| 71647000 | PA-IX 38131/IA | ||||||
| 71650XXX | PA-IX 38132/IA | ||||||
| 71656000 | |||||||
| 71657000 | PA-IX 38132/IA |
Vernis Blend Vernis Shape
71440XXX / 71447000 71450XXX / 71457000
Vernis Blend Vernis Shape
71640XXX / 71647000 71650XXX / 71657000
Vernis Blend
71475XXX / 71476XXX
