hansgrohe AXOR 11445000 Urquiola Bath Mixers

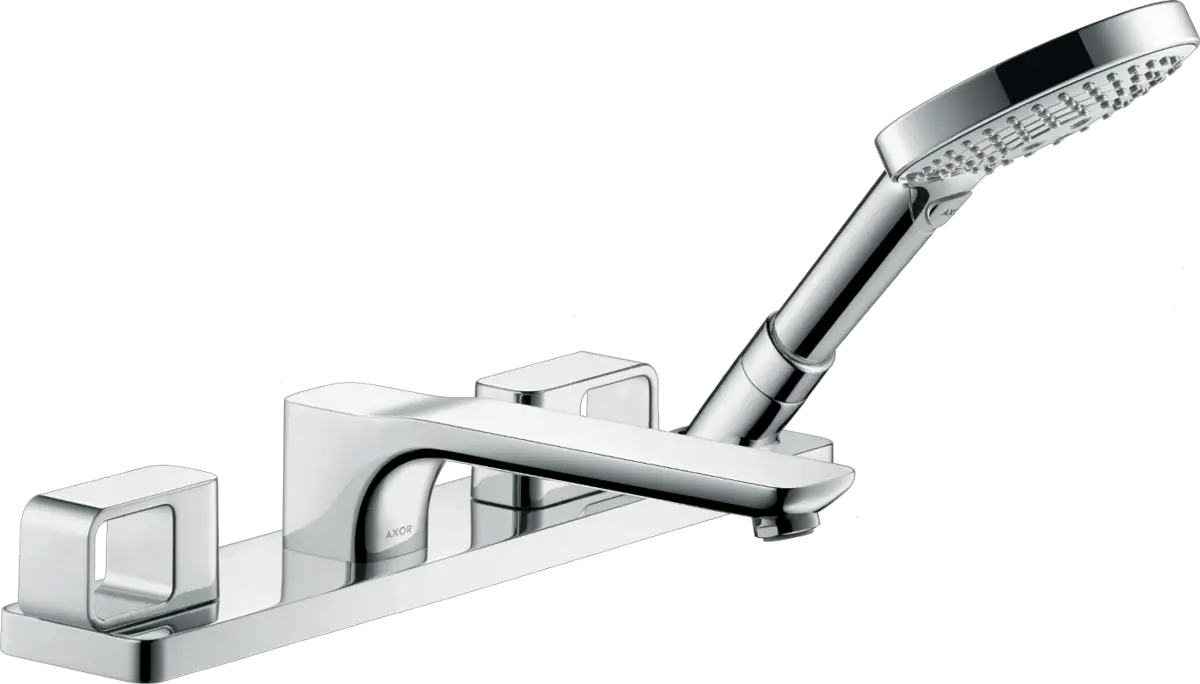

hansgrohe-AXOR-11445000-Urquiola-Bath-Mixers-product

Product Information

The product is a shower system that includes a hand shower, a bath spout, and a Secuflex hose. It has a non-return valve with an anti-pollution function and requires an operating pressure of 1.6 MPa. The product comes with spare parts and cleaning recommendations in an enclosed brochure.

Product Usage Instructions

When using the shower system, ensure that it is only used for bathing and body cleansing purposes. The hot and cold water supplies must have equal pressures to prevent any damage to the system. Keep the streams of the shower away from sensitive body parts and maintain an adequate distance between the shower and yourself.

During installation, wear protective gloves to prevent any crushing or cutting injuries. Ensure that the fitting is installed, flushed, and tested according to valid norms. Check the non-return valves regularly according to DIN EN 1717 in accordance with national or regional regulations at least once a year.

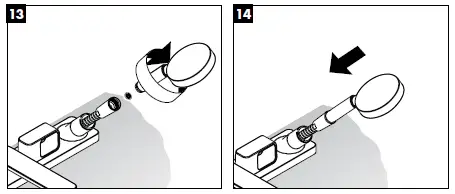

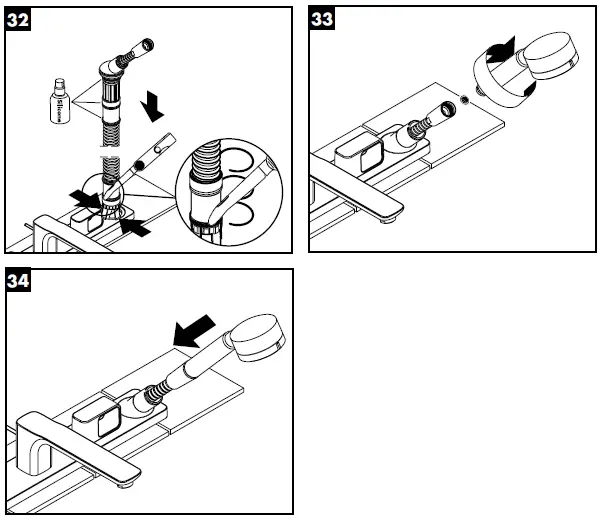

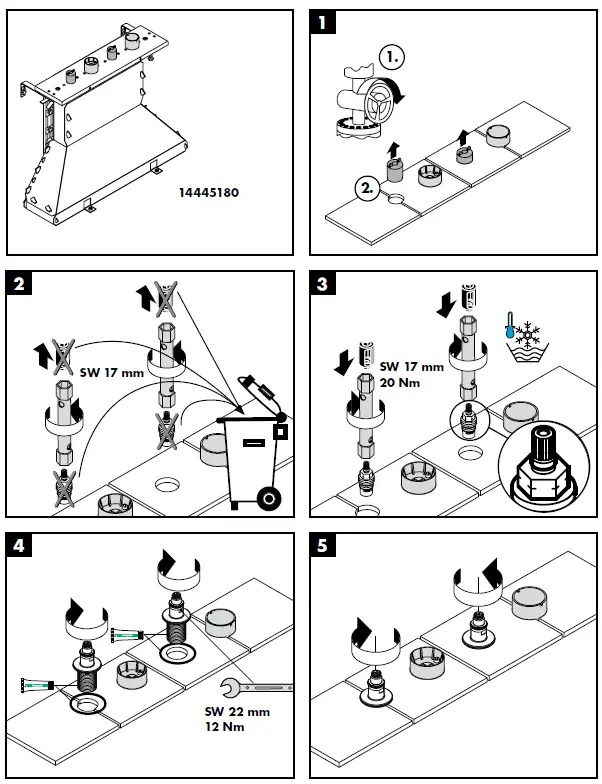

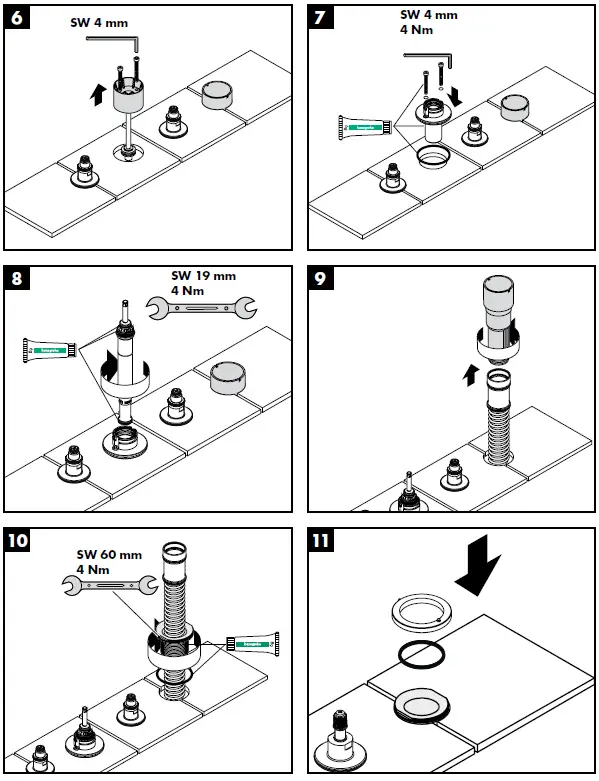

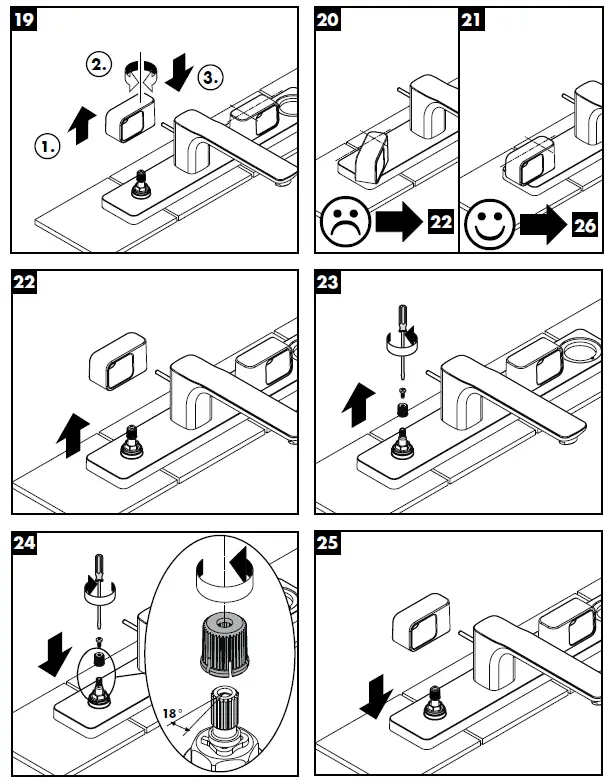

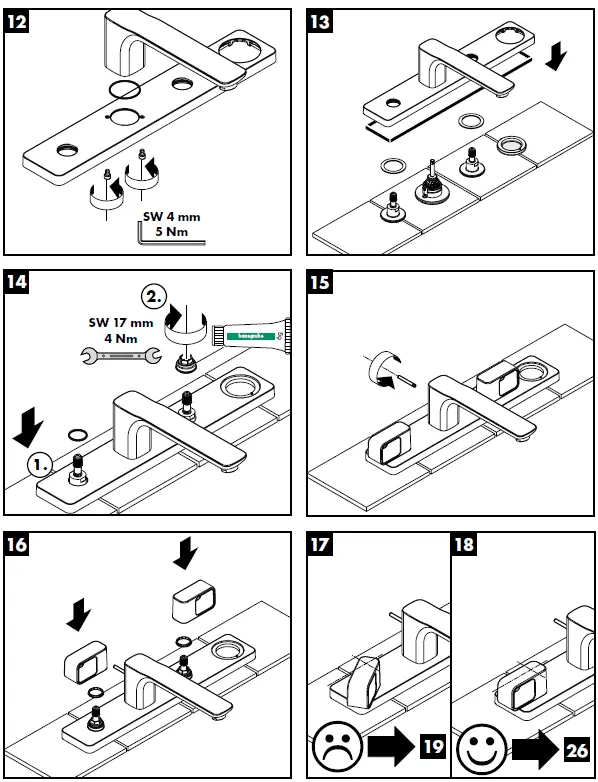

To maintain the Secuflex hose, repeat cleaning when pull out becomes difficult, and do not use silicone containing acetic acid. For assembly instructions, refer to page 31 of the user manual. For more information on maintenance and cleaning, see the enclosed brochure.

Note that the product may not be used as a holding handle. A separate handle must be installed for this purpose.

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pres-sures.
Do not allow the streams of the shower touch sen-sitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.

Installation Instructions

The fitting must be installed, flushed and tested after the valid norms.

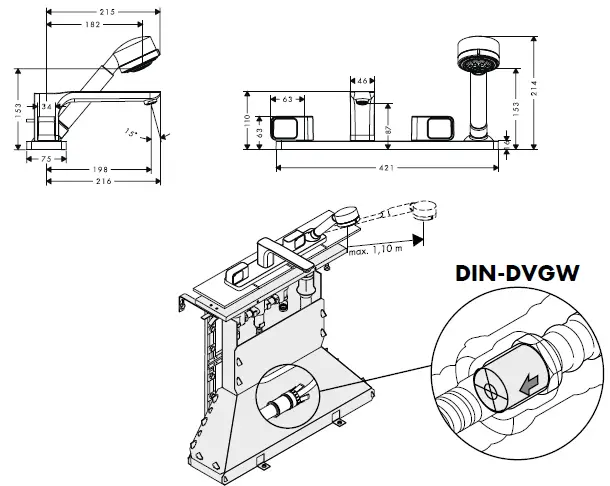

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

Symbol description

Maintenance

Maintenance non return valve (see page 39)
The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

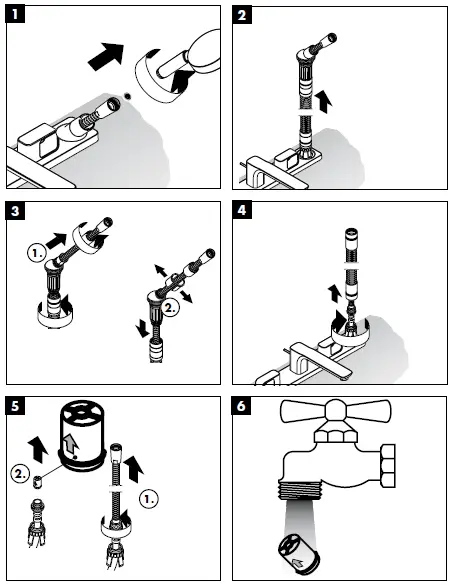

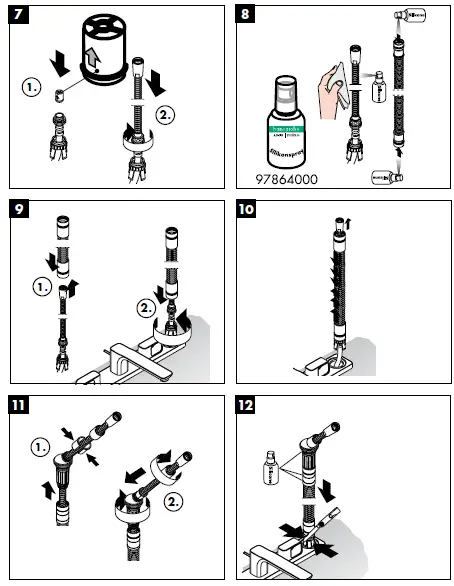

Maintenance Secuflex hose (see page 39)
Repeat cleaning when pull out becomes difficult.

Do not use silicone containing acetic acid!
