Hansgrohe Axor 38053000 Uno2 Basin Mixer Instruction Manual

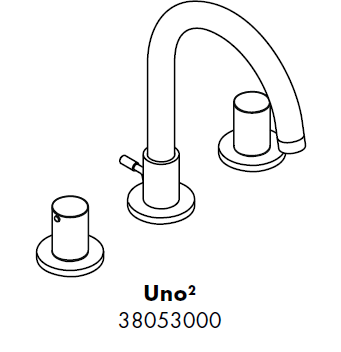

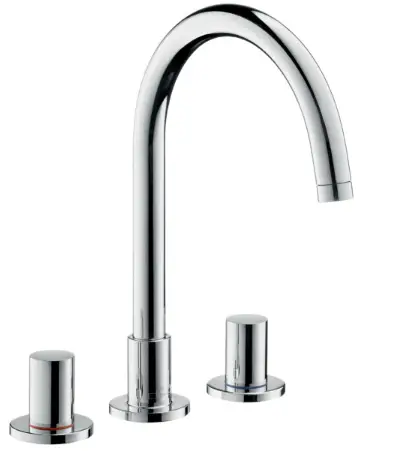

Hansgrohe AXOR 38053000 UNO2 Basin Mixer

Product Information

• The product is a shower system
• The manual is available in multiple languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Swedish, Lithuanian, Croatian, Turkish, Romanian, Slovenian, Estonian, Latvian, Serbian, Norwegian and Arabic
• The shower system has a maximum operating pressure of 1 MPa
• The recommended operating pressure is 1.6 MPa
• The hot and cold water supplies must have equal pressures
• During installation, gloves should be worn to prevent crushing and cutting injuries
• The shower system should only be used for bathing, hygienic and body cleansing purposes
• The product should not be used with silicone-containing acetic acid

Product Usage Instructions

• Ensure that the hot and cold water supplies have equal pressures before installation
• Wear gloves during installation to prevent injuries
• The shower system should only be used for bathing, hygienic and body cleansing purposes
• Do not use silicone-containing acetic acid with the product
• Refer to the flow diagram on page 34 for information on flow rate
• Refer to the spare parts list on page 36 for information on replacement parts
• Refer to the test certificate on page 35 for information on product testing
• Clean the product as per the enclosed brochure
• Refer to page 31 for installation instructions

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.
• The shower system may only be used for bathing, hygienic and body cleansing purposes.
• The hot and cold supplies must be of equal pressures.

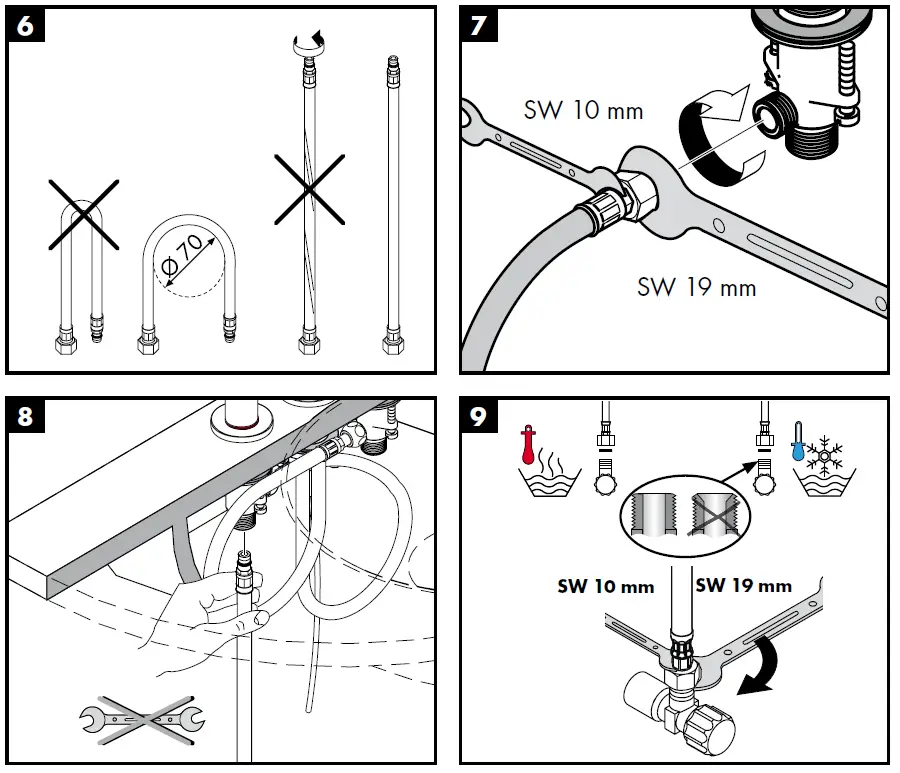

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0,1 – 0,5 MPa
• Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
• Hot water temperature: max. 80°C
• Recommended hot water temp.: 65°C

Hansgrohe mixers can be used together with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

MODEL

Symbol Description

Do not use silicone-containing acetic acid!

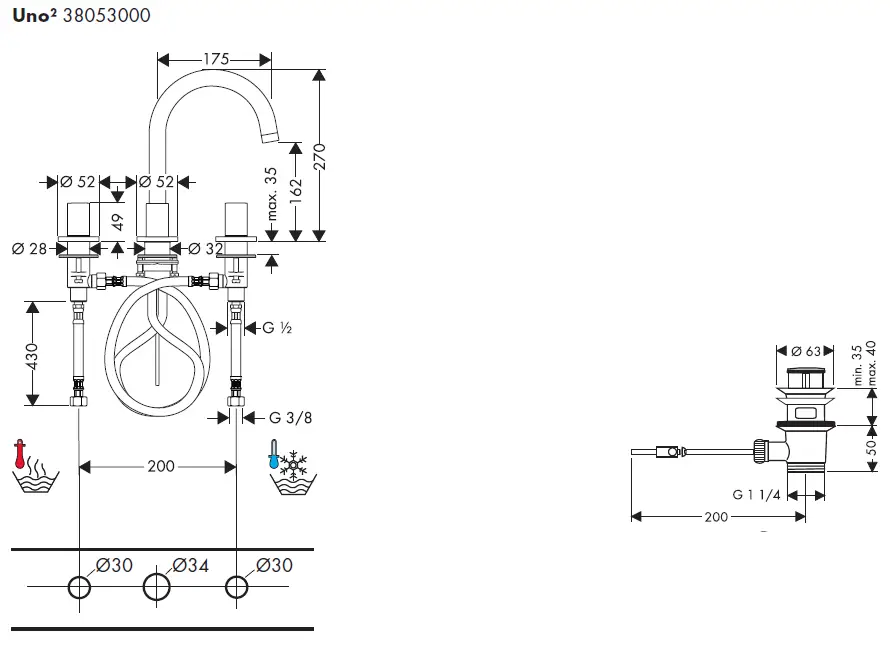

Dimensions

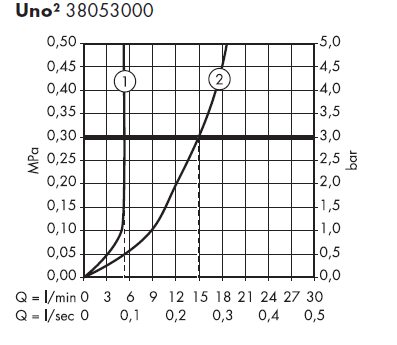

Flow diagram

1. with EcoSmart®
2. without EcoSmart®

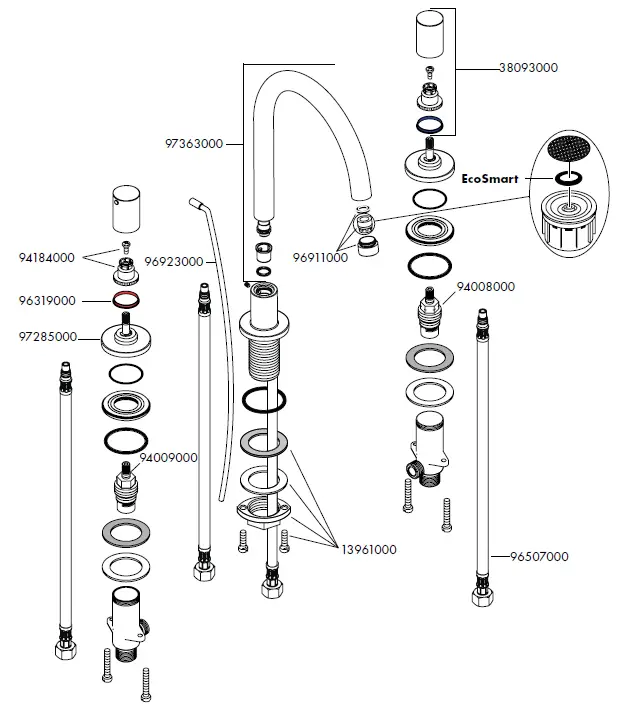

Spare parts

Special accessories

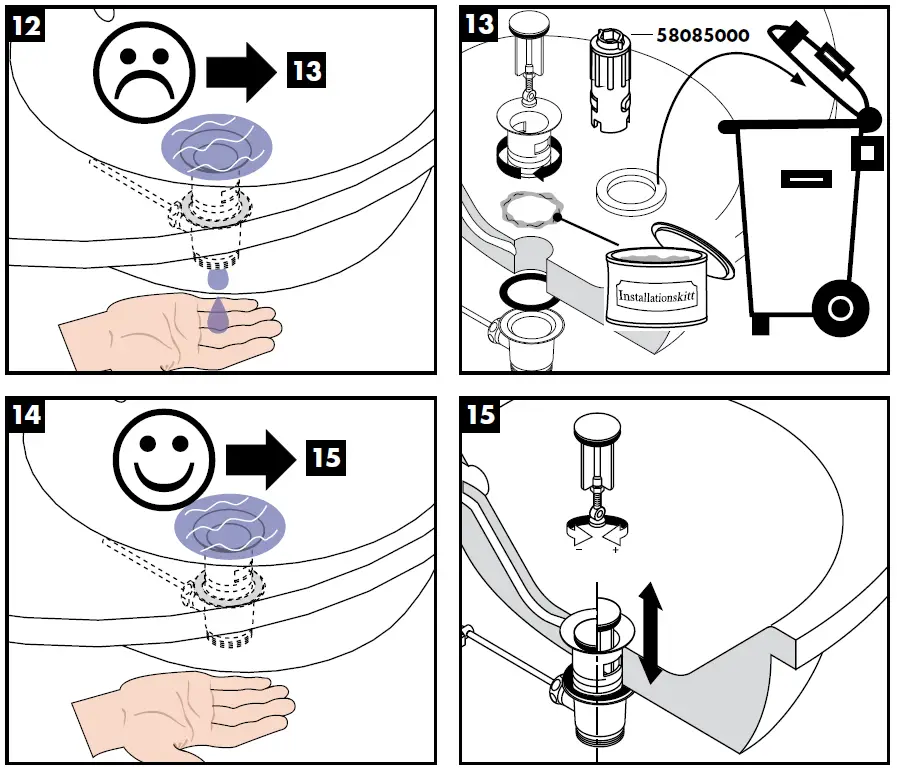

special tool  (58085000) order as an extra

Installation kit order as an extra

Operation

Cleaning
(see enclosed brochure)

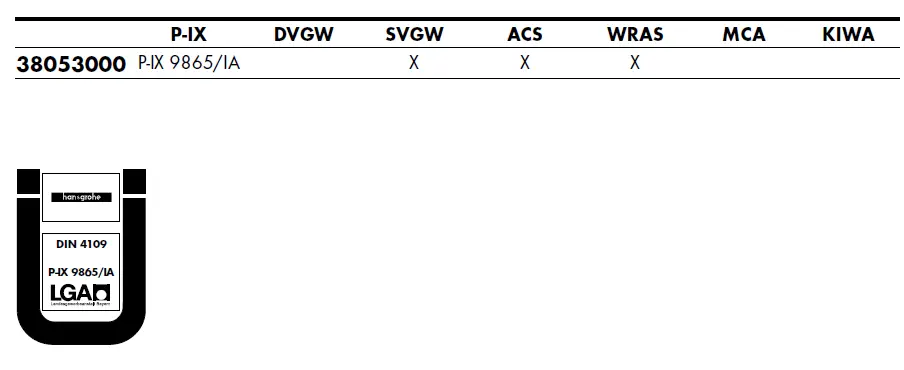

Test certificate

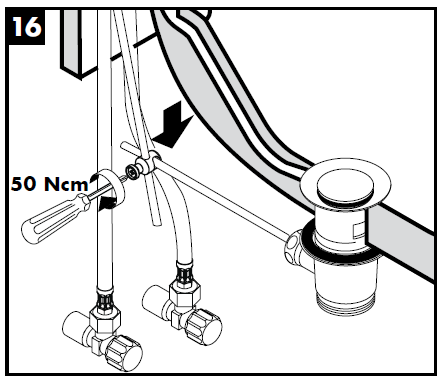

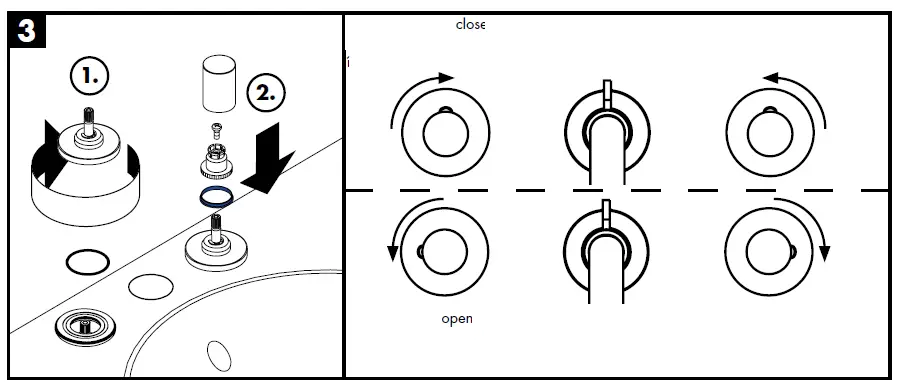

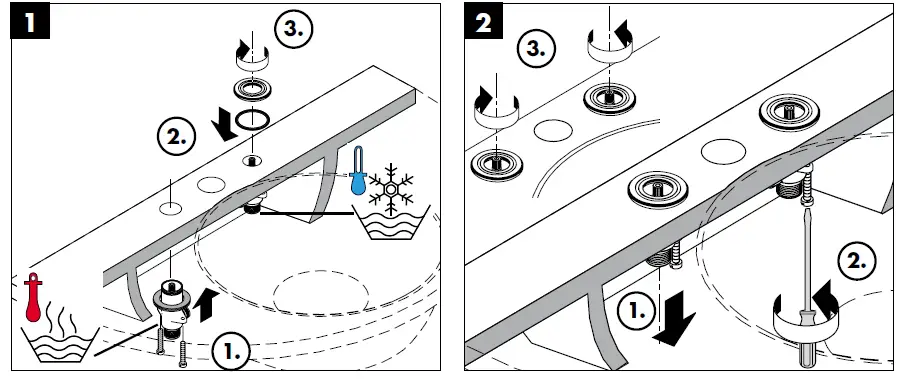

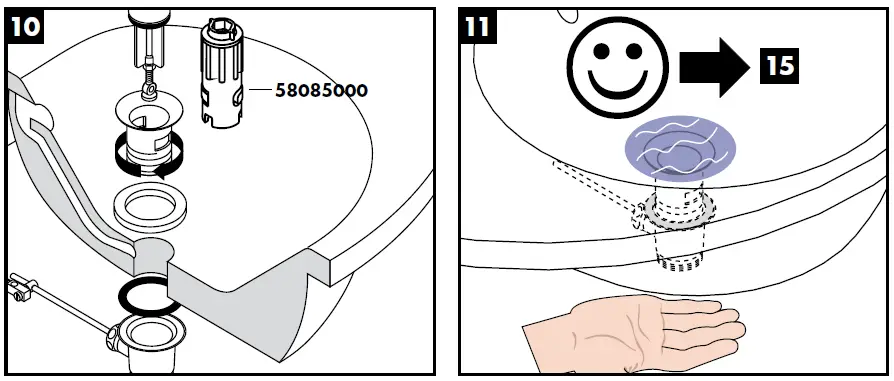

Assembly

Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com

References

• Taps for bathrooms, showers and kitchens | hansgrohe INT
