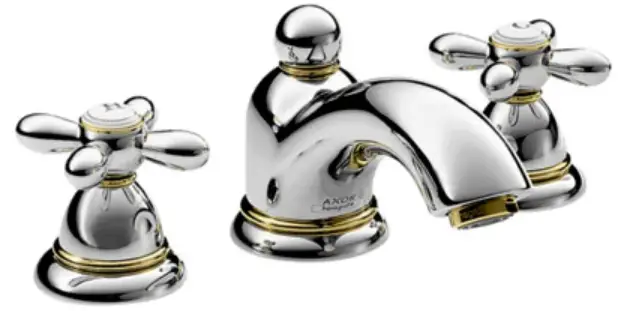

Hansgrohe Axor Carlton 17451xxx Basin Mixer Instruction Manual

hansgrohe AXOR Carlton 17451XXX Basin Mixer Instruction Manual

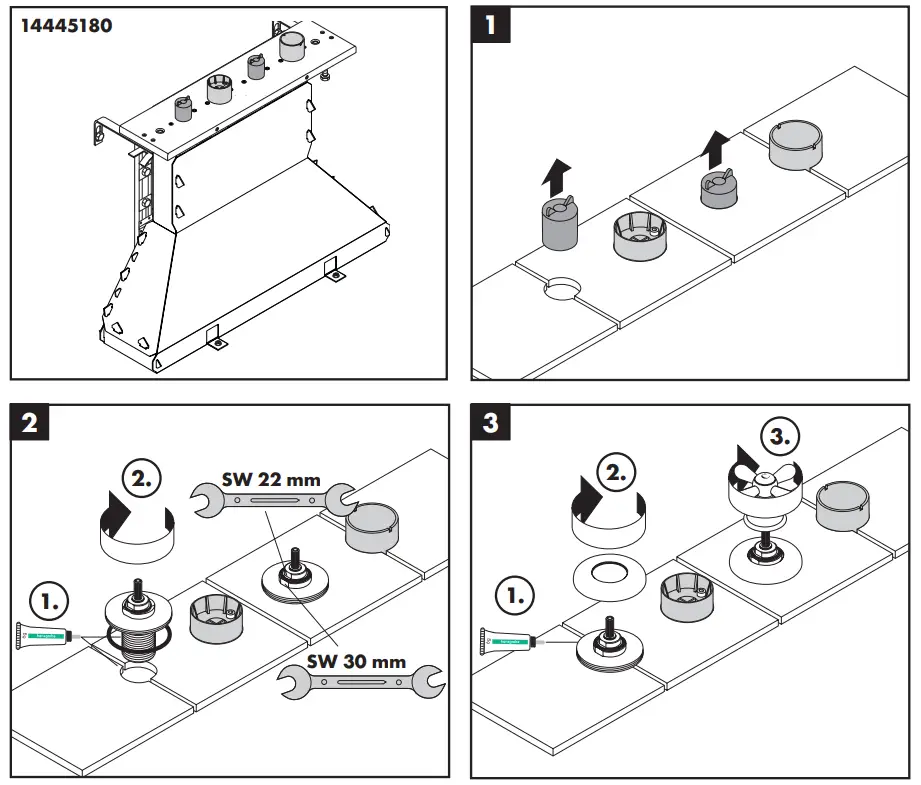

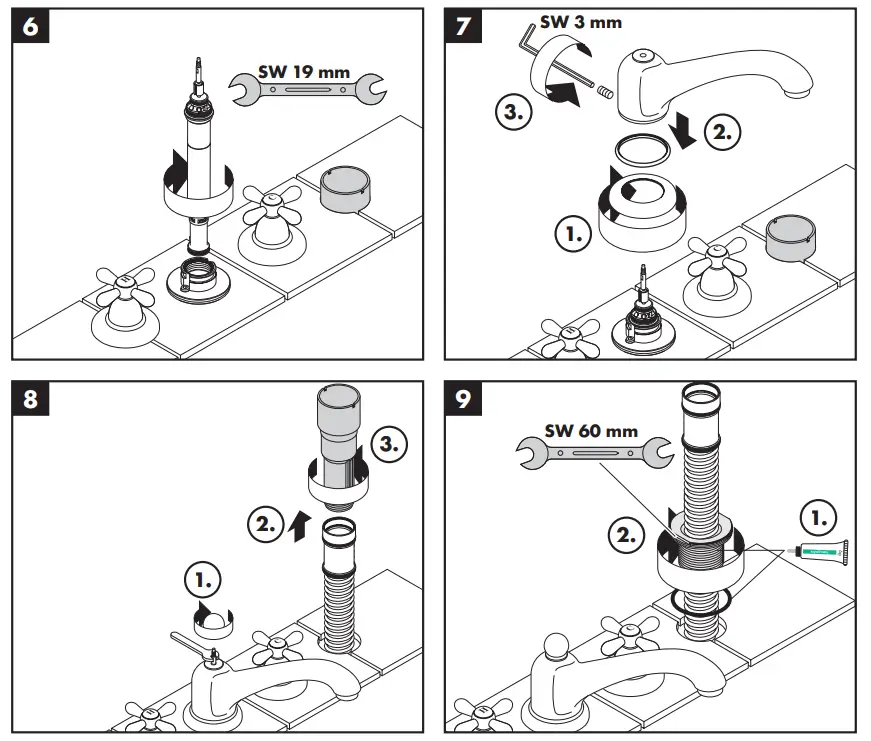

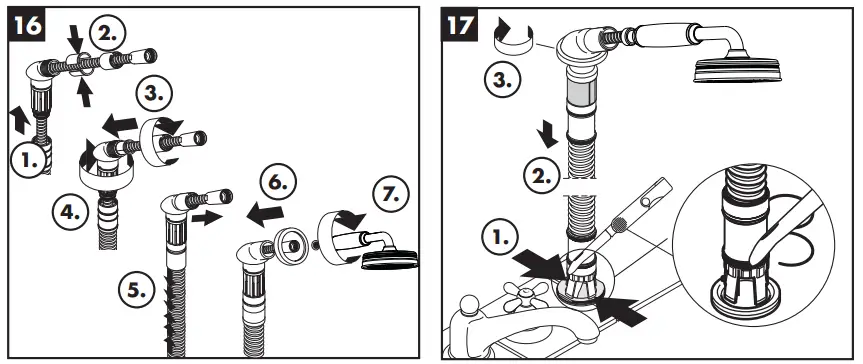

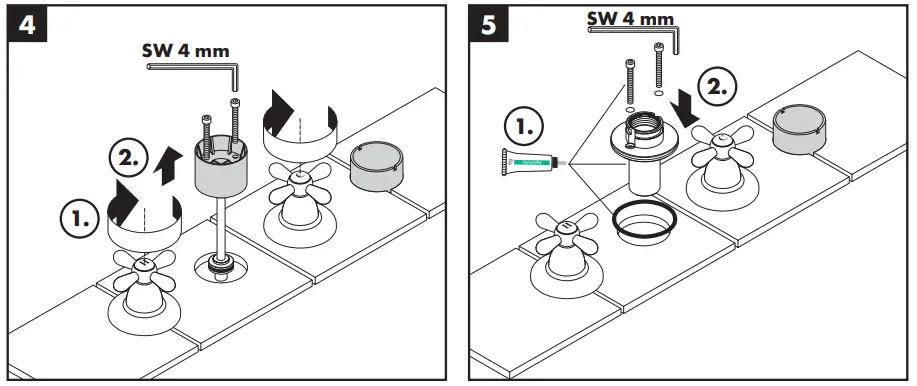

Assembly Instruction

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Connections G 1/2: cold right – hot left anti-pollution function

Symbol description

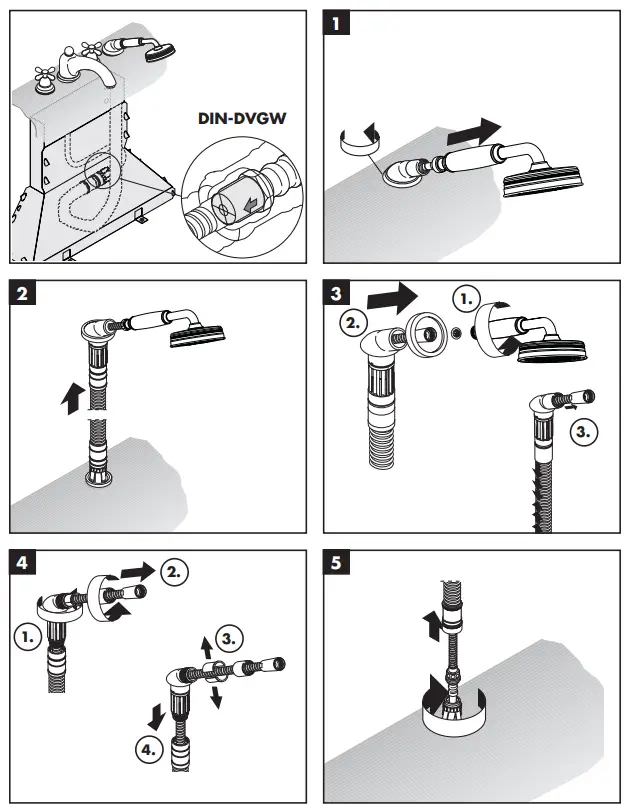

Maintenance non return valve

The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

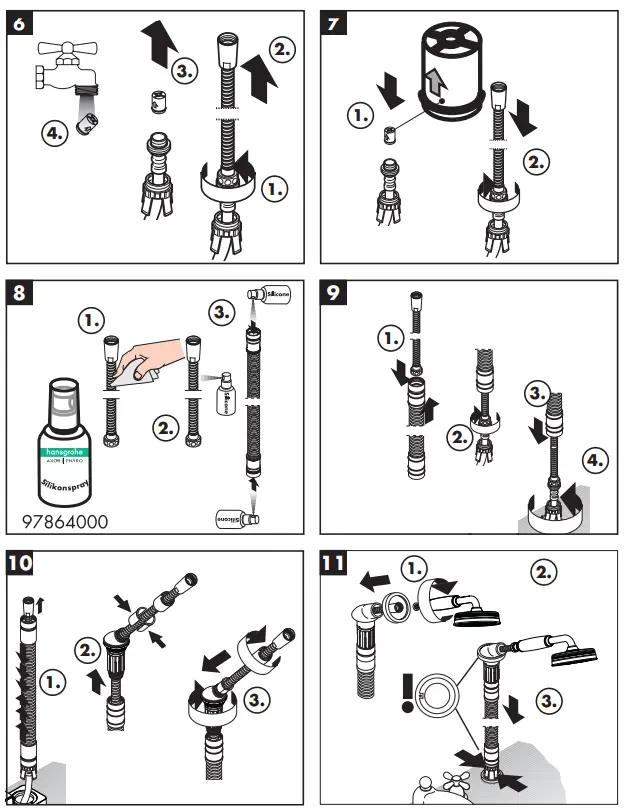

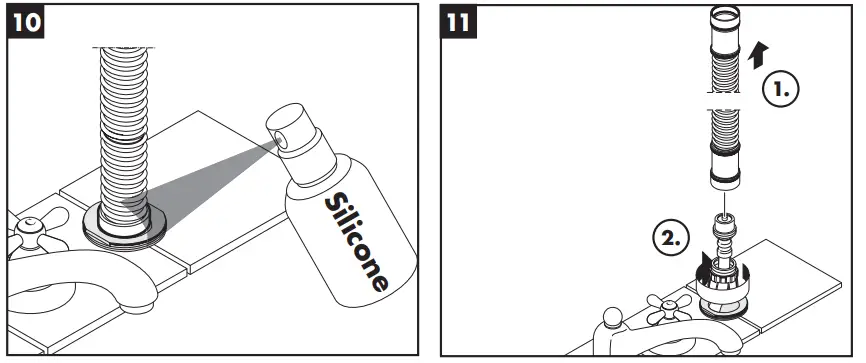

Maintenance Secuflex hose
Repeat cleaning when pull out becomes difficult.

Do not use silicone containing acetic acid!

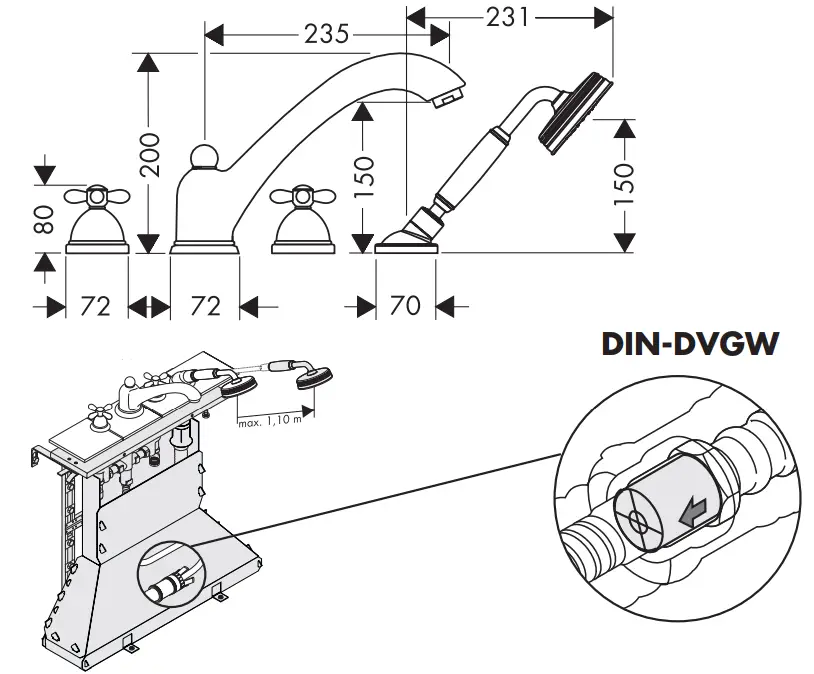

Dimensions

Carlton 17451XXX

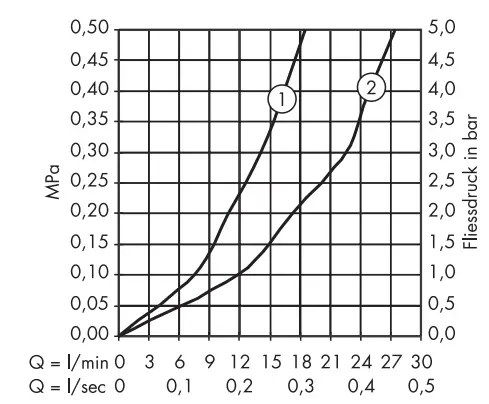

Flow diagram

Carlton 17451XXX

1. Hand shower
2. Bath Spout

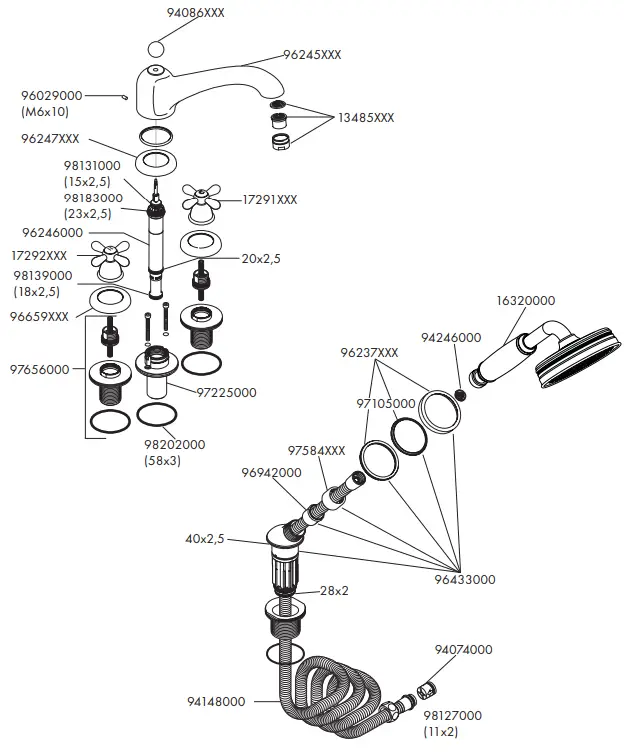

Spare parts

XXX = Colors

000 = chrome plated
090 = chrome plated/gold plated

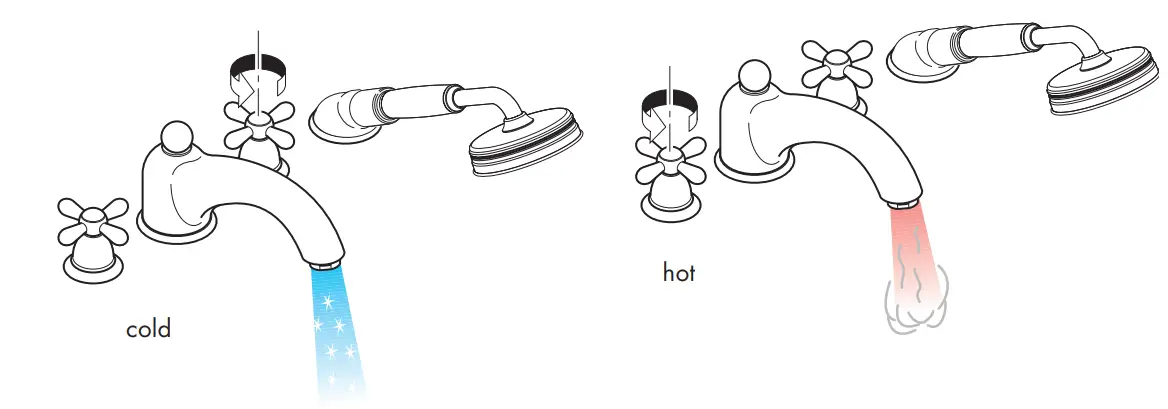

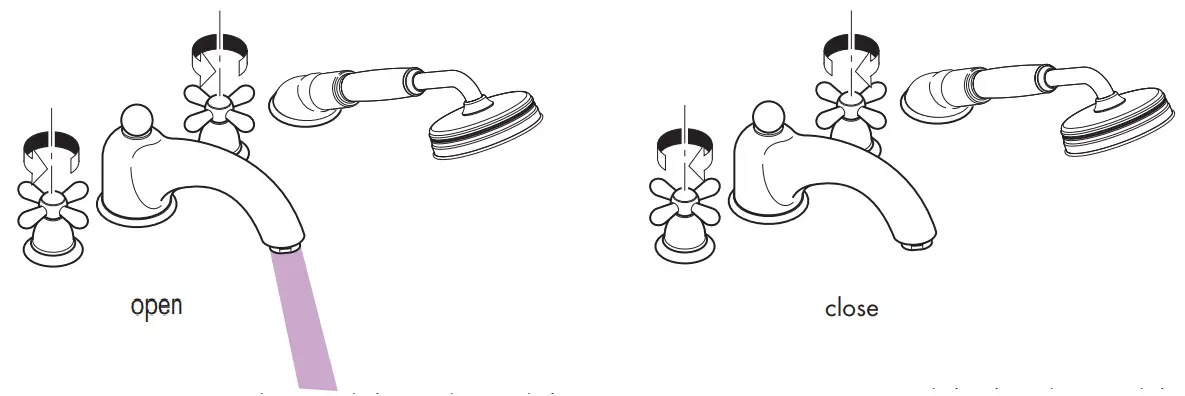

Operation

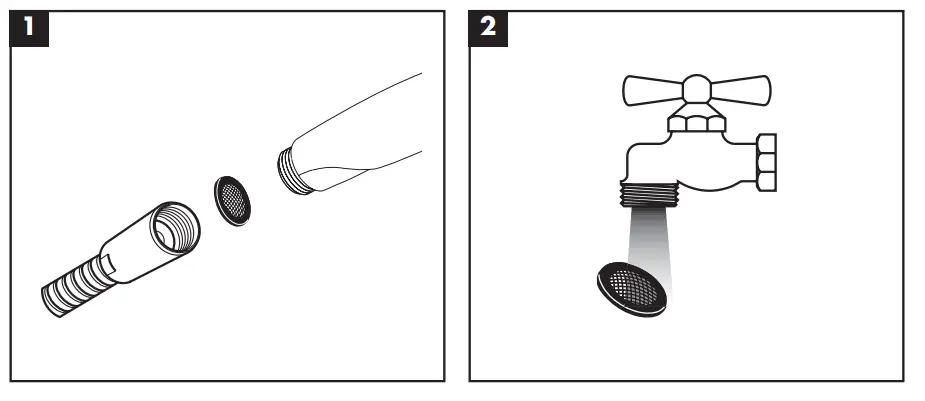

Cleaning

Test certificate
