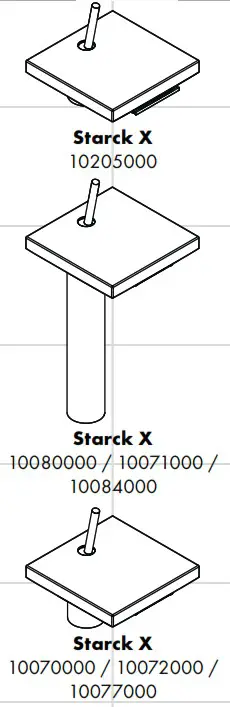

Instructions for use
assembly instructions
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The shower system may only be used for bathing, hygienic and body cleansing purposes. The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.

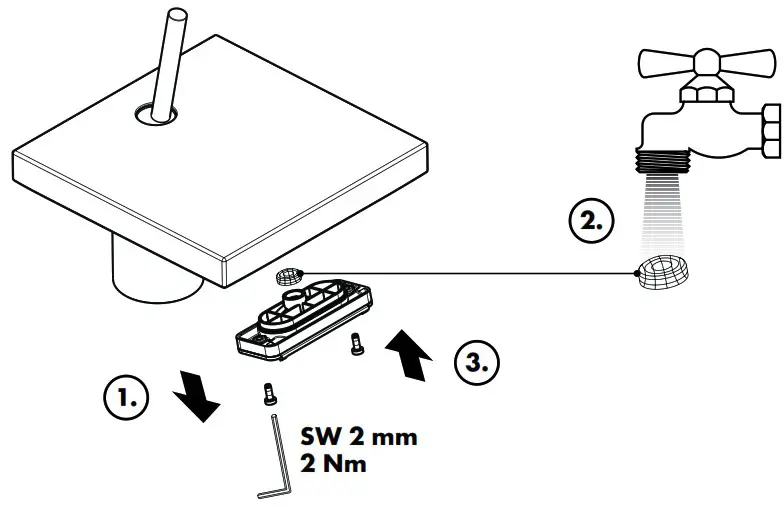

- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

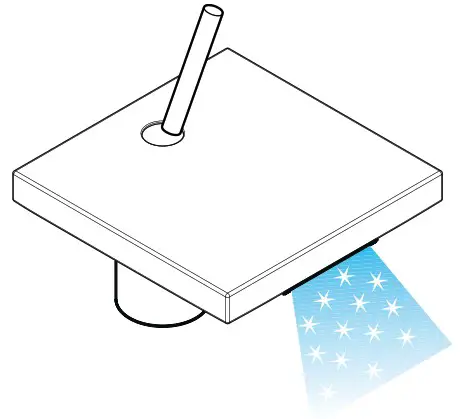

- This mixer is equipped with a flush stream, which enhances the natural side of the life element water. As this flush stream does not contain any air, we recommend the use of very deep basins to prevent water spray.

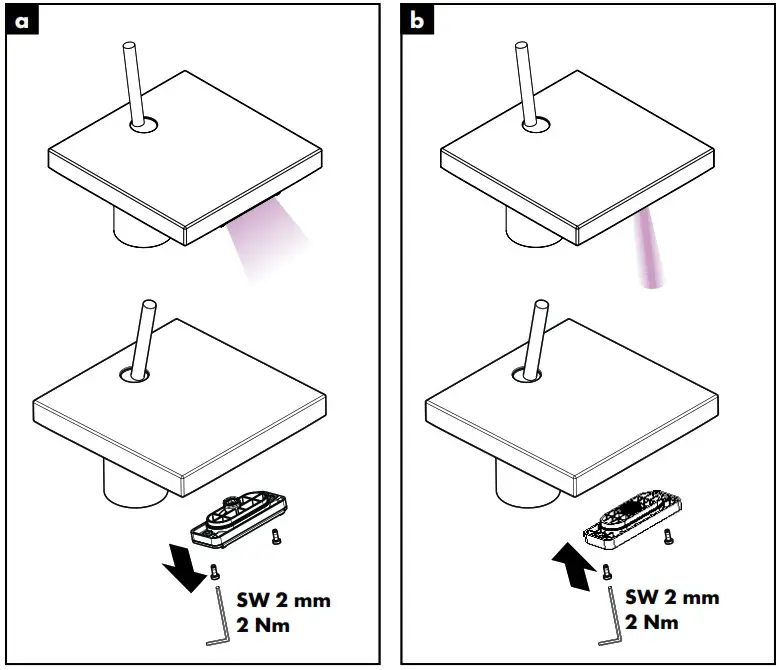

- This mixer series is produced with the following spray pattern – with the spray former with a waterfall. For an alternative spray, an aerator with a round monospray, that can changed easily on the spot, is enclosed (see page 33).
Technical Data
This mixer series-produced with Eco Smart® (flow limiter)
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 MPa (1 MPa = 10 bar = 147 PSI) |
| Hot water temperature: | max. 80°C |
| Recommended hot water temp.: | 65°C |

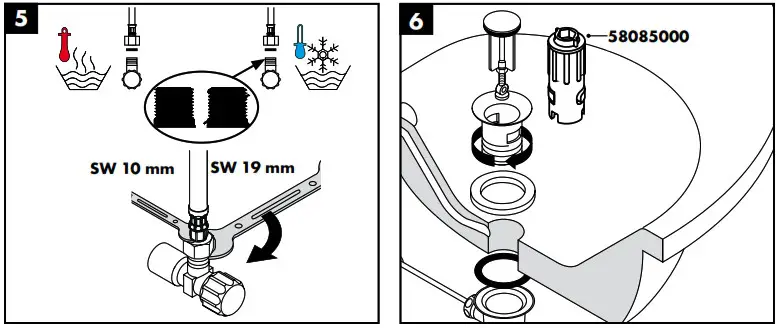

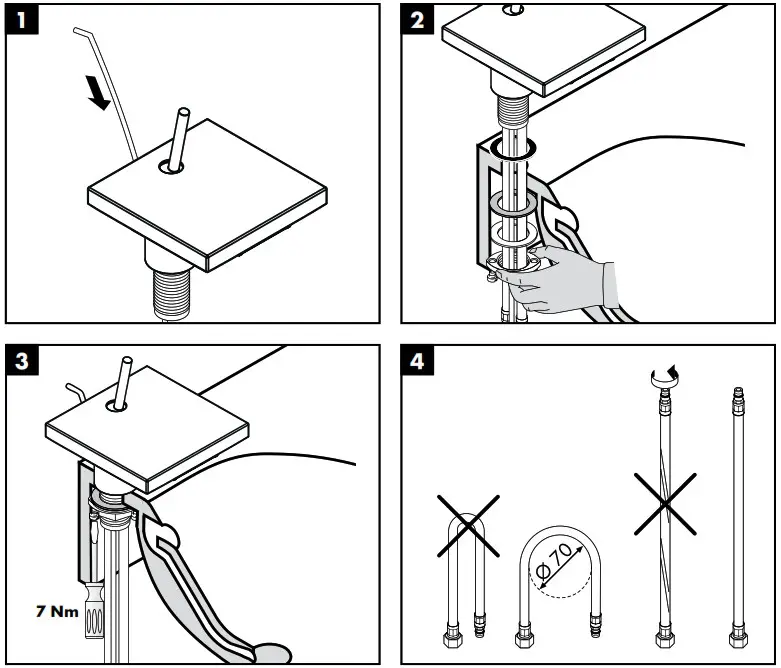

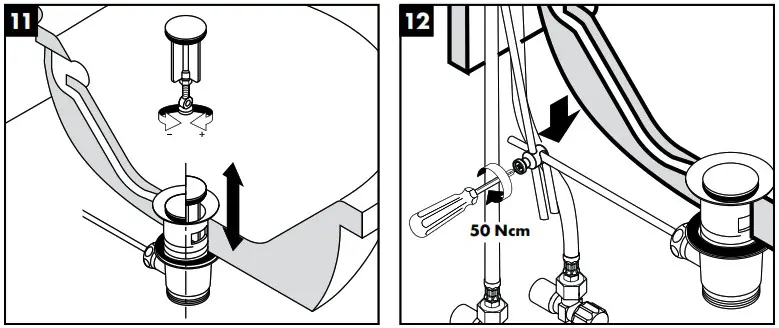

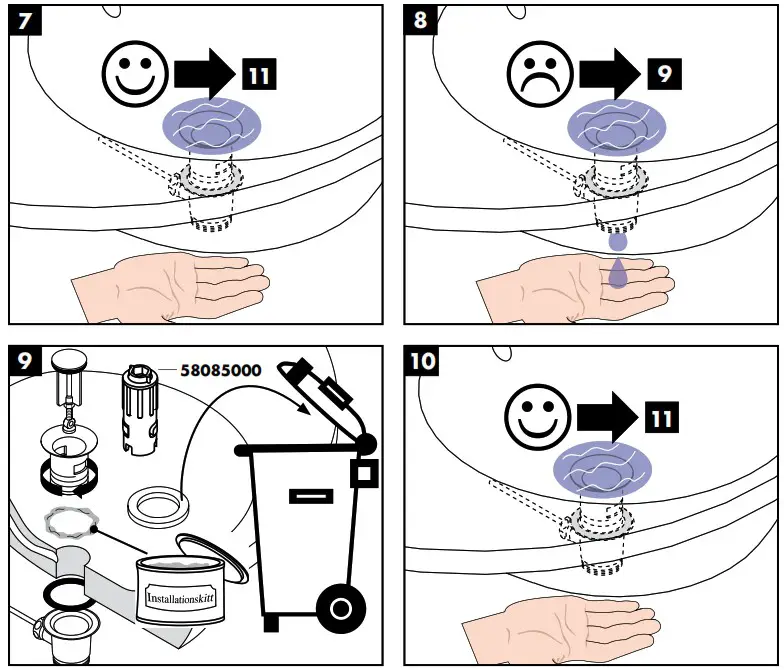

Assembly
Assembly
Symbol description
Do not use silicone containing acetic acid!

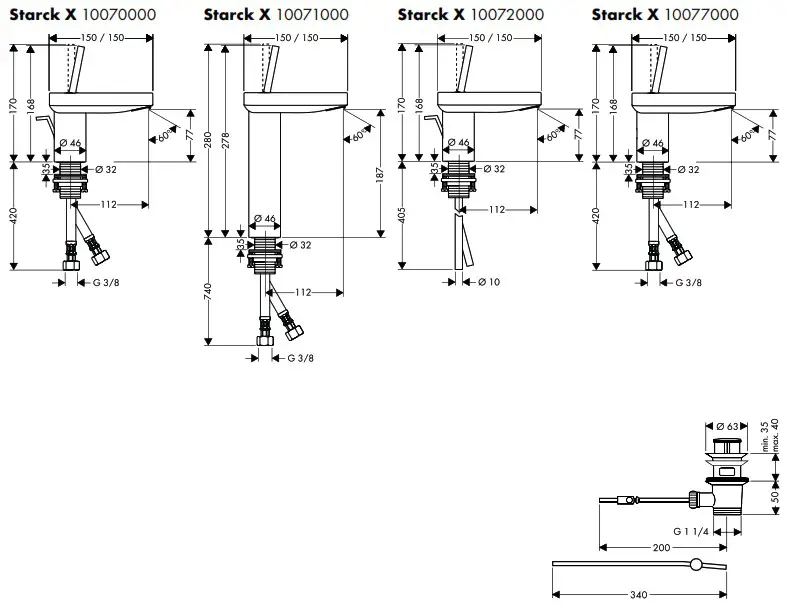

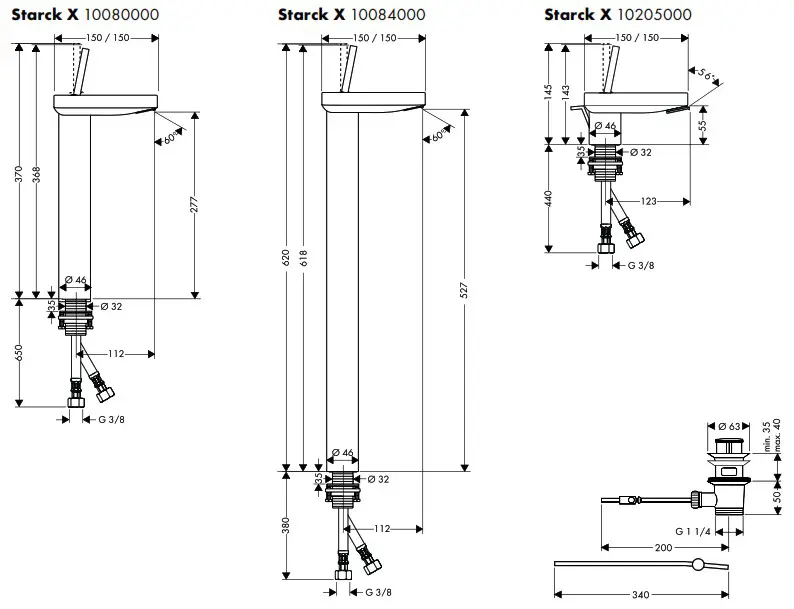

Dimensions
Dimensions

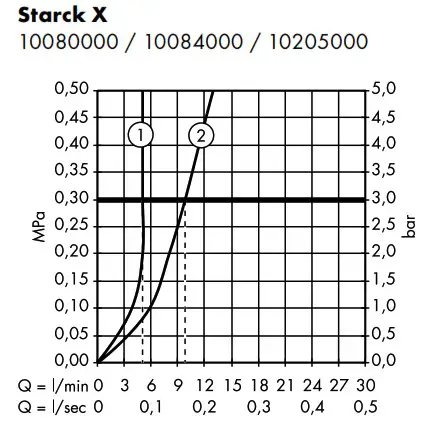

Flow diagram
Flow diagram- with Eco Smart®
- without Eco Smart®

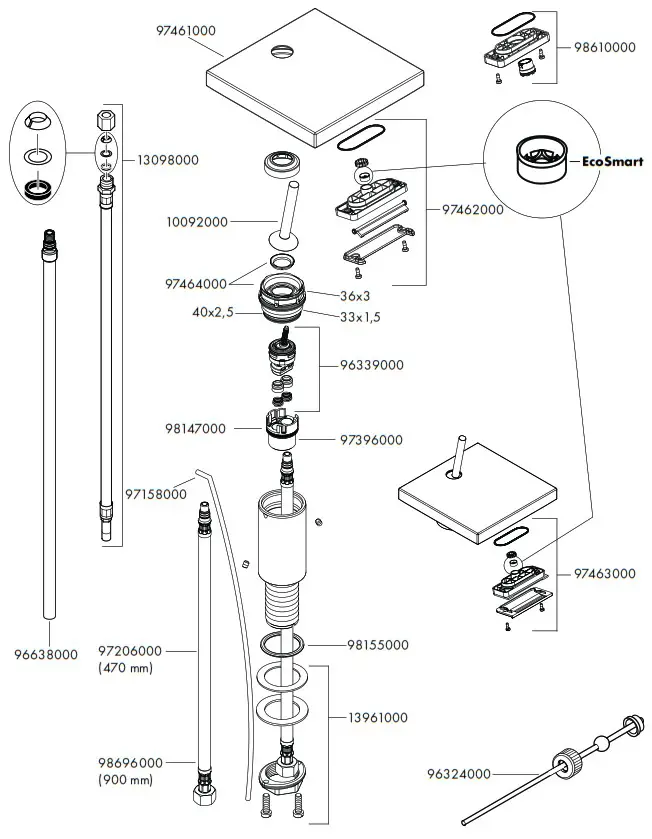

Spare parts
Spare parts
Special accessories
special tool (58085000) order as an extra
Installation kit order as an extra
Operation

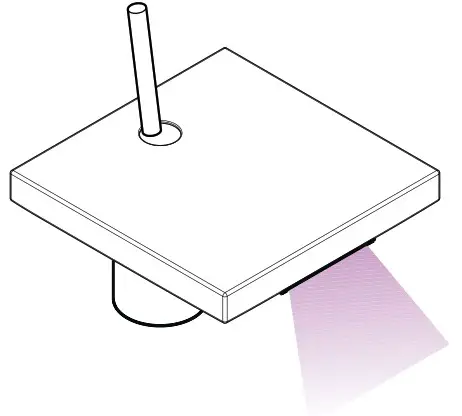

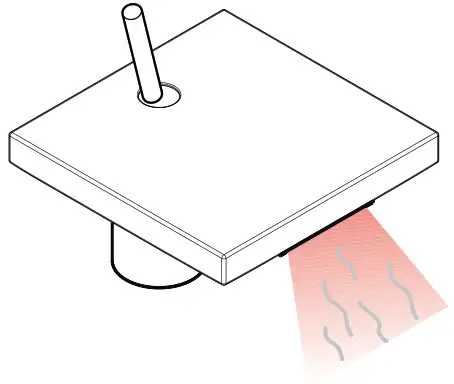

Operation open |  close |
 cold |  hot |

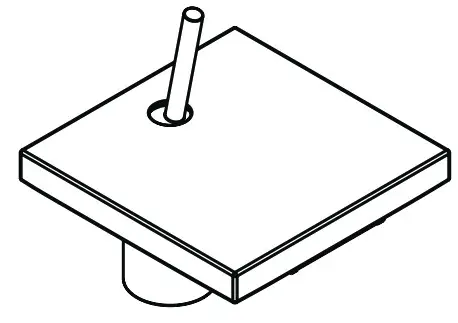

Cleaning
Cleaningand enclosed brochure
Test certificate
Test certificate| P-IX | DVGW | SVGW | ACS | WRAS | KIWA | ETA | |
| 10070000 | P-IX 18080/IO | X | X | X | X | ||
| 10071000 | P-IX 18080/IO | X | X | X | X | X | |
| 10072000 | P-IX 18080/IO | X | X | ||||
| 10077000 | P-IX 18080/IO | X | X | X | X | ||
| 10080000 | P-IX 18080/IO | X | X | X | X | X | |
| 10084000 | P-IX 18080/IO | X | X | X | X | X | |
| 10205000 | P-IX 18080/IO | X | X | X |
Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
09/2010
9.05317 .04
