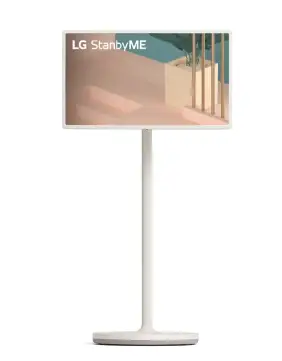

LG 27ART10AKPL Smart Wireless Touchscreen with Stand User Manual
Disassembly

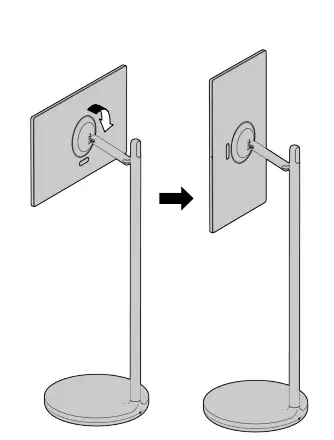

- Position the screen vertically.

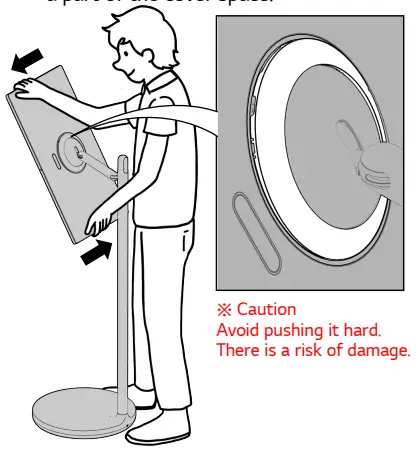

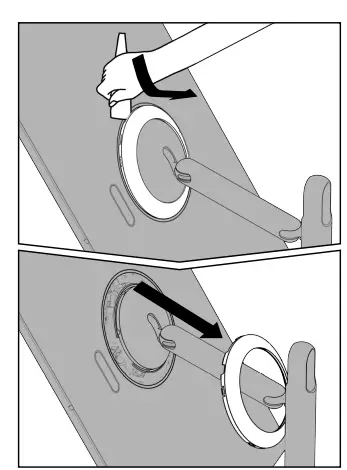

- Push the top of the screen lightly in the direction of the arrow to disassemble a part of the cover space.
- Use a wedge or pull it with your hand to completely disassemble the cover.

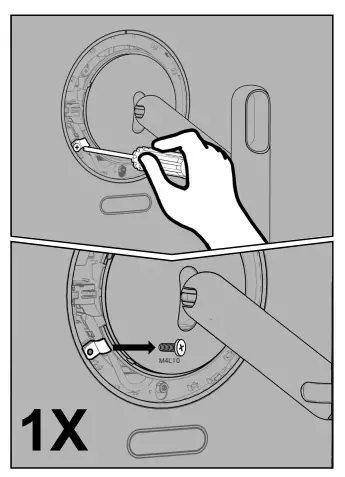

- Disassembly Position the screen vertically. 2Push the top of the screen lightly in the direction of the arrow to disassemble a part of the cover space. 3 Use a wedge or pull it with your hand to completely disassemble the cover. Position the screen horizontally and
disassemble the cable holder screw.
- Lower the rear lever and push the bottom of the screen forward, as shown in the figure.

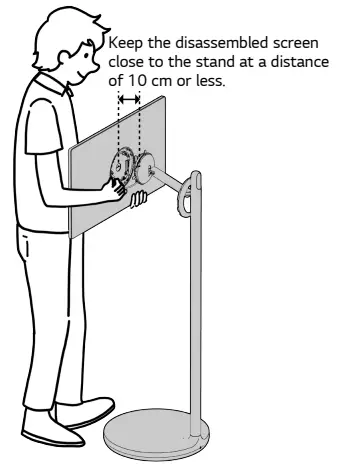

- Lift the screen, separate the top of the screen, and hold the screen.
- Press the plug lock, push it in the direction of the arrow, and then disassemble the screen completely.

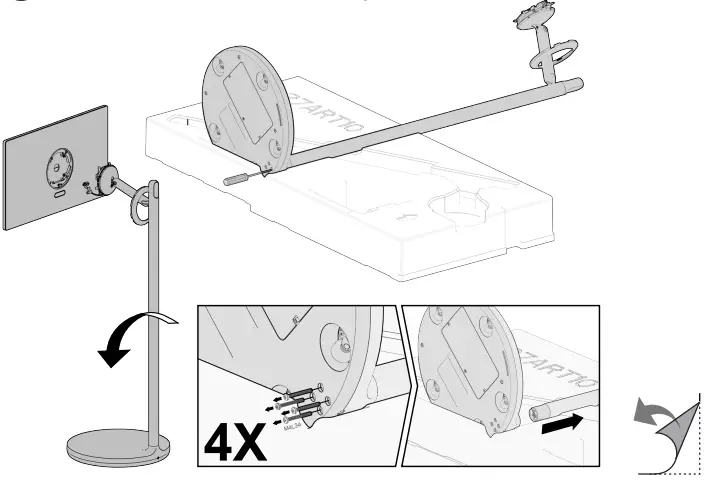

- Lay the stand on the box packaging, remove the four screws, and then disassemble the stand bar.
