LG 27ART10AKPL ART10 Series 27 Inch StanbyME Wireless Portable Touch Screen Monitor

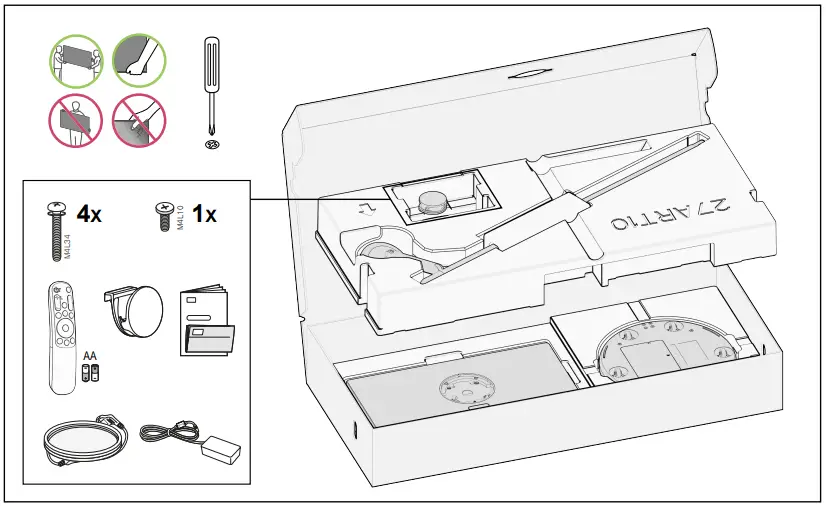

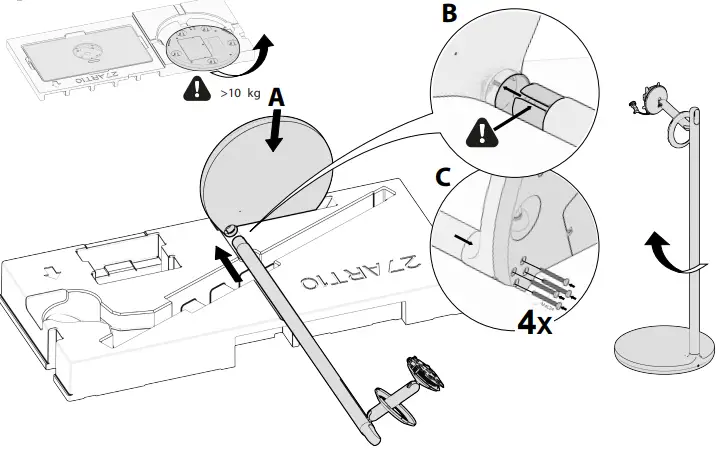

1. A Insert the stand base into the styrofoam groove as shown in the gure.
   B Insert the bar into the hole of the stand base along the groove until it reaches the parting line.
   C Secure the four screws.

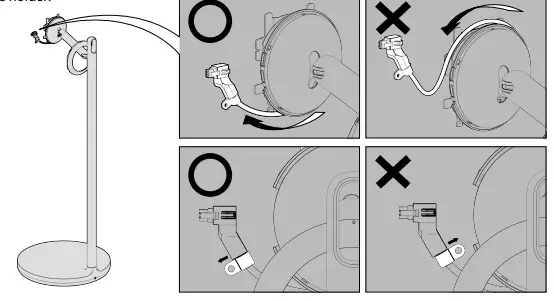

2. Check the orientation of the power cable and cable holde

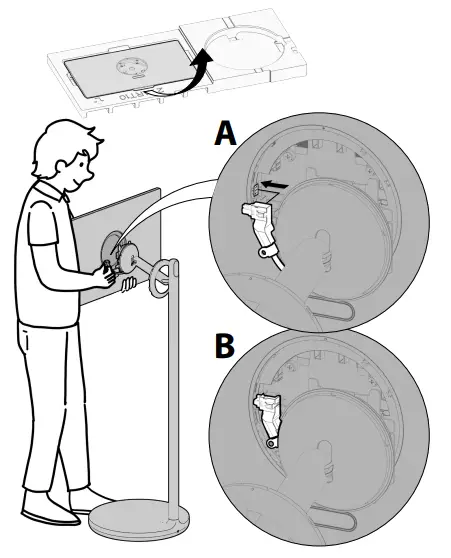

3. 3Hold the screen and secure the power plug.
   A Check the position of the power plug on the back cover of the screen.
   B Secure it tightly to the back cover side.

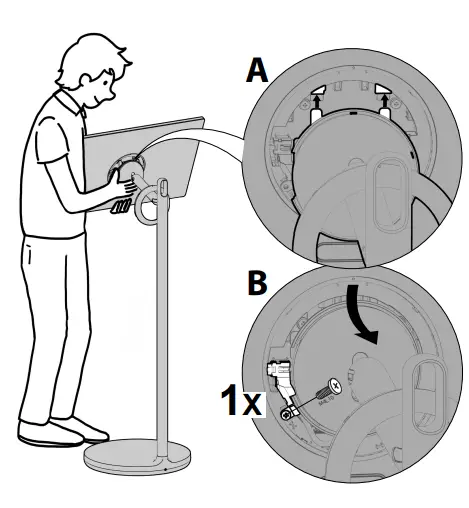

4. Secure the screen to the stand.
   A Insert the stand hook into the back cover groove and tighten while pushing the lower part, as shown in the gure. (Push it until you hear a [click] sound.)
   B Secure one screw to the cable holder.

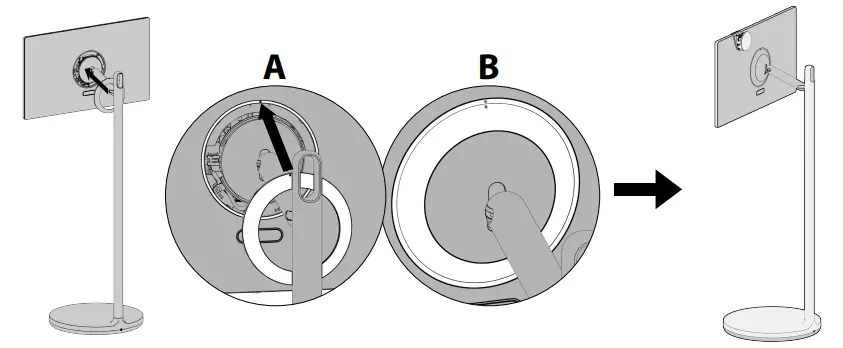

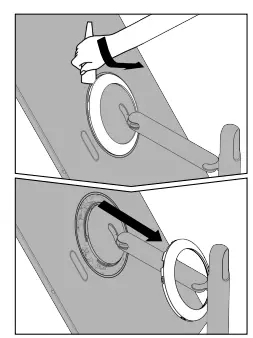

5.  Secure the ring cover of the stand.
   A Align the screen back cover and ring cover [●mark] and install them.
   B Check if it sits tightly as shown in the gure.


Disassembly

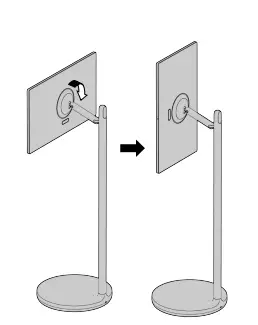

1. Position the screen verticall

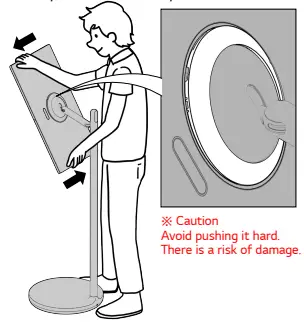

2. Push the top of the screen lightly in the direction of the arrow to disassemble a part of the cover space.

3. Use a wedge or pull it with your hand to completely disassemble the cover.

4. Position the screen horizontally and disassemble the cable holder screw

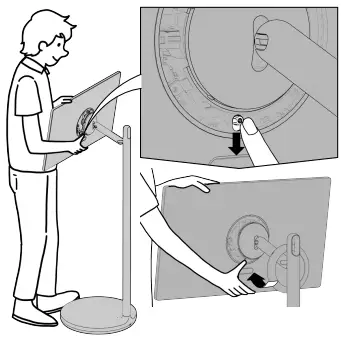

5. Lower the rear lever and push the bottom of the screen forward, as shown in the figure

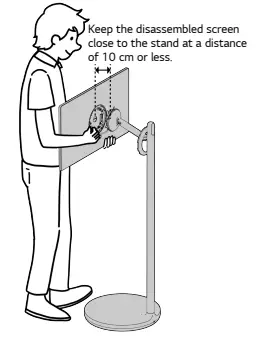

6. Lift the screen, separate the top of the screen, and hold the screen

7. Press the plug lock, push it in the direction of the arrow, and then disassemble the screen completely

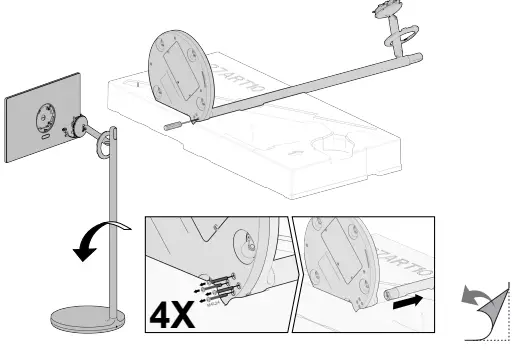

8. 8Lay the stand on the box packaging, remove the four screws, and then disassemble the stand bar.
