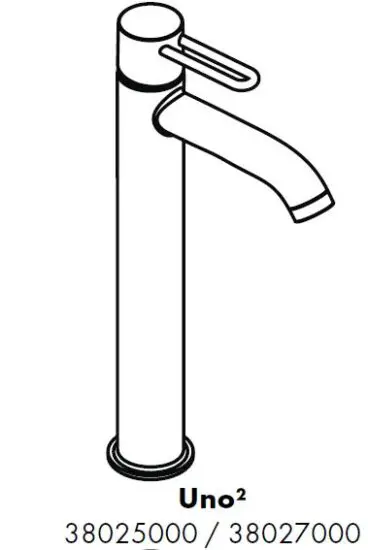

FIG 1.JPG

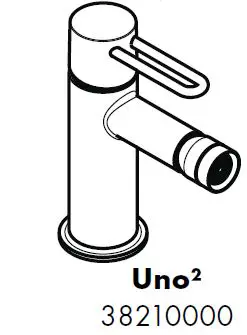

FIG 2.JPG



warning icon Safety Notes

  • Gloves should be worn during installation to prevent crushing and cutting injuries.
  • The shower system may only be used for bathing, hygienic and body cleansing purposes.
  • The hot and cold supplies must be of equal pressures.



Installation Instructions

  • The fitting must be installed, flushed and tested after the valid norms.
  • If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

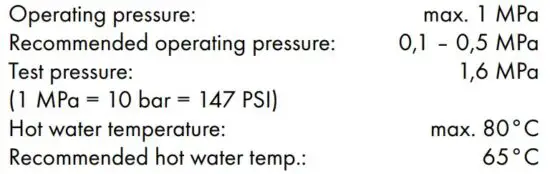

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

FIG 3 Technical Data.JPG

Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

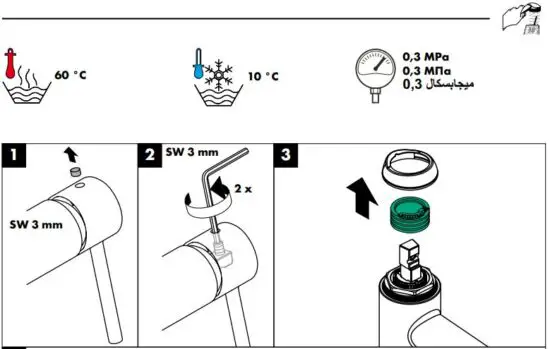

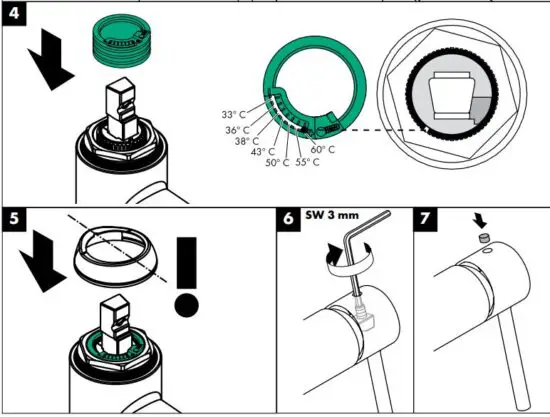

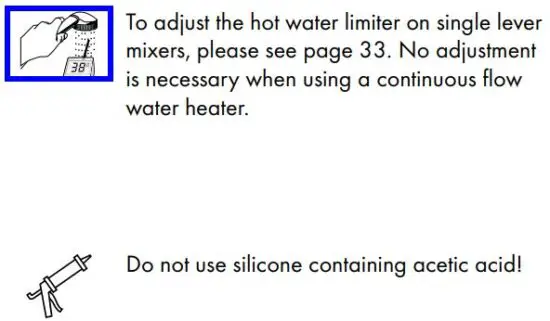

Symbol description

FIG 4 Symbol description.JPG

FIG 9 Symbol description.JPG

FIG 10 Symbol description.JPG

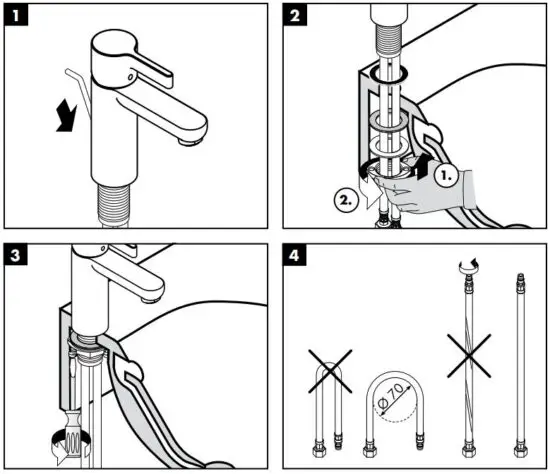

Assembly

FIG 5 Assembly.JPG

FIG 6 Assembly.JPG

FIG 7 Assembly.JPG

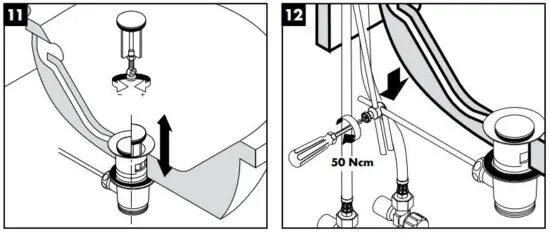

FIG 8 Assembly.JPG

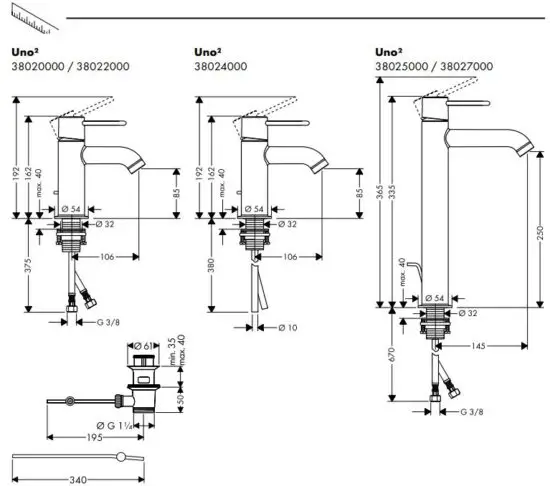

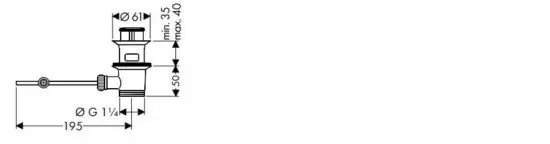

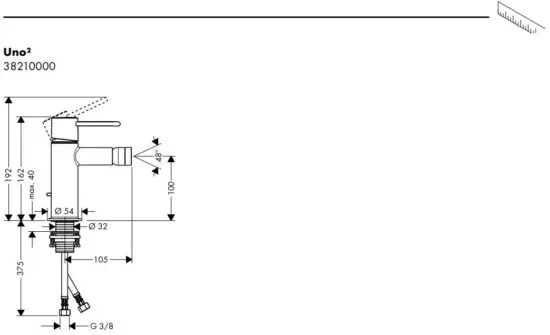

Dimensions

FIG 11 Dimensions.JPG

FIG 13 Dimensions

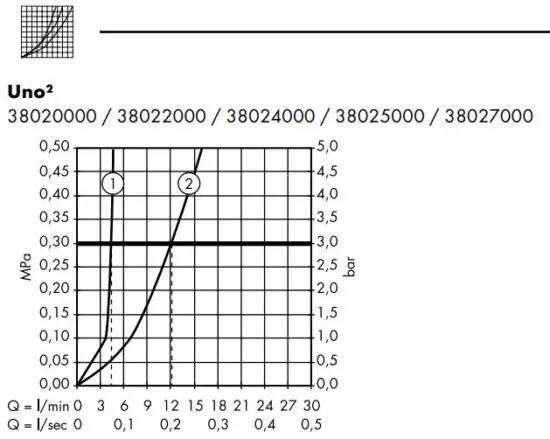

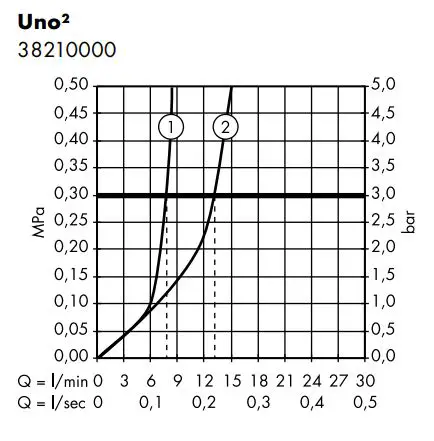

Flow diagram

FIG 12 Flow diagram.JPG

FIG 14 Dimensions.JPG

FIG 15 Flow diagram.JPG

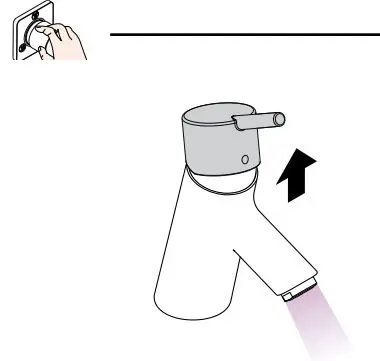

Operation

FIG 16 Operation.JPG

Open



FIG 17 Operation.JPG

Close



FIG 18 Operation

Cold



FIG 19 Operation.JPG

hot

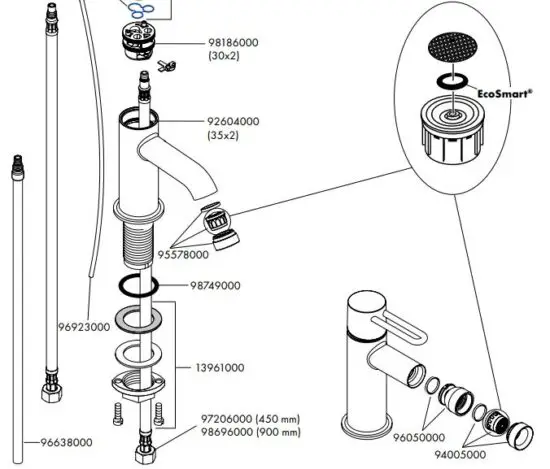

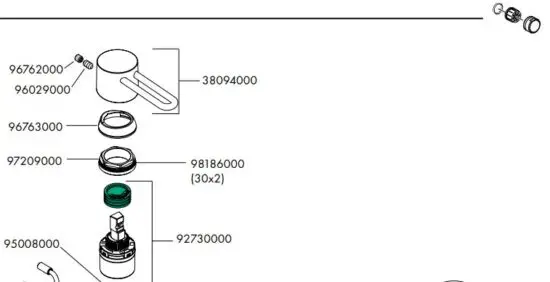

Spare parts

FIG 20 Spare parts.JPG

FIG 21 Spare parts.JPG

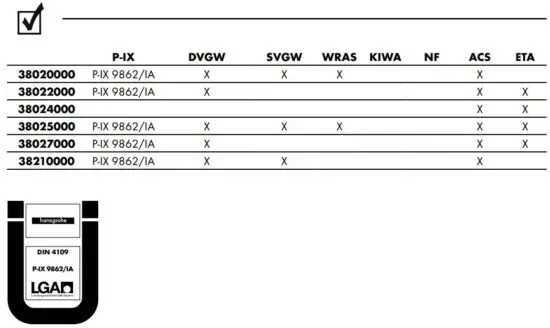

Test certificate

FIG 22 Test certificate.JPG
