Hansgrohe 32040000 Talis S2 Lever Basin Mixer Instruction Manual

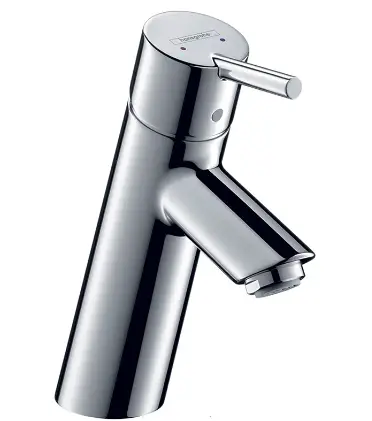

hansgrohe 32040000 TALIS S2 Lever Basin Mixer

Safety Notes

• Gloves should be worn during installation to prevent crushing and cutting injuries.
• The shower system may only be used for bathing, hygienic and body cleansing purposes.
• The hot and cold supplies must be of equal pressure.

Installation Instructions

• The fitting must be installed, flushed and tested according to the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0.1 0.5 MPa
• Body pressure: 1.6 MPa  (1 MPa = 10 bar = 147 PSI)
• Hot water temperature: max. 80°C
• Recommended hot water temp.: 65°C

Hansgrohe mixers can be used together with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.

Symbol description

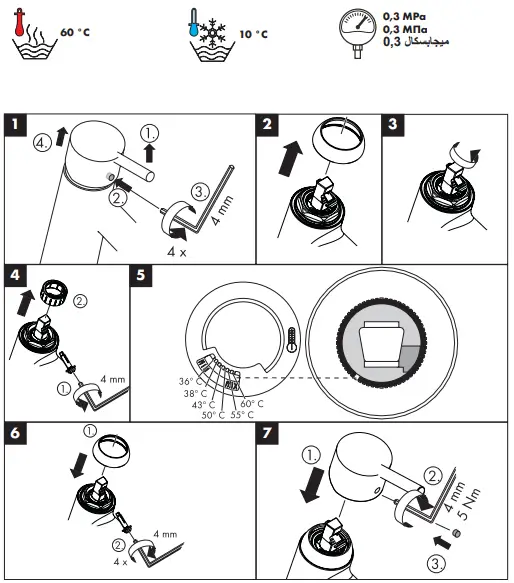

• To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
• Do not use silicone containing acetic acid!

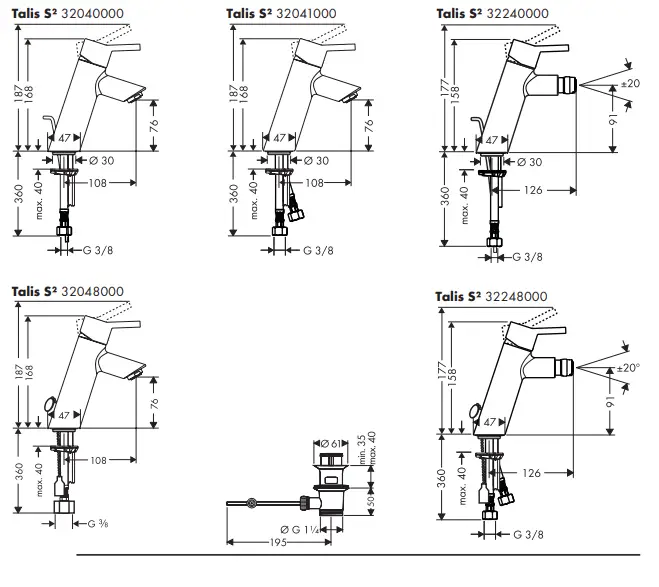

Dimensions

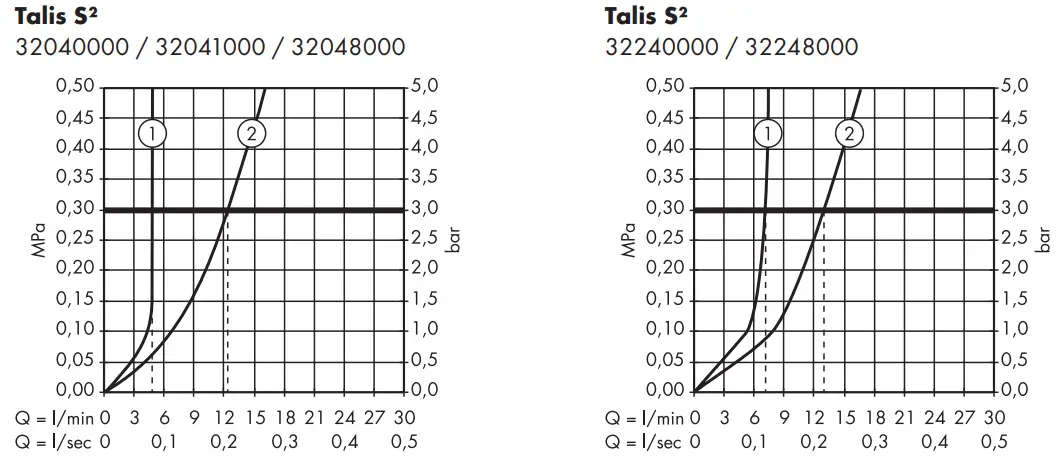

Flow diagram

• with EcoSmart®

• without EcoSmart®

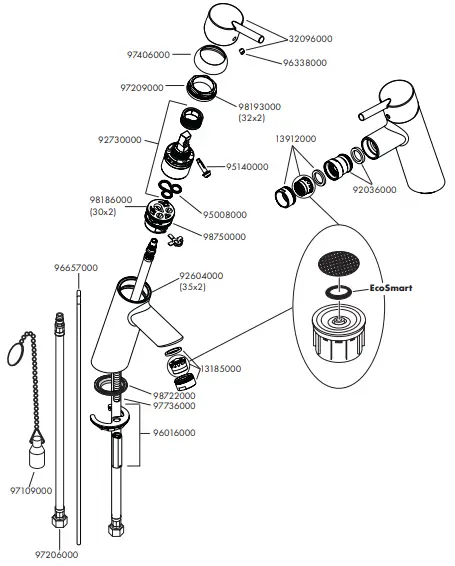

Spare parts

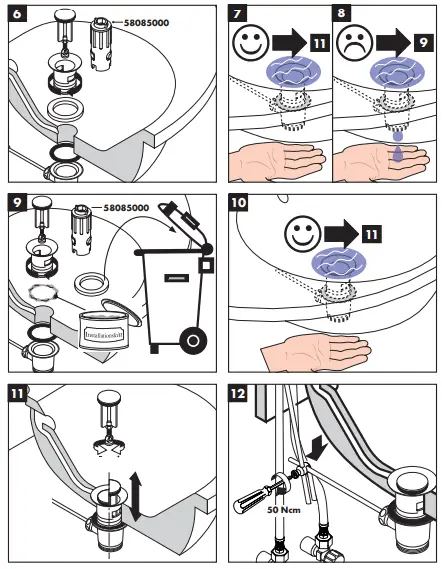

Special accessories

• special tool 58085000 (order as an extra)
• Installation kit (order as an extra)
• seal 98996000 (order as the extra)

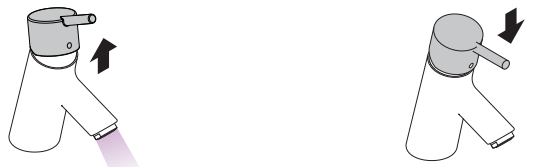

Operation

• open
• close
• cold
• hot

Test certificate

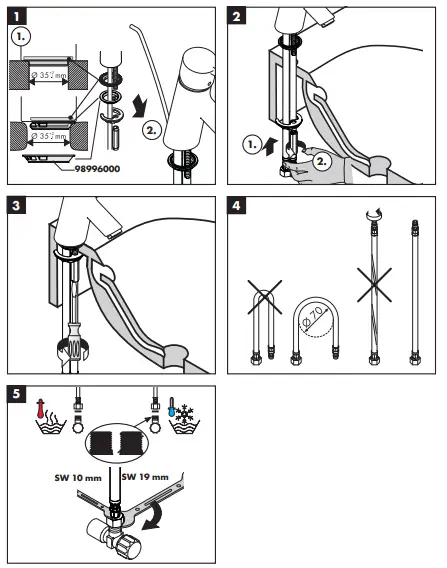

Assembly
