Hansgrohe 31614000 Talis E2 Single Lever Basin Mixer Tap Instruction Manual

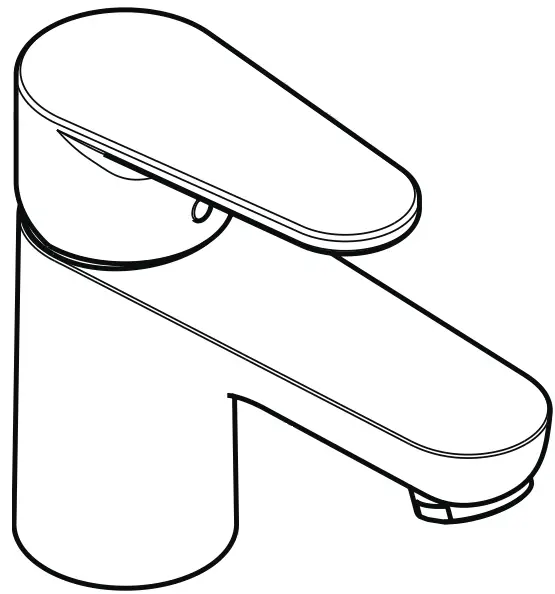

hansgrohe 31614000 Talis E2 Single Lever Basin Mixer Tap

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0,1 – 0,5 MPa
• Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
• Hot water temperature: max. 80°C
• Recommended hot water temp.: 65°C

Hansgrohe mixers can be used together with hydraulically and thermic ally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

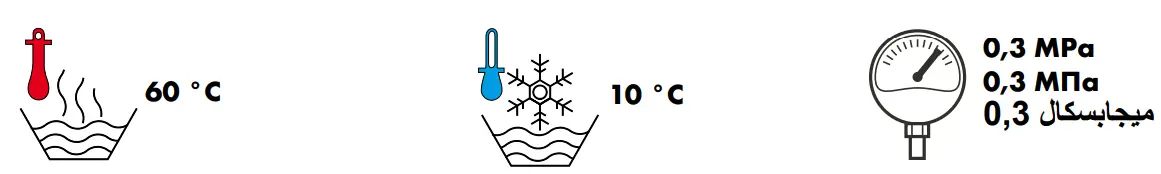

Symbol description

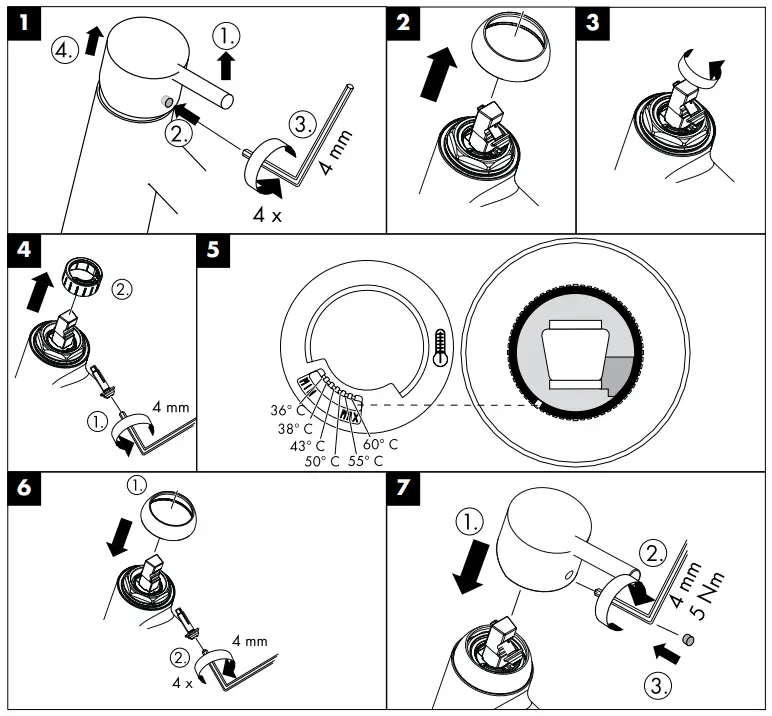

To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

Do not use silicone containing acetic acid!

Special accessories

special tool (58085000) order as an extra

Installation kit order as an extra

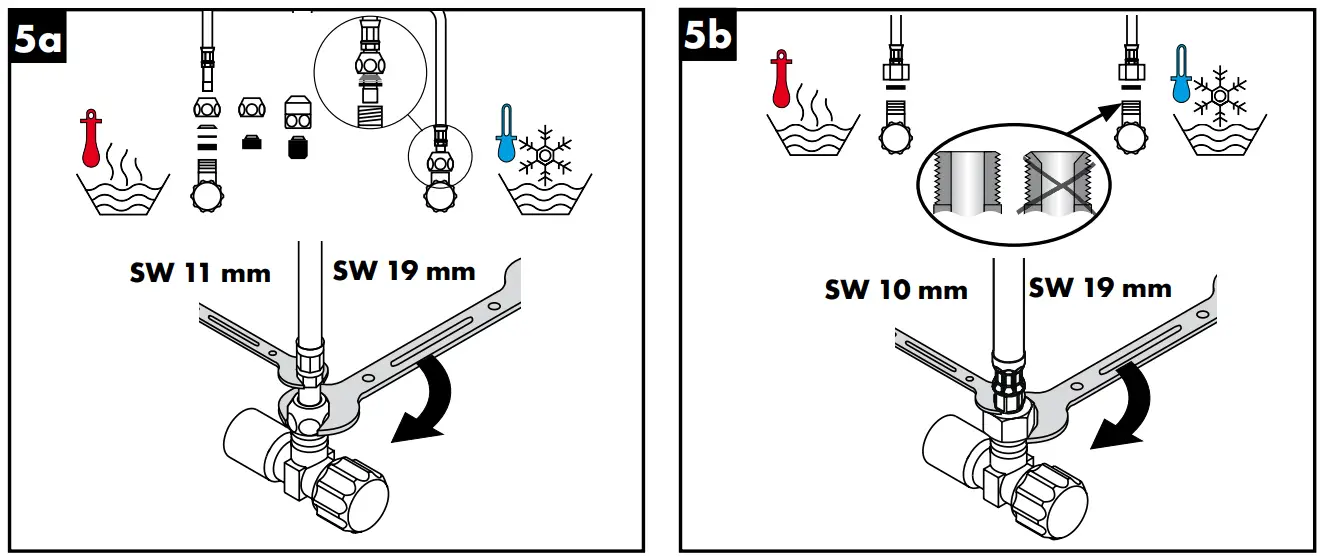

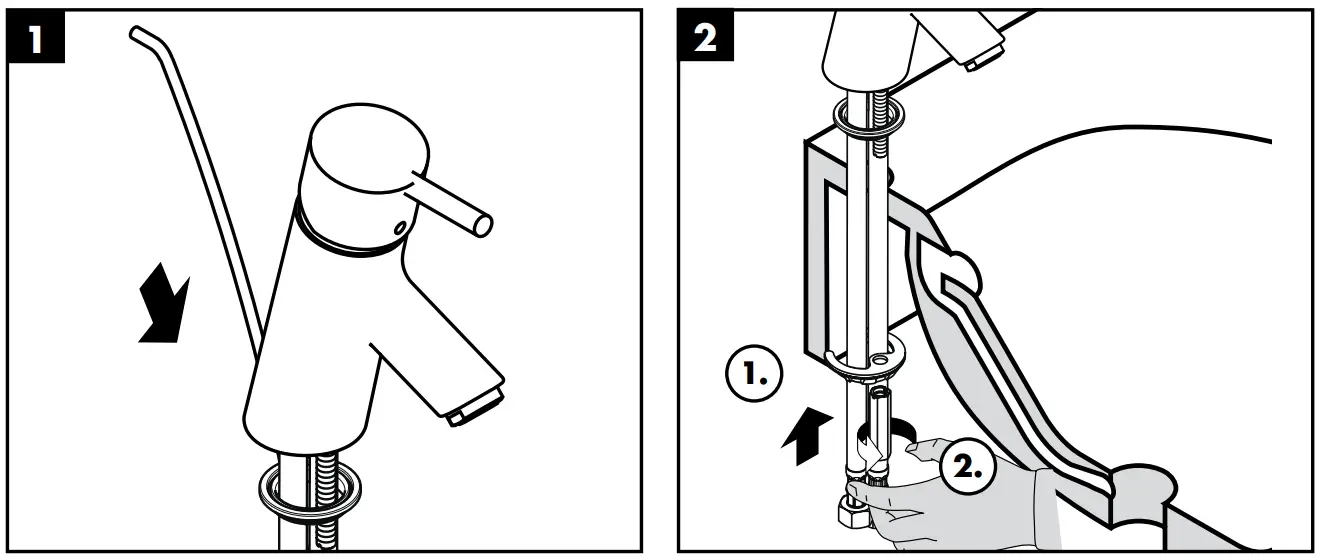

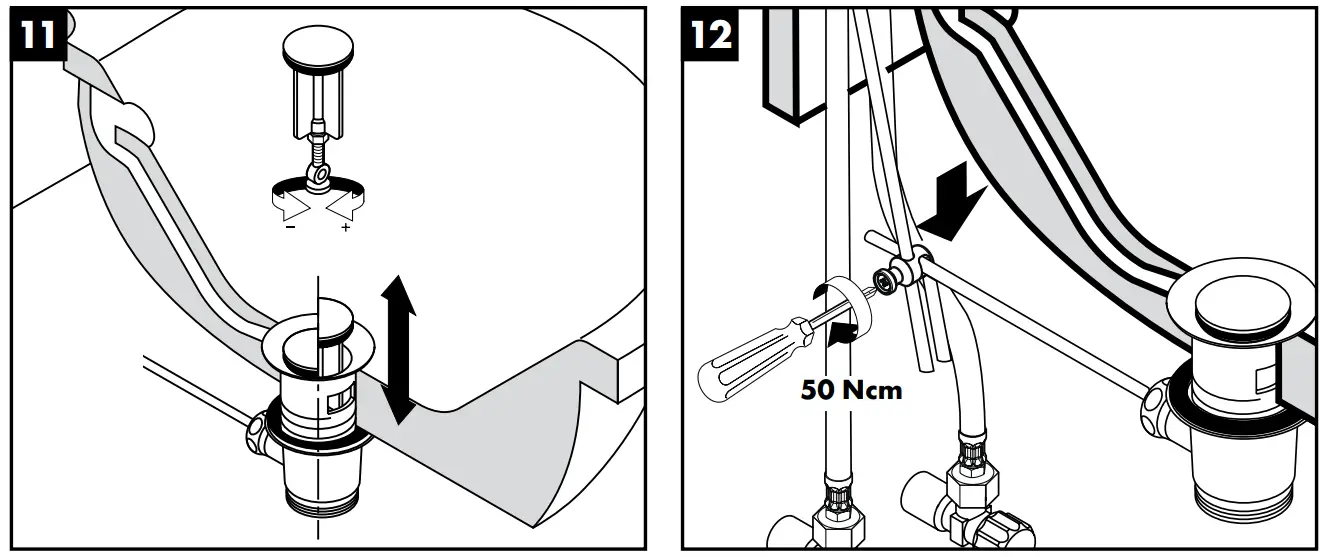

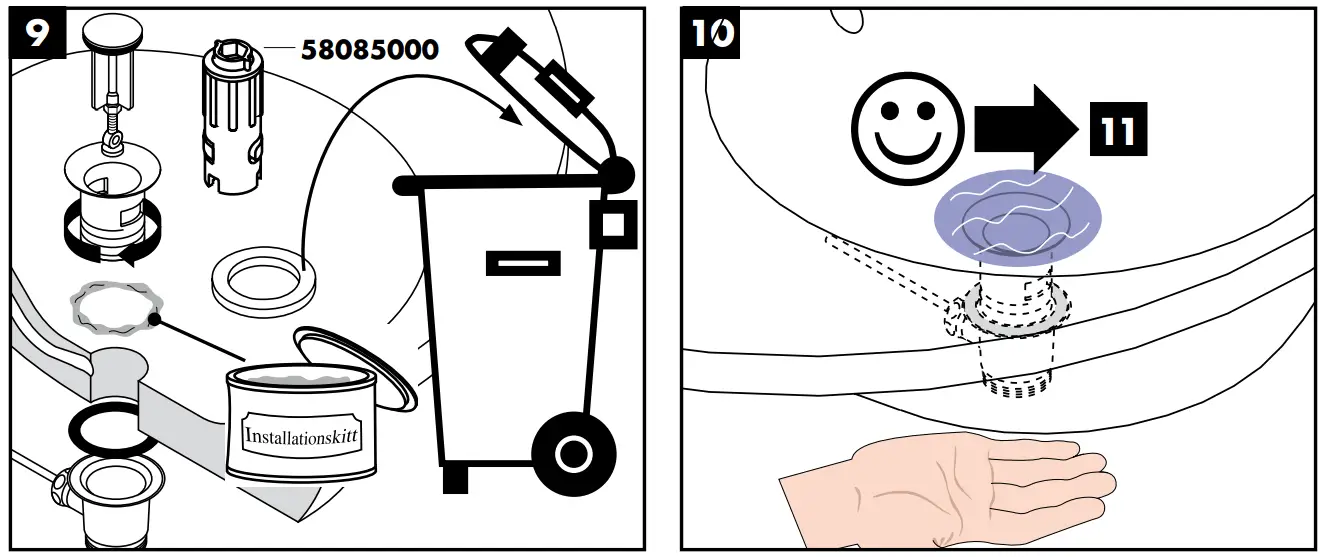

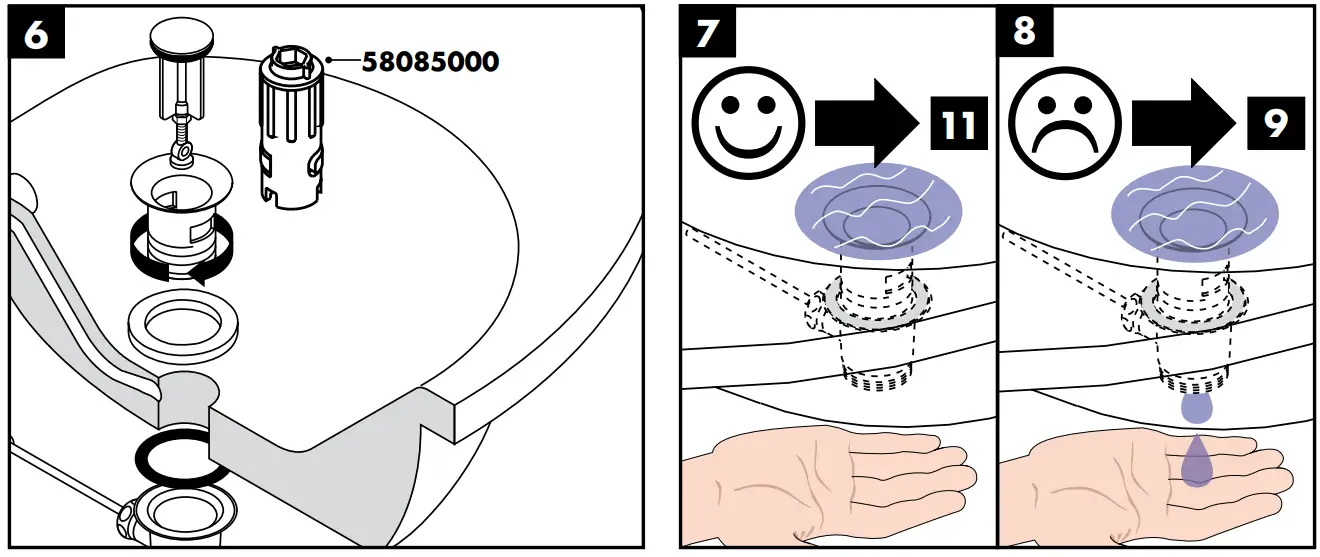

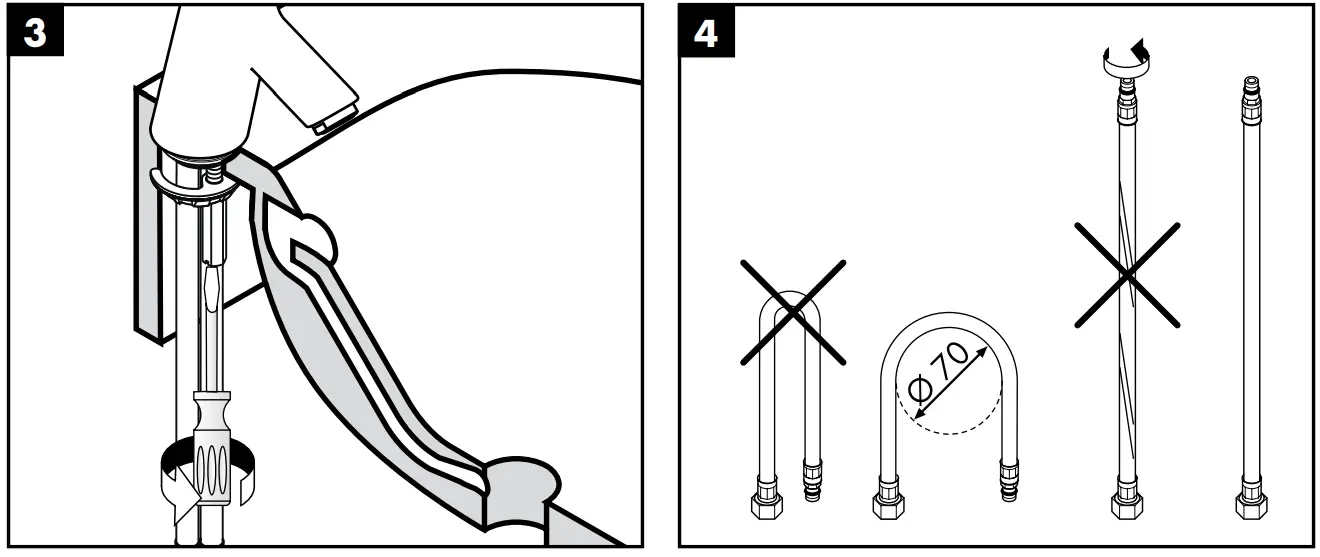

 Assembly

Operating Instruction

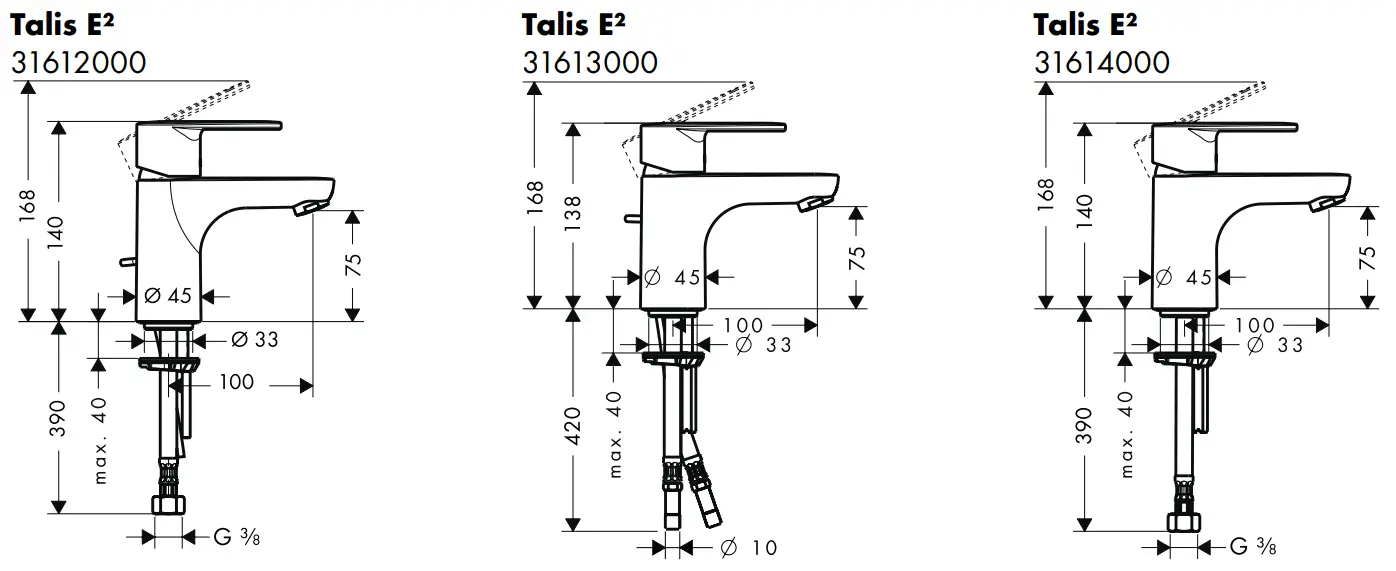

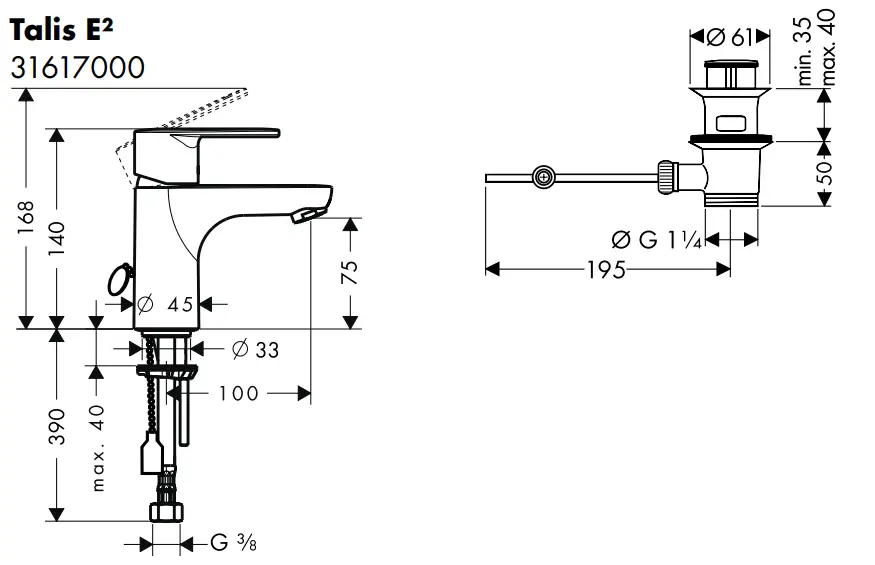

Dimensions

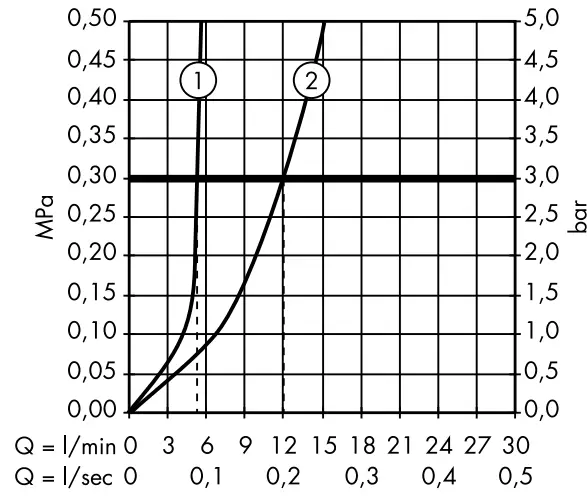

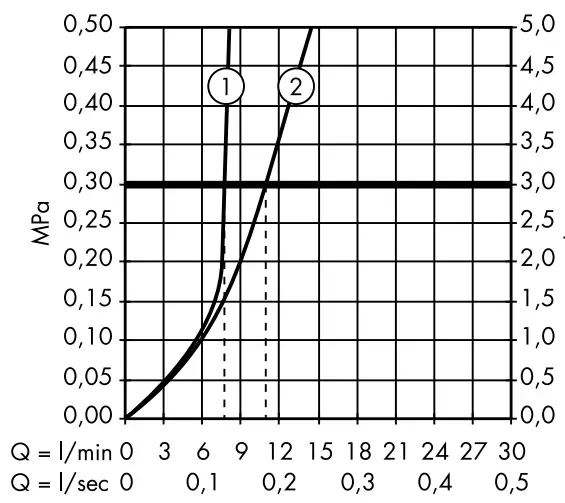

Flow diagram

① with EcoSmart®
② without EcoSmart®

Talis E²
31612000 / 31613000 / 31614000 / 31617000

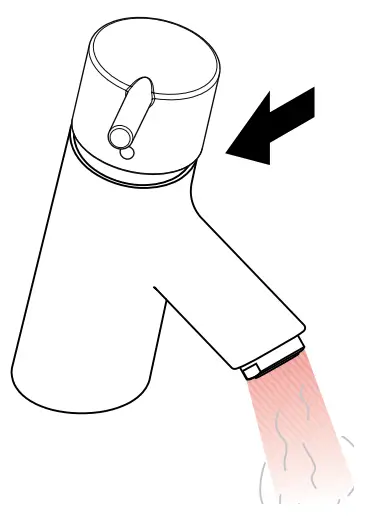

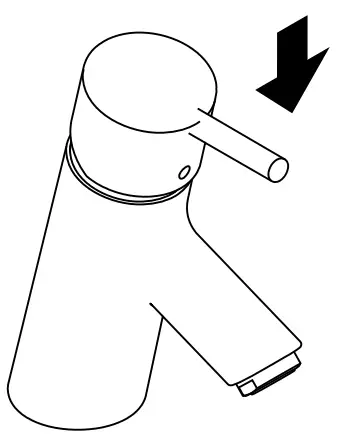

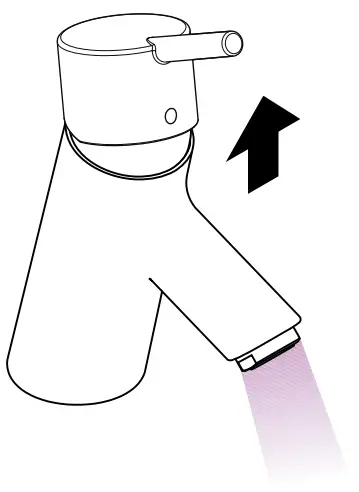

Operation

• open

• close

• cold

• hot


Cleaning

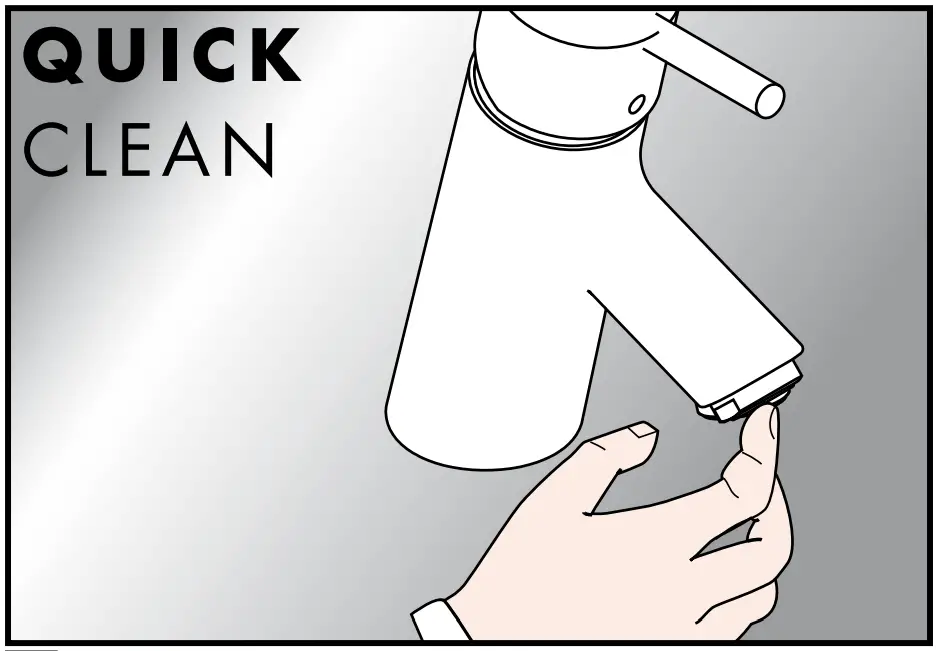

The QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels

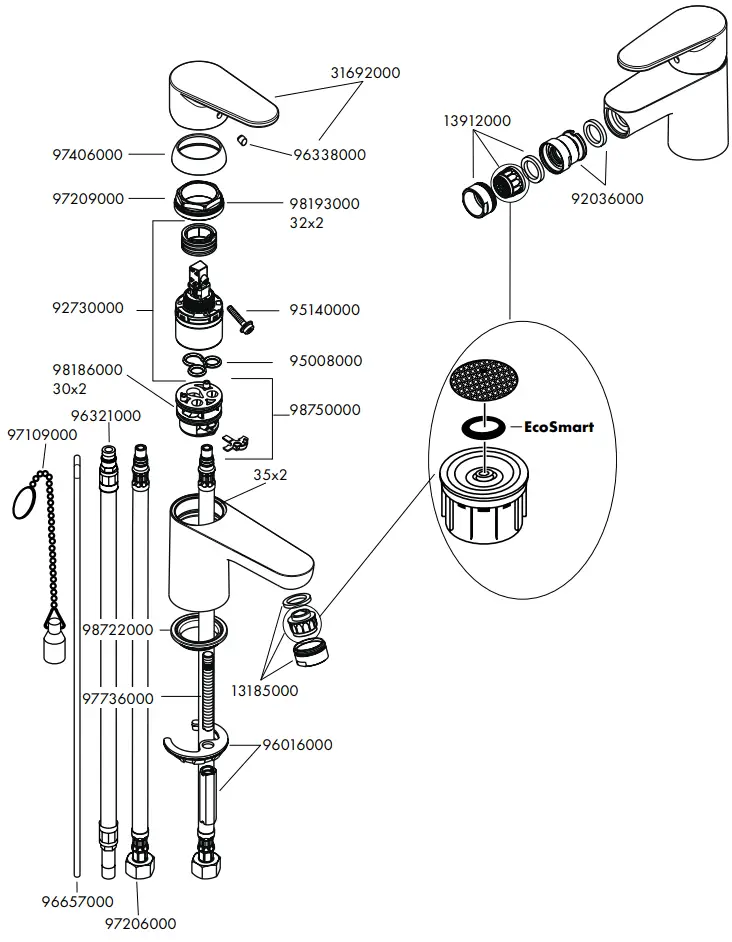

Spare parts

Test certificate

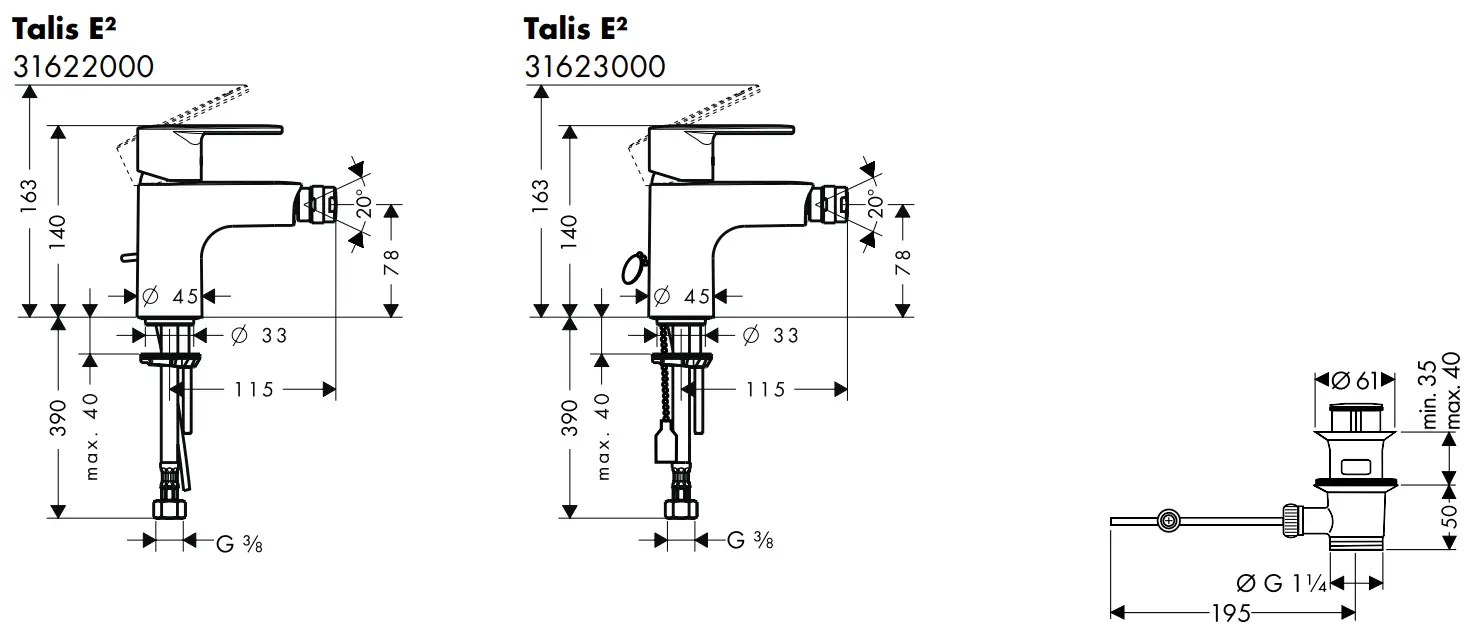

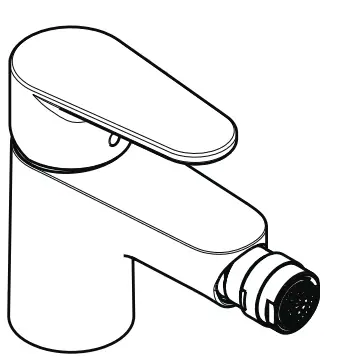

Other Model

Talis E²
31622000 / 31623000

Talis E²
31612000 / 31612007 / 31613000 / 31614000 / 31617000

Customer Service

Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
