Instructions for use / Assembly instructions
 |  |  |
| Talis M54 210 2jet 72800XXX Talis M54 210 Eco 2jet 72842XXX | Talis M54 210 1jet 72802XXX | Talis M54 270 1jet 72808XXX Talis M54 270 Eco 1jet 72845XXX |
Accepterad
monteringsanvisning
2021:1
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. The hot and cold supplies must be of equal pressures.Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
Technical Data
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 MPa (1 MPa = 10 bar = 147 PSI) |
| Hot water temperature: | max. 60°C |
| Thermal disinfection: | 70°C / 4 min |
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!

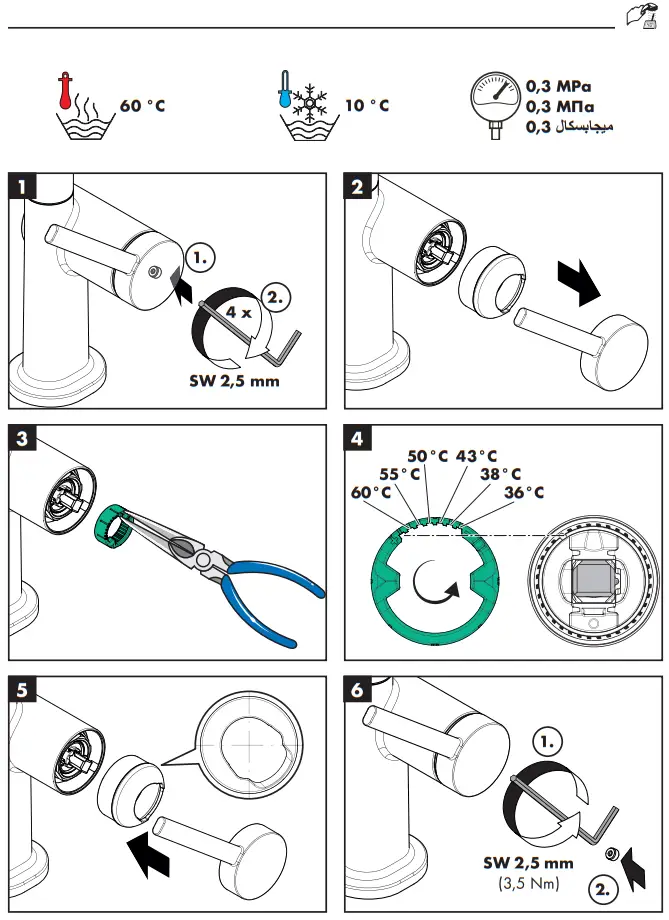

Adjustment (see page 41)
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

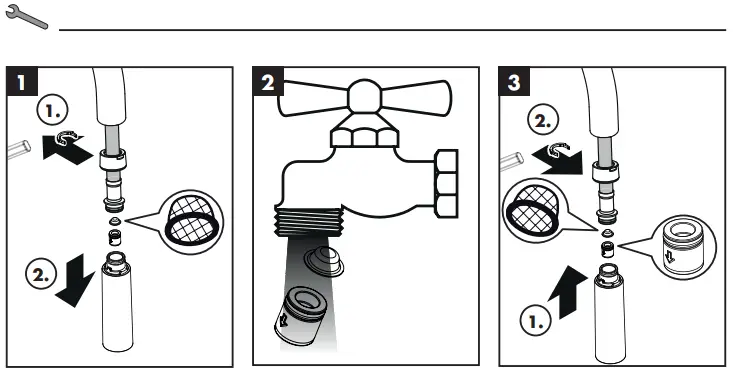

Maintenance (see page 48)
The check valves must be checked regularly according to EN 806-5 in accordance with national or regional regulations (at least once a year).

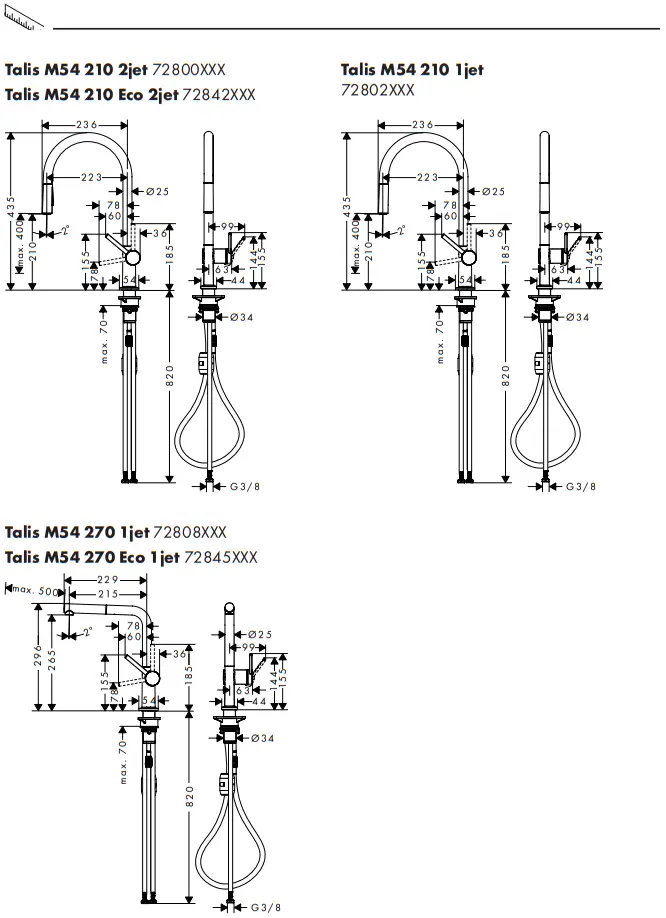

Dimensions (see page 42)

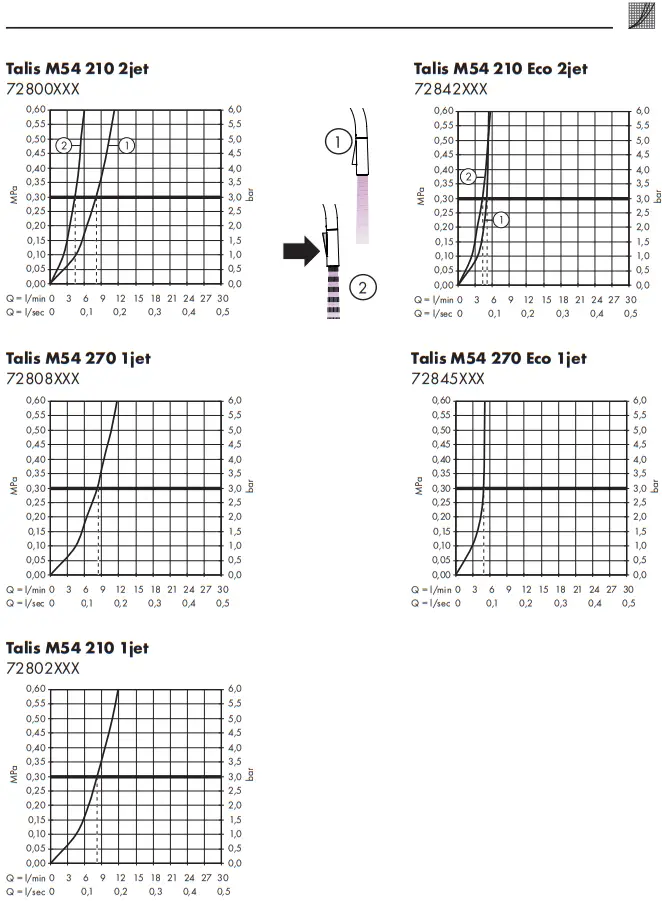

Flow diagram (see page 43)

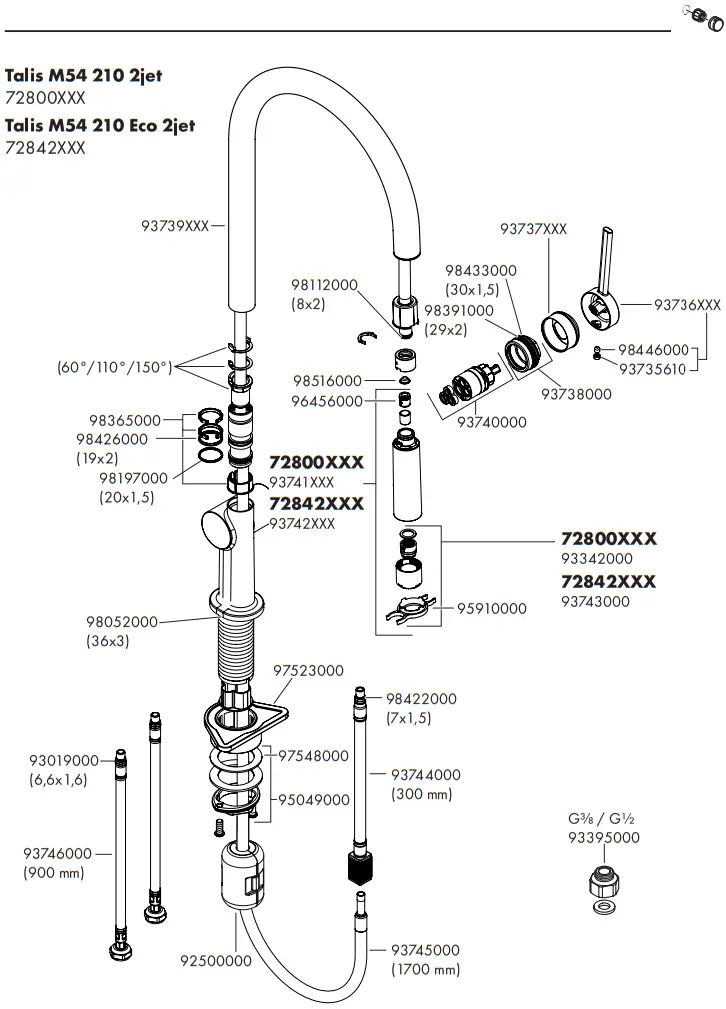

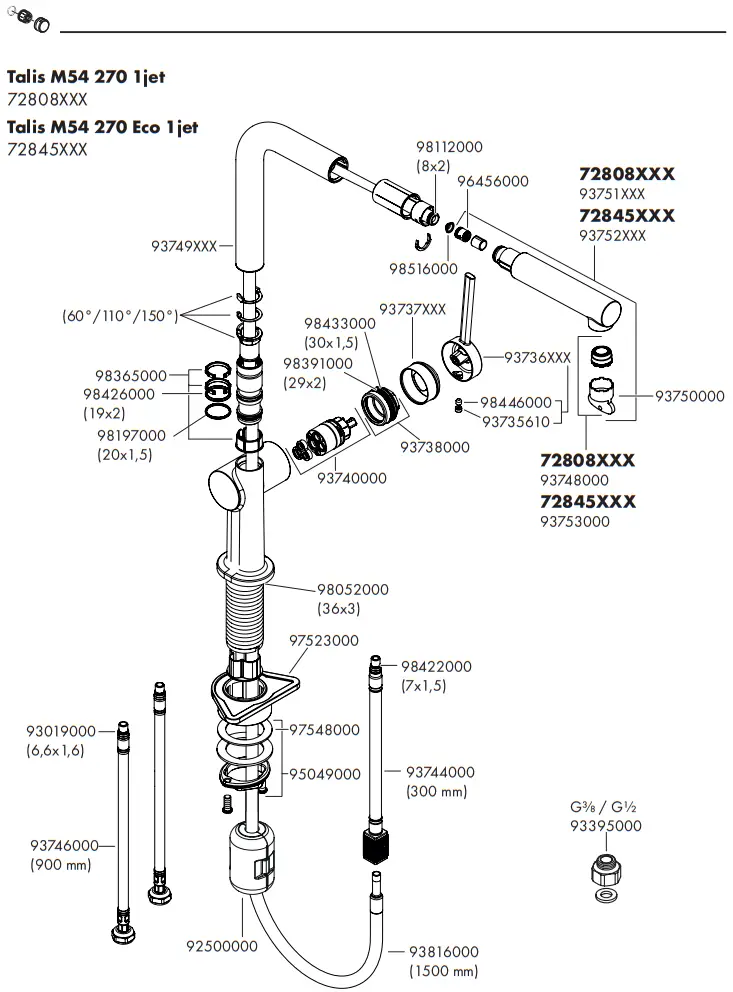

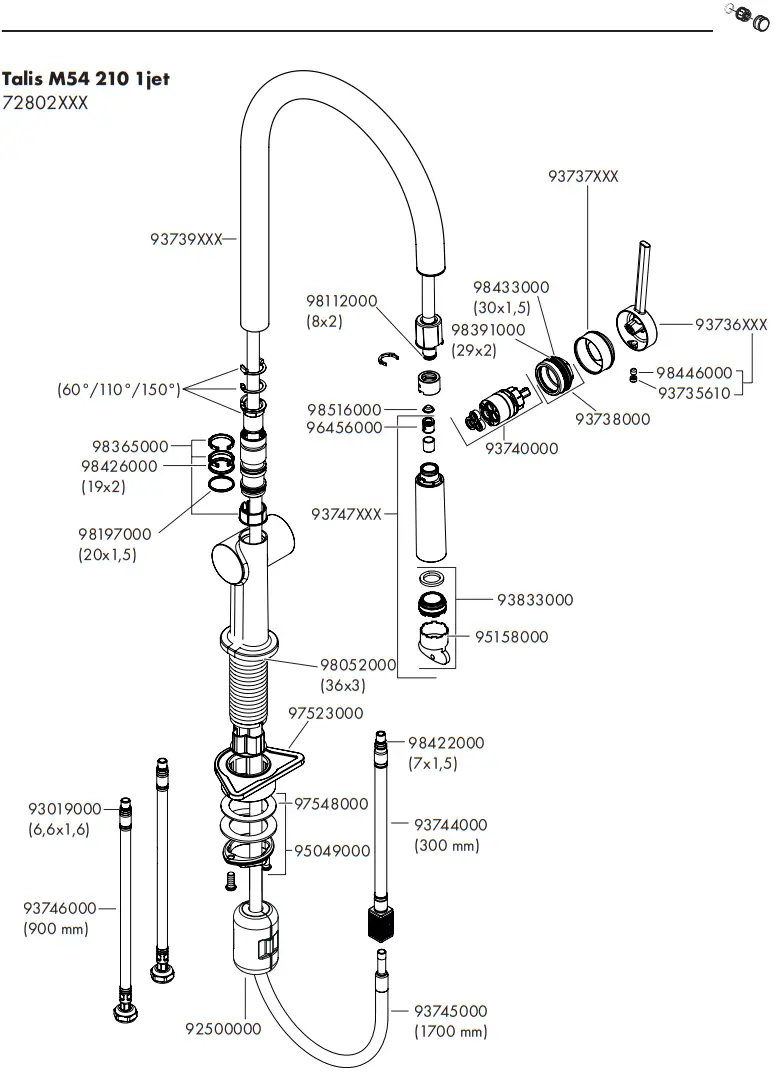

Spare parts (see page 47)
XXX = Colors
000 = Chrome Plated
340 = Brushed Black Chrome
670 = Matt Black
800 = Stainless Steel Optic
Special accessories (order as an extra)
Adapter (G⅜ / G½)
#93395000 (see page 47)
Cleaning (see page 44)
Operation (see page 44)
Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use.
Test certificate (see page 48)
| Fault | Cause | Remedy |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective | – Exchange cartridge |
| Water escaping in area of swivel spout | – O-ring defective | – Exchange O-ring |
| Water escaping at the threaded base | – connection hoses not completely screwed into basic body | – Tighten connection hoses by hand |
| – O-ring at the connection hose defective. | – Exchange O-ring | |
| Hot water temperature too low | – Hot water limiter incorrectly set | – Set hot water limiter |

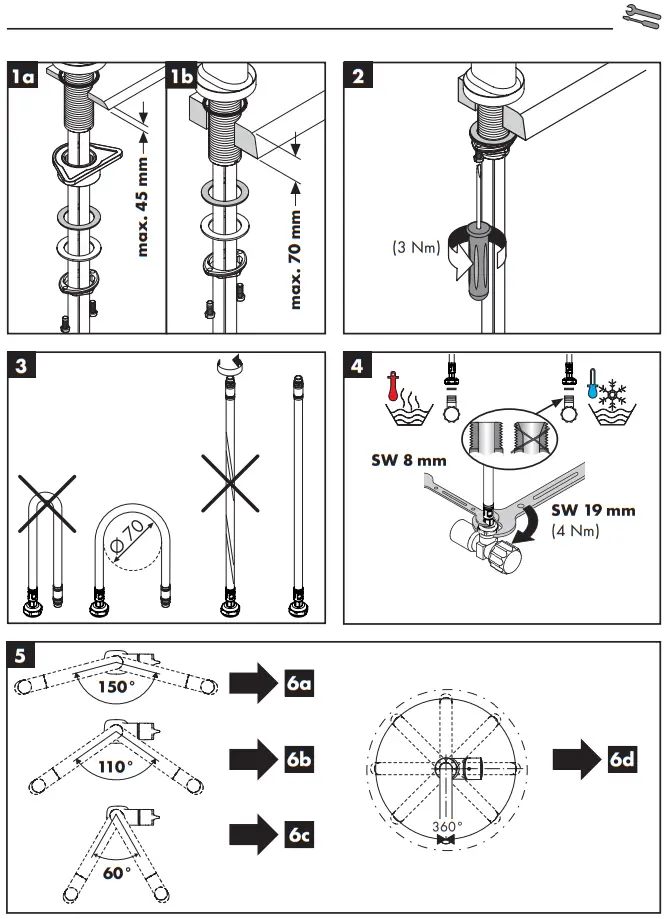

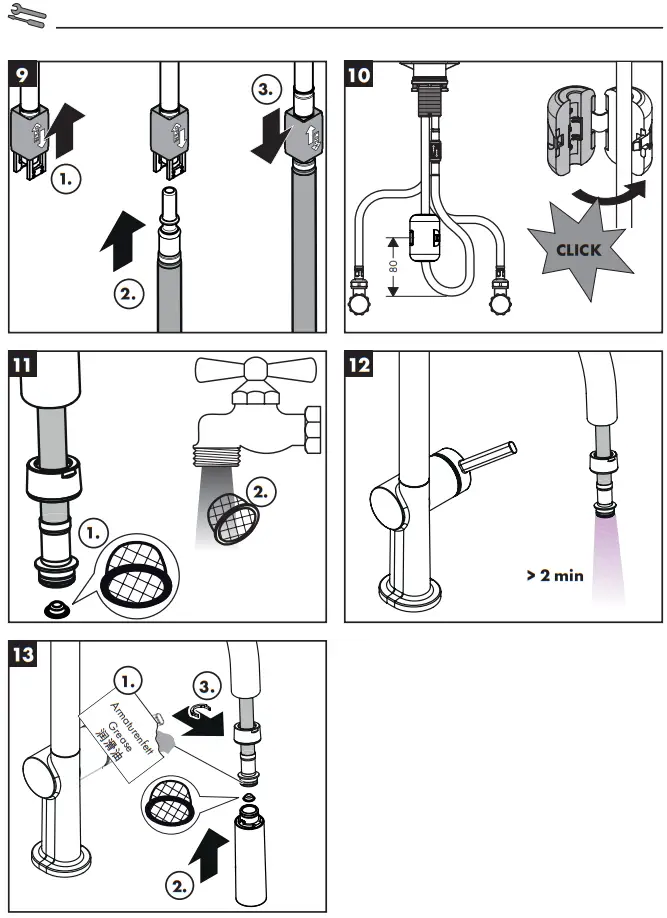

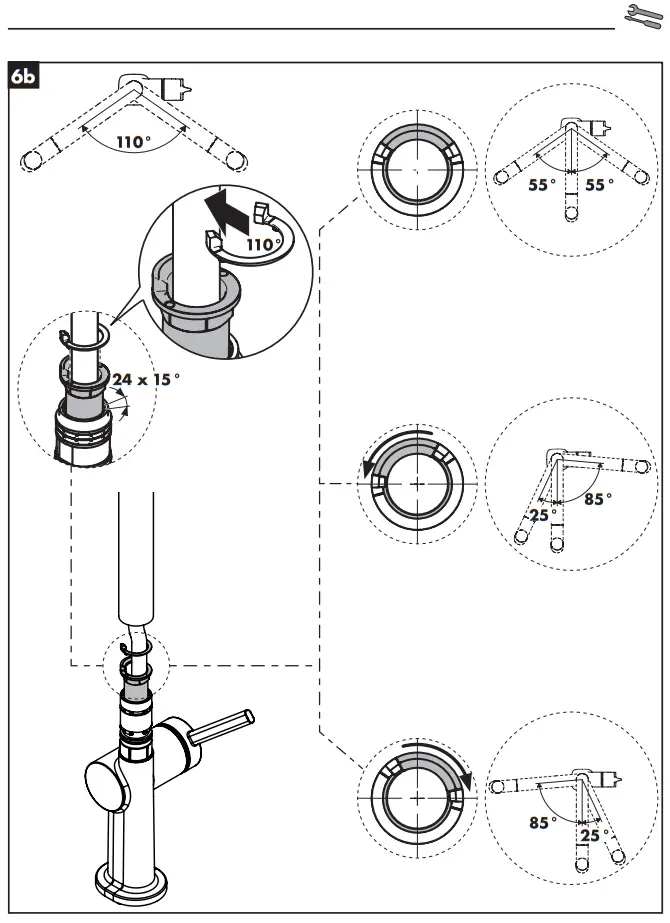

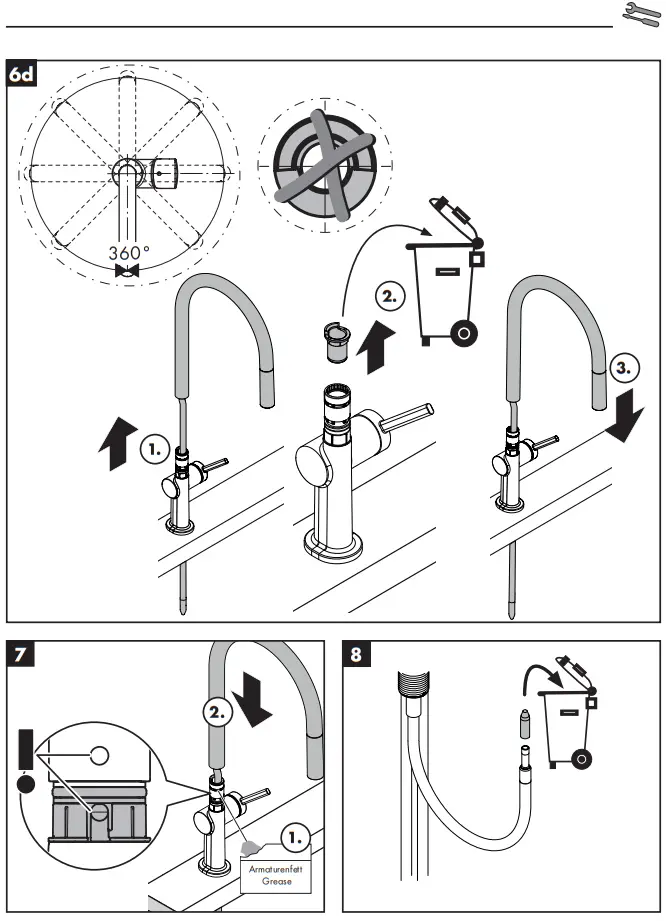

Assembly (see page 35)
www.hansgrohe.com/cleaning-recommendation
Cleaning recommendation / Warranty / Contact
| 72800XXX P-IX | 29737/IOO | DL0136 | X |
| 72802XXX P-IX | 29738/IA | DL0136 | X |
| 72808XXX P-IX | 29741/IO | DL0136 | X |
| 72842XXX P-IX | 29743/IOO | DL0136 | X |
| 72845XXX P-IX | 29745/IO | DL0136 | X |
