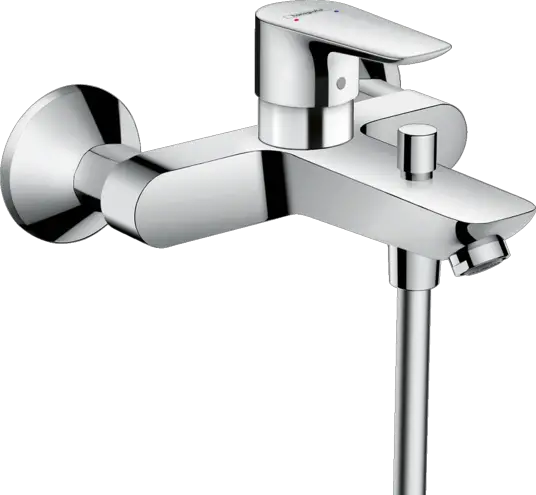

hansgrohe Talis E Single Lever Bath Mixer Owner’s Manual
Description
Product features
- 2 functions
- projection 194 mm
- connection type: s-shaped connections
- centre distance: 150 ± 12 mm
- spray type mixer: normal spray
- maximum flow rate at 3 bar: 19,2 l/min
- flow rate for bath spout at 3 bar: 19,2 l/min
- flow rate of hand shower at 3 bar: 16,8 l/min
- ceramic cartridge
- temperature limitation adjustable
- diverter with automatic resetting
- with silencer
- suitable for continous flow water heaters
- connection dimension: DN15

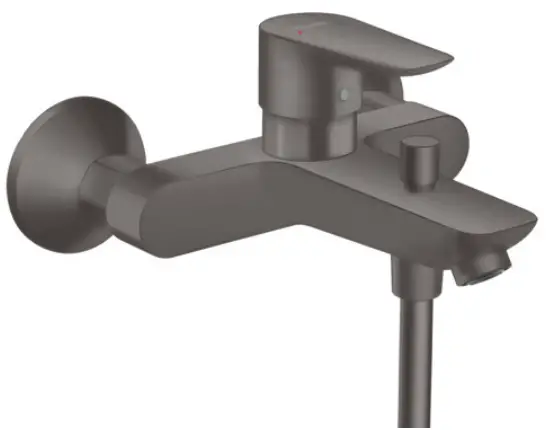

Product image
Technology
Design awards

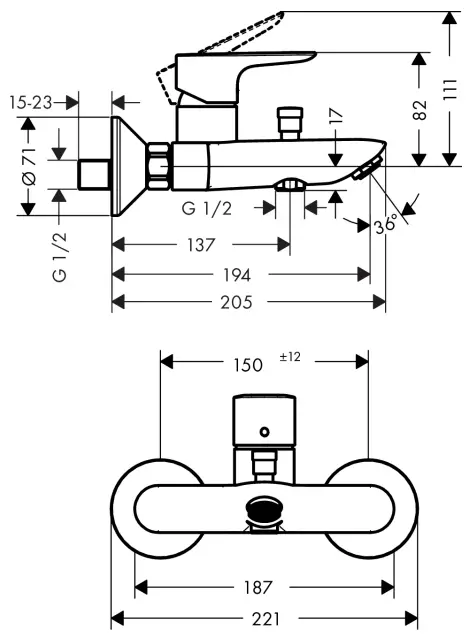

Scale drawing

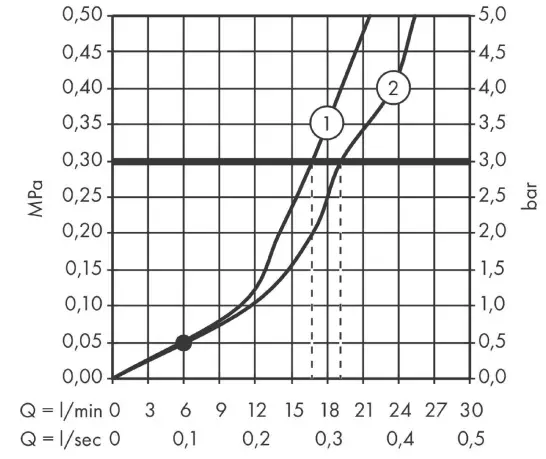

Flowchart
- Shower outlet with 1B resistance
- BathSpout

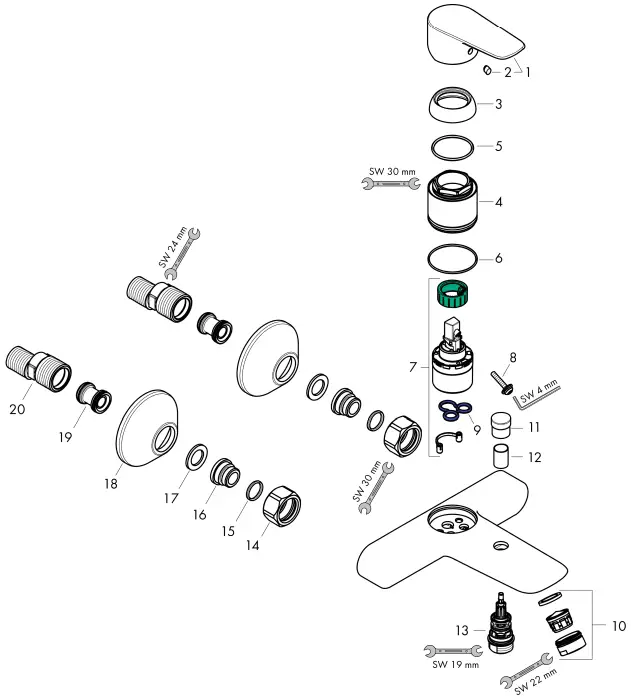

Exploded Drawing
Year of production: >11/19
Spare part list
| Pos. | Description | Article Number | Price | PU |
| 1 | handle | 92666340 | – | 1 |
| 2 | screw cover | 96338000 | – | 1 |
| 3 | flange | 97406340 | – | 1 |
| 4 | nut | 97977XXX | – | – |
| 5 | 0-Ring 32×2 | 98193000 | – | 1 |
| 6 | 0-ring 33×1,5 | 98164000 | – | 1 |
| 7 | cartridge, assy | 92730000 | – | 1 |
| 8 | locking screw for handle | 95140000 | – | 1 |
| 9 | seal | 95008000 | – | 1 |
| 10 | aerator M24x1 (30 I/min) | 96512340 | – | 1 |
| 11 | diverter knob | 97981340 | – | 1 |
| 12 | sleeve | 97979340 | – | 1 |
| 13 | selector | 97978000 | – | 1 |
| 14 | set of nuts | 96157340 | – | 1 |
| 15 | 0-ring 15×2 | 98163000 | – | 1 |
| 16 | connecting thread | 97220000 | – | 1 |
| 17 | filter packing | 96922000 | – | 1 |
| 18 | escutcheon 0 70 mm | 94135340 | – | 1 |
| 19 | set of S-unions (±12 mm) | 94140000 | – | 1 |
| 20 | noise reduction | 96429000 | – | 1 |
