Hansgrohe Carlton Bath Mixer With Lever Handles Instruction Manual

 Instructions for use
assembly instructions

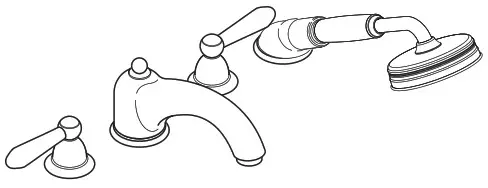

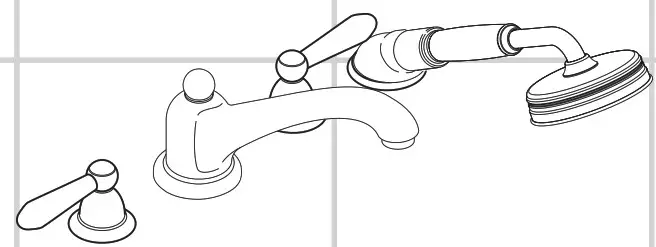

Carlton
17455XXX

 Safety Notes

⚠ Gloves should be worn during installation to prevent crushing and cutting injuries.
⚠ The shower system may only be used for bathing, hygienic and body cleansing purposes.
⚠ The hot and cold supplies must be of equal pressures.
⚠ Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
⚠ The product may not be used as a holding handle. A separate handle must be installed.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms.

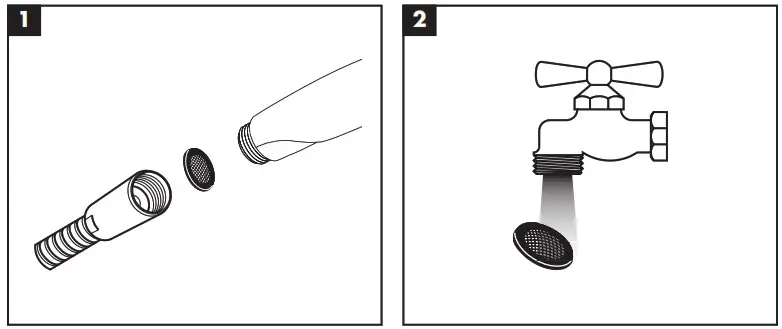

• The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.

Technical Data

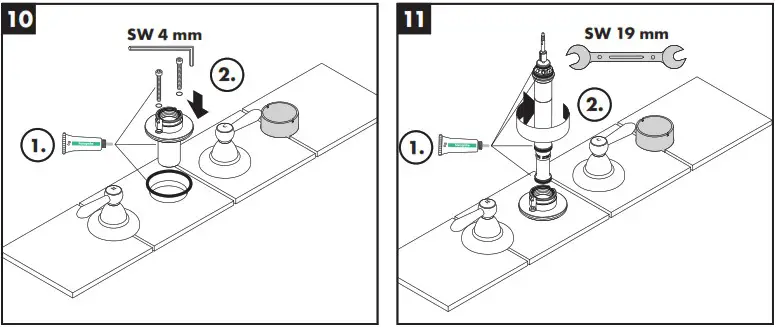

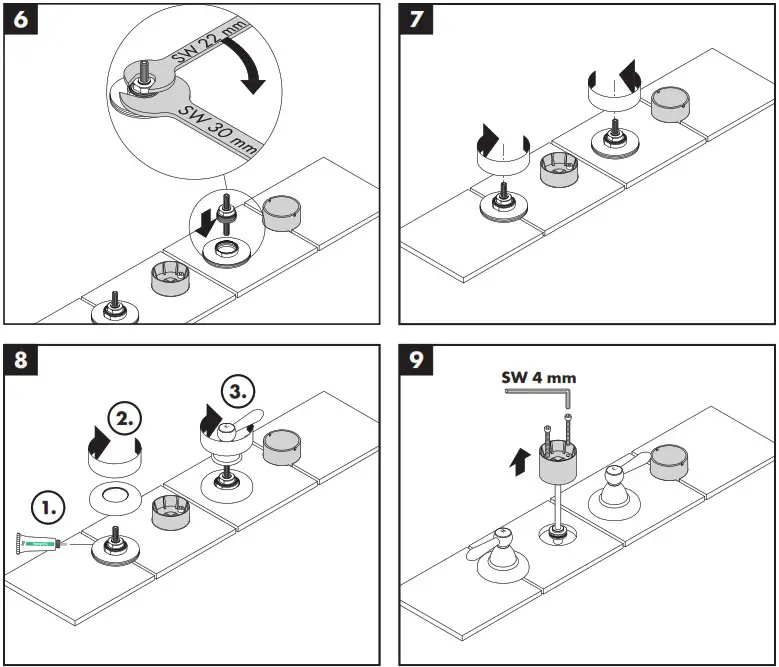

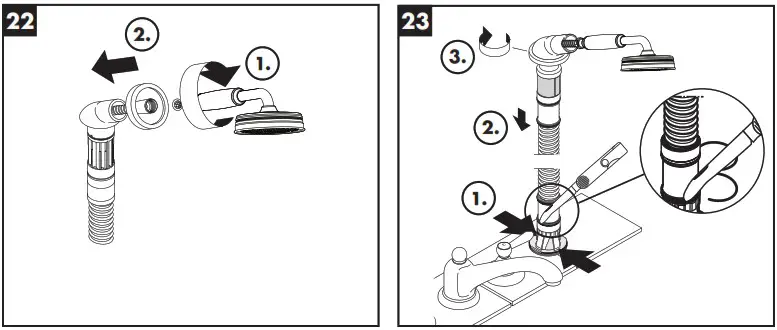

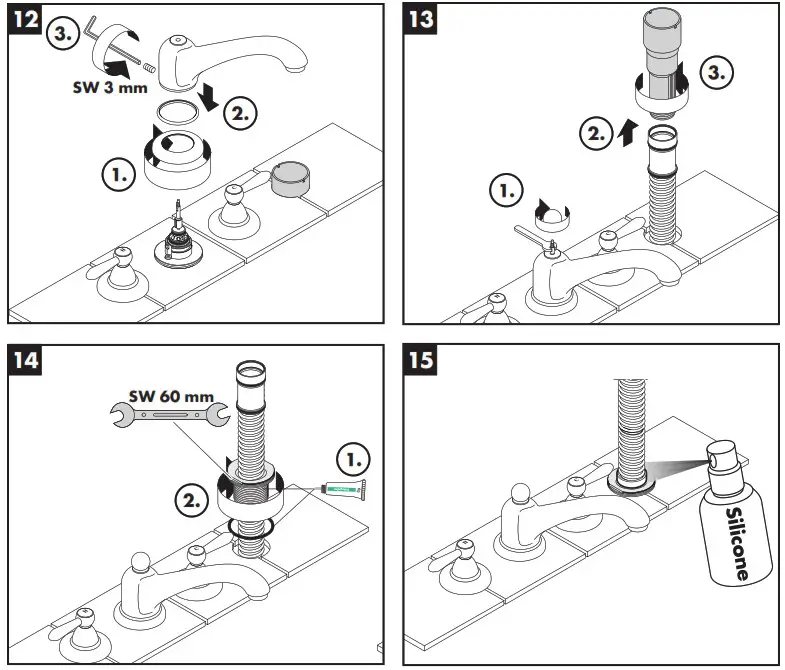

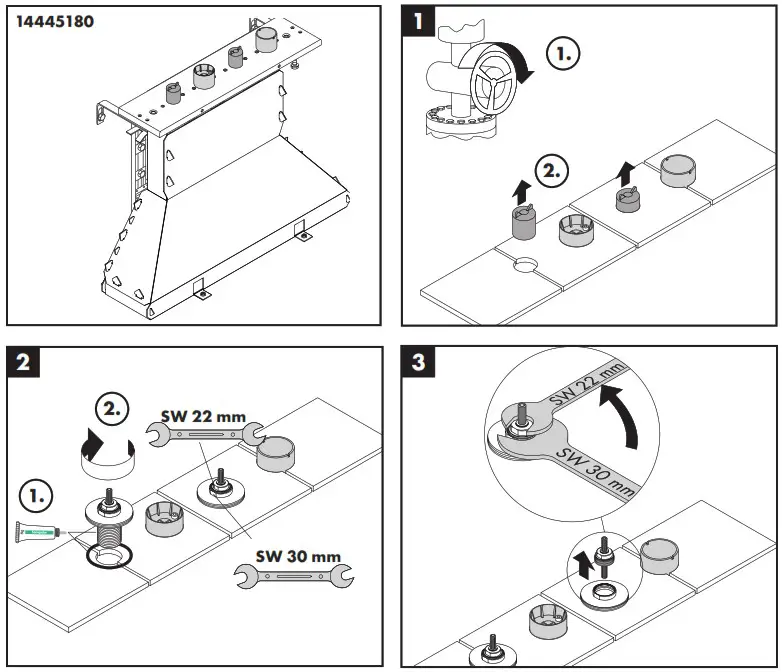

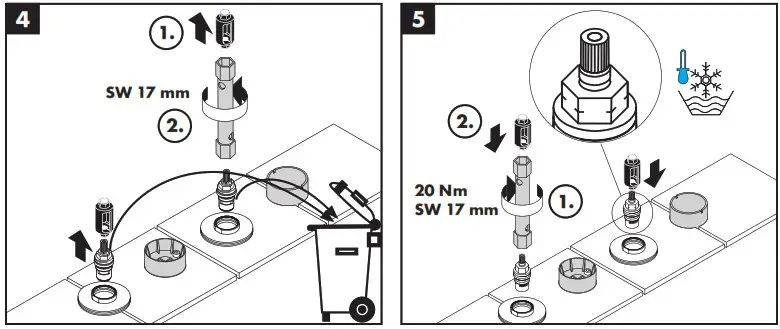

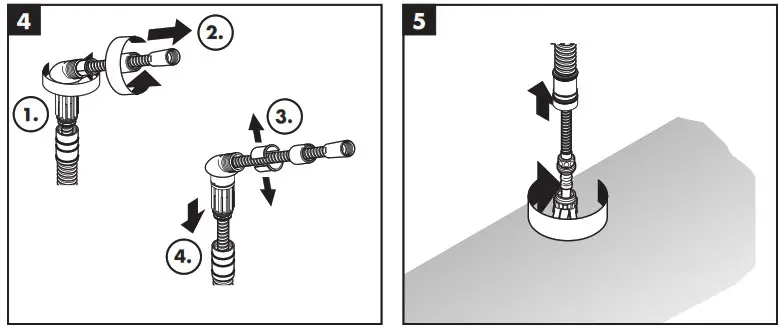

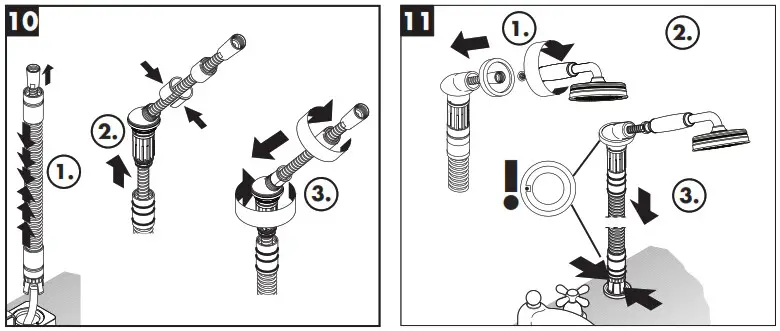

Assembly

 Maintenance non return valve

The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

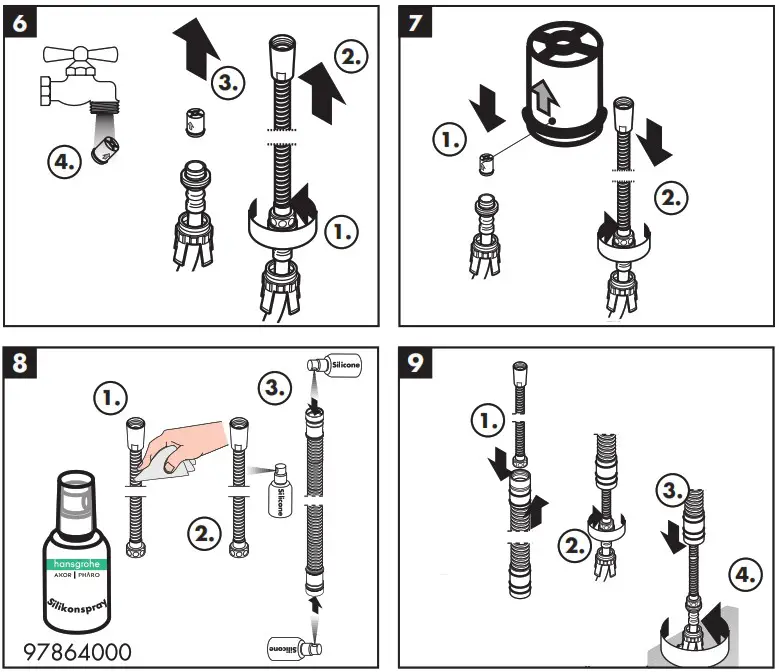

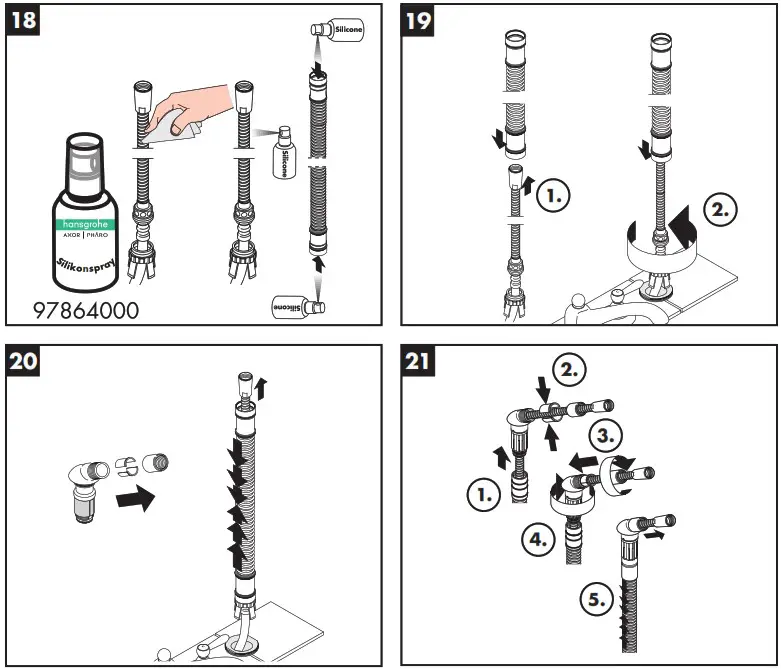

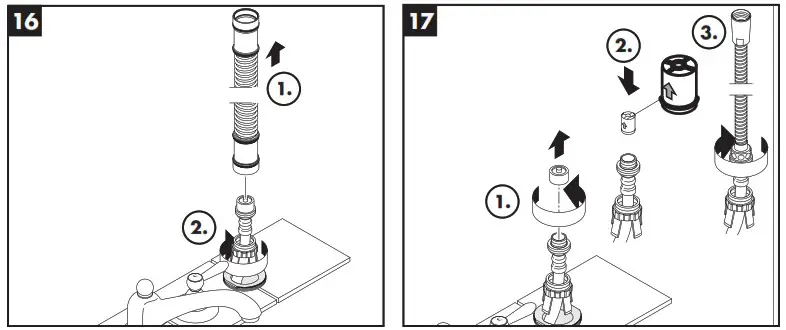

Maintenance Sikaflex hose
Repeat cleaning when pull out becomes difficult.

Do not use silicone containing acetic acid!

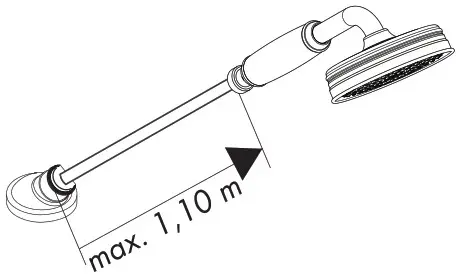

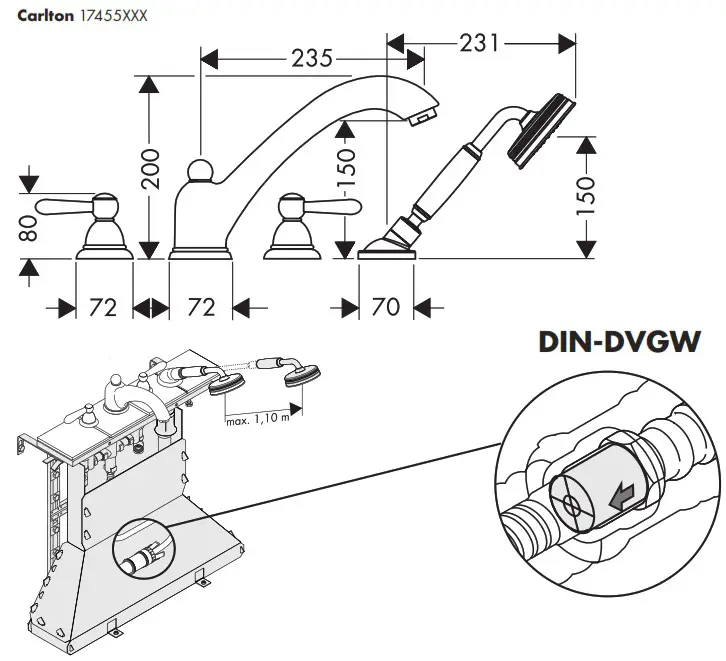

 Dimensions

Flow diagram

1. Hand shower
2. Bath Spout

Spare parts

XXX = Colors
000 = chrome plated
090 = chrome plated/gold plated

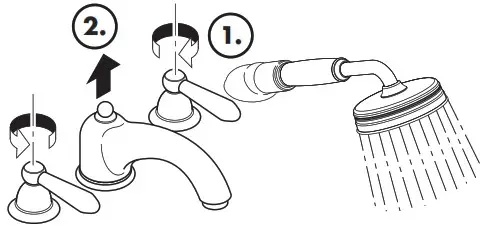

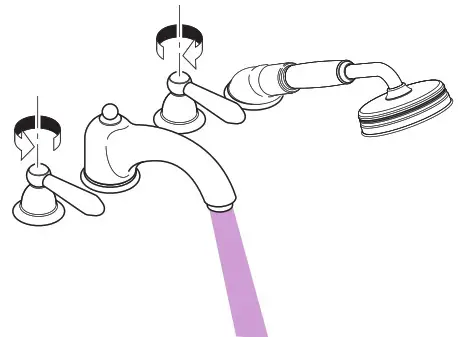

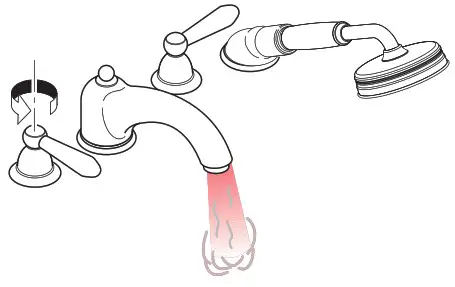

Operation

open	close
cold	hot

Cleaning

and enclosed brochure

Test certificate

Hansgrohe · Postrace 1145 · D-77761 SciTech·
Telecon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
