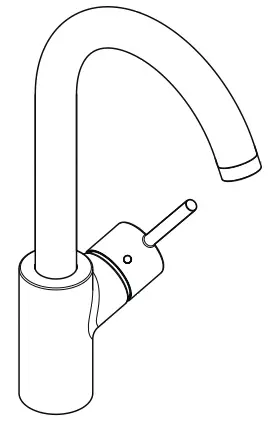

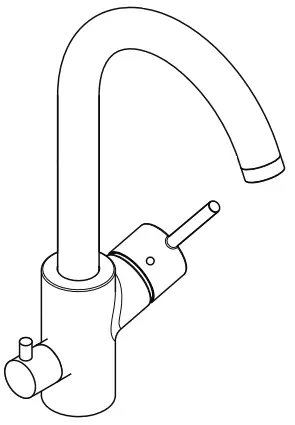

hansgrohe Talis S2 Variarc 14875XXX Kitchen Mixer

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.

The hot and cold supplies must be of equal pressures.

Only dishwashers and washing machines certified with the DVGW emblem may be connected to the appliance connection valve without an additional fuse. If no consumer is connected to the appliance connection valve, it must be plugged.

Installation Instructions

• The fitting must be installed, flushed and tested after the valid norms!

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Rate of flow by 0,3 MPa: 10 l/min

Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

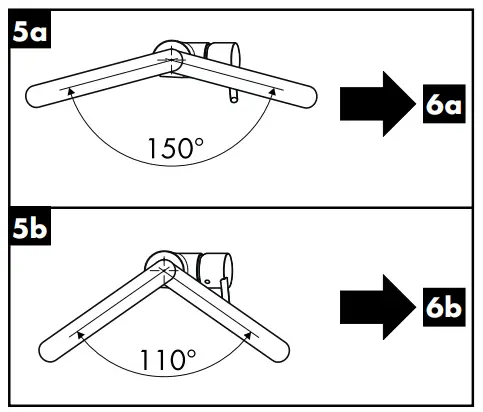

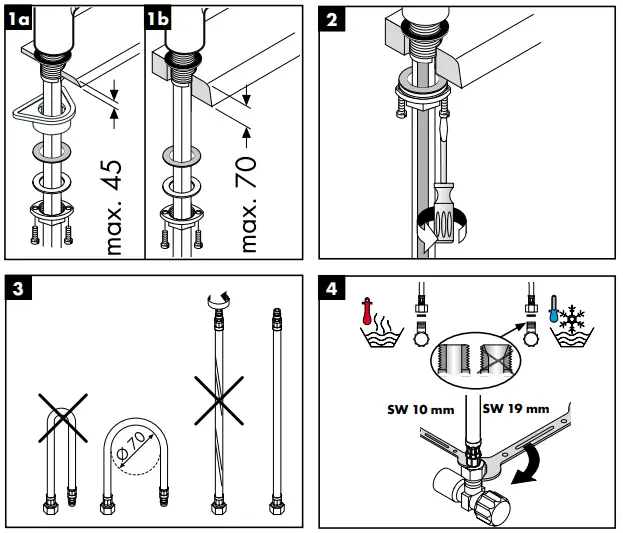

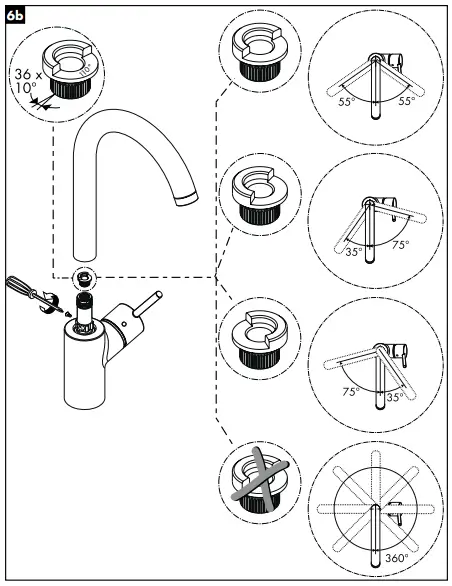

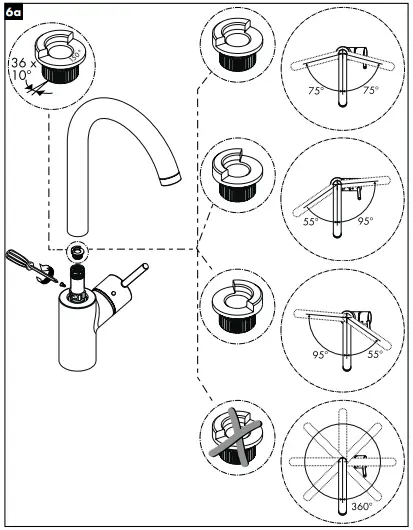

Assembly

To adjust the hot water limiter on single lever mixers, please see page 23. No adjustment is necessary when using a continuous flow water heater.

Do not use silicone containing acetic acid!

Cleaning

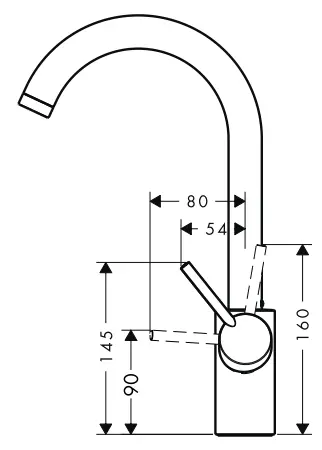

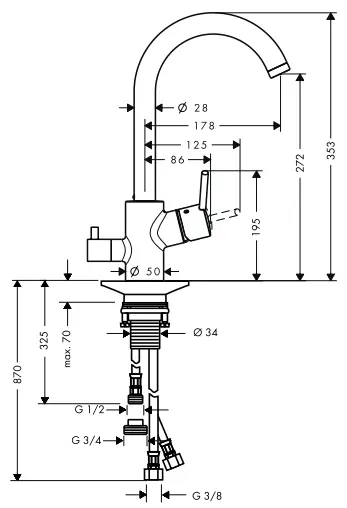

Dimensions

Talis S² Variarc

14870XXX

Talis S² Variarc

14875XXX

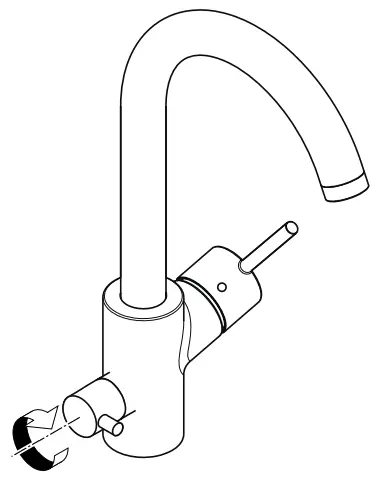

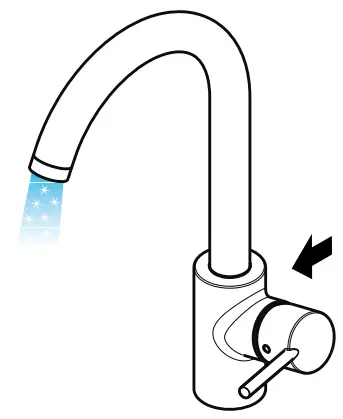

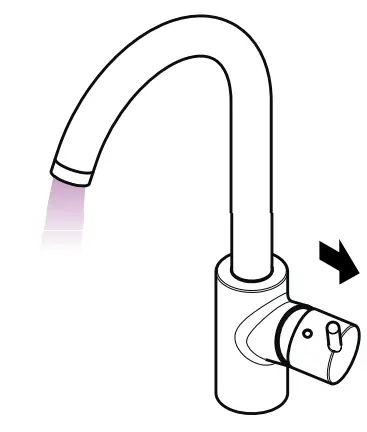

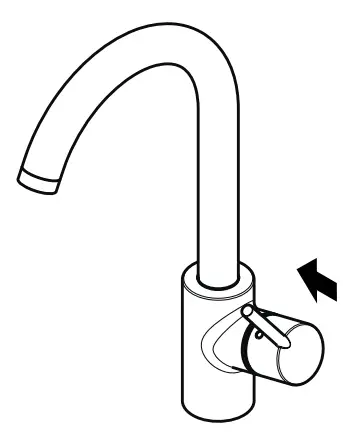

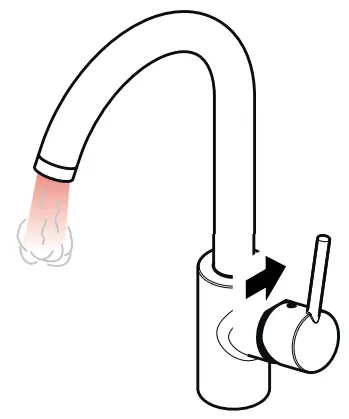

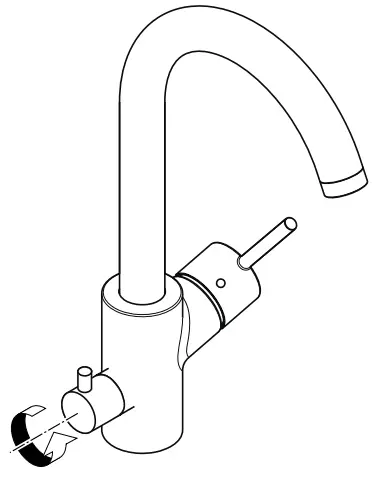

Operation

• open

• close

• hot

• cold

• open

• close

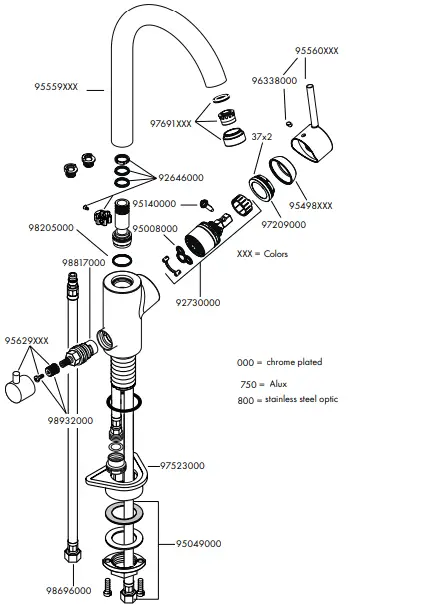

Spare parts

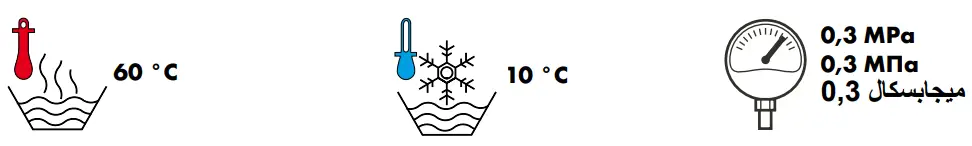

Operating Instruction

Test certificate

Other Models

Talis S² Variarc
14875XXX

Talis S² Variarc
14870XXX

Customer Support

Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
