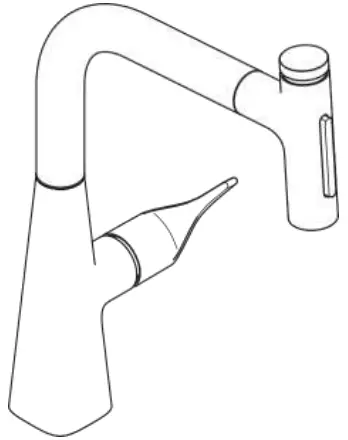

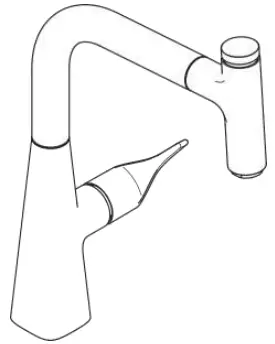

hansgrohe 73817800 Metris Select Kitchen Mixer

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.

The hot and cold supplies must be of equal pressures.

Installation Instructions

Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
The plumbing codes applicable in the respective countries must be observed.
During initial start-up and after servicing, air in the fittings can cause noise. After switching the jet on and off about 15 times, the noise will stop.

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 70°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min

The product is exclusively designed for drinking water!

Symbol description

Do not use silicone containing acetic acid!
Adjustment

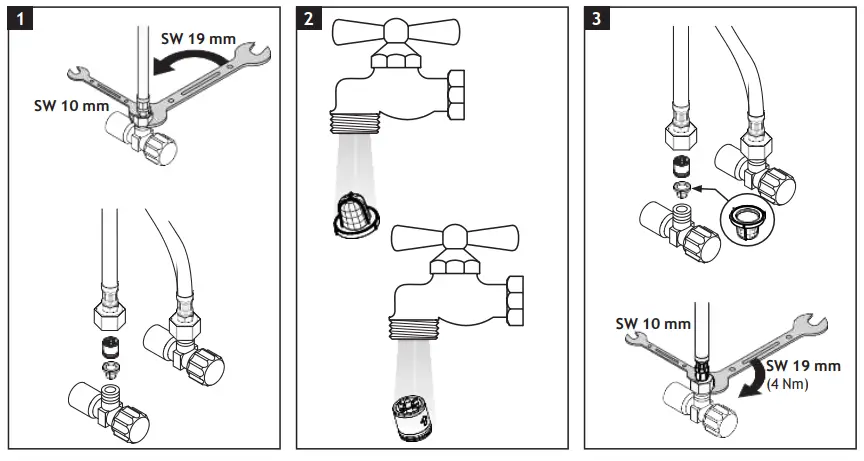

Maintenance
Dimensions
Flow diagram
Spare parts
Special accessories (order as an extra)
Cleaning
Operation

Troubleshooting

Fault	Cause	Remedy
Mixer stiff	– Cartridge defective, calcified	– Exchange cartridge
Mixer dripping	– Cartridge defective	– Exchange cartridge
Water escaping at the threaded base	connection hoses not completely screwed into basic body O-ring at the connection hose defective.	Tighten connection hoses by hand Exchange O-ring
Hot water temperature too low	Hot water limiter incorrectly set	Set hot water limiter
Low flow with Select valve after valve replacement	Improper Select valve installed	Replace Select valve (#98463000)
Select button stiff	Select button soiled	Clean Select button and grease #98201000 O ring (see page 40)

Operation

Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use.
Minor leaking may occur briefly at the spout when opening the fitting via the lever.

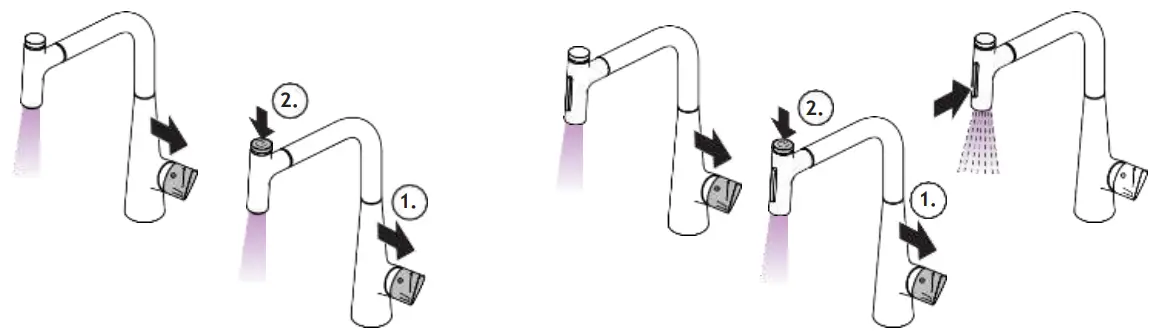

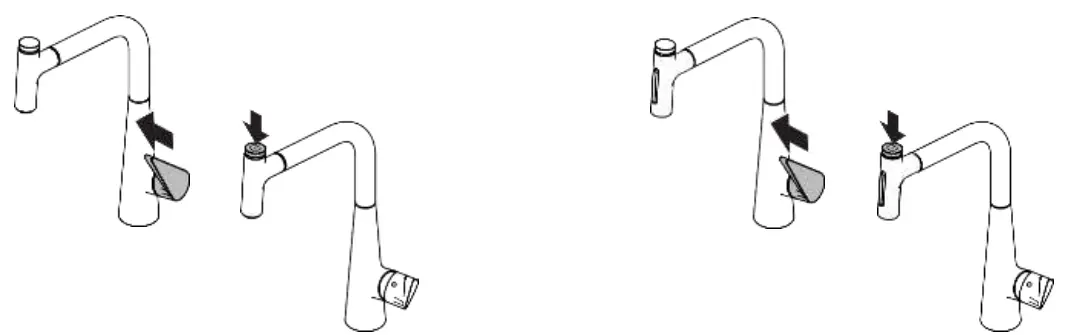

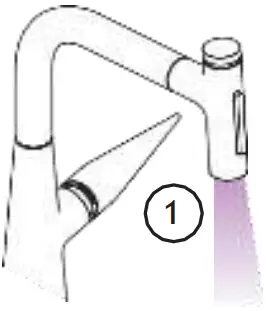

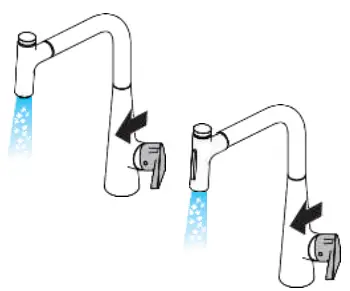

Use the lever to open the tap and set the desired temperature. The water flow can be paused by pressing the Select button on the face side of the spout. When the tap is not used for a longer period of time, f.e. when retiring at night or leaving the house, it must be closed completely by means of the lever.
open
close
hot
cold

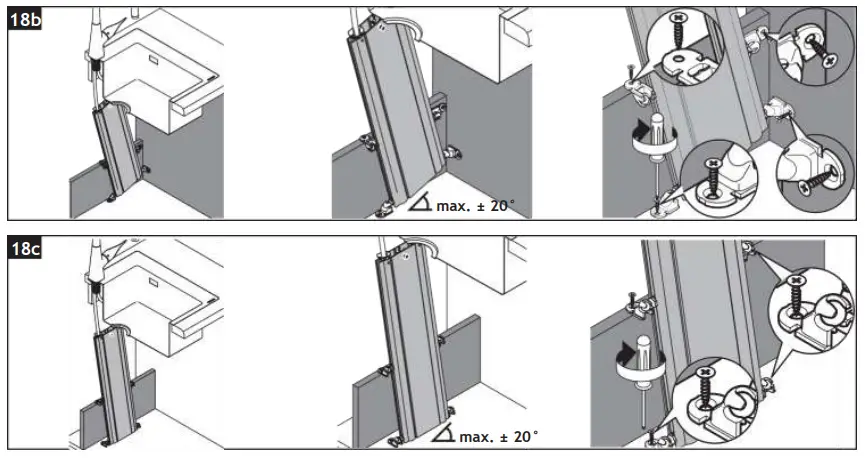

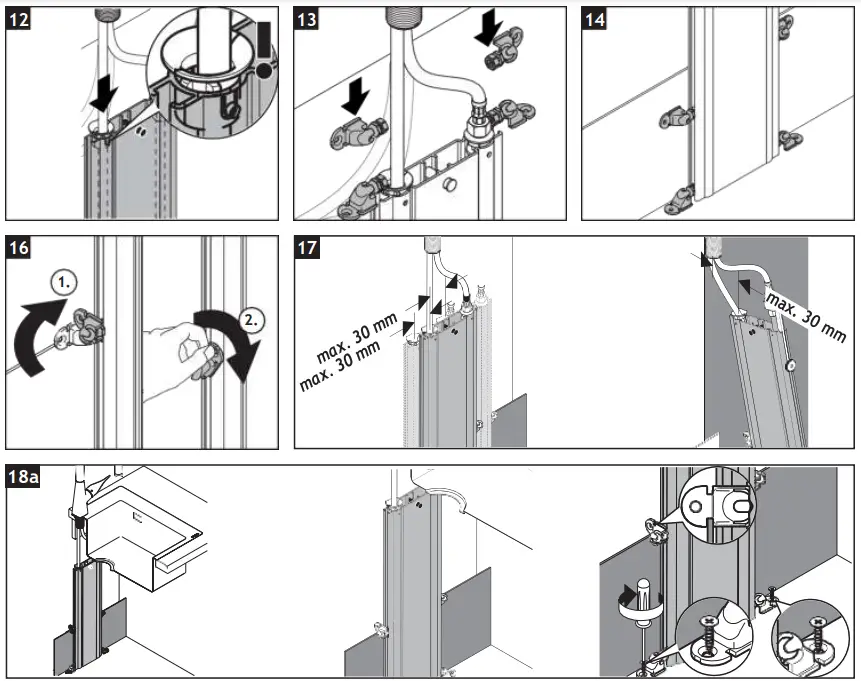

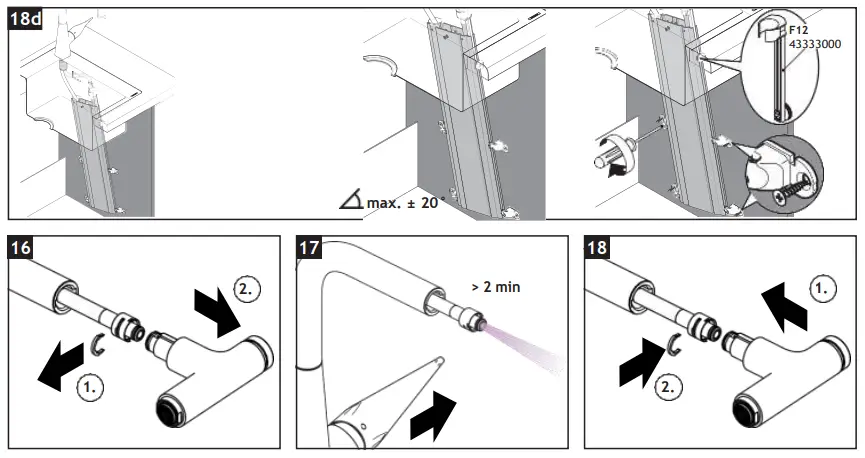

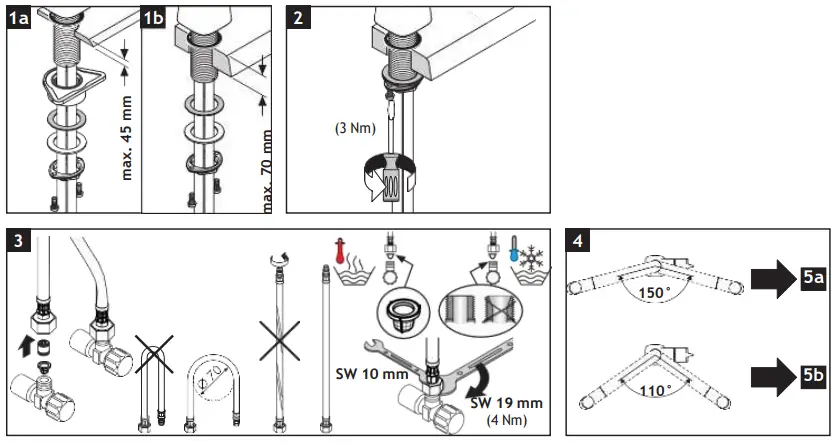

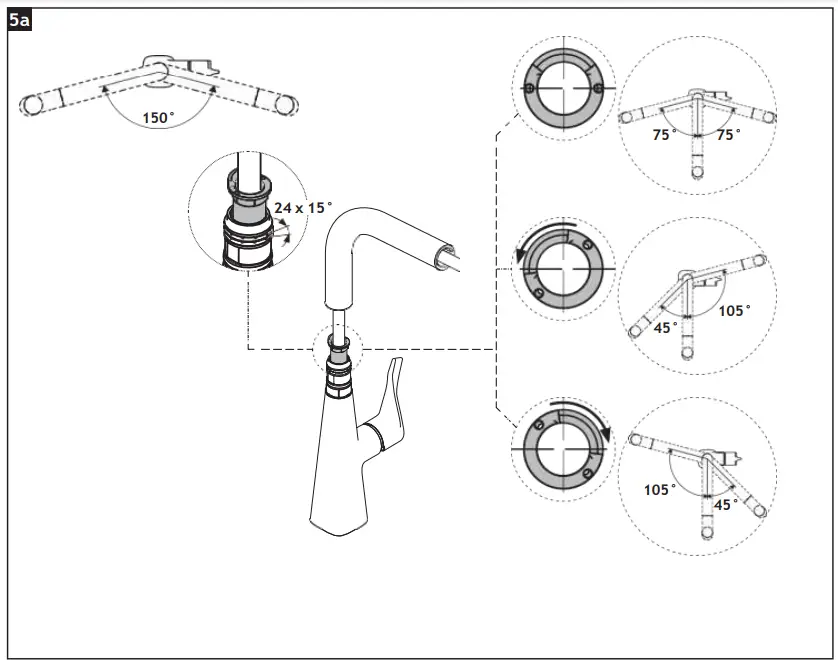

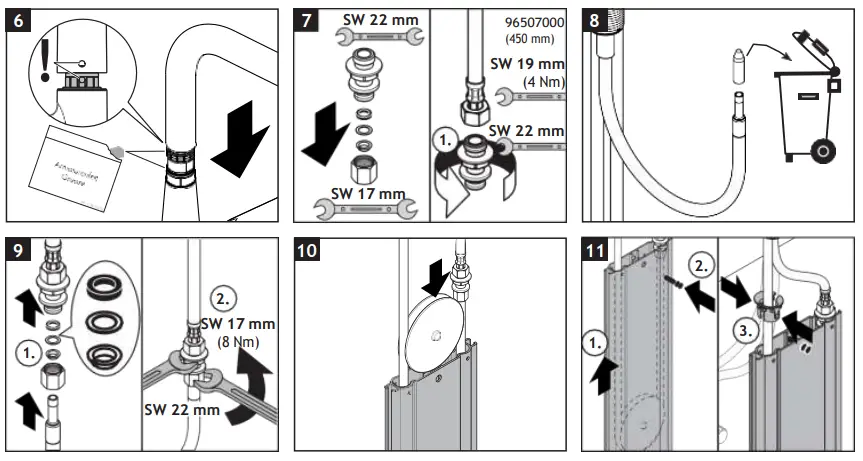

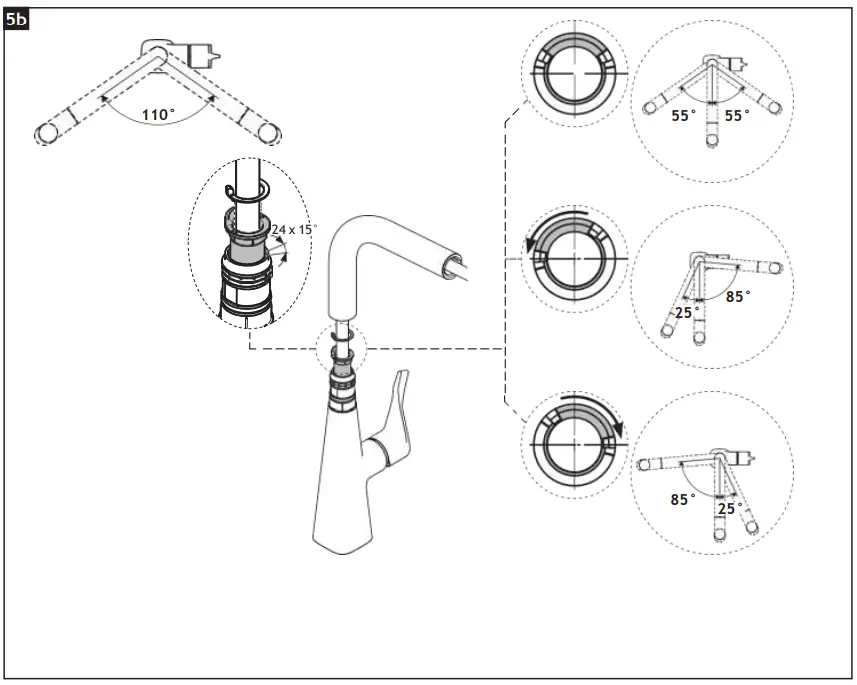

Assembly

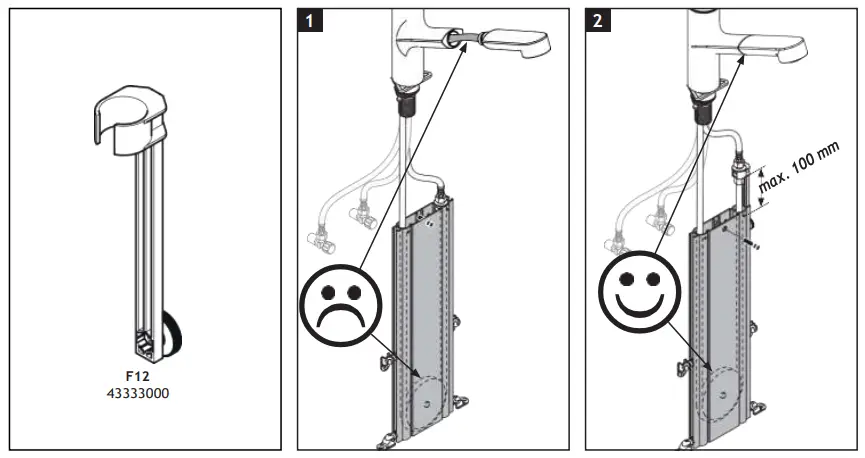

Special accessories

extension #43333000

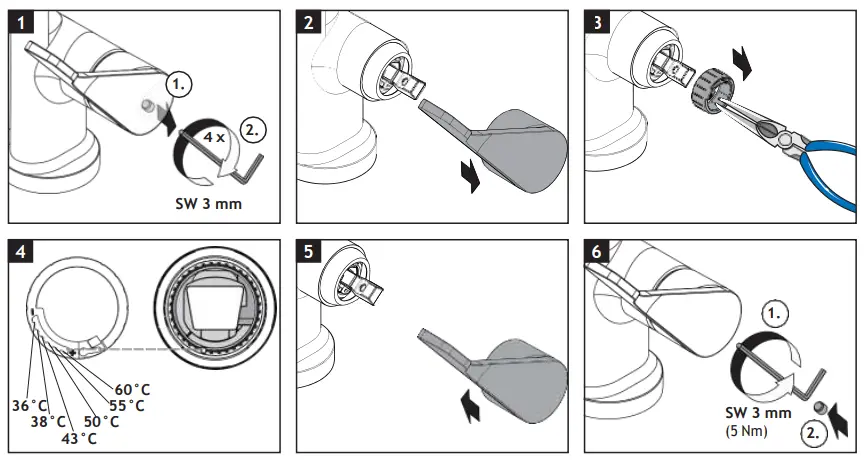

Adjustment

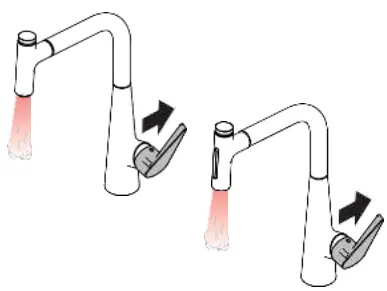

To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

Maintenance

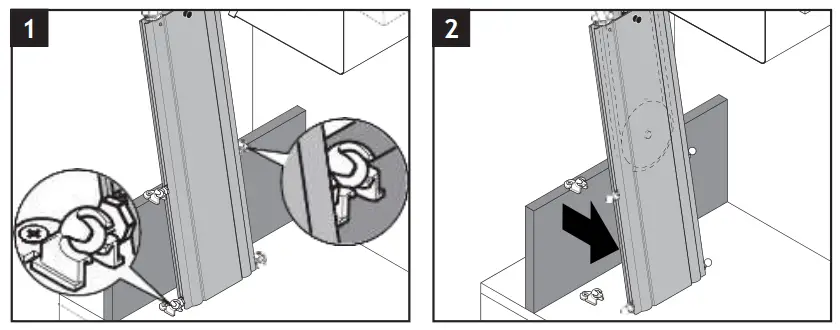

Cleaning

Cleaning recommendation / Warranty / Contact

http://www.hansgrohe.com/cleaning-recommendation

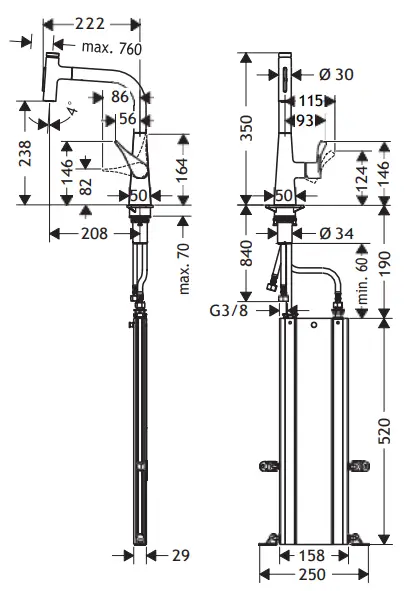

Dimensions

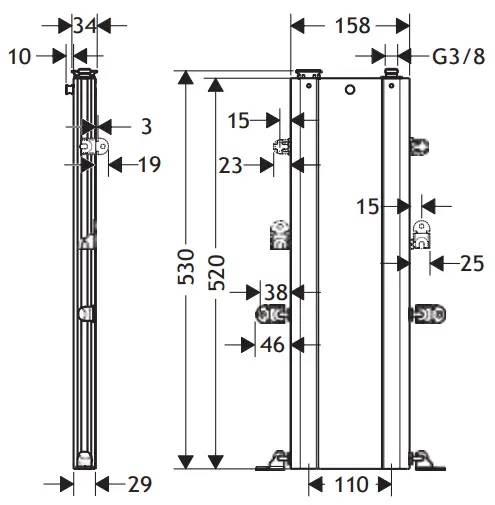

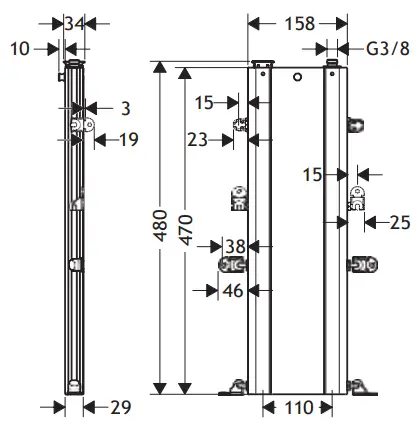

Metris Select M71 240 1jet sBox
73802XXX

Metris Select M71 240 2jet sBox
73817XXX

Metris Select M71 240 2jet sBox
72834000

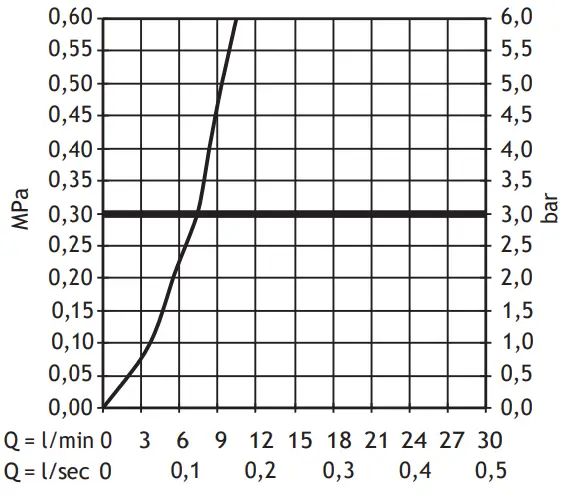

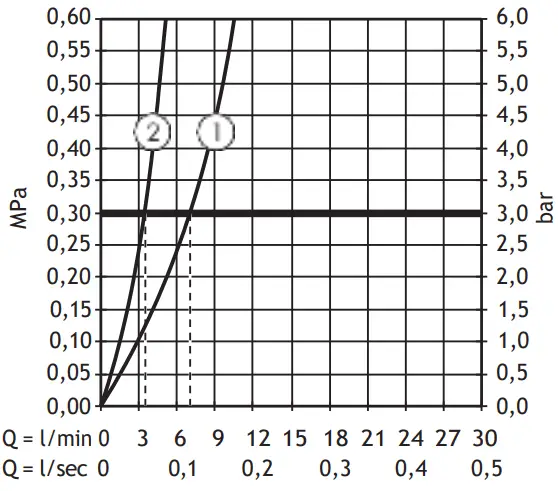

Flow diagram

Metris Select M71 240 1jet sBox
73802XXX

Metris Select M71 240 2jet sBox
73817XXX / 72834000

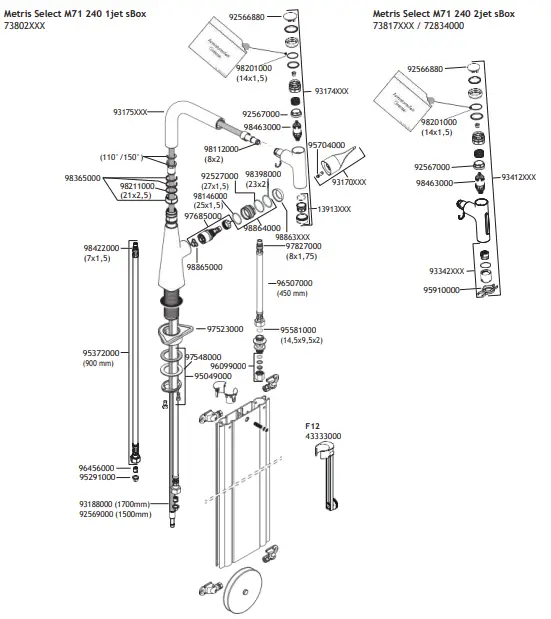

Spare parts

Test certificate

	P-IX	DVGW	SINTEF	NF		ETA	GODKENDT TIL DRIKKEWAND
73802XXX	P-IX 29603/IA				X
73817XXX	P-IX 16917/IOO				X
72834000

Other models

Metris Select M71 240 1jet sBox
73802XXX

Customer Support

Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com

9/2019
9.05935.04
